Manufacturer
Dacor
Model Number
HWO227PS
Description
Hwo227ps - Ovens
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 82195 | 1 2FLEX 90 DGR CONNECTOR;82195,DO130 |
| 105288 | 16 GA CRS, 48 X 96" |
| 80518 | 16GA GALVANIZED, STE |
| 80208 | 18 GA GALVANIZED STE |
| 80517 | 18GA GALVANIZED, 48" |
| 80509 | 18GA.VIT,52.5"X96"ST |
| 80074 | 20 GA GALVANIZED,48" |
| 80516 | 20 GA GALVANIZED;80516,"48""X96""",D |
| 80275 | 20 GA GALVANNEALED S |
| 80550 | 20 GA,GALVANIZED STE |
| 80551 | 24 GA GALVANIZED STE |
|
|
ACCY SS CLEANER;100852,DCT305B/LP |
| 105470-01 | AIR DEFLECTOR LH DOOR;105470-01,DTO1 |
| 105470-02 | AIR DEFLECTOR RH DOOR;105470-02,DTO1 |
| 80434 | ALUMINIZED,18 GA, 48 |
| 703338FAH-02 | ASSY 1 BEZEL DBLE;703338FAH-02,HWO22 |
| 702839-02 | ASSY SUB CHASSIS DBLE;702839-02,HWO2 |
| 703338-02 | ASSY, 1" BEZEL, DBLE |
| 700661 | ASY 3000W BROILER;700661,ER30D-C-SCH |
| 13659AH-002 | ASY DOOR HANDLE 27;13659AH-002,HWO12 |
| 702376-01 | ASY DOOR HANDLE PRO;702376-01,DTO127 |
| 702376AH-01 | ASY DOOR HANDLE PRO;702376AH-01,HWO1 |
| 701827-01 | ASY DOOR LINER 1 REG;701827-01,DTO12 |
| 113646 | ASY LIGHT HALOGEN 20W;113646,HDER30C |
| 703343-02 | ASY OVEN CASE LOWER;703343-02,HWO227 |
| 703343-03 | ASY OVEN CASE UPPER;703343-03,HWO227 |
| 113664-02 | ASY SLIDE LEFT;113664-02,DR30EFS |
| 113664-01 | ASY SLIDE RIGHT;113664-01,DR30EFS |
| 703340 | ASY, DOOR SKIN, 1" |
| 703348-01 | ASY, DOOR, 1" THK, REG |
| 701824 | ASY, GLIDE RACK |
| 703314 | ASY,GLASS TOUCH CTRL |
| 105373 | BAKE ELEMENT 8 PASS;105373,DTO127B |
| 107439 | BAKE PAN RO127 227;107439,DTO127B |
| 93432 | BLACK FLAT WASHER;93432,HWO127EB |
| 106009 | BLACK PORCELAIN, DRY |
| 106007 | BLACK PORCELAIN, WET |
| 107611-01 | BRACKET HINGE LINER LH;107611-01,DTO |
| 107611-02 | BRACKET HINGE LINER RH;107611-02,DTO |
| 72707 | BROIL ELEMENT 3000W;72707,EO127SCH |
| 72712 | BROILER GLASS EOS30;72712,EO127SCH |
| 12530 | BROILER PACKAGE OVENS;12530,DR30EFS |
| 83133 | BUSHING 1 2 RED CONDUI;83133,DO130 |
| 83523 | BUSHING 3 8 HOLE;83523,DOP36M86DAM |
| 92191-02 | BUSHING SPLIT 1 00 DIA;92191-02,DH30 |
| 92191-03 | BUSHING SPLIT 1 375 DIA;92191-03,DO1 |
| 92191-01 | BUSHING SPLIT 75 DIA;92191-01,DO230 |
| 92023-02 | CABLE MOUNTING SADDLE |
| 83565 | CABLE TIE,NYLON,11" LONG |
| 81086 | CARTON, ACCESSORIES |
| 107572 | CASE SIDE, RIGHT |
| 107438 | CASE, BOTTOM, RO127/ |
| 108076 | CELL GASKET OVEN;108076,DTO127B |
| 83152 | COIN ENVELOPE S-6285 |
| 26420 | CONDUIT 1 2 FLEX CUT 60;26420,DO130 |
| 108221 | CONDUIT CORNER, RNO/ |
|
|
CONNECTOR MALE;100591,DYO130B |
| 105334 | CONTROLLER MOUNT;105334,DTO127B |
| 107475BP | CONVECTION BAFFLE, BP |
| 82377 | CONVECTION ELEMENT 240V;82377,DO130 |
| 101511 | CONVECTION FAN BLADE;101511,DO130 |
| 105323 | COVER LATCH;105323,DTO127B |
| 105478 | COVER MEAT PROBE WIRES;105478,DTO127 |
| 105471 | COVER MEAT PROBE;105471,DR30GFS/LP |
| 113634 | COVER, BACK |
| 107643 | COVER, DBL OVEN, RO2 |
| 107445 | COVER, TOP REAR |
| 107511 | DAMPER RECEPT HINGE;107511,DYRP36D-C |

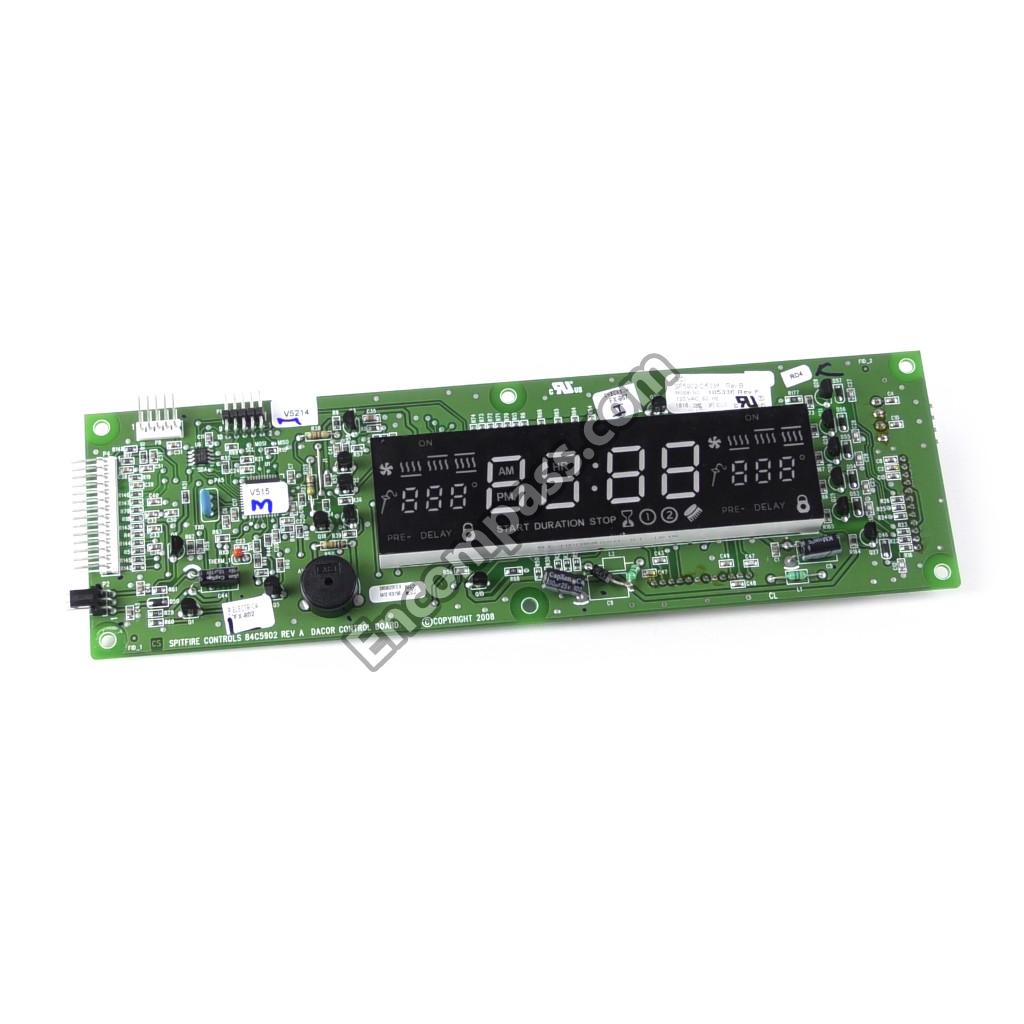

| 105336 | DISPLAY MODULE LED DBL;105336,HDER48 |
| 113588 | DISPLAY MODULE,LED, DBLE |
| 703349-01 | DOOR FLUSHFS ASSEMBLY;703349-01,HWO1 |
| 100090 | DOOR LATCH,CLASSIC |
| 703355 | DOORSKIN ASSEMBLY;703355,HWO127EB |
| 105330 | DUCT SMOKE ELIMINATOR;105330,DTO127B |
| 113629 | DUCT, REAR |
| 105351 | EMBOSS TRANSFORMER;105351,DTO127B |
| 108259-01S | END CAP, LH, SS BRUS |
| 108259-02S | END CAP, RH, SS BRUSHED |
| 113556AH-03 | EXHAUST GRILL SS;113556AH-03,HWO127E |
| 105858 | EXTENSION COOLING FAN;105858,DYO130B |
| 105729 | EXTENSION RELAY BOARD;105729,DTO127B |
| 113682 | FAN COOL HWO227 230;113682,HWO227EC |
| 82347 | FAN COOLING 110 CFM;82347,DR30D-C/LP |
| 83555 | FIBER WASHER W ADHESIVE;83555,DO130 |
|
|
FILTER CONV 2 SCREENS;92322,EO127SCH |
| 703349-02 | FLUSH DOOR ASSEMBLY NO LOGO;703349-0 |
| 108118 | FRONT COVER, COOLING |
| 100157 | GASKET WINDOW PACK;100157,DR30D-C/LP |
| 105413 | HARNESS, MAIN WIRE |
| 105463 | HEADSHIELD, LOWER DUCT |
| 110168 | HERITAGE LOGO 4 INCH;110168,DR30D-C/ |
| 102137 | HEX NUT CONVECTION FAN E;102137,DO13 |
| 108040-01 | HINGE COVER LT;108040-01,DTO127B |
| 108040-02 | HINGE COVER RT;108040-02,DTO127B |
| 107509 | HINGE SPRING RO127 227;107509,DTO127 |
| 107239 | HOLDER BAKE ELEMENT;107239,DR30EFS |
| 113632 | HOUSING, LOWER FAN |
| 81073 | INNER DOOR PROTECTOR |
| 81238 | INSERT, DOOR HANDLE |
| 107440 | INSULATION, BAKE PAN |
| 106977 | INSULATION, CASE SID |
| 105353 | INSULATION, DOOR SIDE |
| 100910 | INSULATION, SINGLE POINT |
| 107482 | INSULATION, TOP, DOO |
| 107448B | INTAKE GRILL BLK RO227;107448B,DTO12 |
|
|
KIT CONVECTION FAN;700633,DR30EFS |
| 85136 | LABEL, "MADE WITH PRIDE" |
| 106802 | LABEL, SELF CLEAN,FR |
| 85249 | LABEL,"DIELECTRIC TE |
| 85648 | LABEL,EXTRU CONTAINER,CP |
| 105356 | LATCH PLATE;105356,DTO127B |
| 113678 | LED CONTROLLER DOUBLE;113678,HWO227E |
| 72717 | MEAT PROBE SOCKET;72717,DO130 |
| 72723 | MEAT PROBE;72723,DO130 |
| 81070 | MICROFOAM,12"X6"X.06 THK |
| 102145 | MOTOR, CONVECTION EO |
| 36280 | MOUNTING PLATE;36280,ERSD36S |
| 82873 | NAMEPLATE SELF CLEAN INF;82873,DO130 |
| 83009 | NUT KEPS;83009,#10-24,DO130 |
| 102275 | NUT WELD 10-32 TAB B |
| 107480 | OVEN RACK RO127 227;107480,DTO127B |
| 113459-02 | OVEN SUPPORT BRACKET |
| 113459-01 | OVEN SUPPORT BRACKET |
|
|
PCB SUPPORT NYLON;83538,DHD30M967WM |
| 102468 | PLUG MEAT PROBE SOCKET;102468,DO230 |
| 82106 | PORCELAIN GRILL;82106,DR30EFS |
| 82107 | PORCELAIN PAN;82107,DR30EFS |
| 106991 | RACK SUPPORT;106991,DR30EFS |
| 107479 | RACK, GLIDE, OVEN |
|
|
RANGE BROIL TRAY ASSY;12157,DR30EFS |
| 102380 | RELAY BOARD DBL OVEN;102380,DO230 |
|
|
RIVET SS;83652,1/8X1/8,DH3006 |
| 83618 | RUBBER BUMPER;83618,DO130 |
| 83379 | SCREW HWH;83379,"#8X1/2,TYPEA",DO130 |
| 105514 | SCREW LG PAN HD;105514,M4X6MM,DO130 |
| 83331 | SCREW PHIL FLAT;83331,#6 X 3/4,DO130 |
| 83263 | SCREW PHIL WAFER;83263,#8X3/8,DCT305 |
| 105486 | SCREW PLAST;105486,6-18X3/8,DTO127B |
|
|
SCREW SLOT;83023,#10 X 3/8HWH,DO130 |
| 83696 | SCREW, #10-32 X .75, PAN |
| 83103 | SCREW, WELD, 1/4-20X5/8 |
| 100026 | SCREW;100026,"#10-32 X 2, TORX",DR30 |
| 83026 | SCREW;83026,#10 X 3/4 SLOT HWH,DO130 |
|
|
SCREW;83420,10-32 X 500,DR30D-C/LP |
|
|
SCREW;83505,#8 X 3/8 TYPE A,DHD30M96 |
|
|
SCREW;83708,#8X1/2TRX WFR HD,DOP36M8 |
|
|
SCREW;83709,"#8X1/2TRX WFR HD,",DOP3 |
| 107444 | SERVICE PANEL TOP COVER;107444,DTO12 |
| 107648B | SHIELD HEAT BLK RO27;107648B,DTO127B |
| 107171B | SHIELD HEAT SIDE BLK;107171B,DR30EFS |
| 107171 | SHIELD HEAT SIDE;107171,DR30EFS |
| 107484B | SHIELD HEAT WINDOW;107484B,DTO127B |
| 108119 | SIDE COVER, COOLING |
| 103769 | SIDE RAIL LINER DOOR;103769,DR30EFS |
| 105485 | SMOKE ELIMINATOR TOP;105485,DR30EFS |
| 72755 | SMOKE ELIMINATOR;72755,DO130 |
| 72793 | SPACER DOOR LINER EO27;72793,DR30DH- |
| 703341-01 | SSES DOOR ASSEMBLY;703341-01,HWO127E |
| 703348-02 | STAINLESS STEEL PRO STEEL;703348-02, |
| 703341-02 | STAINLESSSTEEL EPICURE DOOR;703341-0 |
| 38453 | STRIKER PLATE;38453,DR30D-C/LP |
| DE81-03631A | SVC-1 2FLEX 90 DGR CONNECTOR;82195,DO130 |
| DE81-07448A | SVC-16 GA CRS 48 X 96;105288,DR30D-C/LP |
| DE81-05535A | SVC-16GA GALVANIZED STEEL;80518,DO130 |
| DE81-05248A | SVC-18 GA GALVANIZED STEEL;80208,DH3006 |
| DE81-05971A | SVC-18GA GALVANIZED 48X98;80517,DHD30M96 |
| DE81-04875A | SVC-18GA VIT 52 5X96STL SH;80509,DO130 |
| DE81-04714A | SVC-20 GA GALVANIZED STEEL;80550,DCT305B |
| DE81-02290A | SVC-20 GA GALVANIZED;80074,"48""X48""",D |
| DE81-02291A | SVC-20 GA GALVANIZED;80516,"48""X96""",D |
| DE81-03768A | SVC-20 GA GALVANNEALED STEEL;80275,DOP48 |
| DE81-04876A | SVC-24 GA GALVANIZED STEEL;80551,DO130 |
| DE81-08297A | SVC-ACCY SS CLEANER;100852,DCT305B/LP |
| DE81-03108A | SVC-AIR DEFLECTOR LH DOOR;105470-01,DTO1 |
| DE81-03109A | SVC-AIR DEFLECTOR RH DOOR;105470-02,DTO1 |
| DE81-04879A | SVC-ALUMINIZED 18 GA 48X96;80434,DO130 |
| DE81-05537A | SVC-ASSY 1 BEZEL DBLE;703338-02,HWO227EB |
| DE81-03636A | SVC-ASSY 1 BEZEL DBLE;703338FAH-02,HWO22 |
| DE81-03114A | SVC-ASSY SUB CHASSIS DBLE;702839-02,HWO2 |
| DE81-07463A | SVC-ASY 3000W BROILER;700661,ER30D-C-SCH |
| DE81-04904A | SVC-ASY DOOR 1 THK REG;703348-01,HWO127E |
| DE81-03654A | SVC-ASY DOOR HANDLE 27;13659AH-002,HWO12 |
| DE81-04250A | SVC-ASY DOOR HANDLE PRO;702376-01,DTO127 |
| DE81-03172A | SVC-ASY DOOR HANDLE PRO;702376AH-01,HWO1 |
| DE81-03657A | SVC-ASY DOOR LINER 1 REG;701827-01,DTO12 |
| DE81-08403A | SVC-ASY DOOR SKIN 1;703340,HWO127EB |
| DE81-03191A | SVC-ASY GLASS TOUCH CTRL DBL;703314,HWO2 |
| DE81-08814A | SVC-ASY GLIDE RACK;701824,DTO127B |
| DE81-05049A | SVC-ASY LIGHT HALOGEN 20W;113646,HDER30C |
| DE81-04271A | SVC-ASY OVEN CASE LOWER;703343-02,HWO227 |
| DE81-04273A | SVC-ASY OVEN CASE UPPER;703343-03,HWO227 |
| DE81-07503A | SVC-ASY SLIDE LEFT;113664-02,DR30EFS |
| DE81-06942A | SVC-ASY SLIDE RIGHT;113664-01,DR30EFS |
| DE81-06278A | SVC-BAKE ELEMENT 8 PASS;105373,DTO127B |
| DE81-06862A | SVC-BAKE PAN RO127 227;107439,DTO127B |
| DE81-05628A | SVC-BEZELSKIN WELDMENT;701818AH,HWO127EB |
| DE81-07945A | SVC-BLACK FLAT WASHER;93432,HWO127EB |
| DE81-06107A | SVC-BLACK PORCELAIN DRY;106009,BLACK,DCT |
| DE81-06287A | SVC-BLACK PORCELAIN WET;106007,DO130 |
| DE81-02830A | SVC-BRACKET HINGE LINER LH;107611-01,DTO |
| DE81-02831A | SVC-BRACKET HINGE LINER RH;107611-02,DTO |
| DE81-06867A | SVC-BROIL ELEMENT 3000W;72707,EO127SCH |
| DE81-06868A | SVC-BROILER GLASS EOS30;72712,EO127SCH |
| DE81-05797A | SVC-BROILER PACKAGE OVENS;12530,DR30EFS |
| DE81-04925A | SVC-BUSHING 1 2 RED CONDUI;83133,DO130 |
| DE81-08517A | SVC-BUSHING 3 8 HOLE;83523,DOP36M86DAM |
| DE81-03400A | SVC-BUSHING SPLIT 1 00 DIA;92191-02,DH30 |
| DE81-02832A | SVC-BUSHING SPLIT 1 375 DIA;92191-03,DO1 |
| DE81-04293A | SVC-BUSHING SPLIT 75 DIA;92191-01,DO230 |
| DE81-03857A | SVC-CABLE MOUNTING SADDLE;92023-02,DR30E |
| DE81-04656A | SVC-CABLE TIE NYLON 11 LONG;83565,DH3006 |
| DE81-07534A | SVC-CARTON ACCESSORIES;81086,DR30EFS |
| DE81-04926A | SVC-CASE BOTTOM RO127 227;107438,DTO127B |
| DE81-08427A | SVC-CASE SIDE RIGHT;107572,DTO127B |
| DE81-07949A | SVC-CELL GASKET OVEN;108076,DTO127B |
| DE81-06292A | SVC-COIN ENVELOPE S 6285;83152,DO130 |
| DE81-04299A | SVC-CONDUIT 1 2 FLEX CUT 60;26420,DO130 |
| DE81-04298A | SVC-CONDUIT CORNER RNO DTO;108221,DTO127 |
| DE81-08825A | SVC-CONNECTOR MALE;100591,DYO130B |
| DE81-07965A | SVC-CONTROLLER MOUNT;105334,DTO127B |
| DE81-04302A | SVC-CONVECTION BAFFLE BP;107475BP,DTO127 |
| DE81-04303A | SVC-CONVECTION ELEMENT 240V;82377,DO130 |
| DE81-05630A | SVC-CONVECTION FAN BLADE;101511,DO130 |
| DE81-09943A | SVC-COVER BACK;113634,HWO227EC |
| DE81-05633A | SVC-COVER DBL OVEN RO227;107643,DTO227B |
| DE81-09715A | SVC-COVER LATCH;105323,DTO127B |
| DE81-04306A | SVC-COVER MEAT PROBE WIRES;105478,DTO127 |
| DE81-08076A | SVC-COVER MEAT PROBE;105471,DR30GFS/LP |
| DE81-08831A | SVC-COVER TOP REAR;107445,DTO127B |
| DE81-06426A | SVC-DAMPER RECEPT HINGE;107511,DYRP36D-C |
|
|
SVC-DISPLAY MODULE LED DBL;105336,HDER48 |
| DE81-03868A | SVC-DISPLAY MODULE LED DBLE;113588,HDER4 |
| DE81-03203A | SVC-DOOR FLUSHFS ASSEMBLY;703349-01,HWO1 |
| DE81-06884A | SVC-DOOR LATCH CLASSIC;100090,DO130 |
| DE81-07396A | SVC-DOORSKIN ASSEMBLY;703355,HWO127EB |
| DE81-10131A | SVC-DUCT REAR;113629,HWO127EC |
| DE81-04943A | SVC-DUCT SMOKE ELIMINATOR;105330,DTO127B |
| DE81-06887A | SVC-EMBOSS TRANSFORMER;105351,DTO127B |
| DE81-02837A | SVC-END CAP LH SS BRUSHED;108259-01S,DTO |
| DE81-02839A | SVC-END CAP RH SS BRUSHED;108259-02S,DTO |
| DE81-04952A | SVC-EXHAUST GRILL SS;113556AH-03,HWO127E |
| DE81-04958A | SVC-EXTENSION COOLING FAN;105858,DYO130B |
| DE81-04960A | SVC-EXTENSION RELAY BOARD;105729,DTO127B |
| DE81-06304A | SVC-FAN COOL HWO227 230;113682,HWO227EC |
|
|
SVC-FAN COOLING 110 CFM;82347,DR30D-C/LP |
| DE81-04335A | SVC-FIBER WASHER W ADHESIVE;83555,DO130 |
| DE81-05647A | SVC-FILTER CONV 2 SCREENS;92322,EO127SCH |
| DE81-02477A | SVC-FLUSH DOOR ASSEMBLY NO LOGO;703349-0 |
| DE81-03712A | SVC-FRONT COVER COOLING FAN;108118,DTO12 |
| DE81-07026A | SVC-GASKET WINDOW PACK;100157,DR30D-C/LP |
| DE81-07406A | SVC-HARNESS MAIN WIRE;105413,HWO227EC |
| DE81-04968A | SVC-HEADSHIELD LOWER DUCT;105463,DTO227B |
| DE81-05850A | SVC-HERITAGE LOGO 4 INCH;110168,DR30D-C/ |
| DE81-03216A | SVC-HEX NUT CONVECTION FAN E;102137,DO13 |
| DE81-07409A | SVC-HINGE COVER LT;108040-01,DTO127B |
| DE81-07410A | SVC-HINGE COVER RT;108040-02,DTO127B |
| DE81-04350A | SVC-HINGE SPRING RO127 227;107509,DTO127 |
| DE81-06455A | SVC-HOLDER BAKE ELEMENT;107239,DR30EFS |
| DE81-07412A | SVC-HOUSING LOWER FAN;113632,HWO227EC |
| DE81-06312A | SVC-INNER DOOR PROTECTOR;81073,DO130 |
| DE81-07416A | SVC-INSERT DOOR HANDLE;81238,DO130 |
| DE81-06314A | SVC-INSULATION BAKE PAN;107440,DTO127B |
| DE81-05861A | SVC-INSULATION CASE SIDE;106977,DR30EFS |
| DE81-05865A | SVC-INSULATION DOOR SIDE;105353,DR30EFS |
| DE81-03896A | SVC-INSULATION SINGLE POINT;100910,DR30D |
| DE81-06317A | SVC-INSULATION TOP DOOR;107482,DTO127B |
| DE81-03728A | SVC-INTAKE GRILL BLK RO227;107448B,DTO12 |
| DE81-07055A | SVC-KIT CONVECTION FAN;700633,DR30EFS |
| DE81-04668A | SVC-LABEL DIELECTRIC TESTED;85249,CABP3 |
| DE81-03506A | SVC-LABEL EXTRU CONTAINER CP;85648,DCT30 |
| DE81-05999A | SVC-LABEL MADE WITH PRIDE;85136,CABP3 |
| DE81-03730A | SVC-LABEL SELF CLEAN FRENCH;106802,DO130 |
| DE81-09739A | SVC-LATCH PLATE;105356,DTO127B |
| DE81-04976A | SVC-LED CONTROLLER DOUBLE;113678,HWO227E |
| DE81-07989A | SVC-MEAT PROBE SOCKET;72717,DO130 |
| DE81-10137A | SVC-MEAT PROBE;72723,DO130 |
| DE81-04987A | SVC-MICROFOAM 12X6X 06 THK;81070,DO130 |
| DE81-04592A | SVC-MOTOR CONVECTION EO MO;102145,DR30EF |
| DE81-09260A | SVC-MOUNTING PLATE;36280,ERSD36S |
| DE81-03737A | SVC-NAMEPLATE SELF CLEAN INF;82873,DO130 |
| DE81-02348A | SVC-NUT KEPS;83009,#10-24,DO130 |
| DE81-04009A | SVC-NUT WELD 10 32 TAB BASE;102275,DHD30 |
| DE81-06323A | SVC-OVEN RACK RO127 227;107480,DTO127B |
| DE81-02669A | SVC-OVEN SUPPORT BRACKET LT;113459-02,HW |
| DE81-02670A | SVC-OVEN SUPPORT BRACKET RT;113459-01,HW |
| DE81-08244A | SVC-PCB SUPPORT NYLON;83538,DHD30M967WM |
| DE81-04367A | SVC-PLUG MEAT PROBE SOCKET;102468,DO230 |
| DE81-08978A | SVC-PORCELAIN GRILL;82106,DR30EFS |
| DE81-09543A | SVC-PORCELAIN PAN;82107,DR30EFS |
| DE81-08444A | SVC-RACK GLIDE OVEN;107479,DTO127B |
| DE81-09545A | SVC-RACK SUPPORT;106991,DR30EFS |
| DE81-05903A | SVC-RANGE BROIL TRAY ASSY;12157,DR30EFS |
| DE81-05671A | SVC-RELAY BOARD DBL OVEN;102380,DO230 |
| DE81-02314A | SVC-RIVET SS;83652,1/8X1/8,DH3006 |
| DE81-09452A | SVC-RUBBER BUMPER;83618,DO130 |
| DE81-02108A | SVC-SCREW HWH;83379,"#8X1/2,TYPEA",DO130 |
| DE81-02332A | SVC-SCREW LG PAN HD;105514,M4X6MM,DO130 |
| DE81-02235A | SVC-SCREW PHIL FLAT;83331,#6 X 3/4,DO130 |
| DE81-02331A | SVC-SCREW PHIL WAFER;83263,#8X3/8,DCT305 |
| DE81-02260A | SVC-SCREW PLAST;105486,6-18X3/8,DTO127B |
|
|
SVC-SCREW SLOT;83023,#10 X 3/8HWH,DO130 |
| DE81-02159A | SVC-SCREW WELD;83103,1/4-20X5/8,DO130 |
| DE81-02052A | SVC-SCREW;100026,"#10-32 X 2, TORX",DR30 |
| DE81-02033A | SVC-SCREW;83026,#10 X 3/4 SLOT HWH,DO130 |
| DE81-02139A | SVC-SCREW;83420,10-32 X 500,DR30D-C/LP |
| DE81-02064A | SVC-SCREW;83505,#8 X 3/8 TYPE A,DHD30M96 |
| DE81-02043A | SVC-SCREW;83696,"#10-32 X .75, PAN",DTO1 |
| DE81-02054A | SVC-SCREW;83708,#8X1/2TRX WFR HD,DOP36M8 |
| DE81-02046A | SVC-SCREW;83709,"#8X1/2TRX WFR HD,",DOP3 |
| DE81-03748A | SVC-SERVICE PANEL TOP COVER;107444,DTO12 |
| DE81-04996A | SVC-SHIELD HEAT BLK RO27;107648B,DTO127B |
| DE81-05198A | SVC-SHIELD HEAT SIDE BLK;107171B,DR30EFS |
| DE81-08163A | SVC-SHIELD HEAT SIDE;107171,DR30EFS |
| DE81-06328A | SVC-SHIELD HEAT WINDOW;107484B,DTO127B |
| DE81-04375A | SVC-SIDE COVER COOLING FAN;108119,DTO127 |
| DE81-05915A | SVC-SIDE RAIL LINER DOOR;103769,DR30EFS |
| DE81-05918A | SVC-SMOKE ELIMINATOR TOP;105485,DR30EFS |
| DE81-08450A | SVC-SMOKE ELIMINATOR;72755,DO130 |
| DE81-05208A | SVC-SPACER DOOR LINER EO27;72793,DR30DH- |
| DE81-04997A | SVC-SSES DOOR ASSEMBLY;703341-01,HWO127E |
| DE81-02029A | SVC-STAINLESS STEEL PRO STEEL;703348-02, |
| DE81-02466A | SVC-STAINLESSSTEEL EPICURE DOOR;703341-0 |
| DE81-09563A | SVC-STRIKER PLATE;38453,DR30D-C/LP |
| DE81-05932A | SVC-SWITCH HI LIMIT 275 F;92321,DR30EFS |
| DE81-04998A | SVC-TAPE HORIZ VHB MTG PNL;92215,DTO127F |
| DE81-06024A | SVC-TAPE VHB DOUBLE SIDED;92387,DH3006 |
| DE81-08008A | SVC-TECHNICAL PACKET;703398,HWO227EC |
| DE81-07435A | SVC-TEMPERATURE SENSOR;72752,DO130 |
| DE81-05318A | SVC-TIE PUSH MOUNT LOCKING;83037,DH3006 |
| DE81-08861A | SVC-TOP LEFT RO227;107642,DTO127B |
| DE81-10257A | SVC-TOP REAR;113644,HWO127EC |
| DE81-08451A | SVC-TOP RIGHT RO227;107641,DTO127B |
|
|
SVC-TRANSFORMER 12VAC;100832,DYO230B |
| DE81-05679A | SVC-TRIM POST DBL LH;107477-02B,DTO227B |
| DE81-05681A | SVC-TRIM POST DBL RH;107477-01B,DTO227B |
| DE81-08867A | SVC-WASHER BLK FLAT;83432,DTO127B |
| DE81-03760A | SVC-WASHER CONVECTION FAN E;102136,DO130 |
| DE81-07127A | SVC-WASHER DOOR HANDLE;102438,DR30DH-C/L |
| DE81-04384A | SVC-WELD BROILER FRAME BP;27849BP,EO127S |
| DE81-06343A | SVC-WELD CASE SIDE LEFT;701852,DTO127B |
| DE81-05690A | SVC-WELD CASE SIDE RIGHT;701851,DTO127B |
| DE81-03762A | SVC-WELD DOOR LINER 1THK;701875-03,DTO12 |
| DE81-02848A | SVC-WELD DOOR LINER 1THK;701875-03BP,DTO |
| DE81-03249A | SVC-WELD LOWER INTAKE GRILL;701913B,DTO2 |
| DE81-08874A | SVC-WELD OVEN CELL;701805,DTO127B |
| DE81-03251A | SVC-WELD RECEPT HOLDER LT;701895-01,DTO1 |
| DE81-03252A | SVC-WELD RECEPT HOLDER RT;701895-02,DTO1 |
| DE81-10031A | SVC-WINDOW PACK;72967,DR30D-C/LP |
| DE81-04390A | SVC-WIRE HARNESS POWER BRD;105448,DTO127 |
| 92321 | SWITCH HI LIMIT 275 F;92321,DR30EFS |
| 92387 | TAPE VHB DOUBLE SIDED;92387,DH3006 |
| 92215 | TAPE, HORIZ, VHB MTG PNL |
| 703398 | TECHNICAL PACKET;703398,HWO227EC |
|
|
TEMPERATURE SENSOR;72752,DO130 |
| 83037 | TIE PUSH MOUNT LOCKING;83037,DH3006 |
| 113644 | TOP REAR |
| 107642 | TOP, LEFT, RO227 |
| 107641 | TOP, RIGHT, RO227 |
|
|
TRANSFORMER 12VAC;100832,DYO230B |
| 107477-02B | TRIM POST DBL LH;107477-02B,DTO227B |
| 107477-01B | TRIM POST DBL RH;107477-01B,DTO227B |
| 83432 | WASHER BLK FLAT;83432,DTO127B |
| 102136 | WASHER CONVECTION FAN E;102136,DO130 |
| 102438 | WASHER DOOR HANDLE;102438,DR30DH-C/L |
| 27849BP | WELD BROILER FRAME BP;27849BP,EO127S |
| 701852 | WELD CASE SIDE LEFT;701852,DTO127B |
| 701851 | WELD CASE SIDE RIGHT;701851,DTO127B |
| 701875-03 | WELD DOOR LINER 1THK;701875-03,DTO12 |
| 701875-03BP | WELD DOOR LINER 1THK;701875-03BP,DTO |
| 701913B | WELD LOWER INTAKE GRILL;701913B,DTO2 |
| 701805 | WELD OVEN CELL;701805,DTO127B |
| 701895-01 | WELD RECEPT HOLDER LT;701895-01,DTO1 |
| 701895-02 | WELD RECEPT HOLDER RT;701895-02,DTO1 |
| 701818AH | WELD, BEZEL SKIN |
| 72967 | WINDOW PACK;72967,DR30D-C/LP |
| 105448 | WIRE HARNESS POWER BRD;105448,DTO127 |
