Model Image
Manufacturer

Dacor

Model Number

MCS227B

Description

Mcs227b - Ovens

Interactive Exploded View

Parts List

Part Number Description
82195 1 2FLEX 90 DGR CONNECTOR;82195,DO130
83340 83340 10 LOCKWASHER;83340,DHD30M967WM
80518 16GA GALVANIZED, STE
80280 18 GA GALVANNEALED S
80517 18GA GALVANIZED, 48"
80509 18GA.VIT,52.5"X96"ST
80074 20 GA GALVANIZED,48"
80516 20 GA GALVANIZED;80516,"48""X96""",D
80275 20 GA GALVANNEALED S
80550 20 GA,GALVANIZED STE
80508 22GA VIT STEEL 48X96;80508,DO130
80551 24 GA GALVANIZED STE
83308 6 32 KEPS NUT;83308,DH3006
80434 ALUMINIZED,18 GA, 48
12470 ASSY WINDOW PACK 1 INCH1;12470,ERD36
27599 ASY CASE SIDE LEFT;27599,DO130
27600 ASY CASE SIDE RIGHT;27600,DO130
27608 ASY DOOR FRAME MC27S;27608,MCD227B
86166 ASY DOOR LATCH;86166,ERG30B06BK
27595 ASY EXHAUST TUBE SHIELD;27595,ECD227
27727BP ASY INNER LINER 27DOOR;27727BP,ECD22
27126 ASY SUB PANEL 27;27126,ECD227B
27589 ASY SUBCHASSIS 27 OVEN;27589,ECD227B
72148 ASY WINDOW PACK 1THK;72148,DO130
13392B ASY, BEZEL/MEM, MCS227
27608B ASY, DOOR FRAME, MC27S
62708 ASY, WIRE HRNS,SNGL-DBL
13637B ASY,DOOR FRAME,BLACK
66621 ASY,INNER DOOR W/1" WIND
27472 BACK COVER;27472,MCD227B
36486BP BAFFLE CONVECTION 27OVE;36486BP,ECD2
78945 BAFFLE LFT TRANSITN DUC;78945,ECD227
26608 BAFFLE REAR LOWER OVEN;26608,ECD227B
26599 BAFFLE, AIR, LWR OVEN
62636 62636 BAKE ELEMENT 27 OVEN;62636,ECD227B
83540 BALL STUD CATCH;83540,DO130
83539 BALL STUD TRIM PANEL;83539,DO130
26615 BEZEL MTG BRKT LEFT;26615,DO130
26614 BEZEL MTG BRKT RIGHT;26614,DO130
26712B BEZEL TRIM - BLK
106009 BLACK PORCELAIN, DRY
106007 BLACK PORCELAIN, WET
36276 BRACKET HIGH LIMIT SWITC;36276,DO130
38230 BRACKET,INNER LINER
86676 BRKT ASY BEZEL MTG LF;86676,MCD227B
86675 BRKT ASY BEZEL MTG RG;86675,MCD227B
62723 62723 BROIL ELEMENT 8 PASS;62723,ECD227B
36509 BROIL REFLECTOR,FLAT
12530 BROILER PACKAGE OVENS;12530,DR30EFS
83133 BUSHING 1 2 RED CONDUI;83133,DO130
83523 BUSHING 3 8 HOLE;83523,DOP36M86DAM
83056 BUSHING HEYCO SB 875 11;83056,DH3006
83168 CABLE CLAMP;83168,DO230
83565 CABLE TIE,NYLON,11" LONG
81086 CARTON, ACCESSORIES
36281 CASE BACK 27 OVEN;36281,ECD227B
26597 CASE BOTTOM;26597,ECD227B
38060 CASE SIDE LEFT;38060,DO130
38061 CASE SIDE RIGHT;38061,DO130
26581 CASE TOP;26581,MCD227B
26609B CELL INTAKE VENT;26609B,MCD227B
78921 CLIP, INNER LINER
83543 83543 CLOSED END SPLICE 22 14G;83543,ECD22
83152 COIN ENVELOPE S-6285
26430 CONDUIT 1 2 FLEX CUT 66;26430,ECD227
26584 CONDUIT BRKT
26595BP CONVECTION BAFFLE;26595BP,MCD227B
82377 CONVECTION ELEMENT 240V;82377,DO130
101511 CONVECTION FAN BLADE;101511,DO130
82647 CONVECTION OVEN MOTOR;82647,DO130
82986 COOLING FAN CPO;82986,DO130
38145 CORNER BRACKET,LEFT,
38146 CORNER BRACKET,RGHT,
78991 CORNER BRKT,DOOR FRM
26545BP COVER CONV MOTOR OPENING;26545BP,DO2
26547 COVER CONV REAR LOWER;26547,DO230
36279 COVER MEAT PROBE SOCKET;36279,DO130
72026 DOOR GASKET 27;72026,MCD227B
72016 DOOR GASKET;72016,ECD227B
62125B DOOR GLASS,CPT27-BLK
13404R DOOR HANDLE ARCTIC;13404R,MCD227B
13404B DOOR HANDLE;13404B,BLACK,MCD227B
100090 DOOR LATCH,CLASSIC
36443B DOOR SIDE TRIM LEFT;36443B,MCD227B
36444B DOOR SIDE TRIM RIGHT;36444B,MCD227B
27457 EXHAUST DIVIDER;27457,MCD227B
26612 EXHAUST DUCT COVER;26612,MCD227B
27456 EXHAUST DUCT;27456,MCD227B
82990B EXHAUST GRILL, 27" CP-BL
26602 EXHAUST PLATE BTM;26602,ECD227B
82240 EXHAUST TUBE
82695 EXHAUST TUBE;82695,MCD227B
82651 FAN BLADE CONVECTION MTR;82651,ERD36
83555 FIBER WASHER W ADHESIVE;83555,DO130
82891 82891 FILTER CONVECTION OVEN;82891,DO130
27610R GLASS MTG FRAME ARCTIC;27610R,MCD227
27610B GLASS MTG FRAME;27610B,BLACK,MCD227B
72767 GLIDE RACK 27OVEN;72767,ECD227B
86573 HALOGEN BULB 10W 12VAC;86573,ERD36S0
62175 62175 HALOGEN LIGHT,10W,12VDC
62694NP HANDLE UNFINISHED CNC;62694NP,MCD227
82449 HARNESS SENSOR LOWER;82449,MCD227B
82448 HARNESS SENSOR UPPER;82448,MCD227B
36619 HEAT SHIELD 27DOOR;36619,ECD227B
36619B HEAT SHIELD DOOR;36619B,BLACK,MCD227
36105 HEAT SHIELD OVEN LIGHT;36105,ECD227B
26575B HEAT SHIELD, 27" DOOR-BL
102137 HEX NUT CONVECTION FAN E;102137,DO13
36833B HI LIMIT BRACKET BLK;36833B,ECD227B
62775 62775 HIGH LIMIT SWITCH 220F;62775,DO130
82883 HINGE NUOVA STAR SILVER;82883,EORD22
66620 INNER DOOR ASSY;66620,BLACK,MCD227B
81073 INNER DOOR PROTECTOR
36353R INNER HEAT SHIELD ARCTIC;36353R,MCD2
36353 INNER HEAT SHIELD STAINLESS;36353,MC
36353B INNER HEAT SHIELD;36353B,BLACK,MCD22
27423BP INNER LINER, 27" DOOR-BL
81238 INSERT, DOOR HANDLE
80212 INSULATION 27OUTER LINE;80212,ECD227
80161 INSULATION CELL SIDE;80161,DO130
80168 INSULATION CONV MTR;80168,DO130
80206 INSULATION DOOR;80206,ECD227B
80173 INSULATION;80173,MCD227B
36830B INTAKE GRILL BLK PNT;36830B,ECD227B
86744 KIT DOOR LINER 27;86744,MCD227B
85136 LABEL, "MADE WITH PRIDE"
85249 LABEL,"DIELECTRIC TE
85648 LABEL,EXTRU CONTAINER,CP
26598 LATCH PLATE;26598,DO130
36309 LIGHT COVER;36309,ECD227B
62439 MAIN RELAY;62439,ERSD48S
72171 MEAT PROBE RECEPT W COVE;72171,ECD22
62713 62713 MEAT PROBE;62713,ECD227B

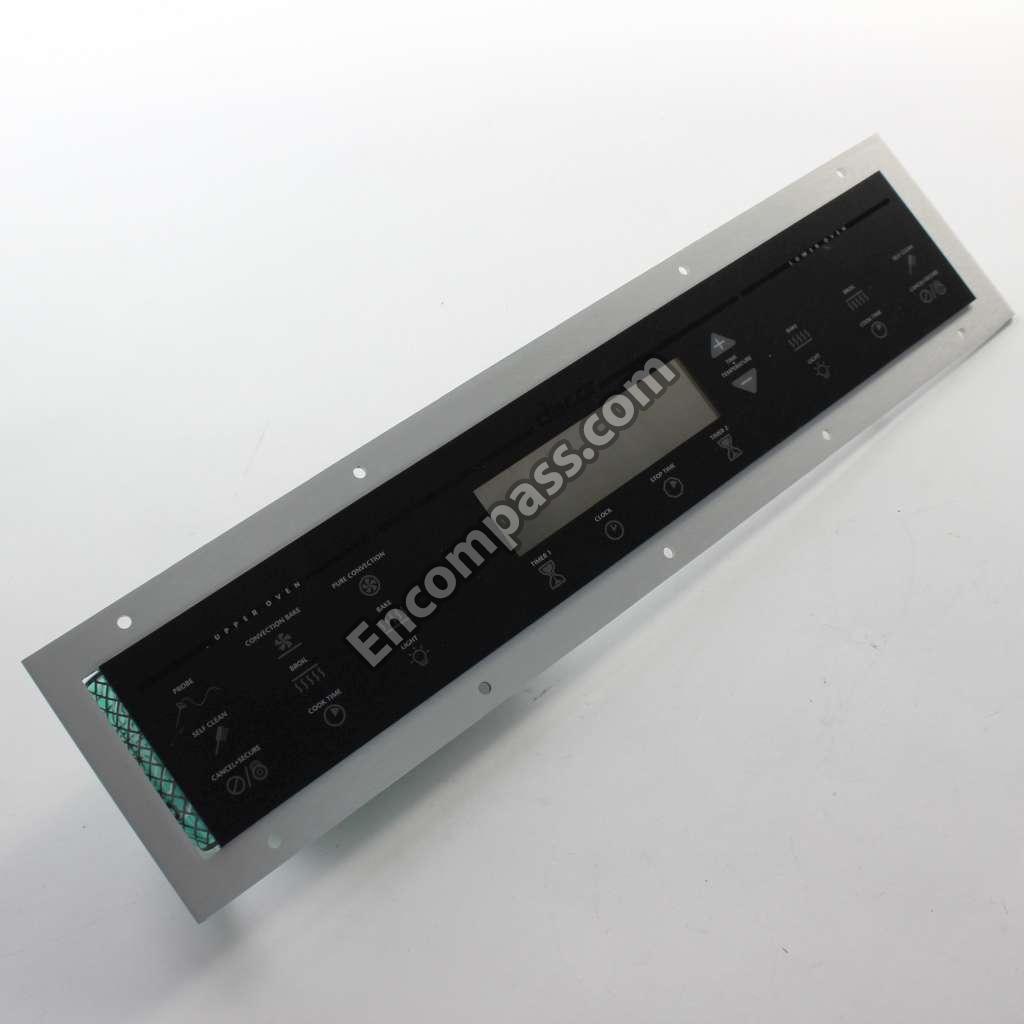

62677B 62677B MEMBRANE SW PANEL
81070 MICROFOAM,12"X6"X.06 THK
27475 MOTOR MTG BRKT LOWER;27475,ECD227B
36280 MOUNTING PLATE;36280,ERSD36S
82873 NAMEPLATE SELF CLEAN INF;82873,DO130
83009 NUT KEPS;83009,#10-24,DO130
83418 83418 NUT RETAINER;83418,DO130
66274 OUTER DOOR ASSY
66550B OUTER FRAME WITH GLASS ASSY;66550B,B
66550R OUTER FRAME WITH GLASS;66550R,ASSY A
27425BP OUTER LINER 27 DOOR BL;27425BP,ECD22
62965 OVEN CONTROL DBL W MEAT;62965,ECD227
82246 OVEN RACK 27 CP;82246,MCD227B
36319 OVEN SUPPORT BRACKET;36319,DO230
83538 83538 PCB SUPPORT NYLON;83538,DHD30M967WM
101488 PLUG PROBE;101488,ECD227B
82106 PORCELAIN GRILL;82106,DR30EFS
82107 PORCELAIN PAN;82107,DR30EFS
12157 12157 RANGE BROIL TRAY ASSY;12157,DR30EFS
82851 RECEPTACLE,HINGE

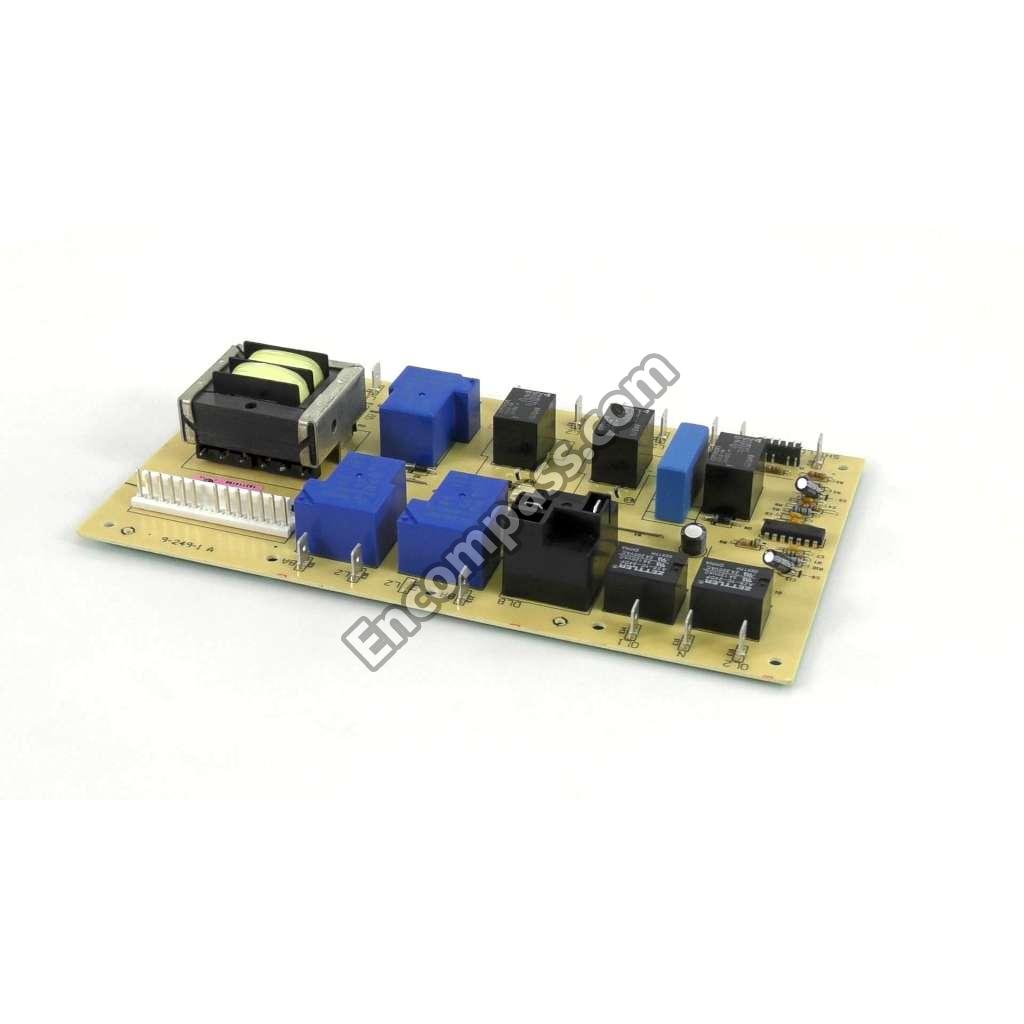

92029 92029 RELAY BOARD 105C;92029,ECD227B
82985 RELAY PCB LWR SINGLE CON;82985,ECS22
26576 RIGHT SHIELD;26576,ERG30B06BK
83031 RIVER, ACCORDIAN, PC4729
83652 83652 RIVET SS;83652,1/8X1/8,DH3006
83618 RUBBER BUMPER;83618,DO130
83553 SCREW HINGE SOCKET HD CP;83553,DO130
83379 SCREW HWH;83379,"#8X1/2,TYPEA",DO130
83331 SCREW PHIL FLAT;83331,#6 X 3/4,DO130
83042 SCREW PHIL PAN;83042,#8 X 5/8,DOP48M
83263 SCREW PHIL WAFER;83263,#8X3/8,DCT305
83023 83023 SCREW SLOT;83023,#10 X 3/8HWH,DO130
83534 83534 SCREW WAFER HD;83534,#8 X 3/8,DH3006
83571 SCREW,PHILLIPS HD #8X3/8
83011 SCREW;83011,MCD227B
83026 SCREW;83026,#10 X 3/4 SLOT HWH,DO130
83499 SCREW;83499,"#10 X 1/2,PHIL BLK",DO1
36318 SERVICE PANEL TOP COVER;36318,DO130
36617 SIDE SHIELD LEFT;36617,DO130
36618 SIDE SHIELD RIGHT;36618,DO130
26577 SIDE SHIELD, DOOR, LEFT
82826 SMOKE ELIMINATOR
62714 SOCKET MEAT PROBE;62714,ECD227B
83189 SPACER 138 IDX 25 OD;83189,DO130
78963 SPILL RAIL, DOOR
26606 STIFFENER BRACKET
82650 SUPPORT RACK-BLK PORCLN
103740 TAPE DBL SIDE;103740,1/2WX.031,DO130
103637 TAPE DBL SIDED 031THK;103637,DO130
83452 TAPE DBL SIDED 3M 4920;83452,E30DD75
62593 62593 TEMPERATURE SENSOR;62593,E30DF74EPS
82151 TERMINAL BLOCK;82151,ERD60S06BK
83037 TIE PUSH MOUNT LOCKING;83037,DH3006
26600 TOP COVER REAR;26600,ECD227B
36311 TOP COVER, FRONT, 27"
62808 62808 TRANSFORMER HALOGEN LIGH;62808,DO130
27469 TRIM POST LEFT;27469,MCD227B
27666B TRIM POST RIGHT DBL BLK;27666B,DO230
27468 TRIM POST RIGHT;27468,MCD227B
27667B TRIM POST,LFT,DBL,BLK
102136 WASHER CONVECTION FAN E;102136,DO130
36377BP WINDOW MASK BLK PORC;36377BP,ECD227B
82446 WIRE HARNESS LWR RELAY;82446,ECD227B
82445 WIRE HARNESS MAIN 27CP;82445,ECD227B
