Manufacturer
Dacor
Model Number
MRES30S
Description

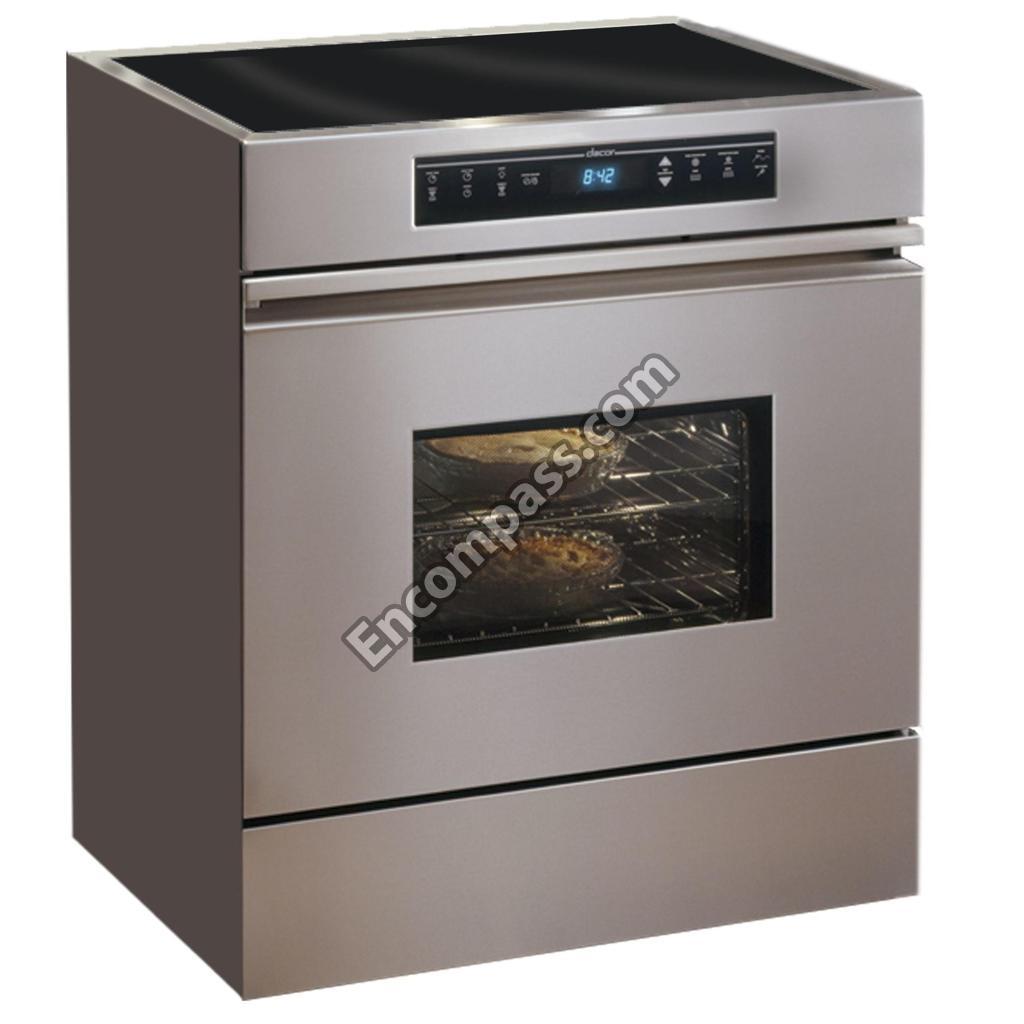

Range
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 13425S | ASSEMBLY 3-INCHES, SIDE PANEL, LH, SS |
| 13426S | ASSEMBLY 3-INCHES, SIDE PANEL, RH, SS |
| 27791BP | ASSEMBLY, CELL WRAP |
| 27068B | ASSEMBLY, STORAGE COMPARTMENT |
| 27728BP | ASSEMBLY. INNER LINER, 30-INCHES DOOR |
| 72148 | ASSEMBLY. WINDOW PACK |
| 36996 | BACK COVER |
| 36912 | BACK COVER PLATE |
|
|
BAKE ELEMENT |
| 83540 | BALL STUD CATCH |
| 27144 | BASE ASSEMBLY |
| 13667 | BEZEL ASSEMBLY |
| 105469-02 | BRACKET, ANTI-TIP, RANGE |
| 26104 | BRACKET, DOOR LATCH |
| 26052 | BRACKET, STORAGE COMPARTMENT |
| 82817 | BROIL ELEMENT |
|
|
BULB, LIGHT 40W |
| 26632 | CASE BACK |
| 26633 | CASE BOTTOM |
| 27454 | CASE SIDE ASSEMBLY |
| 27453 | CASE SIDE ASSEMBLY, RIGHT |
| 26629 | CASE TOP |
| 27784 | CHASSIS |
| 26420 | CONDUIT 1/2-INCHES |
| 83059 | CONNECTOR, 1/2-INCHES FLEX STRAIGHT |
| 36816BP | CONVECTION BAFFLE |
| 82377 | CONVECTION ELEMENT |
| 82651 | CONVECTION FAN BLADE |
| 82647 | CONVECTION OVEN MOTOR |
| 82347 | COOLING FAN |
| 36883 | COOLING FAN BRACKET |
| 26084 | COVER EXHAUST DUCT |
| 26560 | COVER PLATE, LIGHT |
| 36279 | COVER, MEAT PROBE SOCKET |
| 72532 | DISPLAY BOARD |
| 701191 | DOOR DOOR LATCH KIT |
| 26980 | DOOR EDGE TRIM, SS, LH |
| 26981 | DOOR EDGE TRIM, SS, RH |
| 27609B | DOOR FRAME |
|
|
DOOR GASKET |
| 62124B | DOOR GLASS |
| 26598 | DOOR LATCH PLATE |
| 83237 | DOOR LATCH, MAGNETIC |
| 700411-06 | ELEMENT, 1000/2400 WATT |
| 66128 | ELEMENT, 1200 WATT |
| 66129 | ELEMENT, 1500 WATT |
|
|

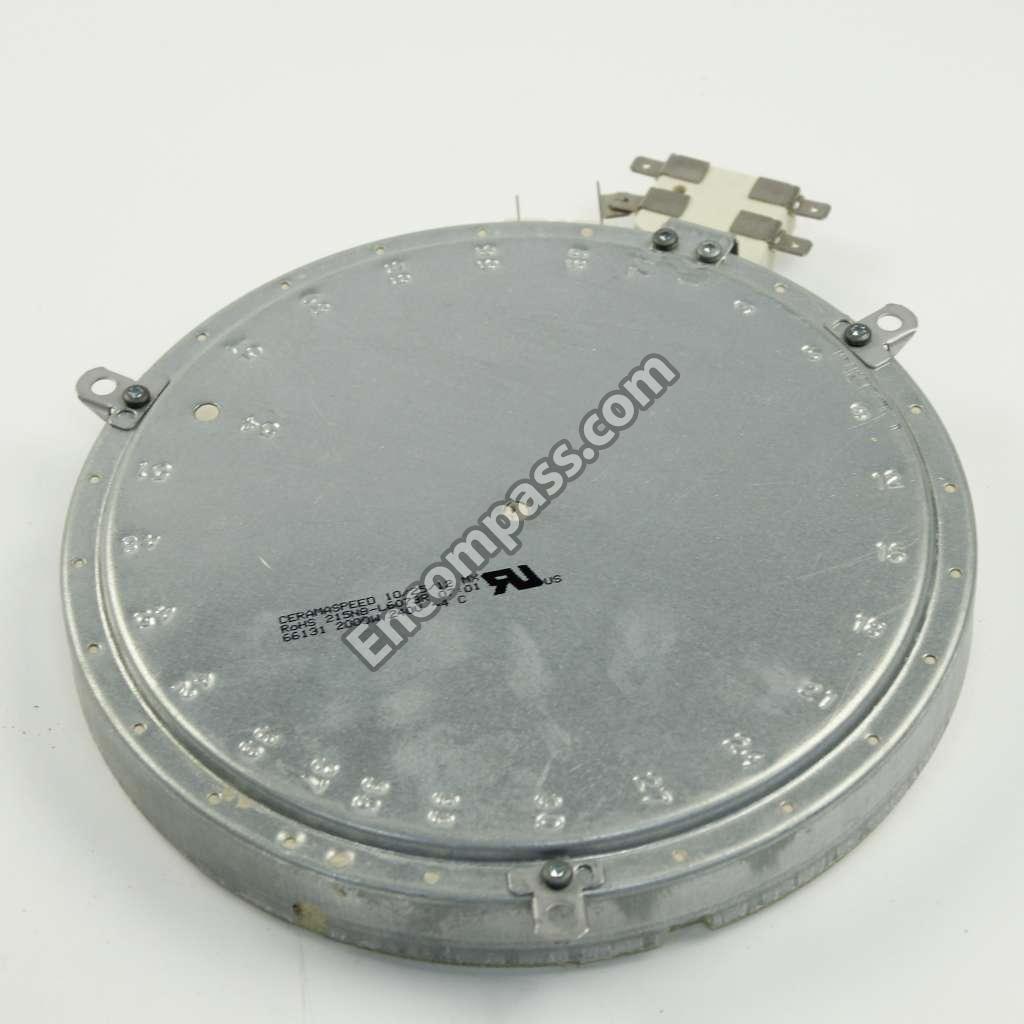

ELEMENT, 2000 WATT |
| 36302 | END CAP, LEFT, MC, HANDLE |
| 36303 | END CAP, RIGHT, MC, HANDLE |
| 26085 | EXHAUST DUCT |
| 26069S | EXHAUST GRILL |
| 36865 | EXHAUST PLATE |
|
|
FILTER, CONVECTION |
| 36834 | GUTTER |
| 62695S | HANDLE |
| 36620 | HEAT SHIELD |
| 36622 | HEAT SHIELD |
| 26034 | HEAT SHIELD , STORAGE |
|
|
HIGH LIMIT SWITCH |
| 82508 | HINGE |
| 83044 | HINGE, STORAGE PANEL |
| 26800 | INSULATION |
| 46919 | INSULATION BRACKET |
| 80164 | INSULATION, BOTTOM |
| 80166 | INSULATION, CELL BACK |
| 80161 | INSULATION, CELL SIDE |
| 80162 | INSULATION, CELL TOP |
| 80168 | INSULATION, CONVECTION MOTOR |
| 80207 | INSULATION, DOOR |
| 80213 | INSULATION, OUTER LINER |
| 36819 | INTAKE GRILL |
|
|
LEVELER |
| 36309 | LIGHT COVER |
|
|
LIGHT SERVICE KIT |
| 26241S | LINER, KICK PANEL |
|
|
MEAT PROBE |
| 72171 | MEAT PROBE CONN. W/COVER |
| 62714 | MEAT PROBE SOCKET |
| 72457B | MEMBRANE PANEL |
| 36280 | MOTOR MOUNTING PLATE |
| 83048 | NUT, HEX KEPS, 8-32 |
| 27460BP | OUTER LINER ASSEMBLY |
| 12582 | OVEN ASSEMBLY |
| 62964 | OVEN CONTROL |
|
|
OVEN RACK, GLIDERACK TYPE |
| 12607B | PANEL ASSEMBLY |
| 26027 | PLATE, SPARK BOX MTG |
| 82106 | PORCELAIN GRILL |
| 82107 | PORCELAIN PAN |
| 72530 | POWER BOARD |
| 36514 | POWER CONTROL BOARD MODULE MOUNTING PLATE |
| 36827 | REAL PANEL |
| 82851 | RECEPTACLE, HINGE |
|
|
RELAY POWER CONTROL BOARD |
| 83262 | RIVET, POP, .13 X .25 |
| 83618 | RUBBER BUMPER |
| 83220 | SCREW |
| 36617 | SIDE SHIELD, LEFT |
| 36618 | SIDE SHIELD, RIGHT |
| 26118 | SIDE SUPPORT, LEFT |
| 27000 | SIDE SUPPORT, RIGHT |
| 82826 | SMOKE ELIMINATOR |
| 72461 | SMOKE TUBE |
| 83227 | SPRING |
| 36306 | STAINLESS PANEL |
| 27048 | STIFFENER ASSEMBLY |
| 26144S | STORAGE PANEL |
| 36546 | SUB-CHASSIS |
| 82650 | SUPPORT RACK |
|
|
SUPPORT, NYLON, POWER CONTROL BOARD |
| 83068 | SUPPORT, STORAGE PANEL |
| 83577 | TAPE, DBL SIDED |
| 83452 | TAPE,DBL SIDED |
|
|
TEMPERATURE SENSOR |
| 62052 | TERMINAL BLOCK |
|
|
TERMINAL BLOCK |
| 27455 | TRANSITION DUCT |
| 36820 | TRIM POST, LEFT |
| 36821 | TRIM POST, RIGHT |
| 83194 | WASHER, .50 X .191 X .06 |
| 36377BP | WINDOW MASK |
| 72380 | WIRING HARNESS |
| 72703 | WIRING HARNESS |
