Manufacturer
Dacor
Model Number
MRV3615S
Description
Mrv3615s - Ventilation Hoods
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
10 LOCKWASHER;83340,DHD30M967WM |
| 80518 | 16GA GALVANIZED, STE |
| 80208 | 18 GA GALVANIZED STE |
| 80517 | 18GA GALVANIZED, 48" |
| 80074 | 20 GA GALVANIZED,48" |
| 80516 | 20 GA GALVANIZED;80516,"48""X96""",D |
| 80550 | 20 GA,GALVANIZED STE |
| 72183 | AC PHASE CONTROL;72183,E30DD75ESS |
| 106937 | ARM RAISE DRV36;106937,ERV3015 |
|
|

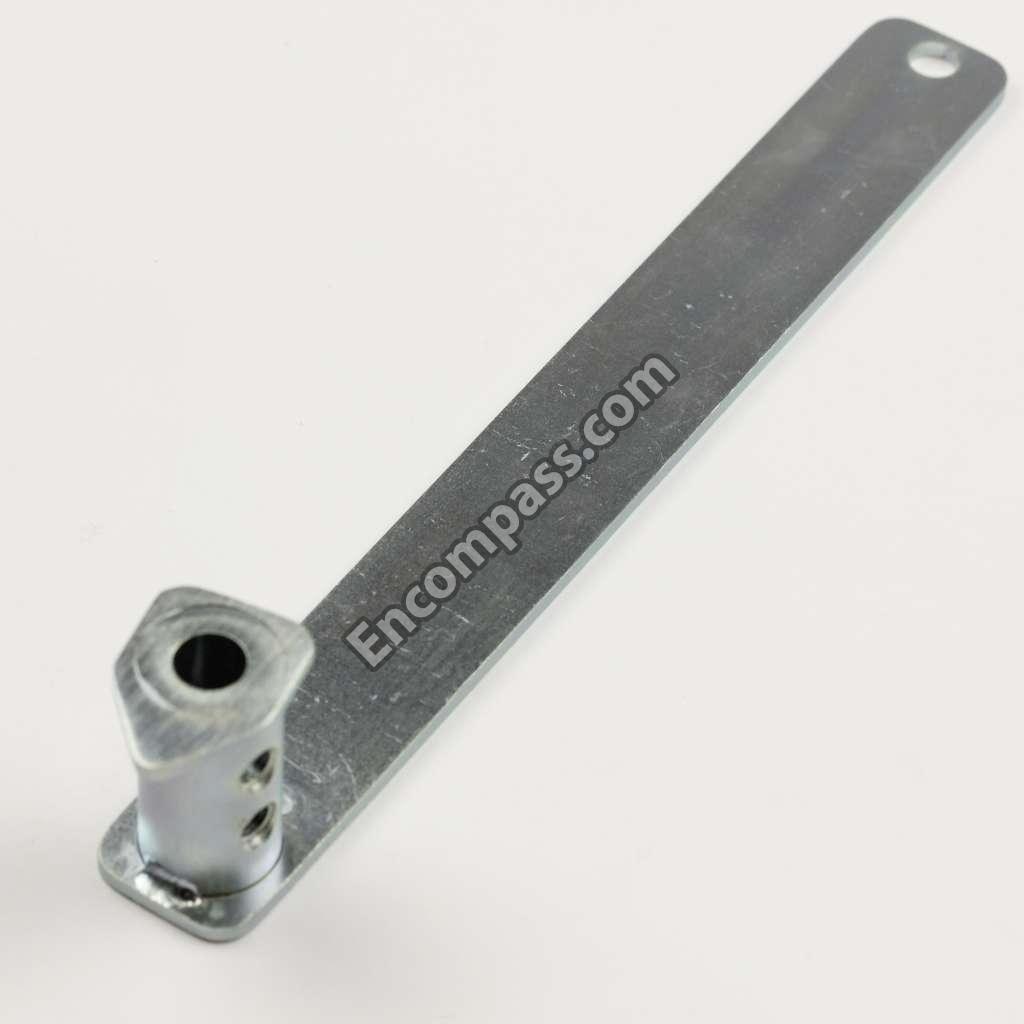

ASY ARM DRIVE;106935,ERV3015 |
| 701407-02 | ASY BRACKET SPRING;701407-02,ERV3615 |
| 701402 | ASY DRIVE ARM;701402,ERV3015 |
| 701404 | ASY DRIVE MOTOR SWITCH;701404,ERV301 |
| 701337 | ASY ELECTRIC BOX;701337,E30DD75ESS |
|
|

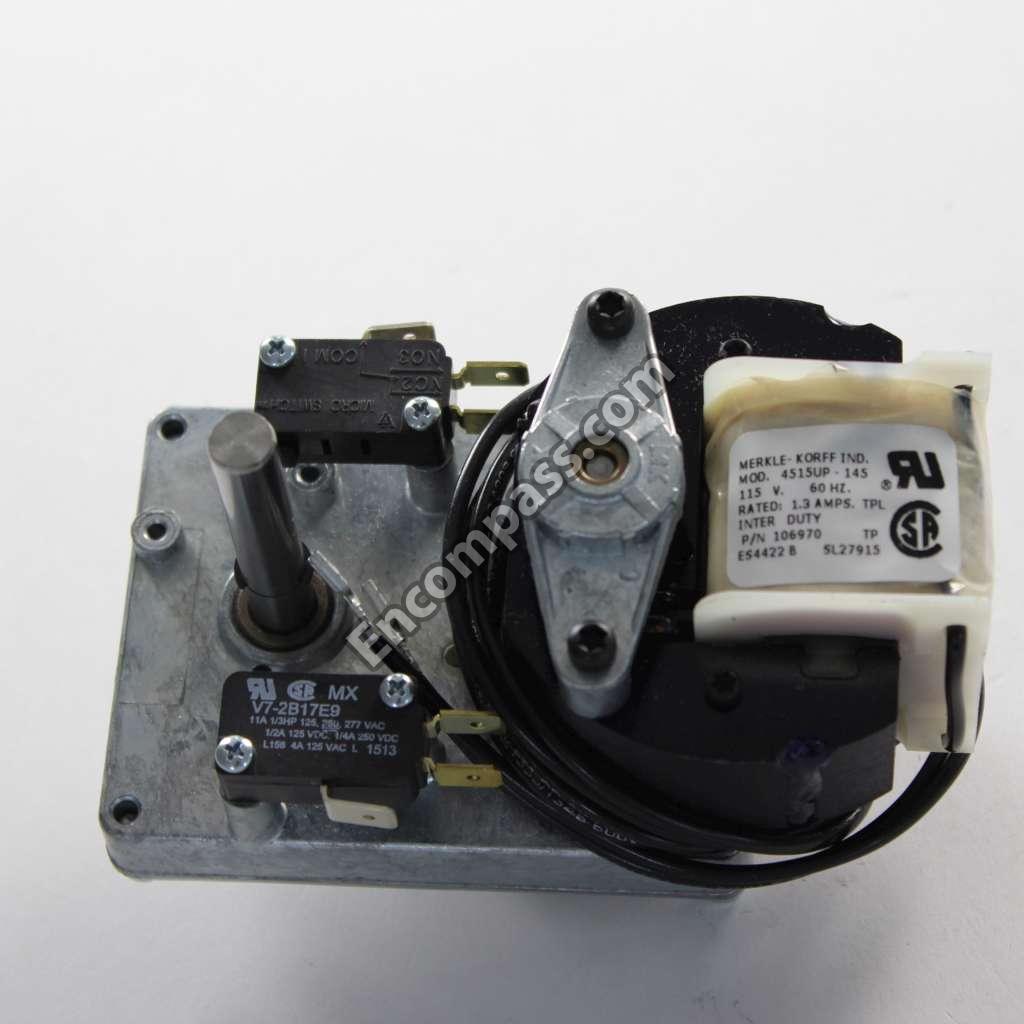

ASY MOTOR DRV36;106970,ERV3015 |
| 701401 | ASY PLENUM FRONT;701401,ERV3615 |
| 13768 | ASY TRANSITION DUCT;13768,E30DD75ESS |
| 13808 | ASY TRANSITION DUCT;13808,E30DD75ESS |
|
|
BEZEL SLIM LINE;72525,ERV30 |
| 105235 | BRACKET REINFORCEMENT;105235,ERV3015 |
| 106934-02 | BRACKET SLIDE MTG LH;106934-02,ERV36 |
| 106934-01 | BRACKET SLIDE MTG RH;106934-01,ERV36 |
| 83056 | BUSHING HEYCO SB 875 11;83056,DH3006 |
| 83173 | C CLIP;83173,E30DD75ESS |
| 83138 | CABLE TIE 4054 RT 350;83138,DCT305B/ |
| 83152 | COIN ENVELOPE S-6285 |
| 13111 | COIN ENVELOPE, VENTS |
| 62233 | COUNTER SEAL 33 50;62233,E36DD75ESS |
| 82243 | DRIVE ARM STUD;82243,E30DD75ESS |
| 26620 | E BOX COVER;26620,E30DD75ESS |
| 38374 | ELECTRIC BOX,SLIM RV |
| 62235 | FELT WIPER 500X 094X32;62235,DOP36M8 |
| 62236 | FELT WIPER 5OOX 094X38;62236,E36DD75 |
| 92156 | FILTER SPRING;92156,E30DD75ESS |
| 81132 | FOAM TAPE, URETHANE |
| 92310-005 | GASKET, FOAM, 33.5" |
| 72523-10 | HARNESS MAIN;72523-10,E30DD75ESS |
|
|
HARNESS POTENTIOMETER 18;66036,E30DD |
| 106774 | HARNESS RED WIRE;106774,E30DD75ESS |
| 76472 | HARNESS SWITCH;76472,ERV30 |
| 106777 | HARNESS YELLOW WIRE;106777,E30DD75ES |
| 72524 | KNOB SLIM LINE;72524,ERV30 |
| 65326HL | LABEL SET SN W HOLOGR;65326HL,DH3006 |
| 85136 | LABEL, "MADE WITH PRIDE" |
| 65467 | LABEL, CAUTION |
| 65467FR | LABEL, HOOD, CAUTION |
| 106770 | LABEL, WIRING DIAGRA |
| 85249 | LABEL,"DIELECTRIC TE |
| 85648 | LABEL,EXTRU CONTAINER,CP |
| 85626 | LABEL,MAINTENANCE-EN |
| 85627 | LABEL,MAINTENANCE-FR |
| 81070 | MICROFOAM,12"X6"X.06 THK |
| 105773 | MOTOR ACCESS PANEL;105773,ERV3615 |
| 83531 | NUT 4 40 HEX KEPS ZINC P;83531,DH300 |
| 83048 | NUT HEX KEPS;83048,#8-32,DCT305B/LP |
| 83049 | NUT HEX KEPS;83049,"1/4-20,ZN",E30DD |
| 83035 | NUT WING;83035,#10-24,DHD30M967WM |
| 83046 | NUT, WIRE, ORANGE |
| 83126 | NUT, WIRE, YELLOW #451 |
| 72653 | NYLON ROLLERS;72653,E30DD75ESS |
| 72548 | PLENUM ANGLE LEFT SLIM R;72548,E30DD |
| 72547 | PLENUM ANGLE RGHT SLIM R;72547,E30DD |
| 82747 | PLENUM TRIM 36;82747,E36DD75ESS |
| 36366 | POT BEZEL BRACKET;36366,E30DD75ESS |
| 72629 | POWER SUPPLY CORD 37;72629,E30DD75ES |
| 106936 | RAIL SLIDE 3 PCS DRV36;106936,ERV301 |
| 108606 | RELAY RNRP36 48G;108606,E30DD75ESS |
|
|
RIVET SS;83652,1/8X1/8,DH3006 |
| 83047 | SCREW PHIL FLAT;83047,#14X2-1/2,E30D |
|
|
SCREW PHIL PAN HD;83001,#8X1/4,DCT30 |
| 83530 | SCREW PHIL PAN;83530,#4-40X5/8,DH300 |
| 83022 | SCREW PHIL TRS HD;83022,#10X1/2,E30D |
|
|
SCREW PHIL;83007,#8-32 X 1/4,DOP36M9 |
| 83181 | SCREW PHIL;83181,8-32X1/4,DR30EFS |
| 83070 | SCREW SET;83070,1/4-28 UNFX1/4,E30DD |
| 83103 | SCREW, WELD, 1/4-20X5/8 |
| 83137 | SCREW,WELD,#8-32 X1/2,ST |
| 106942 | SLEEVE, REAR, DRV36 |
| 72319 | SPACER NYLON;72319,E30DD75ESS |
| 83187 | SPRING WASHER RV;83187,E30DD75ESS |
| 83472 | STRAIN RELIEF WATER TIGH;83472,E30DD |
| 36861 | SUPPORT LEG LEFT;36861,E30DD75ESS |
| 36862 | SUPPORT LEG RIGHT;36862,E30DD75ESS |
| 83452 | TAPE DBL SIDED 3M 4920;83452,E30DD75 |
| 102352 | TERMINAL BLOCK 12 PT;102352,DH3006 |
| 83037 | TIE PUSH MOUNT LOCKING;83037,DH3006 |
| 83266 | TUBULAR FASTENER;83266,E30DD75ESS |
| 83203 | WASHER FLAT;83203,P400 1/4-20,DRT304 |
| 101902 | WASHER, FLAT, 3/4 X |
| 83008 | WASHER;83008,#10 SAE,DTCT304GB/LP |
| 83533 | WASHER;83533,88ODX 165IDX 03,DR30D-C |
| 701403 | WELD BOX MTG MOTOR;701403,ERV3015 |
| 27809 | WELD ELECTR BOX SLIM RV;27809,E30DD7 |
| 701576 | WELD REAR PLENUM;701576,E36DD75ESS |
| 701575 | WELD, FRONT PLENUM |
