Manufacturer
Dacor
Model Number
MW30
Description
Warming Drawer
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 27204 | ASSEMBLY, CABINET |
| 701213 | ASSEMBLY, DRAWER |
| 701214-05 | ASSEMBLY, DRAWER GLASS, FRAME, MW/B |
| 701214-02 | ASSEMBLY, DRAWER GLASS, FRAME, MWH/S |
| 701214-01 | ASSEMBLY, DRAWER GLASS, FRAME, MWV/S |
| 27142B | ASSEMBLY, FRONT FRAME, 30-INCHES |
| 27222 | ASSEMBLY, TOP CAN |
| 62786B | BEZEL, WARMING OVENS |
| 83436 | CLIP J TYPE |
| 83267 | CLIP, SENSOR BULB |
| 82627 | CONTROL INSULATION |
| 82267B | CONTROL KNOB |
| 72510CH | DACOR LOGO, 3-INCHES |
| 92126 | DOOR SPACER |
| 46141E | DRAWER FRONT |
| 92325 | FAN BLADE |
| 82280B | GASKET |
| 26681 | GASKET RETAINING TRIM |
| 72937 | HANDLE, DOOR |
| 82351 | HEATING ELEMENT |
| 26673 | INSULATION COVER |
| 82415B | KNOB, DAMPER - BLACK |
| 36454 | MOIST/CRISP SLIDE |
| 92324 | MOTOR, W/O, 120 VAC |
| 83048 | NUT, HEX KEPS, 8-32 |
| 83308 | NUT, KEPS, 6-32 |
| 83447 | NUT, NYLON, 10-24 |
| 26668 | REFLECTOR |
| 83578 | RUBBER BUMBER, SNAP-IN |
| 83692 | SCREW, PAN HD, 10-32 X 1-INCHES |
| 83358 | SCREW, PAN HD, 8-32 X 3/8-INCHES |
| 83263 | SCREW, PHIL HD, 8 X 3/8-INCHES |
| 83402 | SCREW, PHIL HD, 8 X 3/8-INCHES |
|
|
SCREW, WFR HD, 8 X 3/8-INCHES |
| 72737 | SLIDE RAIL SET, LH/RH |
| 72880 | SWITCH, SNORKEL |
|
|

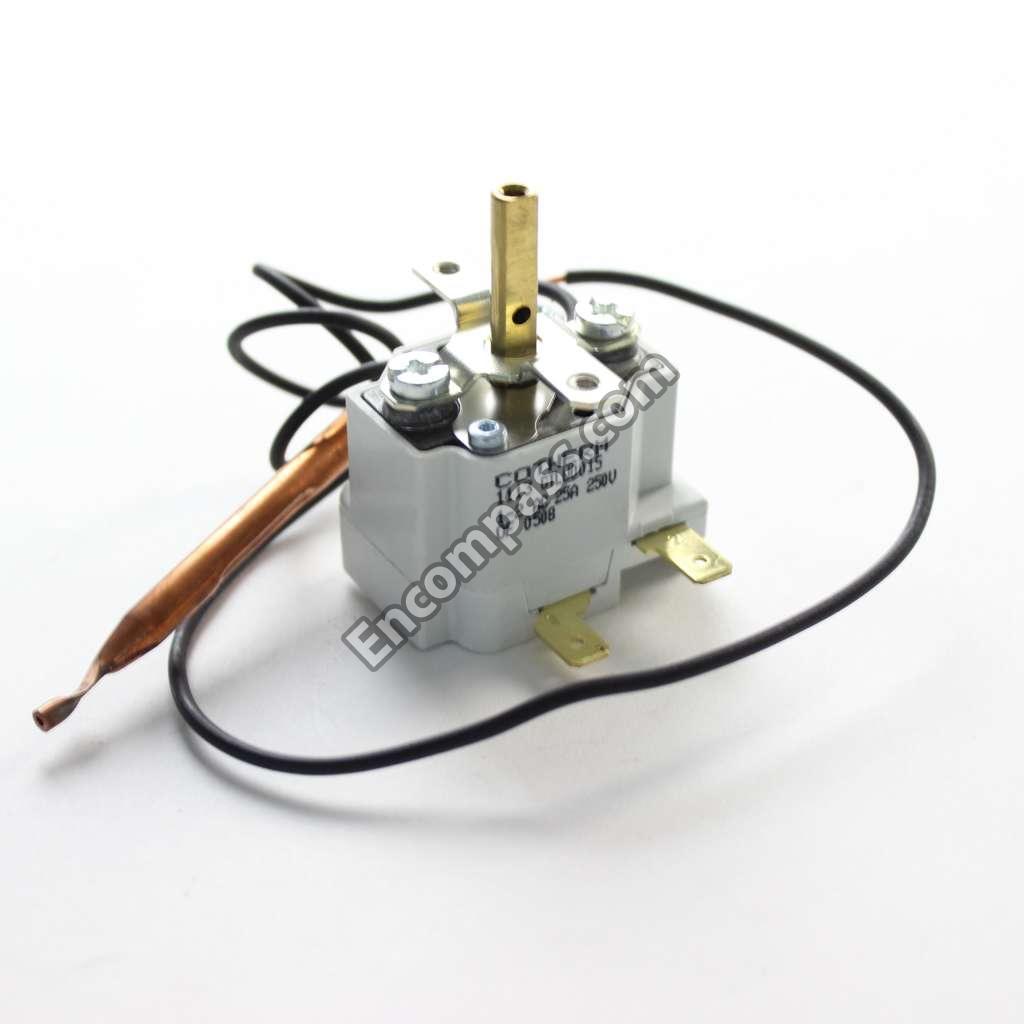

TEMP CONTROLLER |
| 72889 | TIMER |
| 26671 | TOP COVER |
| 82626 | TOP INSULATION |
| 83266 | TUBULAR FASTENER |
| 83555 | WASHER, FIBER W/ ADH. 1-SIDE |
| 83272 | WASHER, STL, ZINC |
