Manufacturer
Dacor
Model Number
OGC52
Description
Out Door Grill
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 72906 | 3 1/2 CASTER SWIVEL |
| 83676 | 3/8 X 3/8 SS SHOULDER BOLT |
| 72901 | 8-INCHES SEMI-PNEUMATIC WHEEL |
| 83681 | ACORN NUT |
| 27883 | ASSEMBLY SIDE SHELF BRACKET RH |
| 13703 | AXLE STIFFENER ASSEMBLY |
| 83657 | BOLT, HEX HD |
| 46111 | CART DAM |
| 27903 | CART DRAWER FRONT |
| 27875 | CART DRAWER FRONT |
| 27871 | CART SIDE SHELF |
| 46083 | CART TOOL HOLDER |
| 46110 | CART, BOTTOM PANEL |
| 36349 | CASTER STIFFENER |
| 13699 | CASTER STIFFENER ASSEMBLY |
| 72907 | CASTER SWIVEL W/ BRAKE |
| 46082 | DRAWER BOX |
| 46086 | DRAWER CHANNEL, SLIDE MOUNT |
| 46112 | DRAWER DIVIDER |
| 27876 | DRAWER FRONT |
| 36434 | DRAWER LINER |
| 46081 | DRAWER LINER |
| 46119 | DRAWER LINER |
| 46088 | ELECTRICAL BOX |
| 46085 | ELECTRICAL BOX COVER |
| 72904 | ELECTRICAL OUTLET, 1 MALE |
| 72903 | ELECTRICAL OUTLET, 2 FEMALE |
| 72905 | ELECTRICAL OUTLET, 2 FEMALE |
|
|

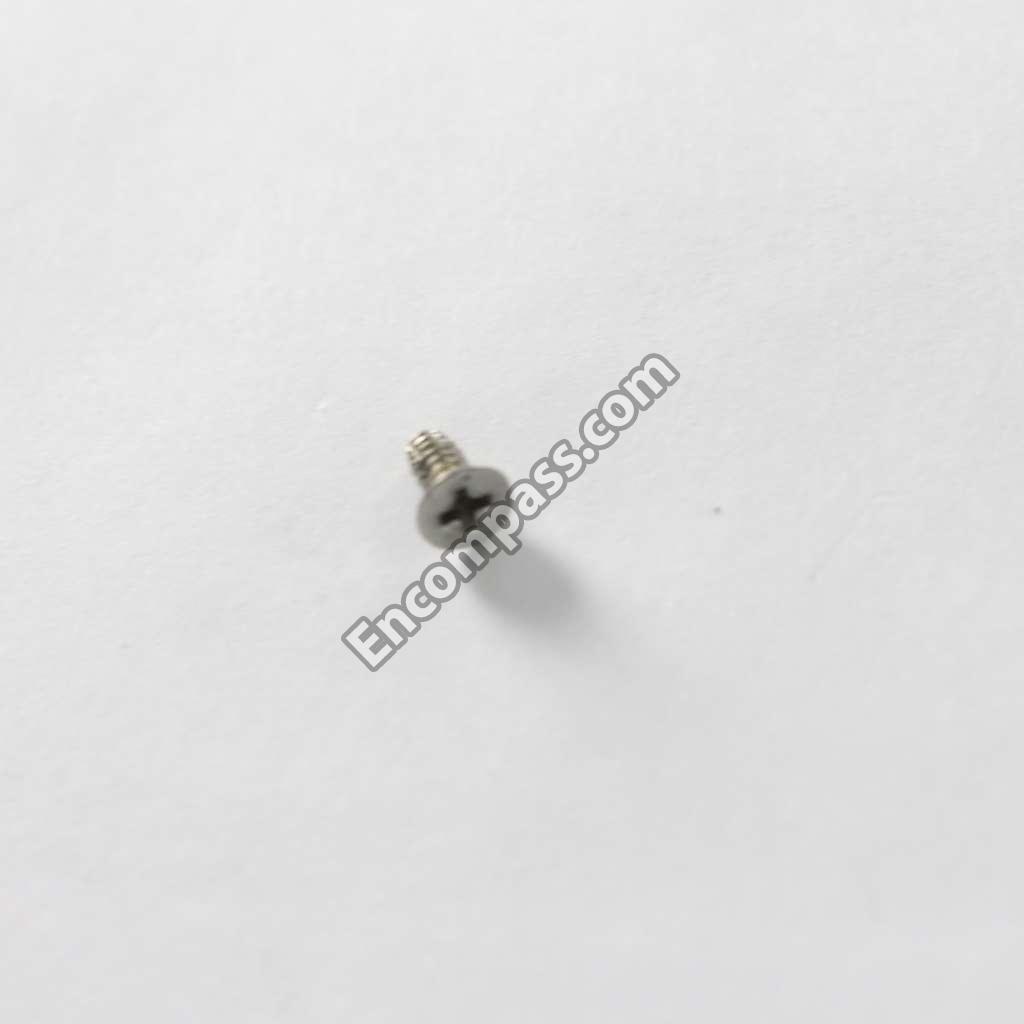

FLAT HEAD SCREW |
| 13570 | HANDLE ASSEMBLY |
| 13544 | HANDLE ASSEMBLY |
| 72165 | HI TEMP RUBBER BUMPER |
| 83685 | KEPS NUT 10-24 |
| 83192 | KEPS NUT, 8-32 |
| 83628 | KEPS NUT,8-32 SS |
| 27882 | LEFT SIDE SHELF BREAK ASSEMBLY |
| 72921 | LEV 4998-6Y 1G WP DUPLEX |
| 72922 | LEV 80401-GY 1G GRAY |
| 46102 | MAIN CHANNEL |
| 83678 | PUSH NUT |
| 46084 | REAR CHANNEL WHEEL |
| 83677 | ROD |
| 83684 | SCREW, 10-24 X 1/2-INCHES, TRUSS |
|
|

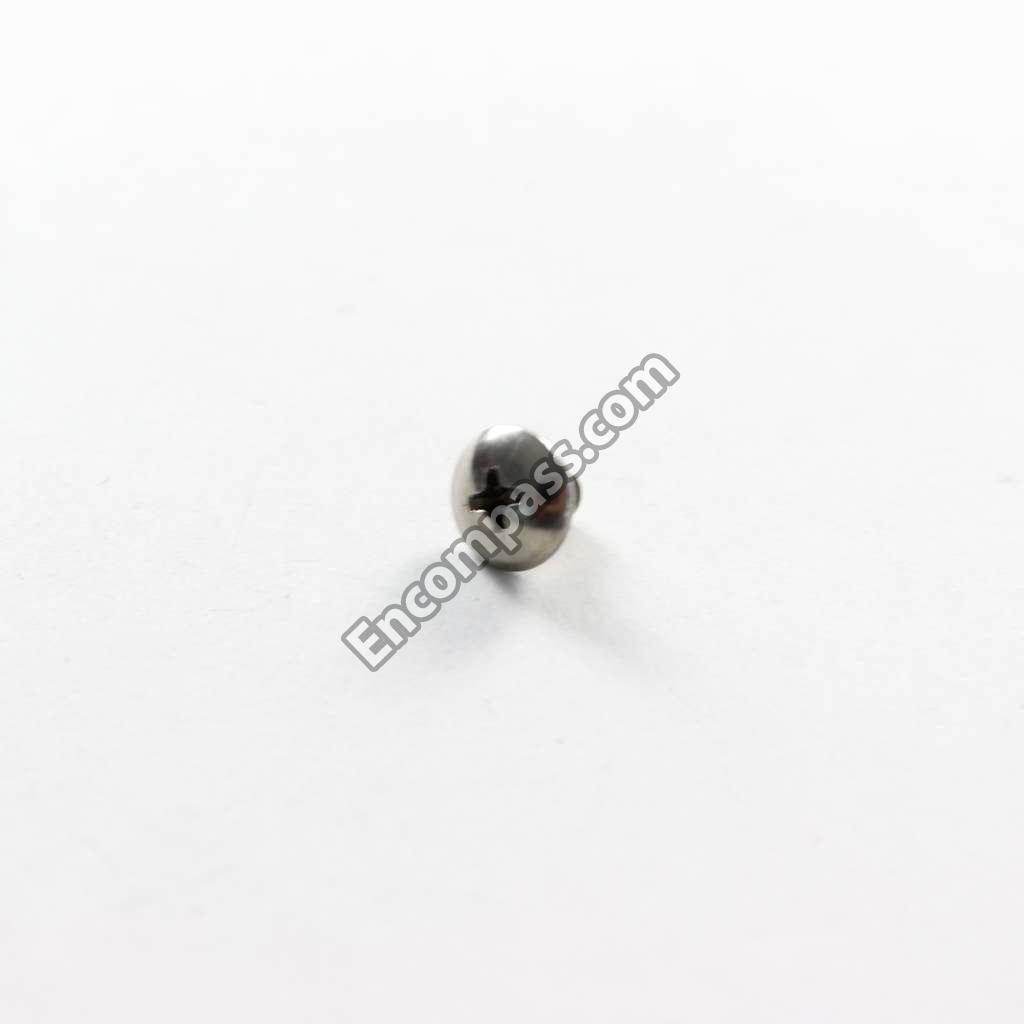

SCREW, 8-32 X 1/2 TRUSS PHILLIPS |
| 36413 | SIDE PANEL |
| 36370 | SIDE PANEL, RH |
| 72207 | SLIDE RAIL SET |
| 36295 | TANK DRAWER FRONT LINER |
| 72960 | WIRING HARNESS |
