Manufacturer
Dacor
Model Number
PCOR30S
Description

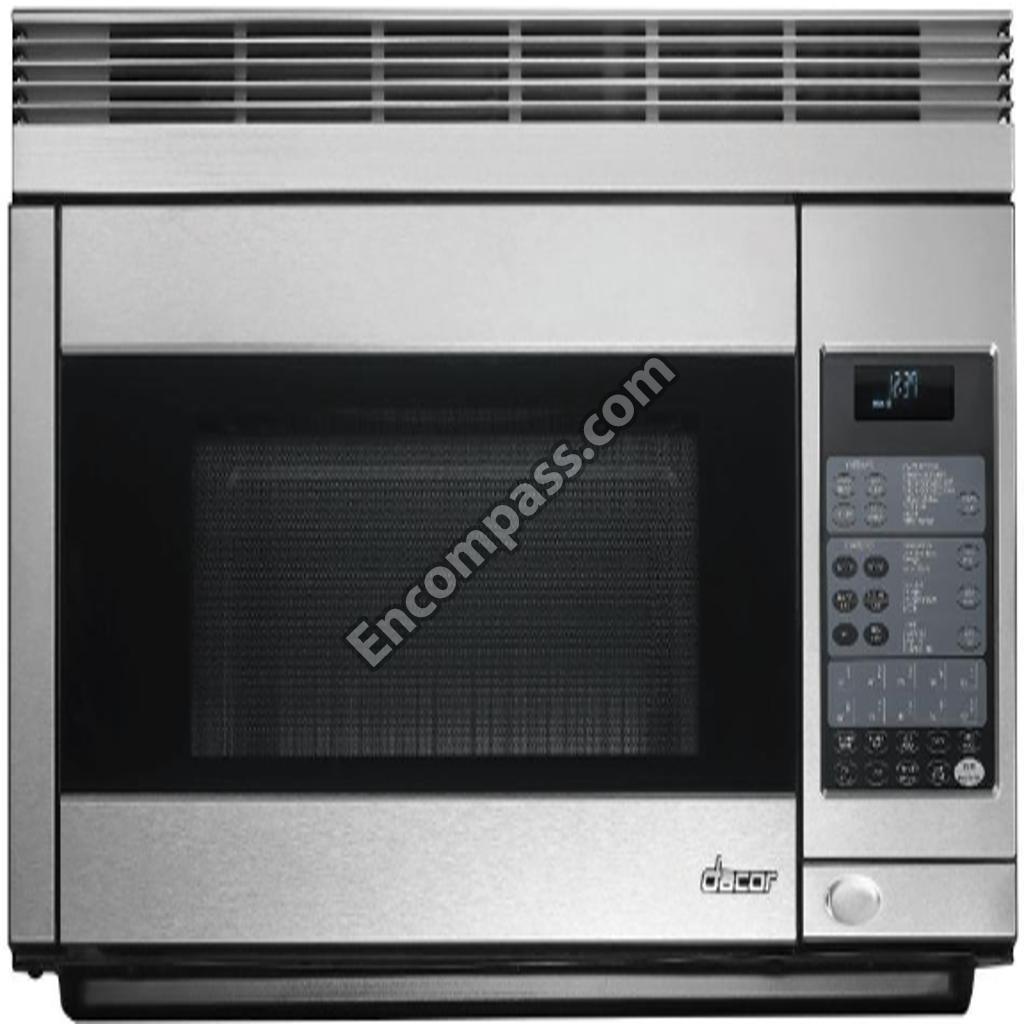

Pcor30s - Microwaves
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 66691 | **OR7** HVC CAPACITOR BAND |
| 66785 | 10MM COMMON SCREW |
| 66671 | AH SENSOR;66671,PCOR30B |
| 66728 | AIR FLOW CUSHION PCOR30;66728,PCOR30 |
| 66729 | AIR FLOW CUSHION, PCOR30 |
| 66221 | AIR FLOW CUSHION;66221,PCOR30B |
| 66656R | ASSY DOOR,ARC,PCOR30 |
| 66675 | ASY DAMPER PCOR30;66675,PCOR30B |
| 66656B | ASY DOOR BLK PCOR30;66656B,PCOR30B |
| 66667S | ASY DOOR FRAME SS PCOR;66667S,PCOR30 |
| 66656S | ASY DOOR SS PCOR30;66656S,PCOR30B |
| 66662 | ASY HIGH RACK PCOR30;66662,PCOR30B |
| 66676 | ASY HV DIODE PCOR30;66676,PCOR30B |
| 66661 | ASY LOW RACK PCOR30;66661,PCOR30B |
| 66670B | ASY OPEN BUTTON BLK PCOR;66670B,PCOR |
| 66670S | ASY OPEN BUTTON SS PCO;66670S,PCOR30 |
| 66669B | ASY SASH BLK PCOR30;66669B,PCOR30B |
| 66669S | ASY SASH SS PCOR30;66669S,PCOR30B |
| 100657 | ASY TURNTABLE SUPPORT;100657,PCOR30B |
| 66715B | BASE COVER SS BLK PCOR;66715B,PCOR30 |
| 66715R | BASE COVER;66715R,PCOR30B |
| 66686 | BASE PLATE LEFT |
| 66687 | BASE PLATE RIGHT |
| 66023 | CHARCOAL FILTER;66023,PCOR30B |
| 66685 | CHOKE COVER PCOR30;66685,PCOR30B |
| 66744 | COLLER |
| 66783 | COMMON SCREW (8) |
| 105457 | CONTROL PANEL ASY, BLK |
| 105458 | CONTROL PANEL ASY, SS |
| 105459 | CONTROL PANEL SUB ASSEMBLY;105459,PC |
|
|
CONTROL UNIT PCOR30;66660,PCOR30B |
| 110441 | CONTROL UNIT PCOR30SY;110441,DACMSVC |
| 66659 | CONV. HEATER UNIT |
| 66694 | CONV. MTR AG |
| 66712 | CONVECTION FAN PCOR30;66712,PCOR30B |
| 66753 | CONVECTION HEATER PCOR3;66753,PCOR30 |
| 66711 | CONVECTION MOTOR FAN PCO;66711,PCOR3 |
| 66757 | CONVECTION MOTOR PCOR30;66757,PCOR30 |
|
|
CORD BUSHING;66196,PCOR30B |
| 66209 | CORD HOLDER;66209,PCOR30B |
| 66710 | COUPLING PCOR30;66710,PCOR30B |
| 66721 | CUSHION, PCOR30 |
| 66014 | CUSHION;66014,PCOR30B |
| 66719 | CUSHION;66719,PCOR30B |
| 66725 | CUSHION;66725,PCOR30B |
| 66727 | CUSHION;66727,PCOR30B |
| 66707 | DAMPER CAM PCOR30;66707,PCOR30B |
| 112237 | DAMPER CAM PCOR30SY;112237,DACMSVC |
| 66741 | DAMPER CAM PLATE PCOR30;66741,PCOR30 |
| 66726 | DAMPER CUSHION PCOR30;66726,PCOR30B |
|
|

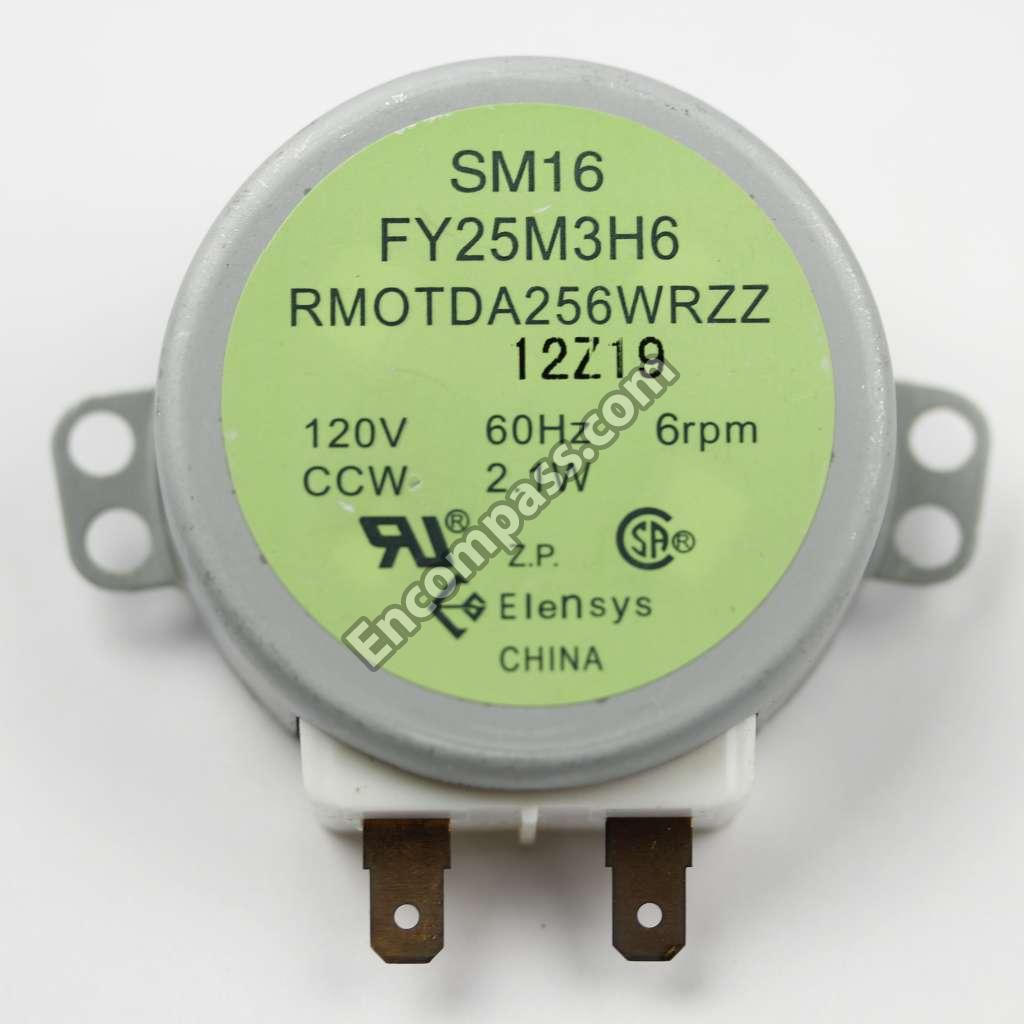

DAMPER MOTOR PCOR30;66756,PCOR30B |
| 66688 | DISPLAY WINDOW PCOR30;66688,PCOR30B |
| 66724 | DOOR CUSHIONS;66724,PCOR30B |
| 66667B | DOOR FRAME;66667B,PCOR30B |
| 66010 | DOOR GLASS FRONT;66010,PCOR30B |
| 66658 | DOOR PANEL ASSEMBLY;66658,PCOR30B |
| 66696 | DOOR STOPPER PCOR30;66696,PCOR30B |
| 66787 | E RING PCOR30;66787,PCOR30B |
| 66722 | EXHAUST CUSHION (A) |
| 66723 | EXHAUST CUSHION (B) |
| 66734 | EXHAUST DUCT;66734,PCOR30B |
| 110443 | FAN BLADE PCOR30SY;110443,DACMSVC |
| 66713 | FAN BLADE,PCOR30 |
| 66672 | FAN DUCT ASSEMBLY |
| 66758 | FAN MOTOR PCOR30;66758,PCOR30B |
| 66233 | FUSE HOLDER;66233,PCOR30B |
| 66699 | GLASS STOPPER;66699,PCOR30B |
|
|
GREASE FILTER;66225,PCOR30B |
| 66717 | H. PRTCT TOP SHEET |
| 66733 | HD ITK DUCT L |
| 66747 | HEAT COVER L |
| 66740 | HEAT PROTECT BOTTOM |
| 66738 | HEAT PROTECT L |
| 66015 | HEAT PROTECT REAR;66015,PCOR30B |
| 66011 | HEAT PROTECT RIGHT;66011,PCOR30B |
| 66739 | HEAT PROTECT TOP |
| 66008 | HEATER MOUNTING HOLDER;66008,PCOR30B |
| 112236 | HIGH VOLTAGE CAPACITOR;112236,DACMSV |
| 66752 | HIGH VOLTAGE CAPACITOR;66752,PCOR30B |
| 66730 | HOOD EXHAUST DUCT;66730,PCOR30B |
| 66690R | HOOD EXHAUST LOUVER;66690R,PCOR30B |
| 110439 | HOOD FAN MOTOR, PCOR30SY |
| 66248 | HOOD INTAKE DUCT R;66248,PCOR30B |
| 66244 | HOOD LAMP AND OVEN LAMP;66244,PCOR30 |
| 66012 | HOOD LAMP ANGLE;66012,PCOR30B |
| 66692B | HOOD LAMP GLASS ANGLE;66692B,PCOR30B |
| 66692R | HOOD LAMP GLASS ANGLE;66692R,PCOR30B |
| 66172 | HOOD LAMP GLASS ASSEMBLY;66172,PCOR3 |
| 66172R | HOOD LAMP GLASS ASSEMBLY;66172R,PCOR |
| 66228 | HOOD LAMP GLASS PCOR30 |
| 66235 | HOOD LAMP SOCKET;66235,PCOR30B |
| 66025 | HOOD LOUVER SCREWS;66025,PCOR30B |
| 66690B | HOOD LOUVER, BLK, PCOR30 |
| 66690S | HOOD LOUVER, SS, PCOR30 |
| 66678 | HOOD MOTOR, PCOR30 |
| 66751 | HV WIRE A |
| 66657 | INSTALLATION MATERIAL ASSEMBLY;66657 |
| 66682R | KEY UNIT (PCOR30R) |
| 66682B | KEY UNIT (PCOR30S/B) |
| 66697 | LATCH HEAD PCOR30;66697,PCOR30B |
| 66742 | LATCH HOOK;66742,PCOR30B |
| 66211 | LATCH SPRING;66211,PCOR30B |
| 66669R | LEFT SASH ASSY |
| 66786 | M4 TAPPING SCREW (SUS) |
| 66781 | M4 TAPPING SCREW (SUS) |
| 66789 | M4 WASHER |
| 66788 | M5 WASHER |
| 66775 | MACHINE SCREW PCOR30;66775,PCOR30B |
| 66732 | MAGNETRON DUCT;66732,PCOR30B |
| 66761 | MAGNETRON PCOR30;66761,PCOR30B |
| 86794 | MAGNETRON TEMP FUSE;86794,PCOR30B |
| 66684 | MAIN HARNESS A;66684,PCOR30B |
| 66683 | MAIN HARNESS C;66683,PCOR30B |
| 112239 | MAIN HARNESS PCOR30SY;112239,DACMSVC |
| 66236 | MICROSWITCH |
|
|
MONITOR SWITCH W FUSE AS;66006,MMD30 |
| 66680 | NOISE FILTER PCOR30;66680,PCOR30B |
| 110434 | NOISE FILTER PCOR30SY;110434,DACMSVC |
| 66693 | NOISE FILTER;66693,PCOR30B |
| 66759 | NOISE RESISTOR;66759,PCOR30B |
| 66706 | NUT PCOR30;66706,PCOR30B |
| 66709 | OPEN BUTTON SPRING;66709,PCOR30B |
| 66670R | OPEN BUTTON;66670R,PCOR30B |
| 66708 | OPEN LEVER;66708,PCOR30B |
| 66666B | OUTER CASE CABINET BLK;66666B,PCOR30 |
| 66666R | OUTERCASE ASSEMBLY OR4 WHITE |
| 66716 | OVEN LAMP COVER PCOR30;66716,PCOR30B |
| 66736 | OVEN LIGHT SCREEN PCOR3;66736,PCOR30 |
| 66171 | POWER CORD;66171,PCOR30B |
| 66773 | SCHEMATIC |
| 66780 | SCREW |
| 66774 | SCREW DISC(740) |
| 66705 | SCREW PCOR30;66705,PCOR30B |
| 66019 | SCREW;66019,5MM X 60MM,PCOR30B |
| 66020 | SCREW;66020,5MM X 35,PCOR30B |
| 66024 | SCREW;66024,4MM X 10MM,PCOR30B |
| 66259 | SCREW;66259,3MM X 8MM,PCOR30B |
| 66263 | SCREW;66263,3MM X 10MM,PCOR30B |
| 66701 | SCREW;66701,4MM X 8MM,PCOR30B |
| 66777 | SCREW;66777,3MM X 6MM,PCOR30B |
| 66778 | SCREW;66778,4MM X 8MM,PCOR30B |
| 66779 | SCREW;66779,4MM X 8MM,PCOR30B |
| 66782 | SCREW;66782,PCOR30B |
| 66784 | SCREW;66784,4MM X 12MM,PCOR30B |
| 66703 | SPECIAL SCREW;66703,PCOR30B |
| 66704 | SPECIAL SCREW;66704,PCOR30B |
| 66674 | STIRRER FAN ASEMBLY |
| 66755 | STIRRER MOTOR PCOR30;66755,PCOR30B |
| 66668 | STR. COV. ASSY. |
| 110437 | SWITCHING POWER SUPPLY;110437,DACMSV |
| 76231 | THERM CUT OUT HOOD FAN;76231,PCOR30B |
| 66013 | THERMAL COVER BOTTOM;66013,PCOR30B |
| 66746 | THERMAL COVER R;66746,PCOR30B |
| 66677 | THERMISTOR PCOR30;66677,PCOR30B |
| 66204 | TOGGLE SCREW;66204,PCOR30B |
| 66731 | TOP DUCT |
| 107919 | TRANSFORMER PCOR30;107919,PCOR30B |
| 66743 | TTM PACKAGING;66743,PCOR30B |
|
|
TURNTABLE MOTOR |
| 100658 | TURNTABLE TRAY;100658,PCOR30B |
|
|

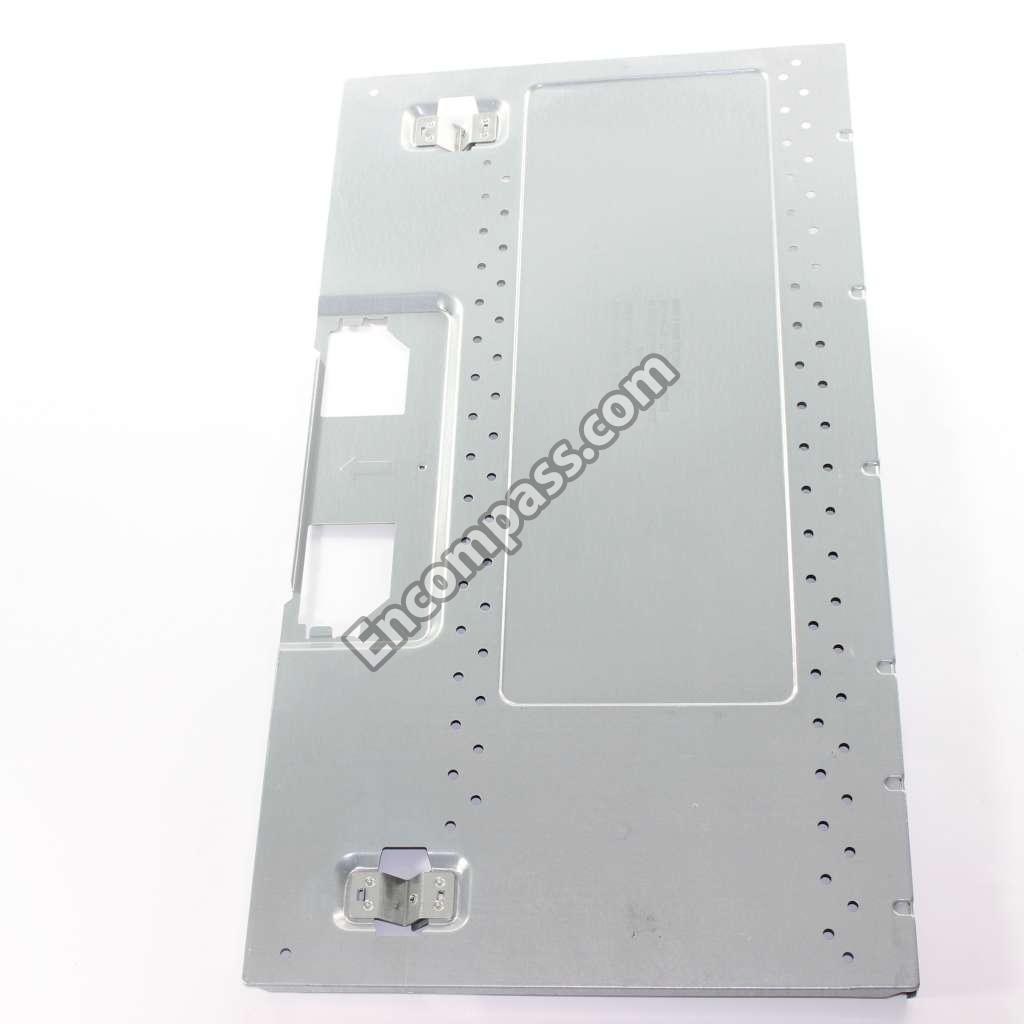

UNIT MTG PLATE PCOR30;66665,PCOR30B |
| 66702 | UNIT MTG SCREW PCOR30;66702,PCOR30B |
| 66022 | USER CAUTION LABEL;66022,PCOR30B |
| 66790 | WASHER, PCOR30 |
| 66791 | WASHER-SUS 4.0 |
| 66021 | WASHER;66021,PCOR30B |
