Manufacturer
Dacor
Model Number
PGR30R
Description
Pgr30r - Ranges
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 62174 | 3 8TUBE MANFLD AUTOVLV;62174,PGR30 |
| 62717 | 38 GAS TUBE TO IR BROILER;62717,PGR3 |
| 62716 | 58 GAS INPUT TUBE;62716,PGR30 |
| 62728 | ADAPTER 12MNPT TO 38A;62728,PGR30 |
| 36322 | AIR BAFFLE;36322,PGR30 |
| 13065 | ASSEMBLY STORAGE PANEL;13065,PGR30 |
| 27174 | ASSY BASE USES 12 LEVELER;27174,PGR3 |
| 76479R | ASSY BEZEL CONTROL;76479R,WHITE,PGR3 |
| 27153 | ASSY EXHAUST PLATE;27153,PGR30 |
| 12470 | ASSY WINDOW PACK 1 INCH1;12470,ERD36 |
| 86166 | ASY DOOR LATCH;86166,ERG30B06BK |
| 27588 | ASY ORIFICE HOLDER;27588,ERG30B06BK |
| 76479B | ASY, BEZEL, CONTROL |
| 86296 | ASY, VALVE, B-OUT LP |
| 86298 | ASY, VALVE, C-IN NG |
| 66623 | ASY,INNER DOOR W/1" WIND |
| 66622 | ASY,INNER DOOR W/1" WIND |
| 86275 | ASY,VALVE,B-IN NG |
| 27604 | BACK COVER;27604,PGR30 |
| 26280 | BRACKET KICK PANEL SUPPORT RH;26280, |
| 26448 | BRAKT FAN STATUS INDICATOR;26448,ERG |
| 36327 | BRKT COOLING FAN;36327,PGR30 |
| 86524BM | BURNER CAP B;86524BM,SGM464EMBC |
| 86523BM | BURNER CAP C;86523BM,SGM464EMBC |
| 27139 | CASE SIDE LEFT;27139,PGR30 |
| 27137 | CASE SIDE RIGHT;27137,PGR30 |
| 26124 | CASE TOP FRONT;26124,PGR30 |
| 36326 | CASE TOP REAR;36326,PGR30 |
| 13418 | COMPLETE MANIFOLD ASSEMBLY LP;13418, |
| 13415 | COMPLETE MANIFOLD ASSEMBLY NG;13415, |
| 13417 | COMPLETE MANIFOLD ASSY LP HIGH;13417 |
| 13416 | COMPLETE MANIFOLD ASSY NG HIGH;13416 |
| 26119B | CONTROL BEZEL TRIM;26119B,PGR30 |
| 36350 | CONVECTION BAFFLE;36350,PGR30 |
| 26126BP | COVER CONV BAFFLE TOP;26126BP,PGR30 |
| 26538 | COVER PLATE LIGHT;26538,PGR30 |
| 36348 | COVER REGULATOR FITTING;36348,PGR30 |
| 72027 | DOOR GASKET;72027,MCS130B |
| 82122B | DOOR HANDLE,RANGE BLK |
| 62729 | ELBOW FITTING;62729,PGR30 |
| 26069B | EXHAUST GRILL LOWER;26069B,BLACK,PGR |
| 26069R | EXHAUST GRILL LOWER;26069R,WHITE,PGR |
| 82651 | FAN BLADE CONVECTION MTR;82651,ERD36 |
| 26241B | FRONT PANEL;26241B,RSG30A/LP |
| 86360 | GLASS/OVERLAY ASY,30"DOO |
| 72457SB | GRATE PACK EXTENDED;72457SB,PGR30 |
| 86080 | HARNESS,IGNITOR TO SW/LT |
| 26440 | HEAT SHIELD BAKE BURNER;26440,PGR30 |
| 26574 | HEAT SHIELD BLACKWHITE;26574,PGR30 |
| 36354 | HEAT SHIELD DOOR STAINLESS;36354,MCD |
| 36620B | HEAT SHIELD DOOR;36620B,BLACK,MCS130 |
| 26478 | HEAT SHIELD SIDE VENT DUCT;26478,PGR |
| 66281 | IGNITOR ASY;66281,ERG30B06BK |
| 62815 | IGNITOR WIRE SET;62815,PGR30 |
| 27459BP | INNER LINER ASY;27459BP,ERG30B06BK |
| 80172 | INSULATION;80172,MCD230B |
| 26288B | INTAKE GRILL,GAS RANG-BL |
| 86081 | JUMPER WIRES SWITCH;86081,PGR30 |
|
|
KIT, LIGHT & MOUNT PLATE |
| 86746 | KIT,DOOR LINER 30" |
| 82016B | KNOB, RANGE - BLK |
|
|
LIGHT BULB 40W 130V;82089,MRE30S |
| 27616 | MANIFOLD ENCLOSURE;27616,PGR30 |
| 82419B | MEMBRANE, PGR/RSG30 |
| 82419R | MEMBRANE;82419R,WHITE,PGR30 |
|
|

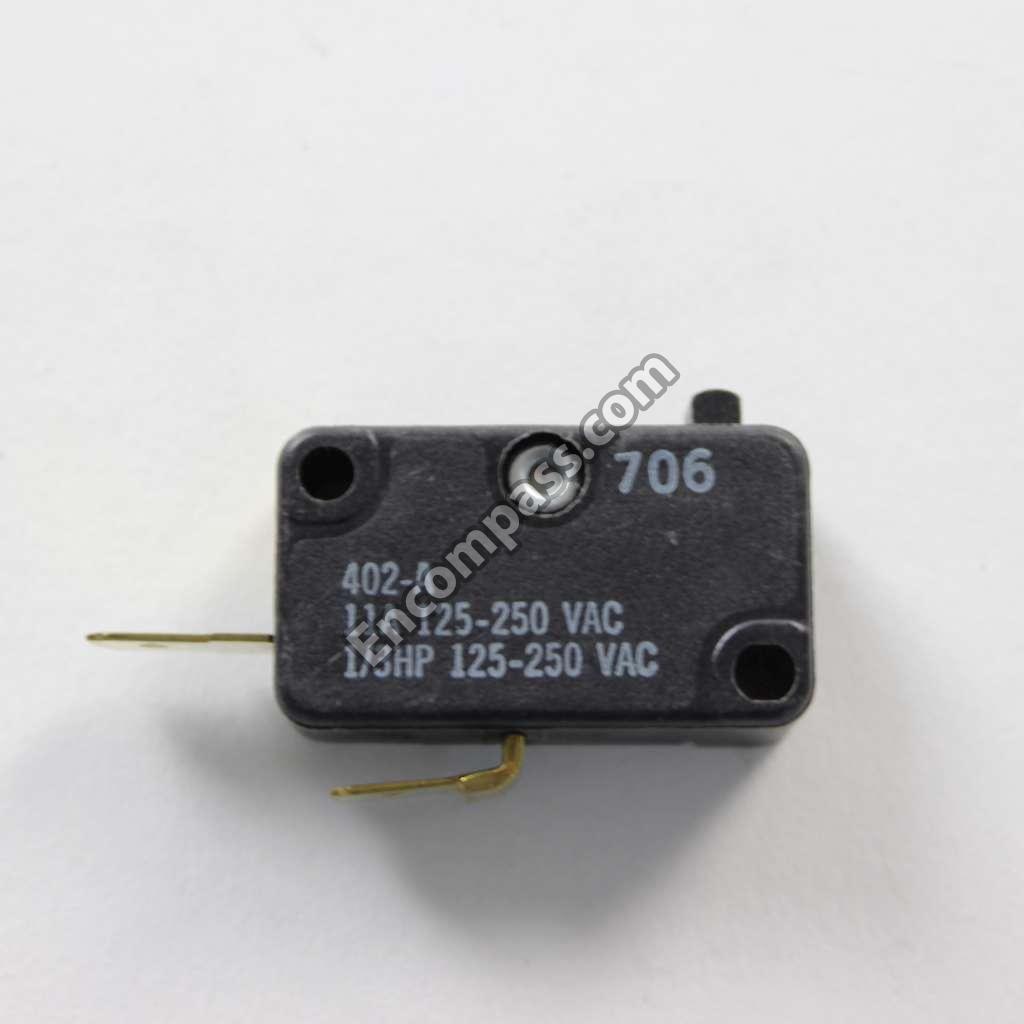

MICROSWITCH;86420,PGR30 |
| 27098 | MOUNTING BRKT IR BRUNER;27098,PGR30 |
| 62718 | ORIFICE FITTING;62718,PGR30 |
| 86802 | ORING BBURNER HEAD;86802,PGR30 |
| 86801 | ORING CBURNER HEAD;86801,PGR30 |
| 27460B | OUTER LINER;27460B,PGR30 |
| 27119 | OVEN TOP PAN;27119,PGR30 |
| 27603 | REAR PANEL;27603,PGR30 |
| 36321 | RELAY BOARD SHELF;36321,PGR30 |
| 26576 | RIGHT SHIELD;26576,ERG30B06BK |
| 82081 | SAIL SWITCH;82081,ERG30B06BK |
| 26577 | SIDE SHIELD, DOOR, LEFT |
| 26573 | SIDE SUPPORT LEFT;26573,PGR30 |
| 86526 | SPARK MODULE 4 POINT KIT;86526,ERD60 |
| 82036B | SPILL PROTECTOR GAS BL;82036B,PGR30 |
| 82151 | TERMINAL BLOCK;82151,ERD60S06BK |
| 83556 | TERMINAL BLOCK;83556,MRE30S |
| 26295BP | TOP FRAME BLACK PORCELAIN;26295BP,PG |
| 26295SG | TOP FRAME STAINLESS;26295SG,PGR30 |
| 26295RP | TOP FRAME WHITE PORCELAIN;26295RP,PG |
| 26143B | TRIM POST LEFT;26143B,BLACK,PGR30 |
| 26139B | TRIM POST RIGHT;26139B,BLACK,PGR30 |
| 86279 | VALVE WJETS LEFT FRONT LP HIGH;86279 |
| 86277 | VALVE WJETS LEFT FRONT LP;86277,PGR3 |
| 86276 | VALVE WJETS LEFT FRONT NG HIGH;86276 |
| 86308 | VALVE WJETS LEFT REAR LP HIGH;86308, |
| 86307 | VALVE WJETS LEFT REAR LP;86307,PGR30 |
| 86306 | VALVE WJETS LEFT REAR NG HIGH;86306, |
| 86305 | VALVE WJETS LEFT REAR NG;86305,PGR30 |
| 86304 | VALVE WJETS RIGHT FRONT LP HIGH;8630 |
| 86302 | VALVE WJETS RIGHT FRONT LP;86302,PGR |
| 86299 | VALVE WJETS RIGHT FRONT NG HIGH;8629 |
| 86297 | VALVE WJETS RIGHT REAR LP HIGH;86297 |
| 86295 | VALVE WJETS RIGHT REAR NG HIGH;86295 |
| 86280 | VALVE WJETS RIGHT REAR NG;86280,PGR3 |
| 26409BP | VENT CAP BLK PORCL;26409BP,PGR30 |
| 27104 | VENT DUCT;27104,PGR30 |
| 36325 | WELDMENT SIDE SUPPORT RIGHT;36325,PG |
