Manufacturer
Dacor
Model Number
PMOR3021S
Description

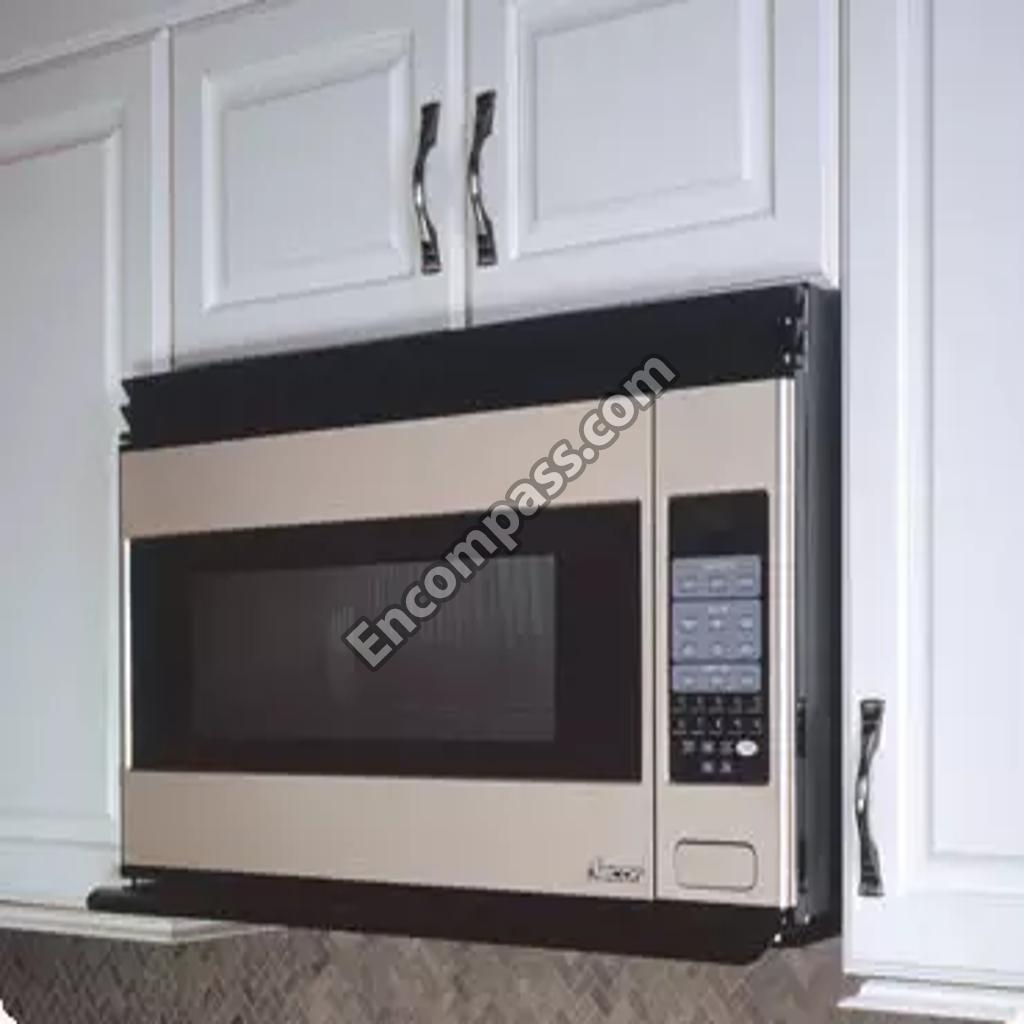

Pmor3021s - Microwaves
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 76173 | ASY TABLE TRAY;76173,PMOR3021B |
| 76199 | ASY, DOOR PMOR3021B |
| 76475 | ASY, DOOR, PMOR3021S |
| 76157 | BASE COVER;76157,PMOR3021B |
| 76158 | BASE COVER;76158,PMOR3021B |
| 76149 | BASE PLATE R;76149,PMOR3021B |
| 76170 | BUTTON SPRING |
| 76165 | C/P FRAME ASSY BLK |
| 76166 | C/P FRAME ASSY WHT |
|
|
CABINET SCREW;86905,MMD30B |
| 76196 | CENTER DUCT;76196,PMOR3021B |
| 76209 | CHARCOAL FILTER;76209,PMOR3021B |
| 76172 | CHASSIS SUPPORT;76172,PMOR3021B |
| 76476 | CHOKE COVER |
| 76164 | CNTL PANEL FRAME ASY (S) |
| 76159 | CONTROL UNIT, PMOR3021 |
|
|

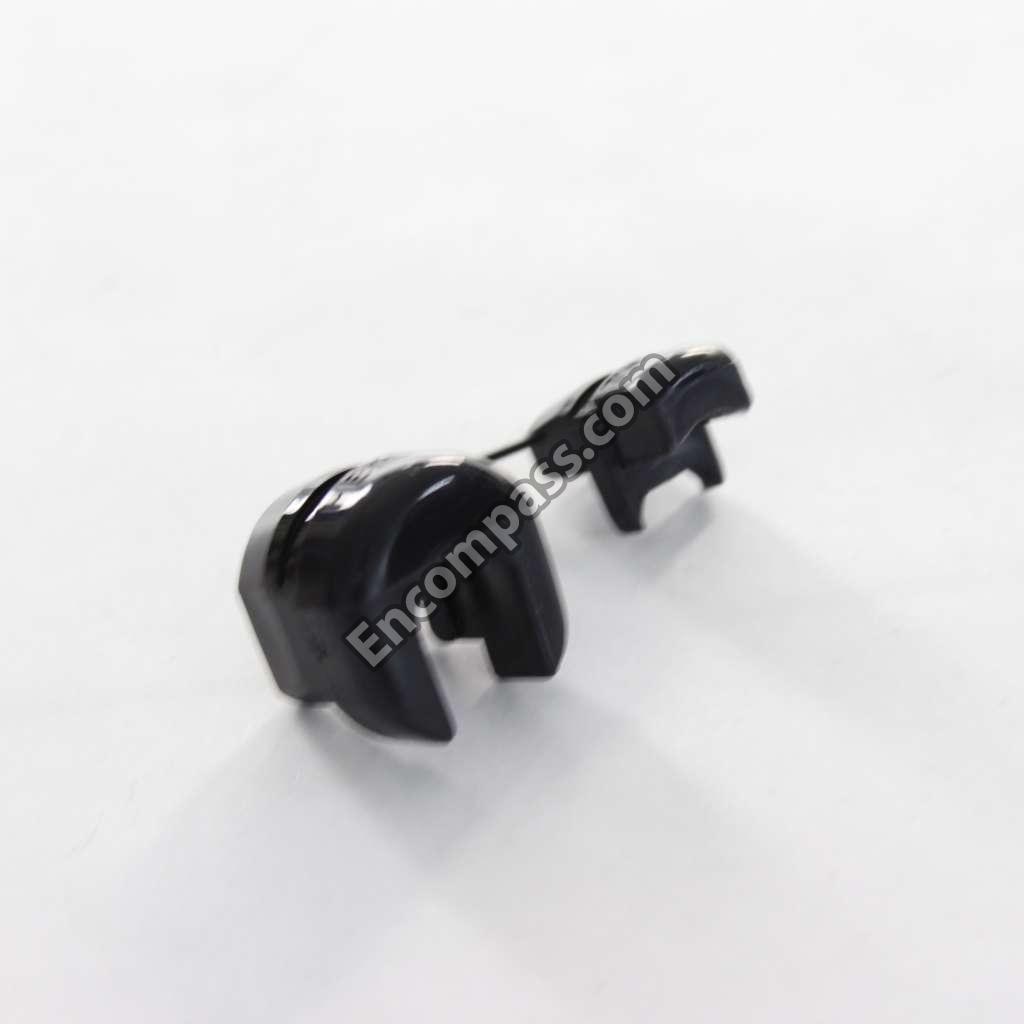

CORD BUSHING;66196,PCOR30B |
| 66209 | CORD HOLDER;66209,PCOR30B |
| 66607R | DEFLECTOR WHITE |
| 76220 | DHHS SERVICE CAUTION LABEL;76220,PMO |
| 76239 | DHHS SERVICE CAUTION LABEL;76239,PMO |
| 76474 | DISTRIBUTION PLATE ASSEMBLY;76474,PM |
| 76200 | DOOR ASSY PMOR3021R |
| 76171 | DOOR STOPPER |
| 66180 | EXHAUST DAMPER ASSEMBLY;66180,PMOR30 |
| 76221 | EXHAUST DAMPER ASSEMBLY;76221,PMOR30 |
| 76180 | FAN BLADE |
| 76187 | FAN DUCT |
| 76235 | FAN MOTOR;76235,PMOR3021B |
| 86796 | FUSE HOLDER;86796,PMOR3021B |
|
|

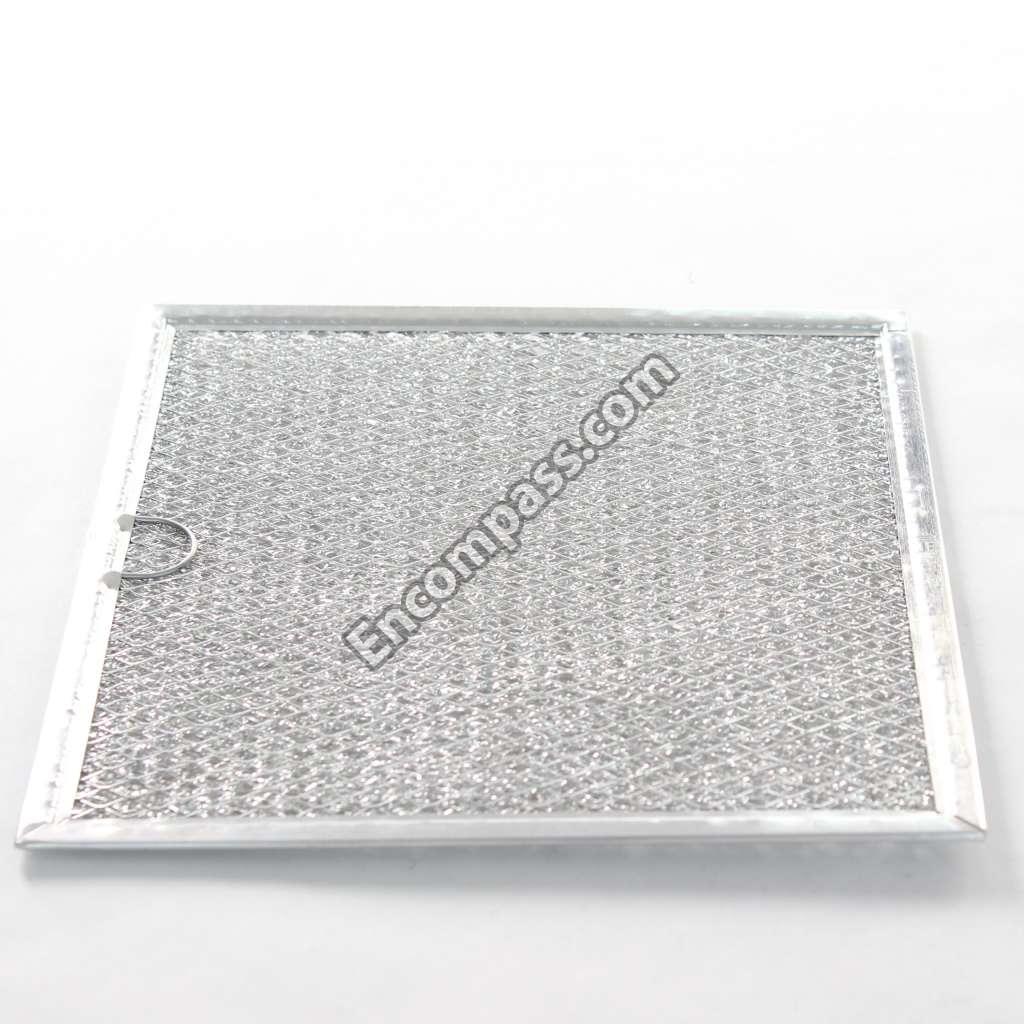

GREASE FILTER;76211,PMOR3021B |
| 66197 | GROMMET |
| 66607B | HEAT DEFLECTOR PMOR30B S;66607B,PMOR |
| 76186 | HOOD DUCT L;76186,PMOR3021B |
| 76185 | HOOD DUCT R;76185,PMOR3021B |
| 76234 | HOOD FAN MOTOR |
| 76182 | HOOD INTAKE DUCT R;76182,PMOR3021B |
| 76156 | HOOD LAMP GLASS ASSEMBLY;76156,PMOR3 |
| 76155 | HOOD LAMP GLASS ASY S/B |
| 76183 | HOOD LAMP MOUNT |
| 76147 | HOOD LOUVER PMOR3021S B;76147,PMOR30 |
| 76148 | HOOD LOUVER;76148,PMOR3021B |
| 76236 | HUMIDITY SENSOR;76236,PMOR3021B |
| 76219 | HV WIRE ASSY |
| 76227 | INVERTER UNIT;76227,PMOR3021B |
| 76162 | KEY FIXING ANGLE;76162,PMOR3021B |
| 76163 | KEY SHEET AY PMOR3021R |
| 66227 | LAMP FILTER;66227,MMD30B |
| 76232 | LAMP SOCKET |
| 86785 | LATCH HEAD;86785,PMOR3021B |
| 66871 | LATCH HOOK |
| 86820 | LATCH HOOK SCREW;86820,MMD30B |
| 86786 | LATCH SPRING;86786,PMOR30B |
| 76194 | LEFT REAR RACK HOLDER;76194,PMOR3021 |
| 76189 | LEFT STIRRER SHAFT;76189,PMOR3021B |
| 76175 | MAGNETRON DUCT;76175,PMOR3021B |
| 76228 | MAGNETRON;76228,PMOR3021B |
| 76216 | MAIN HARNESS |
| 66236 | MICROSWITCH |
| 76208 | MONITOR CAUTION LABEL;76208,PMOR3021 |
|
|
MONITOR FUSE/SWITCH |
| 76191 | MOTOR MOUNTING AG |
| 76473 | MOUNTING LEVER;76473,PMOR3021B |
| 76242 | NOISE FILTER;76242,PMOR3021B |
| 76218 | OP MANUAL |
| 76169 | OPEN BUTTON ASSY WHT |
| 76167 | OPEN BUTTON PMOR3021 S;76167,PMOR302 |
| 76168 | OPEN BUTTON;76168,PMOR3021B |
| 86824 | OPEN LEVER |
| 76188 | ORIFICE |
| 76152 | OUTER CASE CABINET;76152,PMOR3021B |
| 76153 | OUTER CASE CABINET;76153,PMOR3021B |
|
|
OVEN LAMP 125V 20W;76233,PMOR3021B |
| 76197 | OVEN LAMP ANGLE;76197,PMOR3021B |
| 76205 | OVEN LAMP HARNESS |
| 66171 | POWER CORD;66171,PCOR30B |
| 76193 | RACK HOLDER;76193,PMOR3021B |
| 76217 | RACK PMOR3021;76217,PMOR3021B |
| 76146 | REAR STAY |
| 76195 | RIGHT REAR RACK HOLDER;76195,PMOR302 |
| 76154 | SCHEMATIC DIAGRAM;76154,PMOR3021B |
| 66847 | SCREW 4MM;66847,PMOR3021B |
| 76160 | SCREW M3-8MM; STEEL P-TIGHT |
| 76161 | SCREW;76161,3MM X 8MM,PMOR3021B |
| 76223 | SCREW;76223,5MM X 8MM,PMOR3021B |
| 86901 | SCREW;86901,4MM X 8MM,PMOR3021B |
| 76201 | SEALER FILM |
| 76214 | SENSOR GROUND WIRE;76214,PMOR3021B |
| 76215 | SENSOR GROUND WIRE;76215,PMOR3021B |
| 76177 | SHIELD SPRING;76177,PMOR3021B |
| 76225 | SPECIAL SCREW;76225,PMOR3021B |
| 76226 | SPECIAL SCREW;76226,PMOR3021B |
| 76174 | STIRRER FAN ASSEMBLY;76174,PMOR3021B |
| 76190 | STIRRER MOTOR GEAR;76190,PMOR3021B |
| 76229 | STIRRER MOTOR;76229,PMOR3021B |
| 76192 | STIRRER SHAFT ASSY |
| 76206 | STOP/PWM WIRE HARNESS |
| 66261 | TAPPING SCREW STEEL;66261,PMOR30B |
| 86847 | TEMP FUSE SCREW;86847,M3X8,PMOR3021B |
| 76477 | TEMPLATE, TOP/WALL |
| 76231 | THERM CUT OUT HOOD FAN;76231,PCOR30B |
| 76230 | THERMAL CUT-OUT (OVEN) |
| 66204 | TOGGLE SCREW;66204,PCOR30B |
| 66257 | TOP CAB MTG SCREW;66257,PMOR30B |
| 100894 | UNIT ANGLE;100894,PMOR3021B |
| 105301 | UNIT MOUNTING PLATE PMOR;105301,PMOR |
| 76179 | UNIT MTG PLATE;76179,PMOR3021B |
| 66268 | WASHER;66268,PMOR30B |
| 76207 | WASHER;76207,PMOR3021B |
| 66267 | WOOD SCREW;66267,PMOR30B |
