Manufacturer
Dacor
Model Number
PRV30S
Description
Raised Vents
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 701008 | AC PHASE CONTROL |
| 701336 | ASSEMBLY, DRIVE MOTOR/SWITCH |
| 36889 | ASSEMBLY, SPRING BRACKET |
| 13768 | ASSEMBLY, TRANSITION DUCT |
|
|
BEZEL, SLIM LINE |
| 83173 | C-CLIP |
| 62232 | COUNTER SEAL |
| 72521 | DRIVE ARM |
| 82243 | DRIVE ARM STUD |
| 36886 | DRIVE MOTOR ACCESS PANEL |
| 38374 | ELECTRIC BOX |
| 26620 | ELECTRIC BOX COVER |
| 72582 | FILTER GRILL |
| 82182 | FILTER RETAINING BRACKET |
| 36873 | FILTER SUPPORT |
| 92310-004 | FOAM GASKET |
| 72524 | KNOB, SLIM LINE |
| 27819 | MOTOR BOX |
| 83531 | NUT, 4-40 KEPS |
| 83048 | NUT, 8-32 KEPS |
| 83049 | NUT, HEX KEPS, #1/4-20 |
| 72653 | NYLON ROLLER |
| 72319 | NYLON SPACER |
| 72548 | PLENUM ANGLE, LEFT |
| 72547 | PLENUM ANGLE, RIGHT |
| 27805 | PLENUM FRONT |
| 82746 | PLENUM TRIM |
| 100972 | POT HARNESS KIT, SERVICE |
| 36366 | POT-BEZEL BRACKET |
| 72520 | RAISE ARM |
| 82717 | RAISE VENT SLIDE |
| 27803 | REAR PLENUM |
|
|

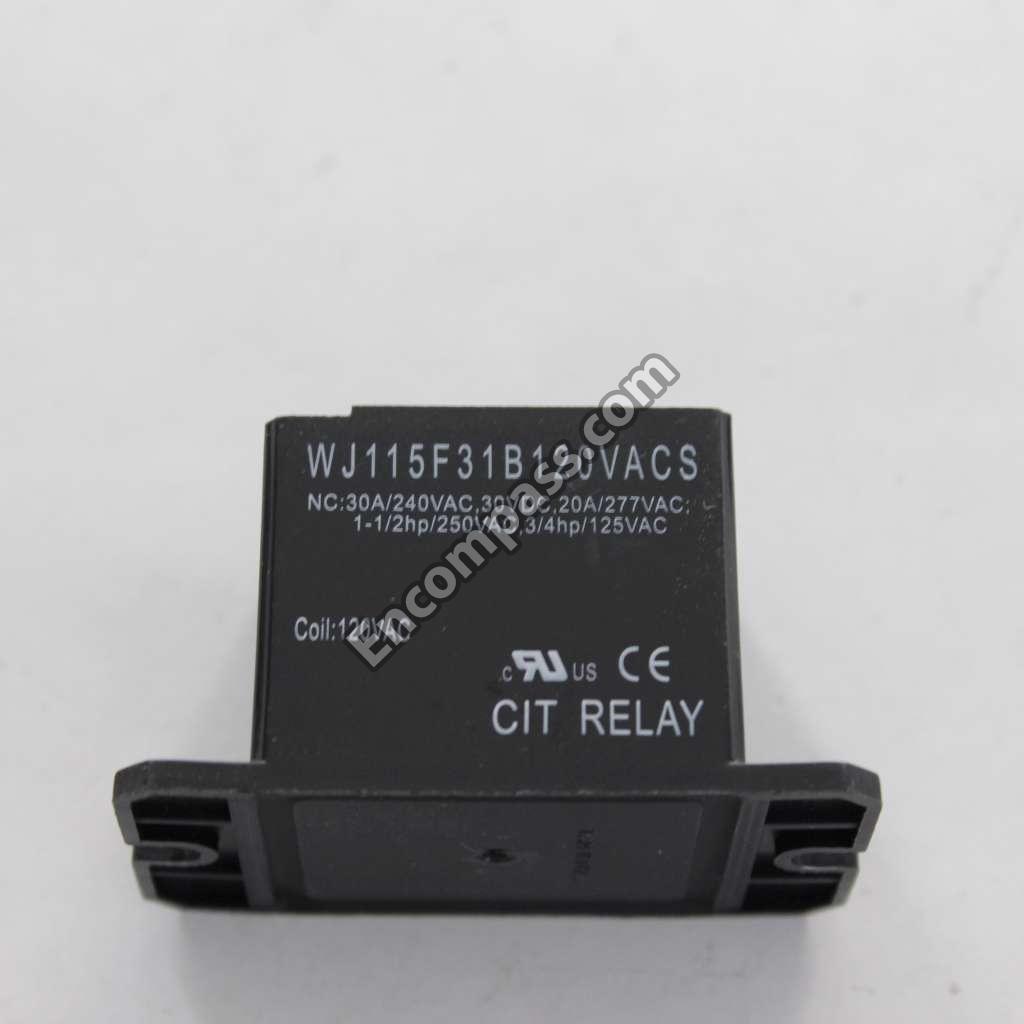

RELAY |
|
|
RIVET, 1/8-INCHES X 1/4L |
|
|
SCREW, PAN HD, 8-32 X 1/4-INCHES |
| 83530 | SCREW, PHIL PAN, 4-40 X 5/8-INCHES |
| 83408 | SCREW, PHIL PAN, 8-32 X 3/4-INCHES |
|
|
SCREW, PHIL, 8-32 X 1/4-INCHES |
| 36863 | SLEEVE, REAR PANEL |
| 26628 | SLIDE MOUNTING BRACKET |
| 83187 | SPRING WASHER |
| 36861 | SUPPORT LEG, LEFT |
| 36862 | SUPPORT LEG, RIGHT |
| 76472 | SWITCH HARNESS KIT |
|
|

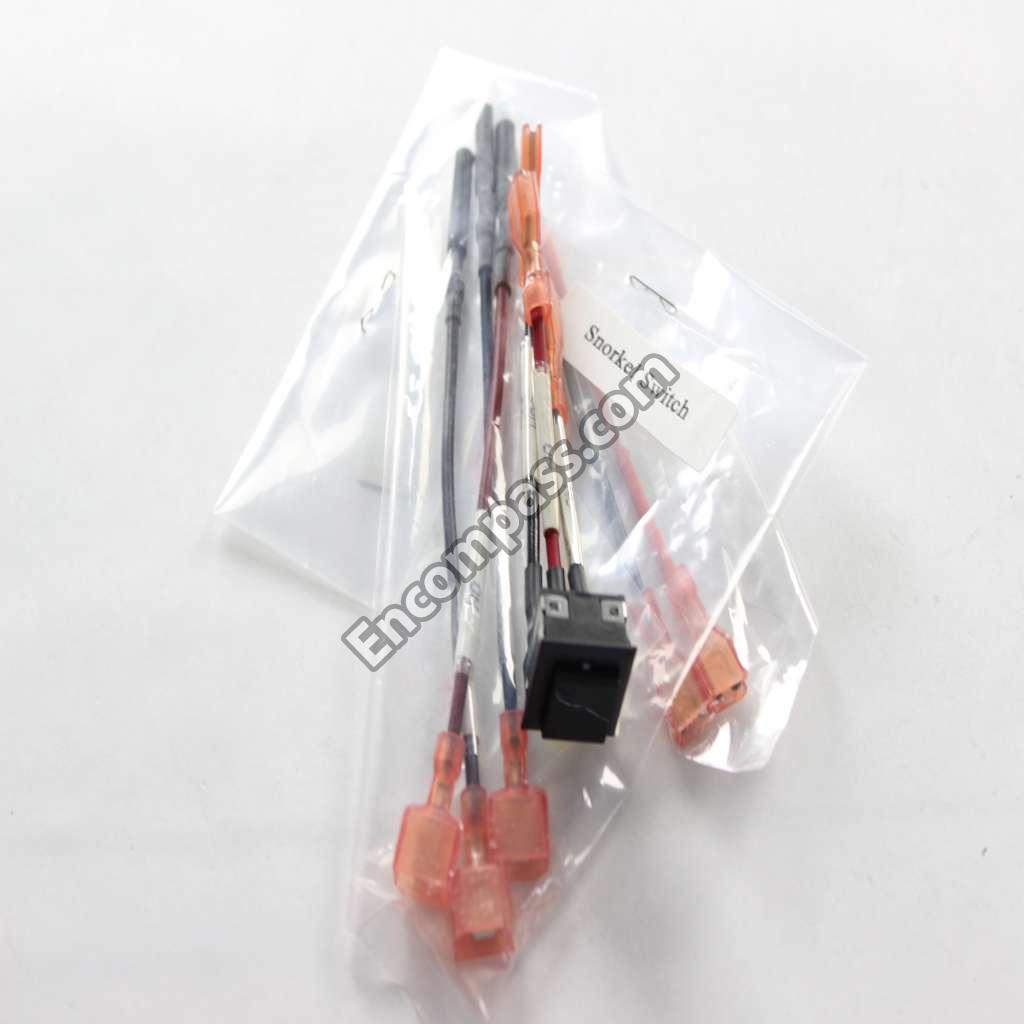

SWITCH HARNESS KIT |
| 102352 | TERMINAL STRIP |
| 72568S | TOP CAP |
| 83203 | WASHER, 1/4-20 FLAT |
| 701218 | WELD, SLEEVE FRONT |
| 72523 | WIRE HARNESS |
