Manufacturer
Dacor
Model Number
PWD30BU
Description
Pwd30bu - Warming Ovens
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 80280 | 18 GA GALVANNEALED S |
| 80310 | 20 GA 201 SS, 36"X10 |
| 80522 | 20 GA 201 SS, 48"X96 |
| 80516 | 20 GA GALVANIZED;80516,"48""X96""",D |
| 80550 | 20 GA,GALVANIZED STE |
|
|
ACCY SS CLEANER;100852,DCT305B/LP |
| 700591-03 | ASY CHASSIS WRAP 30;700591-03,DWD30S |
| 700765-03 | ASY CONTROL PANEL WD30;700765-03,DWD |
| 700738-03 | ASY, CHANNEL CONTROL |
| 101886 | BRKT, SLIDE RAIL, LH |
| 101885 | BRKT, SLIDE RAIL, RH |
| 83523 | BUSHING 3 8 HOLE;83523,DOP36M86DAM |
| 83056 | BUSHING HEYCO SB 875 11;83056,DH3006 |
| 83141 | BUSHING STRAIN RELIEF;83141,DCT305B/ |
| 101883-03 | CHASSIS WRAP;101883-03,DWD30S |
| 102321 | CLIP ELEMENT EWD27;102321,DWD30S |
| 83152 | COIN ENVELOPE S-6285 |
| 101645 | CONTROL W OVERLAY;101645,DWD30S |
| 101657-03 | COVER REAR EWD30;101657-03,DWD30S |
| 101610 | COVER WD CONTROL BOARD;101610,DWD30S |
| 72510CH | DACOR LOGO SMALL;72510CH,DCT305B/LP |
| 92126 | DOOR SPACER;92126,EW27SCH |
| 102445 | FRAME GASKET 30;102445,DWD30S |
| 101649 | GASKET DRAWER 30;101649,DWD30S |
| 72938GR | HANDLE DOOR 30 GRAY;72938GR,PO130AG |
| 72938 | HANDLE DOOR 30;72938,PO130AG |
| 101651 | HEATING ELEMENT 500W;101651,DWD30S |
|
|

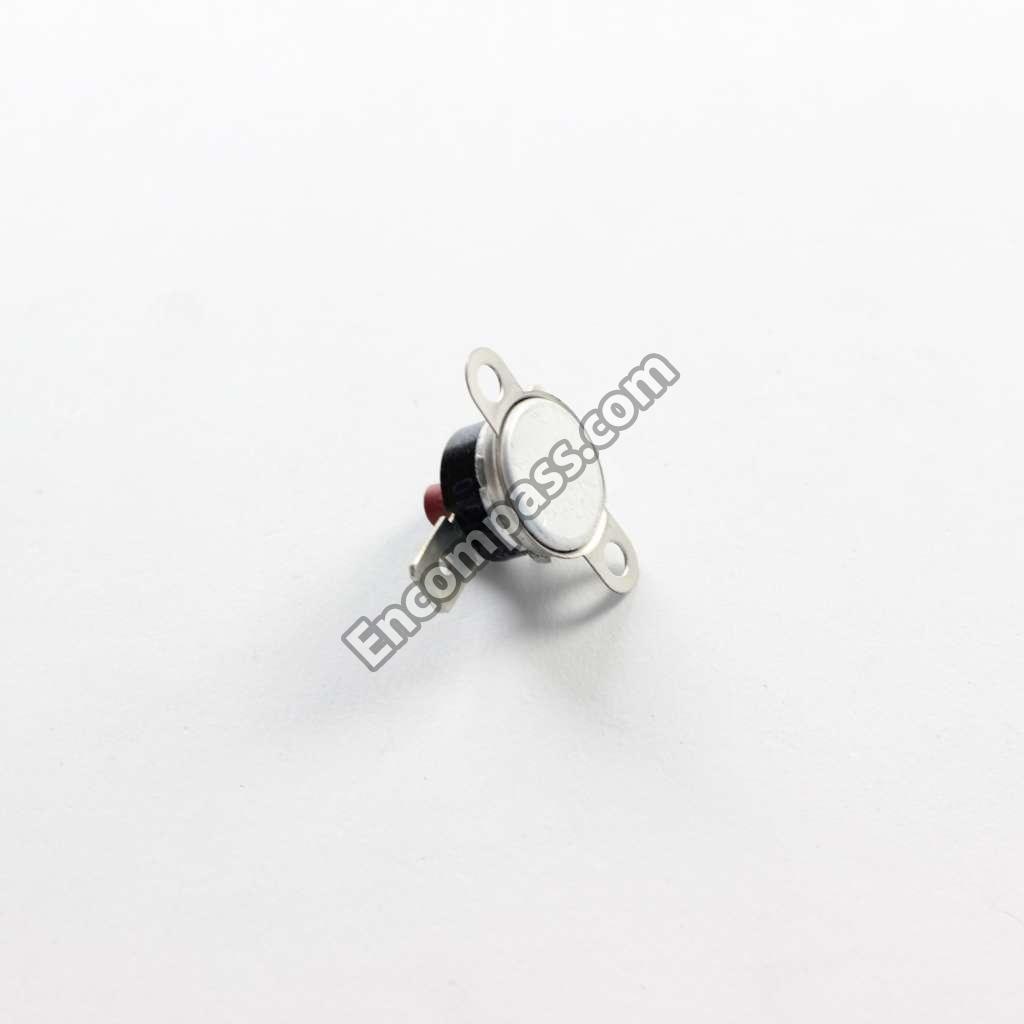

HIGH TEMP LIMIT SWITCH;82353,DWD30S |
| 700770 | KIT MTG SCREW;700770,DWD30S |
| 82415B | KNOB DAMPER;82415B,BLACK,DWD30S |
| 85136 | LABEL, "MADE WITH PRIDE" |
| 85249 | LABEL,"DIELECTRIC TE |
| 83447 | LOCK NUT NYLON;83447,#10-24,EW27SCH |
| 36454 | MOIST CRISP SLIDE;36454,DWD30S |
| 83048 | NUT HEX KEPS;83048,#8-32,DCT305B/LP |
| 101879-03B | PANEL CONTROL;101879-03B,BLACK,DWD30 |
| 102198-03E | PANEL, DRAWER BACKING |
| 72765 | POWER SUPPLY CORD PGM365;72765,DCT30 |
| 101881-03 | REAR PARTITION;101881-03,DWD30S |
|
|
RIVET SS;83652,1/8X1/8,DH3006 |
| 83569 | SCREW HWH;83569,"#8 X 1,TYPE A",DO13 |
| 83358 | SCREW PAN HD;83358,8-32 X 3/8,DWD30S |
| 83263 | SCREW PHIL WAFER;83263,#8X3/8,DCT305 |
| 102499 | SCREW PLASTITE;102499,6-19X1/2,DWD30 |
|
|
SCREW WAFER HD;83534,#8 X 3/8,DH3006 |
| 83696 | SCREW, #10-32 X .75, PAN |
| 83137 | SCREW,WELD,#8-32 X1/2,ST |
| 72737 | SLIDE SET W/O RAILS |
| 92387 | TAPE VHB DOUBLE SIDED;92387,DH3006 |
| 102472 | THERMISTOR EWD27;102472,DWD30S |
| 101882-03 | TOP COVER;101882-03,DWD30S |
| 700877 | WELD, ELECTRIC CHASE |
| 102347 | WIRE HARNESS;102347,DWD30S |
