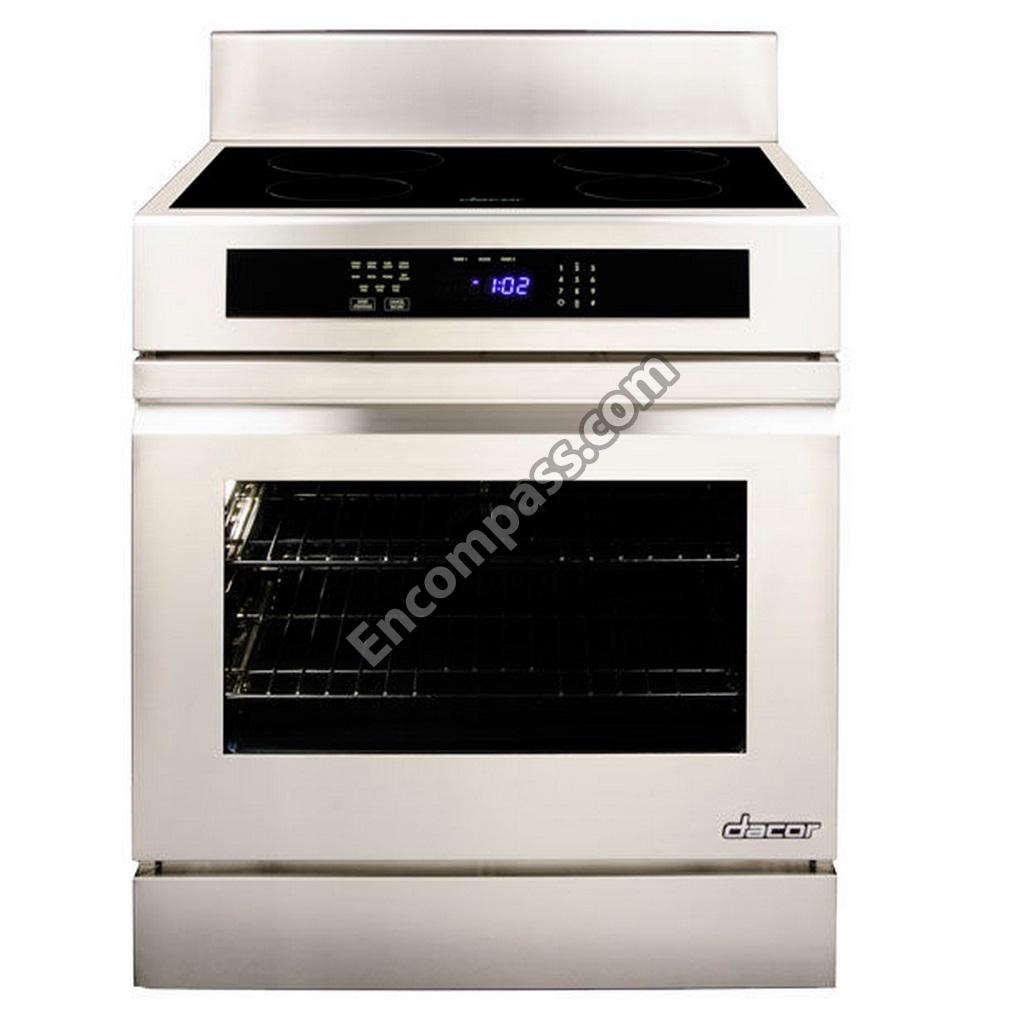

Model Image
Manufacturer

Dacor

Model Number

RR30NIFS

Description

Rr30nifs - Ranges

Interactive Exploded View

Parts List

Part Number Description
105288 16 GA CRS, 48 X 96"
80518 16GA GALVANIZED, STE
80532 18 GA 201SST #4 48"X
80208 18 GA GALVANIZED STE
80280 18 GA GALVANNEALED S
105520 18 GA VIT, 30.969X24
80517 18GA GALVANIZED, 48"
80509 18GA.VIT,52.5"X96"ST
80310 20 GA 201 SS, 36"X10
80522 20 GA 201 SS, 48"X96
80074 20 GA GALVANIZED,48"
80516 20 GA GALVANIZED;80516,"48""X96""",D
80550 20 GA,GALVANIZED STE
80551 24 GA GALVANIZED STE
83308 6 32 KEPS NUT;83308,DH3006
107368 ACCESS COVER COOL FAN;107368,RNR30NC
100852 100852 ACCY SS CLEANER;100852,DCT305B/LP
102385-02 ADAPTOR, HOLE REDUCER
107378 AIR BREAK CORNER;107378,RNR30NC
105322 AIR DEFLECTOR COOL FAN;105322,RR30NF
80434 ALUMINIZED,18 GA, 48
105769 ANCHOR;105769,"#8-#10X7/8, BANT",DOP
105733-02 ANTI TIP BRACKET DUAL;105733-02,DOP3
701636 ASY BROIL PAN;701636,DR30EFS
701692 ASY CASE SIDE RH;701692,DR30EFS
701829 ASY CONTROL PANEL SERV;701829,RR30NF
701640 ASY CONTROL PANEL;701640,RNR30NC
701428-05 ASY DOOR LINER;701428-05,DR30EFS
107111 ASY LIGHT;107111,DR30EFS
701659 ASY PANEL KICK;701659,DR30EFS
701677-01 ASY PANEL SIDE 3 25LH;701677-01,DR30
701677-02 ASY PANEL SIDE 3 25RH;701677-02,DR30
701739-01 ASY POST TRIM LH;701739-01,DR30EFS
701739-02 ASY POST TRIM RH;701739-02,DR30EFS
113664-02 ASY SLIDE LEFT;113664-02,DR30EFS
113664-01 ASY SLIDE RIGHT;113664-01,DR30EFS
701620 ASY, BAKE
701693 ASY, CASE SIDE, LH
701443 ASY, CONTROL GLASS, SNGL
701697 ASY, DOOR SKIN
701698-02 ASY, DOOR, W/FLUSH HNDLE
701751 ASY, GLASS PANEL, RR30N
701464 ASY, GLIDE RACK
701752 ASY, IND COOK SURFACE
701715-02 BACKGUARD 3;701715-02,RR30NFS
701715-03 BACKGUARD 9;701715-03,RR30NFS
106573 BAKE ELEMENT 2500W;106573,DO130
105919 BAKE PAN DR30E;105919,DR30EFS
83540 BALL STUD CATCH;83540,DO130
83539 BALL STUD TRIM PANEL;83539,DO130
107210 BASE BOX;107210,DR30EFS
106009 BLACK PORCELAIN, DRY
106007 BLACK PORCELAIN, WET
107308 BOX ELECTRIC RR30N;107308,RNR30NC
107117 BOX REAR PANEL;107117,DR30EFS
107364-01 BRACKET CONTROL PANEL;107364-01,RNR3
107364-02 BRACKET CONTROL PANEL;107364-02,RNR3
107273 BRACKET DOOR SKIN;107273,DR30EFS
38464 BRACKET HINGE MTG LEFT;38464,DR30D-C
38472 BRACKET HINGE MTG RIGHT;38472,DR30D-
101127 BRACKET PALLET;101127,DR30D-C/LP
102369 BROIL ELEMENT 3100W;102369,DO130
12530 BROILER PACKAGE OVENS;12530,DR30EFS
107112 BULB 20W 120V;107112,RR30NFS
83061 BUSHING 5 8 DIA SPLIT;83061,DH3006
92191-02 BUSHING SPLIT 1 00 DIA;92191-02,DH30
92191-03 BUSHING SPLIT 1 375 DIA;92191-03,DO1
92191-01 BUSHING SPLIT 75 DIA;92191-01,DO230
102429-01 BUSHING, SNAP, 1 1/8"
83167 CABLE CLAMP CPS127;83167,DH3006
83565 CABLE TIE,NYLON,11" LONG
81086 CARTON, ACCESSORIES
105918 CASE BOTTOM DR30E;105918,DR30EFS
107164 CASE SIDE LH;107164,DR30EFS
107163 CASE SIDE RH;107163,DR30EFS
105917 CASE TOP DR30E;105917,DR30EFS
A300 A300 CLEANING CREME, CERAN
83152 COIN ENVELOPE S-6285
105334 CONTROLLER MOUNT;105334,DTO127B
105329BP CONVECTION BAFFLE BLK P;105329BP,DR3
105329 CONVECTION BAFFLE;105329,DR30EFS
701042 701042 CONVECTION ELEMENT
82377 CONVECTION ELEMENT 240V;82377,DO130
101511 CONVECTION FAN BLADE;101511,DO130
82986 COOLING FAN
105468BP COVER CELL GASKET BP;105468BP,DR30EF
107316 COVER ELECTR RR30N;107316,RNR30NC
107183 COVER MEAT PROBE;107183,DR30EFS
107282 COVER REAR;107282,RNR30NC
107119 COVER RELAY;107119,DR30EFS
102402 CUP WASHER ER30D;102402,DHD30M967WM
107290B DEFLECTOR TOP DOOR BK;107290B,DR30EF
107290 DEFLECTOR TOP DOOR;107290,DR30EFS
105335 DISPLAY MODULE LED SNG;105335,HDER30
107392 DISPLAY MODULE LED SNG;107392,RNR30N
100090 DOOR LATCH,CLASSIC
105312 DOOR LINER;105312,DR30EFS
107306 DUCT INNER RR30N;107306,RNR30NC
107116 DUCT SMOKE ELIMINATOR;107116,DR30EFS
107267 ELECTRICAL CHASSIS;107267,RNR30NC
107213 EXHAUST DEFLECTOR;107213,DR30EFS
105922 EXHAUST PLATE DR30E;105922,DR30EFS
105729 EXTENSION RELAY BOARD;105729,DTO127B
83555 FIBER WASHER W ADHESIVE;83555,DO130
82891 82891 FILTER, CONVECTION
701555 FLOOR ANCHOR KIT;701555,DOP36M86DAM
105366 GASKET CELL;105366,DR30EFS
92310-007 GASKET FOAM 3;92310-007,RNR30NC
92310-002 GASKET FOAM CHASS TOP;92310-002,DCT3
100015 GASKET WINDOW PACK;100015,DR30EFS
107380 GENERATOR 16 22 1X3WR;107380,RR30NFS
107172 GLASS, DOOR
106993 GLIDE RACK, RO130/230S
107202B GRILL INTAKE BLK;107202B,DR30EFS
102403 GROUND SCREW;102403,"#10, ER30D",DHD
36834 GUTTER,TOP SECTION
107331 HARNESS W MOLEX PLUG LH;107331,RNR30
107332 HARNESS W/MOLEX PLUG
107221 HEAT SHIELD DR30G;107221,DR30EFS
107221B HEAT SHIELD, BLK, DR30G
110168 HERITAGE LOGO 4 INCH;110168,DR30D-C/
102137 HEX NUT CONVECTION FAN E;102137,DO13
105510-02 HINGE COVER LH;105510-02,DR30EFS
105510-01 HINGE COVER RH;105510-01,DR30EFS
72711 HINGE, LEFT
72710 HINGE, RIGHT
107239 HOLDER BAKE ELEMENT;107239,DR30EFS
107281 INDUCTION BOX RR30N;107281,RR30NFS
81073 INNER DOOR PROTECTOR
81238 INSERT, DOOR HANDLE
80168 INSULATION CONV MTR;80168,DO130
107104 INSULATION, BROIL
106976 INSULATION, BROIL, T
106978 INSULATION, CASE BAC
106581 INSULATION, CASE BOT
106977 INSULATION, CASE SID
105353 INSULATION, DOOR SIDE
105352 INSULATION, DOOR TOP
105655 JUMPER CABLE;105655,DTO127B
700633 700633 KIT CONVECTION FAN;700633,DR30EFS
101339 KIT DOOR LATCH;101339,RR30NFS
105705 LABEL WARNING STABILIT;105705,DR30D-
85136 LABEL, "MADE WITH PRIDE"
106802 LABEL, SELF CLEAN,FR
85249 LABEL,"DIELECTRIC TE
85648 LABEL,EXTRU CONTAINER,CP
105991 LATCH PLATE DR30E;105991,DR30EFS
83359 83359 LEG
107381 MAIN BOARD CONTROL LH;107381,RR30NFS
107382 MAIN BOARD CONTROL RH;107382,RR30NFS
72717 MEAT PROBE SOCKET;72717,DO130
72723 MEAT PROBE;72723,DO130
81070 MICROFOAM,12"X6"X.06 THK
102145 MOTOR, CONVECTION EO
36280 MOUNTING PLATE;36280,ERSD36S
82873 NAMEPLATE SELF CLEAN INF;82873,DO130
102275 NUT WELD 10-32 TAB B
106992 OVEN RACK RO130;106992,DR30EFS
107170B PANEL BACKING BTM BLK;107170B,DR30EF
107170 PANEL BACKING BTM;107170,DR30EFS
107278 PANEL BACKING TOP;107278,DR30EFS
107278B PANEL BACKING TOP;107278B,DR30EFS
107212 PANEL BASE;107212,DR30EFS
102383 PANEL LUG SINGLE WIRE;102383,DR30EFS
83538 83538 PCB SUPPORT (NOT SHOWN)
82106 PORCELAIN GRILL;82106,DR30EFS
82107 PORCELAIN PAN;82107,DR30EFS
106991 RACK SUPPORT;106991,DR30EFS
12157 12157 RANGE BROIL TRAY ASSY;12157,DR30EFS
72348 72348 RECEPTACLE, HINGE
107105 REFLECTIVE BROIL PAN;107105,DR30EFS
105988 RELAY BOARD SUPPORT;105988,DR30EFS
102377 102377 RELAY BOARD, SNGL WALL
107383 RIBBON CABLE W MICA0;107383,RR30NFS
83652 83652 RIVET SS;83652,1/8X1/8,DH3006
107307 RR EXHAUST DUCT RR30N;107307,RNR30NC
83618 RUBBER BUMPER;83618,DO130
82499 82499 SCRAPER, CERAN
83379 SCREW HWH;83379,"#8X1/2,TYPEA",DO130
105514 SCREW LG PAN HD;105514,M4X6MM,DO130
83001 83001 SCREW PHIL PAN HD;83001,#8X1/4,DCT30
83409 SCREW PHIL PAN;83409,#8-1.00,DOP36M8
83024 SCREW PHIL TRS;83024,#8 X 3/8,DR30EF
83263 SCREW PHIL WAFER;83263,#8X3/8,DCT305
105486 SCREW PLAST;105486,6-18X3/8,DTO127B
83534 83534 SCREW WAFER HD;83534,#8 X 3/8,DH3006
83023 83023 SCREW, SLOT, #10 X 3/8"
83708 83708 SCREW, TORX WFR HD, #8 X 1/2"
83709 83709 SCREW, TORX, #10 X 1/2", BLACK
105735 SCREW;105735,"#12X 1-3/4, TP AB",DOP
105737 SCREW;105737,#8X 1-1/4PHIL PAN,DOP36
83026 SCREW;83026,#10 X 3/4 SLOT HWH,DO130
83408 SCREW;83408,#8-32X 3/4 PHIL,DR30D-C/
83420 83420 SCREW;83420,10-32 X 500,DR30D-C/LP
83505 83505 SCREW;83505,#8 X 3/8 TYPE A,DHD30M96
83661 SCREW;83661,"#8 X 3/8, TORX",DR30EFS
107171B SHIELD HEAT SIDE BLK;107171B,DR30EFS
107171 SHIELD HEAT SIDE;107171,DR30EFS
103769 SIDE RAIL LINER DOOR;103769,DR30EFS
107264 SIDE SUPPORT LF;107264,RNR30NC
107265 SIDE SUPPORT RF;107265,RNR30NC
83353 SILICONE RUBR,PACTAN
105485 SMOKE ELIMINATOR TOP;105485,DR30EFS
72755 SMOKE ELIMINATOR;72755,DO130
107287 STIFFENER DOOR LINER;107287,DR30EFS
38453 STRIKER PLATE;38453,DR30D-C/LP
107270 SUPPORT, LED DISPLAY
92321 SWITCH HI LIMIT 275 F;92321,DR30EFS
103638 TAPE DBL SIDED 016 THK;103638,DYO130
92387 TAPE VHB DOUBLE SIDED;92387,DH3006
83239 TAPE, DBL COATEDNEOP
72752 72752 TEMPERATURE SENSOR;72752,DO130
102384 102384 TERMINAL BLOCK
106528 TOP BOTTM RAIL;106528,DR30EFS
107266 TOP SUPPORT REAR;107266,RNR30NC
102136 WASHER CONVECTION FAN E;102136,DO130
701724 WELD BASE LEG RAIL;701724,DR30EFS
701746 WELD BRACKRT DOOR;701746,DR30EFS
701770 WELD CASE BACK RR30N;701770,RNR30NC
701639 WELD CONTROL PANEL;701639,RNR30NC
701696 WELD DOOR DR30G;701696,DR30EFS
701430BP WELD DOOR LINER BP;701430BP,DR30EFS
701430 WELD DOOR LINER RO130S;701430,DR30EF
701489 WELD DOOR LINER;701489,DR30EFS
83369 WELD NUT, 1/2 - 13
72968 WINDOW PACK EO130 230;72968,DR30EFS
107283 WIRE HARNESS OVEN;107283,RNR30NC
107329 WIRE HARNESS PWR BOARD;107329,RNR30N
