Manufacturer
Dacor
Model Number
RSD30
Description
Rsd30 - Ranges
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 13426B | 3 INCH SIDE PANEL LEFT;13426B,RSD30 |
| 13425B | 3 INCH SIDE PANEL RIGHT;13425B,RSD30 |
| 12470 | ASSY WINDOW PACK 1 INCH1;12470,ERD36 |
|
|

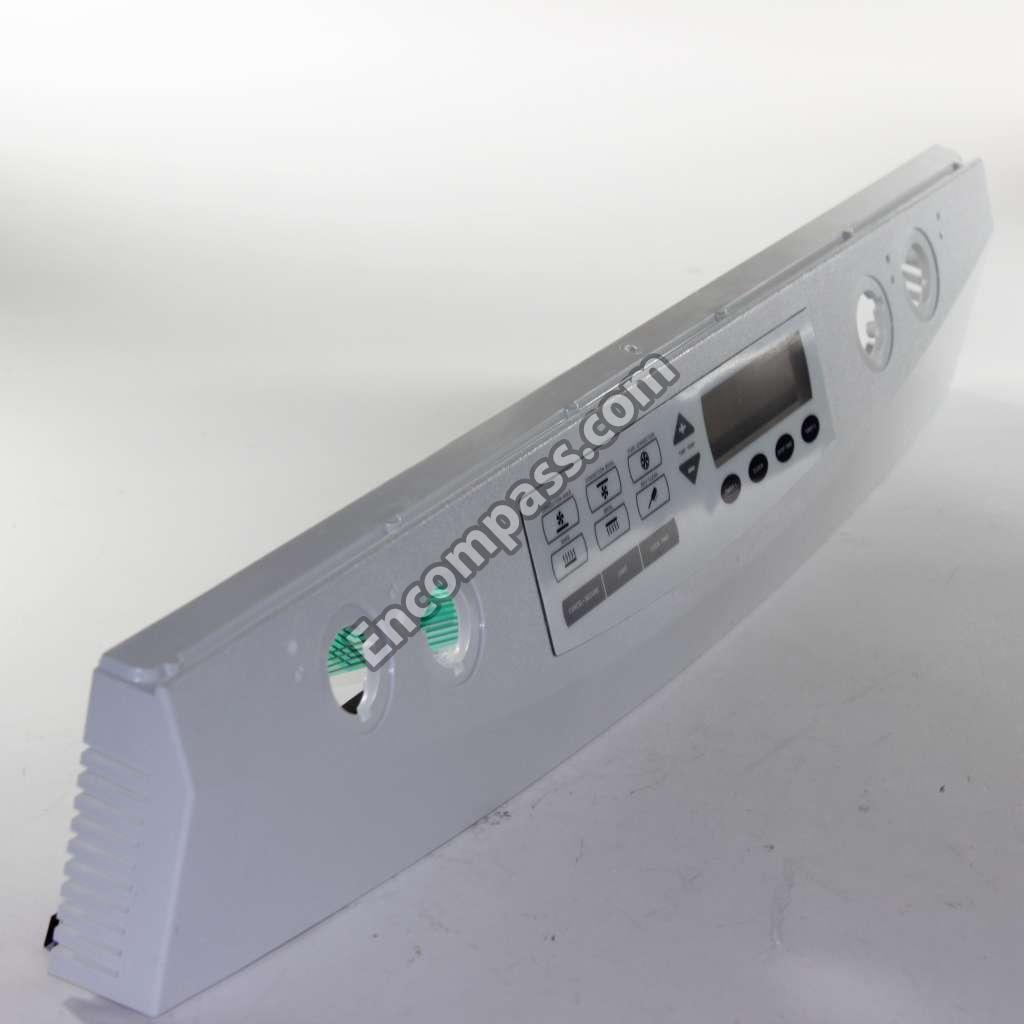

ASY, BEZEL, CONTROL |
|
|

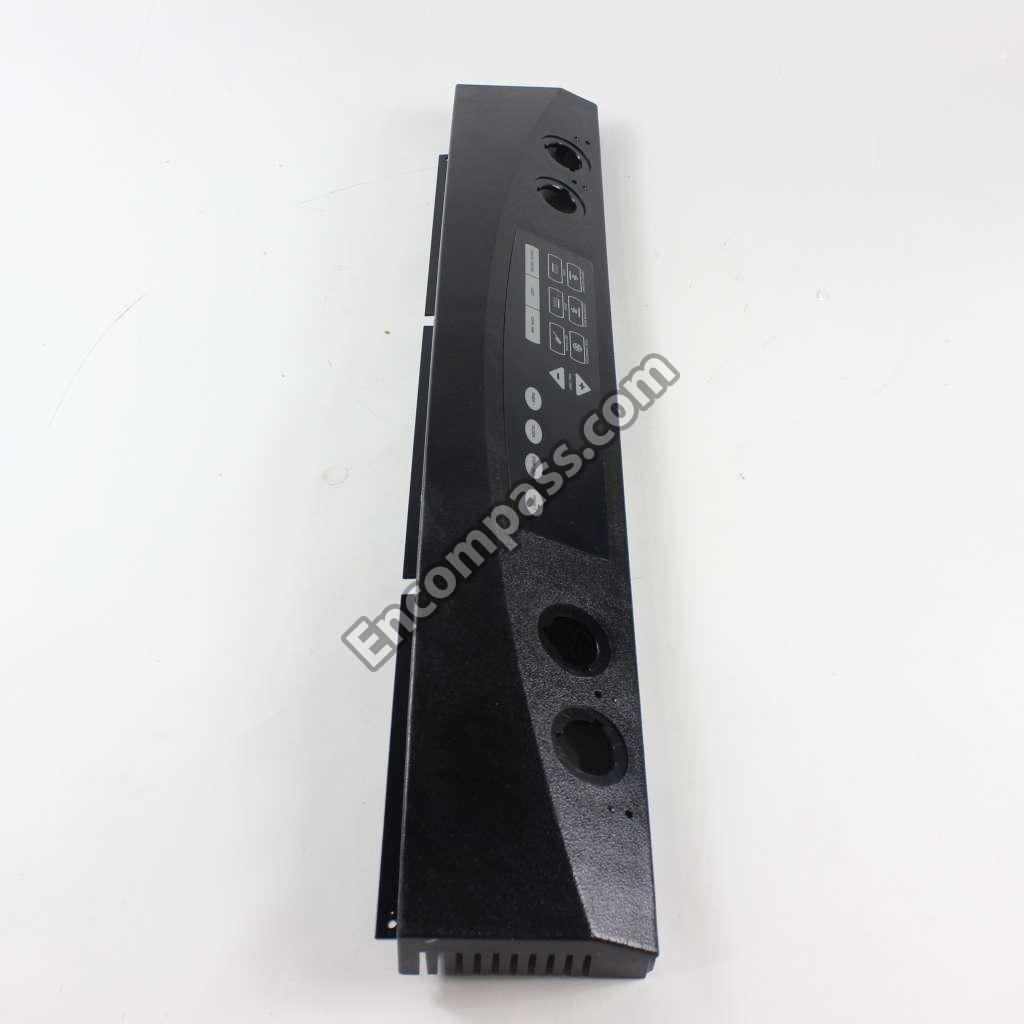

ASY, BEZEL, CONTROL |
| 86296 | ASY, VALVE, B-OUT LP |
| 86298 | ASY, VALVE, C-IN NG |
| 86275 | ASY,VALVE,B-IN NG |
| 86084 | B VALVE W/JETS, LP |
| 86085 | B VALVE W/JETS, NG |
| 86082 | B VALVE, W/JETS, LP |
| 27094 | BACK COVER;27094,RSD30 |
| 76480A | BEZEL ASSEMBLY;76480A,RSD30 |
| 86524BM | BURNER CAP B;86524BM,SGM464EMBC |
| 86523BM | BURNER CAP C;86523BM,SGM464EMBC |
| 82039 | BURNER TUBEBASE FRONT;82039,RSD30 |
| 82035 | BURNER TUBEBASE LEFT REAR;82035,RSD3 |
| 82038 | BURNER TUBEBASE RIGHT REAR;82038,RSD |
| 86083 | BVALVE WJETS LEFT FRONT EARLY;86083, |
| 86086 | C VALVE W/JETS, LP |
| 86087 | C VALVE W/JETS, NG |
| 26447 | CASE BACK;26447,RSD30 |
| 26119B | CONTROL BEZEL TRIM;26119B,PGR30 |
| 27470 | CONVECTION MOTOR MOUNTING PLATE;2747 |
| 82506 | CSA SINGLE SOCKET |
| 86088 | CVALVE WJETS LEFT REAR EARLY;86088,R |
| 86089 | CVALVE WJETS LEFT REAR LATER;86089,R |
| 72027 | DOOR GASKET;72027,MCS130B |
| 82122B | DOOR HANDLE,RANGE BLK |
| 7015821 | DOOR LATCH MECHANISM;7015821,RSD30 |
| 26139A | EXHAUST GRILL;26139A,RSD30 |
| 82229A | EXHAUST GRILL;82229A,RSD30 |
| 27080 | EXHAUST PLATE ASSEMBLY;27080,RSD30 |
| 82651 | FAN BLADE CONVECTION MTR;82651,ERD36 |
| 27607A | FRAME GLASS MOUNTING;27607A,RSD30 |
| 26851A | FRONT PANEL;26851A,RSD30 |
| 26851B | FRONT PANEL;26851B,RSD30 |
| 26851R | FRONT PANEL;26851R,RSD30 |
| 12400 | FUSE BOX ASSEMBLY;12400,RSD30 |
| 83111 | FUSE, REJECTOR - 15 AMPS |
| 83110 | FUSE, SCREW-IN, 15 AMP |
| 83112 | FUSE, SCREW-IN, 30 AMP |
| 86360 | GLASS/OVERLAY ASY,30"DOO |
| 62736BM | GRATE PACK 1;62736BM,RSD30 |
| 82122A | HANDLE;82122A,RSD30 |
| 86080 | HARNESS,IGNITOR TO SW/LT |
| 36620B | HEAT SHIELD DOOR;36620B,BLACK,MCS130 |
| 26575B | HEAT SHIELD, 27" DOOR-BL |
|
|
IGNITER ASSY KIT SINGLE;76482-001,ER |
| 86079 | IGNITER WIRES SET OF 4;86079,RSD30 |
| 27459BP | INNER LINER ASY;27459BP,ERG30B06BK |
| 80172 | INSULATION;80172,MCD230B |
| 86081 | JUMPER WIRES SWITCH;86081,PGR30 |
|
|
KIT, LIGHT & MOUNT PLATE |
| 86746 | KIT,DOOR LINER 30" |
| 82016B | KNOB, RANGE - BLK |
| 82016A | KNOB;82016A,RSD30 |
| 86673 | LEAD WIRE KIT CSA;86673,RSD30 |
| 86672 | LEAD WIRE KIT UL;86672,RSD30 |
|
|
LIGHT BULB 40W 130V;82089,MRE30S |
| 26135 | LINER STORAGE PANEL;26135,RSD30 |
| 62099 | MANIFOLD ASSEMBLY COMPLETE;62099,RSD |
| 62121 | MANIFOLD ASSEMBLY COMPLETE;62121,RSD |
|
|

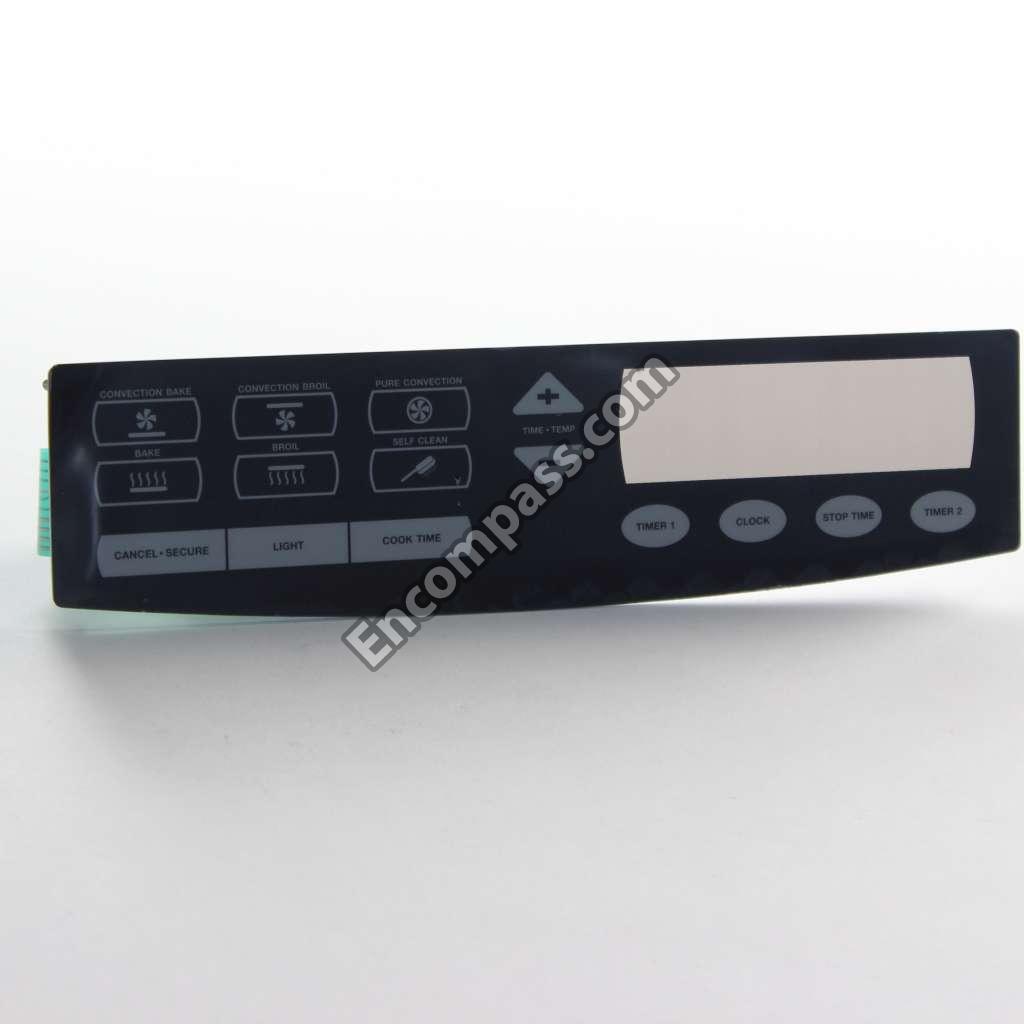

MEMBRANE, RANGE - BLK |
| 82063A | MEMBRANE;82063A,RSD30 |
|
|
MICROSWITCH;86420,PGR30 |
| 27038 | REAR PANEL ASSEMBLY;27038,RSD30 |
| 26576 | RIGHT SHIELD;26576,ERG30B06BK |
|
|
SET GRATE SUPPORTPAD KIT;66916,ERD36 |
| 26577 | SIDE SHIELD, DOOR, LEFT |
| 86526 | SPARK MODULE 4 POINT KIT;86526,ERD60 |
| 82036B | SPILL PROTECTOR GAS BL;82036B,PGR30 |
| 82036A | SPILL PROTECTOR;82036A,RSD30 |
| 26044 | SUB CHASSIS;26044,ERSD30S |
|
|
TEMP SENSOR KIT ROBERTSH;86663,ERSD3 |
| 83566 | TERMINAL BLOCK 2POLE;83566,RSD30 |
| 26357 | TERMINAL BLOCK COVER;26357,RSD30 |
| 82151 | TERMINAL BLOCK;82151,ERD60S06BK |
| 26000AP | TOP FRAME;26000AP,RSD30 |
| 26000BP | TOP FRAME;26000BP,RSD30 |
| 26000SG | TOP FRAME;26000SG,RSD30 |
| 26143A | TRIM POST LEFT;26143A,RSD30 |
| 26143B | TRIM POST LEFT;26143B,BLACK,PGR30 |
| 26139B | TRIM POST RIGHT;26139B,BLACK,PGR30 |
| 86277 | VALVE WJETS LEFT FRONT LP;86277,PGR3 |
| 86307 | VALVE WJETS LEFT REAR LP;86307,PGR30 |
| 86305 | VALVE WJETS LEFT REAR NG;86305,PGR30 |
| 86302 | VALVE WJETS RIGHT FRONT LP;86302,PGR |
| 86280 | VALVE WJETS RIGHT REAR NG;86280,PGR3 |
