Manufacturer
Dacor
Model Number
RSD30R
Description

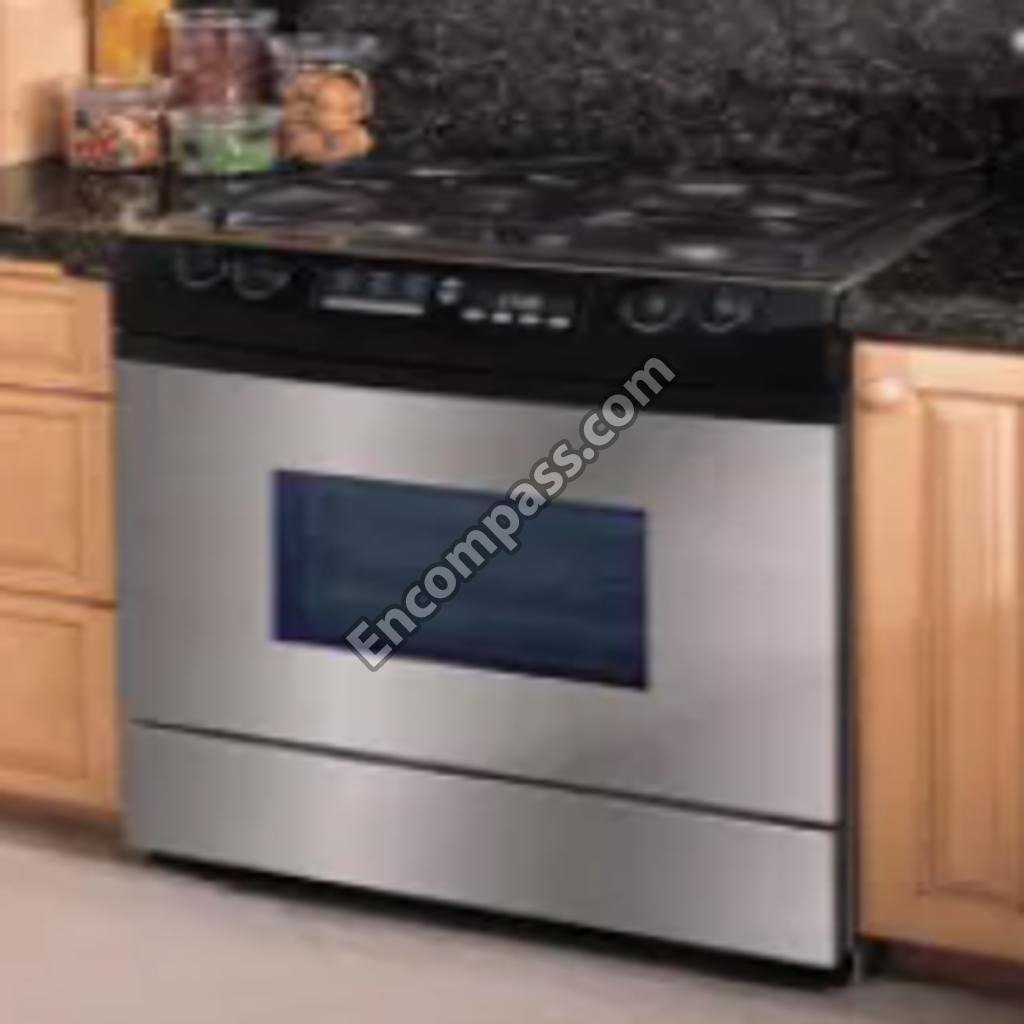

Rsd30r - Ranges
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 80518 | Dacor 16GA GALVANIZED, STE |
| 80208 | Dacor 18 GA GALVANIZED STE |
| 80517 | Dacor 18GA GALVANIZED, 48" |
| 80509 | Dacor 18GA.VIT,52.5"X96"ST |
| 80074 | Dacor 20 GA GALVANIZED,48" |
| 80516 | Dacor 20 GA GALVANIZED;80516,"48""X96""",D |
| 80550 | Dacor 20 GA,GALVANIZED STE |
| 80508 | Dacor 22GA VIT STEEL 48X96;80508,DO130 |
| 80551 | Dacor 24 GA GALVANIZED STE |
| 13426B | Dacor 3 INCH SIDE PANEL LEFT;13426B,RSD30 |
| 13425B | Dacor 3 INCH SIDE PANEL RIGHT;13425B,RSD30 |
| 83308 | Dacor 6 32 KEPS NUT;83308,DH3006 |
| 83050 | Dacor ADAPTER 3 8 FPT TO 3 8 T;83050,RSD30 |
| 82208 | Dacor ADAPTR 1 2MNPT TO 3 8TUB;82208,RSD30 |
| 78060 | Dacor AIR BAFFLE RANGE;78060,MRE30S |
| 12470 | Dacor ASSY WINDOW PACK 1 INCH1;12470,ERD36 |
| 13425R | Dacor ASY 3 SIDE PANEL LH ARC;13425R,RSD30 |
| 27066 | Dacor ASY AIR BAFFLE;27066,MRE30S |
| 27144 | Dacor ASY BASE RSD RSE;27144,MRE30S |
| 27607R | Dacor ASY DOOR FRAME PC30;27607R,RSD30R |
| 82112 | Dacor ASY HARNESS RD30 RANGE;82112,RSD30R |
| 27728BP | Dacor ASY INNER LINER 30DOOR;27728BP,DO130 |
| 27095 | Dacor ASY MANIFOLD ENCLOSURE;27095,RSD30R |
| 72148 | Dacor ASY WINDOW PACK 1THK;72148,DO130 |
|
|
Dacor ASY, BEZEL, CONTROL |
|
|
Dacor ASY, BEZEL, CONTROL |
| 86296 | Dacor ASY, VALVE, B-OUT LP |
| 86298 | Dacor ASY, VALVE, C-IN NG |
| 13426R | Dacor ASY,3" SIDE PANEL,RH,ARC |
| 13640R | Dacor ASY,DOOR FRAME,ARCTIC |
| 86275 | Dacor ASY,VALVE,B-IN NG |
| 86408 | Dacor B BURNER RING;86408,DTCT304GB/LP |
| 86084 | Dacor B VALVE W/JETS, LP |
| 86085 | Dacor B VALVE W/JETS, NG |
| 86082 | Dacor B VALVE, W/JETS, LP |
| 36996 | Dacor BACK COVER |
| 36912 | Dacor BACK COVER PLATE |
| 27094 | Dacor BACK COVER;27094,RSD30 |
| 78945 | Dacor BAFFLE LFT TRANSITN DUC;78945,ECD227 |
|
|
Dacor BAKE ELEMENT;82880,RSD30R |
| 83540 | Dacor BALL STUD CATCH;83540,DO130 |
| 83539 | Dacor BALL STUD TRIM PANEL;83539,DO130 |
| 62951 | Dacor BBURNER HEAD COMPLETE;62951,DTCT304G |
| 76480A | Dacor BEZEL ASSEMBLY;76480A,RSD30 |
| 92349R | Dacor BEZEL, RSD RTC |
| 106009 | Dacor BLACK PORCELAIN, DRY |
| 106007 | Dacor BLACK PORCELAIN, WET |
|
|
Dacor BRACKET ANTI TIP RANGE;26041,E30DF74 |
| 26104 | Dacor BRACKET LATCH MTG;26104,MRE30S |
| 38230 | Dacor BRACKET,INNER LINER |
|
|
Dacor BRASS NUT CB HEAD;86405,DTCT304GB/LP |
| 26130 | Dacor BRKT INLET FITTING ATTC;26130,RSD30R |
| 26097 | Dacor BRKT MTG ENCLOSURE TOP;26097,RSD30R |
| 46321 | Dacor BRKT SPILL TRAY SUPPORT;46321,RSD30R |
| 26052 | Dacor BRKT STORAGE COMP MTG;26052,MRE30S |
| 82817 | Dacor BROIL ELEMENT 3000W;82817,MRE30S |
| 86524BM | Dacor BURNER CAP B;86524BM,SGM464EMBC |
| 86523BM | Dacor BURNER CAP C;86523BM,SGM464EMBC |
|
|
Dacor BURNER RING SET SGM304;82953,RSD30R |
| 26068 | Dacor BURNER SUPPORT CHANNEL;26068,RSD30R |
|
|
Dacor BURNER TUBE BASE FRONT;62144,DTCT304 |
| 62162 | Dacor BURNER TUBE BASE RGT REA;62162,RSD30 |
| 62169 | Dacor BURNER TUBE/BASE,LFT REA |
| 82039 | Dacor BURNER TUBEBASE FRONT;82039,RSD30 |
| 82035 | Dacor BURNER TUBEBASE LEFT REAR;82035,RSD3 |
| 82038 | Dacor BURNER TUBEBASE RIGHT REAR;82038,RSD |
| 83133 | Dacor BUSHING 1 2 RED CONDUI;83133,DO130 |
| 83061 | Dacor BUSHING 5 8 DIA SPLIT;83061,DH3006 |
| 83056 | Dacor BUSHING HEYCO SB 875 11;83056,DH3006 |
| 86083 | Dacor BVALVE WJETS LEFT FRONT EARLY;86083, |
| 86407 | Dacor C BURNER RING;86407,DTCT304GB/LP |
| 86086 | Dacor C VALVE W/JETS, LP |
| 86087 | Dacor C VALVE W/JETS, NG |
| 83565 | Dacor CABLE TIE,NYLON,11" LONG |
| 62058 | Dacor CAP 3 8 RSD;62058,EGR30S06BK |
| 81086 | Dacor CARTON, ACCESSORIES |
| 26447 | Dacor CASE BACK;26447,RSD30 |
| 26632 | Dacor CASE BACK;26632,MRE30S |
| 26633 | Dacor CASE BOTTOM;26633,E30DF74EPS |
| 27454 | Dacor CASE SIDE ASY,27"CPO -LF |
| 27453 | Dacor CASE SIDE ASY,27"CPO -RG |
| 26629 | Dacor CASE TOP;26629,MRE30S |
| 62952 | Dacor CBURNER HEAD COMPLETE;62952,DTCT304G |
| 78921 | Dacor CLIP, INNER LINER |
|
|
Dacor CLOSED END SPLICE 22 14G;83543,ECD22 |
| 83152 | Dacor COIN ENVELOPE S-6285 |
| 26420 | Dacor CONDUIT 1 2 FLEX CUT 60;26420,DO130 |
| 83059 | Dacor CONNECTOR;83059,"1/2 FLEX,STRGH",E30 |
| 26119B | Dacor CONTROL BEZEL TRIM;26119B,PGR30 |
| 26655BP | Dacor CONV. BAFFLE,30" CPO -BL |
| 82377 | Dacor CONVECTION ELEMENT 240V;82377,DO130 |
| 101511 | Dacor CONVECTION FAN BLADE;101511,DO130 |
| 27470 | Dacor CONVECTION MOTOR MOUNTING PLATE;2747 |
| 82647 | Dacor CONVECTION OVEN MOTOR;82647,DO130 |
| 82986 | Dacor COOLING FAN CPO;82986,DO130 |
| 78991 | Dacor CORNER BRKT,DOOR FRM |
| 26084 | Dacor COVER EXHAUST DUCT RSD;26084,MRE30S |
| 36279 | Dacor COVER MEAT PROBE SOCKET;36279,DO130 |
| 26560 | Dacor COVER PLATE,LIGHT,CP |
| 82506 | Dacor CSA SINGLE SOCKET |
| 86088 | Dacor CVALVE WJETS LEFT REAR EARLY;86088,R |
| 86089 | Dacor CVALVE WJETS LEFT REAR LATER;86089,R |
| 27043 | Dacor DIVIDER WELDMENT RSD;27043,RSD30R |
|
|
Dacor DOOR GASKET;72020,DO130 |
| 72027 | Dacor DOOR GASKET;72027,MCS130B |
| 82216R | Dacor DOOR GLASS - ARCTIC |
| 82122B | Dacor DOOR HANDLE,RANGE BLK |
|
|
Dacor DOOR HANDLE,RANGE RTC |
| 7015821 | Dacor DOOR LATCH MECHANISM;7015821,RSD30 |
| 82834 | Dacor DOOR LATCH MECHANISM;82834,E30DF74EP |
| 105604 | Dacor ELECTRODE, BURNER HE |
| 26098 | Dacor ENCLOSURE TOP MANIFOLD;26098,RSD30R |
| 26085 | Dacor EXHAUST DUCT RSD;26085,MRE30S |
| 82229R | Dacor EXHAUST GRILL - RTC |
| 26139A | Dacor EXHAUST GRILL;26139A,RSD30 |
| 82229A | Dacor EXHAUST GRILL;82229A,RSD30 |
| 27080 | Dacor EXHAUST PLATE ASSEMBLY;27080,RSD30 |
| 36865 | Dacor EXHAUST PLATE;36865,E30DF74EPS |
| 82240 | Dacor EXHAUST TUBE |
| 82651 | Dacor FAN BLADE CONVECTION MTR;82651,ERD36 |
|
|
Dacor FILTER CONVECTION OVEN;82891,DO130 |
| 27607A | Dacor FRAME GLASS MOUNTING;27607A,RSD30 |
| 26851A | Dacor FRONT PANEL;26851A,RSD30 |
| 26851B | Dacor FRONT PANEL;26851B,RSD30 |
| 26851R | Dacor FRONT PANEL;26851R,RSD30 |
| 12400 | Dacor FUSE BOX ASSEMBLY;12400,RSD30 |
| 83111 | Dacor FUSE, REJECTOR - 15 AMPS |
| 83110 | Dacor FUSE, SCREW-IN, 15 AMP |
| 83112 | Dacor FUSE, SCREW-IN, 30 AMP |
| 82348 | Dacor GAS TUBE, RSG/RSD |
| 82080 | Dacor GAS VALVE 90O 3 8 NPT I;82080,RSD30R |
| 86360 | Dacor GLASS/OVERLAY ASY,30"DOO |
| 62736BM | Dacor GRATE PACK 1;62736BM,RSD30 |
|
|
Dacor GRATE PACK,EXTENDED |
| 83058 | Dacor GROMMET, EPDM RUBBER |
| 82122A | Dacor HANDLE;82122A,RSD30 |
| 86080 | Dacor HARNESS,IGNITOR TO SW/LT |
| 36620 | Dacor HEAT SHIELD 30DOOR;36620,ECD230SBK |
| 36620B | Dacor HEAT SHIELD DOOR;36620B,BLACK,MCS130 |
| 26034 | Dacor HEAT SHIELD STORAGE;26034,MRE30S |
| 26575B | Dacor HEAT SHIELD, 27" DOOR-BL |
| 62437 | Dacor HEX BUSHING 1/2 X 3/8 |
| 102137 | Dacor HEX NUT CONVECTION FAN E;102137,DO13 |
| 82883 | Dacor HINGE NUOVA STAR SILVER;82883,EORD22 |
| 83044 | Dacor HINGE STORAGE PANEL;83044,MRE30S |
| 83209 | Dacor HOOK LOOP PAIR 2 X 3;83209,DR30GFS/L |
|
|
Dacor IGNITER ASSY KIT SINGLE;76482-001,ER |
| 86079 | Dacor IGNITER WIRES SET OF 4;86079,RSD30 |
| 62933 | Dacor IGNITOR WIRE JACKET;62933,DTCT304GB/ |
| 82233 | Dacor INDICATOR LIGHT BLUE NEO;82233,RSD30 |
| 81073 | Dacor INNER DOOR PROTECTOR |
| 27459BP | Dacor INNER LINER ASY;27459BP,ERG30B06BK |
| 81238 | Dacor INSERT, DOOR HANDLE |
| 80166 | Dacor INSULATION CELL BACK 30;80166,E30DF7 |
| 80164 | Dacor INSULATION CELL BOTTOM;80164,E30DF74 |
| 80161 | Dacor INSULATION CELL SIDE;80161,DO130 |
| 80162 | Dacor INSULATION CELL TOP 30;80162,E30DF74 |
| 80168 | Dacor INSULATION CONV MTR;80168,DO130 |
| 80207 | Dacor INSULATION DOOR;80207,DO130 |
| 80213 | Dacor INSULATION,30"OUTER LINE |
| 80172 | Dacor INSULATION;80172,MCD230B |
|
|
Dacor INTAKE GRILL, 30" CP-BLK |
| 86081 | Dacor JUMPER WIRES SWITCH;86081,PGR30 |
|
|
Dacor KIT, LIGHT & MOUNT PLATE |
| 86746 | Dacor KIT,DOOR LINER 30" |
| 82016B | Dacor KNOB, RANGE - BLK |
| 82016R | Dacor KNOB, RANGE - RTC |
| 82016A | Dacor KNOB;82016A,RSD30 |
| 85136 | Dacor LABEL, "MADE WITH PRIDE" |
| 85249 | Dacor LABEL,"DIELECTRIC TE |
| 26598 | Dacor LATCH PLATE;26598,DO130 |
| 83237 | Dacor LATCH, MAGNETIC |
| 86673 | Dacor LEAD WIRE KIT CSA;86673,RSD30 |
| 86672 | Dacor LEAD WIRE KIT UL;86672,RSD30 |
|
|
Dacor LEVELER;83359,1/2-13 X 2-1/2,DR30EFS |
|
|
Dacor LIGHT BULB 40W 130V;82089,MRE30S |
| 26241R | Dacor LINER KICK PANEL RTC;26241R,RSD30R |
| 26135 | Dacor LINER STORAGE PANEL;26135,RSD30 |
| 62099 | Dacor MANIFOLD ASSEMBLY COMPLETE;62099,RSD |
| 62121 | Dacor MANIFOLD ASSEMBLY COMPLETE;62121,RSD |
|
|
Dacor MEMBRANE, RANGE - BLK |
|
|
Dacor MEMBRANE, RANGE - RTC |

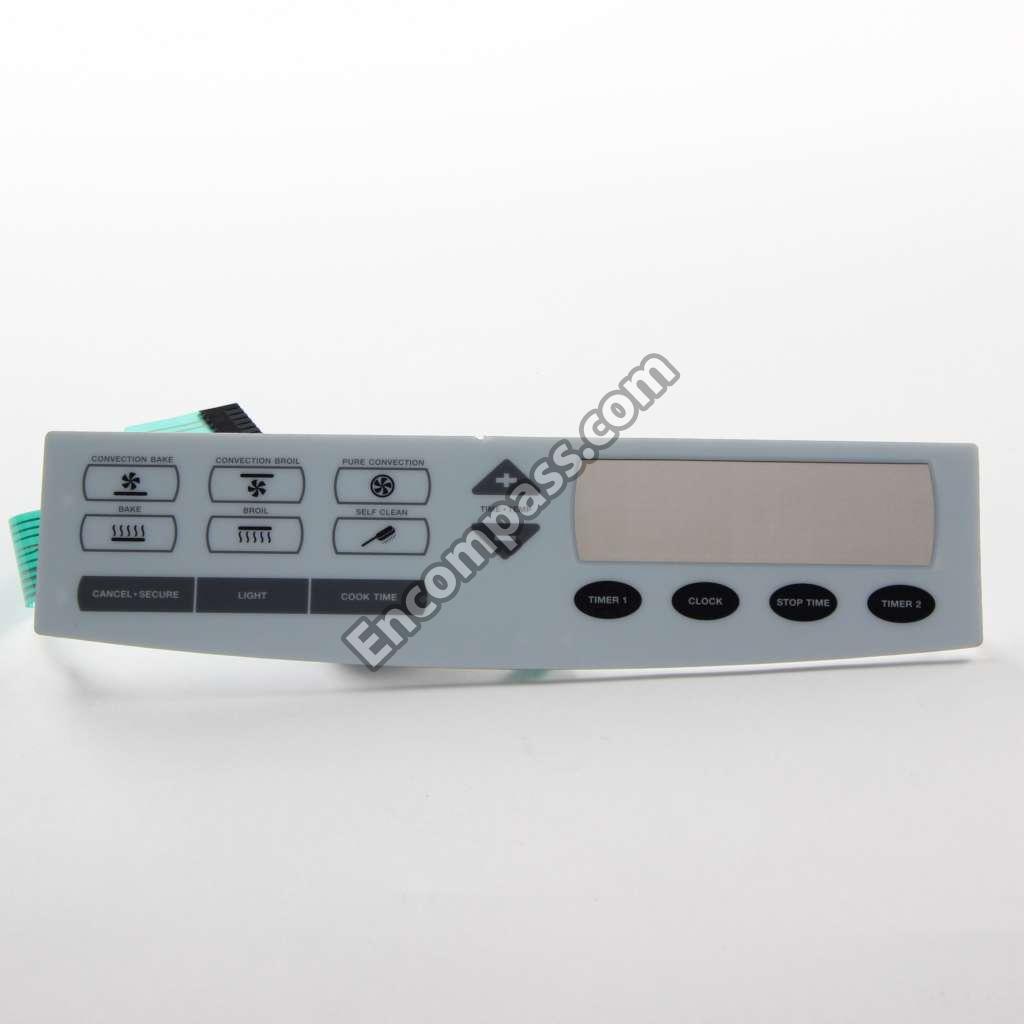

| 82063A | Dacor MEMBRANE;82063A,RSD30 |
|
|
Dacor MICROSWITCH;86420,PGR30 |
| 36280 | Dacor MOUNTING PLATE;36280,ERSD36S |
| 82873 | Dacor NAMEPLATE SELF CLEAN INF;82873,DO130 |
| 83048 | Dacor NUT HEX KEPS;83048,#8-32,DCT305B/LP |
| 83009 | Dacor NUT KEPS;83009,#10-24,DO130 |
|
|
Dacor NUT RETAINER;83418,DO130 |
| 83126 | Dacor NUT, WIRE, YELLOW #451 |
| 86937 | Dacor O RING B BURNER HEAD;86937,DTCT304GB |
| 86397 | Dacor O RING C HEAD SGM;86397,DTCT304GB/LP |
| 86936 | Dacor O-RING, ELECTRODE |
| 27460BP | Dacor OUTER LINER ASY 30 BLK;27460BP,ECD23 |
| 62692 | Dacor OVEN CONTROL, RSD |
|
|
Dacor OVEN RACK, CONVECTION |
| 26900 | Dacor PALLET ANGLE;26900,E30DF74EPS |
| 26072 | Dacor PCB MTG PLATE RANGE;26072,ERD36SBK/L |
|
|
Dacor PCB SUPPORT NYLON;83538,DHD30M967WM |
| 26027 | Dacor PLATE SPARK BOX MTG;26027,MRE30S |
| 83377 | Dacor PLUG 75 DIA HOLE NYLON;83377,RSD30R |
| 101488 | Dacor PLUG PROBE;101488,ECD227B |
| 82106 | Dacor PORCELAIN GRILL;82106,DR30EFS |
| 82107 | Dacor PORCELAIN PAN;82107,DR30EFS |
| 26134 | Dacor RACEWAY GAS TUBE;26134,RSD30R |
|
|
Dacor RANGE BROIL TRAY ASSY;12157,DR30EFS |
| 27038 | Dacor REAR PANEL ASSEMBLY;27038,RSD30 |
| 82851 | Dacor RECEPTACLE,HINGE |
|
|
Dacor REGULATOR GAS;82540,DTCT304GB/LP |
|
|
Dacor RELAY PCB 105C;92028,ECS127B |
| 105588 | Dacor RETAINER RING, ELECT |
| 26576 | Dacor RIGHT SHIELD;26576,ERG30B06BK |
|
|
Dacor RIVET SS;83652,1/8X1/8,DH3006 |
| 83618 | Dacor RUBBER BUMPER;83618,DO130 |
| 83220 | Dacor SCREW 19X 19SOCKET SHLD;83220,MRE30S |
| 83553 | Dacor SCREW HINGE SOCKET HD CP;83553,DO130 |
| 83379 | Dacor SCREW HWH;83379,"#8X1/2,TYPEA",DO130 |
| 83572 | Dacor SCREW PH PAN;83572,#8-32 X1/2,DCT305 |
| 83054 | Dacor SCREW PHIL PAN;83054,#6-32 X3/,ERD30 |
| 83024 | Dacor SCREW PHIL TRS;83024,#8 X 3/8,DR30EF |
| 83263 | Dacor SCREW PHIL WAFER;83263,#8X3/8,DCT305 |
| 83019 | Dacor SCREW SLOT HWH;83019,#8 X 3/8,DYRP36 |
|
|
Dacor SCREW SLOT;83023,#10 X 3/8HWH,DO130 |
|
|
Dacor SCREW TRUSS HD;83570,#6 X 3/8,RSD30R |
|
|
Dacor SCREW WAFER HD;83534,#8 X 3/8,DH3006 |
| 83571 | Dacor SCREW,PHILLIPS HD #8X3/8 |
| 83137 | Dacor SCREW,WELD,#8-32 X1/2,ST |
| 83026 | Dacor SCREW;83026,#10 X 3/4 SLOT HWH,DO130 |
| 83408 | Dacor SCREW;83408,#8-32X 3/4 PHIL,DR30D-C/ |
| 83499 | Dacor SCREW;83499,"#10 X 1/2,PHIL BLK",DO1 |
| 83067 | Dacor SEAL SHUT OFF VALVE;83067,RSD30R |
|
|
Dacor SET GRATE SUPPORTPAD KIT;66916,ERD36 |
| 36617 | Dacor SIDE SHIELD LEFT;36617,DO130 |
| 36618 | Dacor SIDE SHIELD RIGHT;36618,DO130 |
| 26577 | Dacor SIDE SHIELD, DOOR, LEFT |
| 27000 | Dacor SIDE SUPPORT ASY R RANG;27000,MRE30S |
| 26118 | Dacor SIDE SUPPORT LEFT RANGE;26118,MRE30S |
| 78048 | Dacor SIDE SUPPORT RIGHT RANG;78048,MRE30S |
| 105541 | Dacor SLEEVING TUBE, FIBER |
| 82826 | Dacor SMOKE ELIMINATOR |
| 86526 | Dacor SPARK MODULE 4 POINT KIT;86526,ERD60 |
| 82316 | Dacor SPARK MODULE, 4 POIN |
| 82036B | Dacor SPILL PROTECTOR GAS BL;82036B,PGR30 |
| 82036R | Dacor SPILL PROTECTOR,GAS - RT |
| 82036A | Dacor SPILL PROTECTOR;82036A,RSD30 |
| 78963 | Dacor SPILL RAIL, DOOR |
| 105584 | Dacor SPRING ELECTRODE BURNER;105584,DTCT3 |
| 83053 | Dacor STANDOFF 6 32X 44LG HEX;83053,ERD30S |
| 27048 | Dacor STIFFENER ASY BASE RANG;27048,E30DF7 |
| 27068B | Dacor STORAGE COMPARTMENT BLK;27068B,MRE30 |
| 83234 | Dacor STRIKER PLATE;83234,MRE30S |
| 26044 | Dacor SUB CHASSIS;26044,ERSD30S |
| 36546 | Dacor SUBCHASSIS RSD E30;36546,MRE30S |
| 82650 | Dacor SUPPORT RACK-BLK PORCLN |
| 83068 | Dacor SUPPORT STORAGE PANEL;83068,MRE30S |
| 83577 | Dacor TAPE DBL SIDED 3M 4932;83577,ERD36SC |
| 83064 | Dacor TAPE FOAM COUNTERTOP;83064,DYTT305NB |
|
|
Dacor TEMP SENSOR KIT ROBERTSH;86663,ERSD3 |
| 82835 | Dacor TEMPERATURE SENSOR;82835,MRE30S |
| 83566 | Dacor TERMINAL BLOCK 2POLE;83566,RSD30 |
| 26357 | Dacor TERMINAL BLOCK COVER;26357,RSD30 |
| 82151 | Dacor TERMINAL BLOCK;82151,ERD60S06BK |
|
|
Dacor THERMAL SW HI TEMP CUTOU;82987,DR30D |
| 83037 | Dacor TIE PUSH MOUNT LOCKING;83037,DH3006 |
| 26000RP | Dacor TOP FRAME GAS RANGE RT;26000RP,RSD30 |
| 26000AP | Dacor TOP FRAME;26000AP,RSD30 |
| 26000BP | Dacor TOP FRAME;26000BP,RSD30 |
| 26000SG | Dacor TOP FRAME;26000SG,RSD30 |
| 27455 | Dacor TRANSITION DUCT ASY;27455,MRE30S |
| 38594B | Dacor TRIM BEZEL BLK;38594B,RSD30R |
| 38594 | Dacor TRIM BEZEL;38594,RSD30R |
| 26143R | Dacor TRIM POST LEFT RTC;26143R,RSD30R |
| 26143A | Dacor TRIM POST LEFT;26143A,RSD30 |
| 26143B | Dacor TRIM POST LEFT;26143B,BLACK,PGR30 |
| 26139R | Dacor TRIM POST RIGHT RTC;26139R,RSD30R |
| 26139B | Dacor TRIM POST RIGHT;26139B,BLACK,PGR30 |
| 86277 | Dacor VALVE WJETS LEFT FRONT LP;86277,PGR3 |
| 86307 | Dacor VALVE WJETS LEFT REAR LP;86307,PGR30 |
| 86305 | Dacor VALVE WJETS LEFT REAR NG;86305,PGR30 |
| 86302 | Dacor VALVE WJETS RIGHT FRONT LP;86302,PGR |
| 86280 | Dacor VALVE WJETS RIGHT REAR NG;86280,PGR3 |
| 102136 | Dacor WASHER CONVECTION FAN E;102136,DO130 |
| 83098 | Dacor WASHER FLT;83098,875X1 50X 05,E30DF7 |
| 83194 | Dacor WASHER;83194,.5OD X .19ID X .0,DCT30 |
| 27791BP | Dacor WELD ASY CELL WRAP BLK P;27791BP,MRE |
| 27791 | Dacor WELD ASY CELL WRAP;27791,MRE30S |
| 83369 | Dacor WELD NUT, 1/2 - 13 |
| 36377BP | Dacor WINDOW MASK BLK PORC;36377BP,ECD227B |
