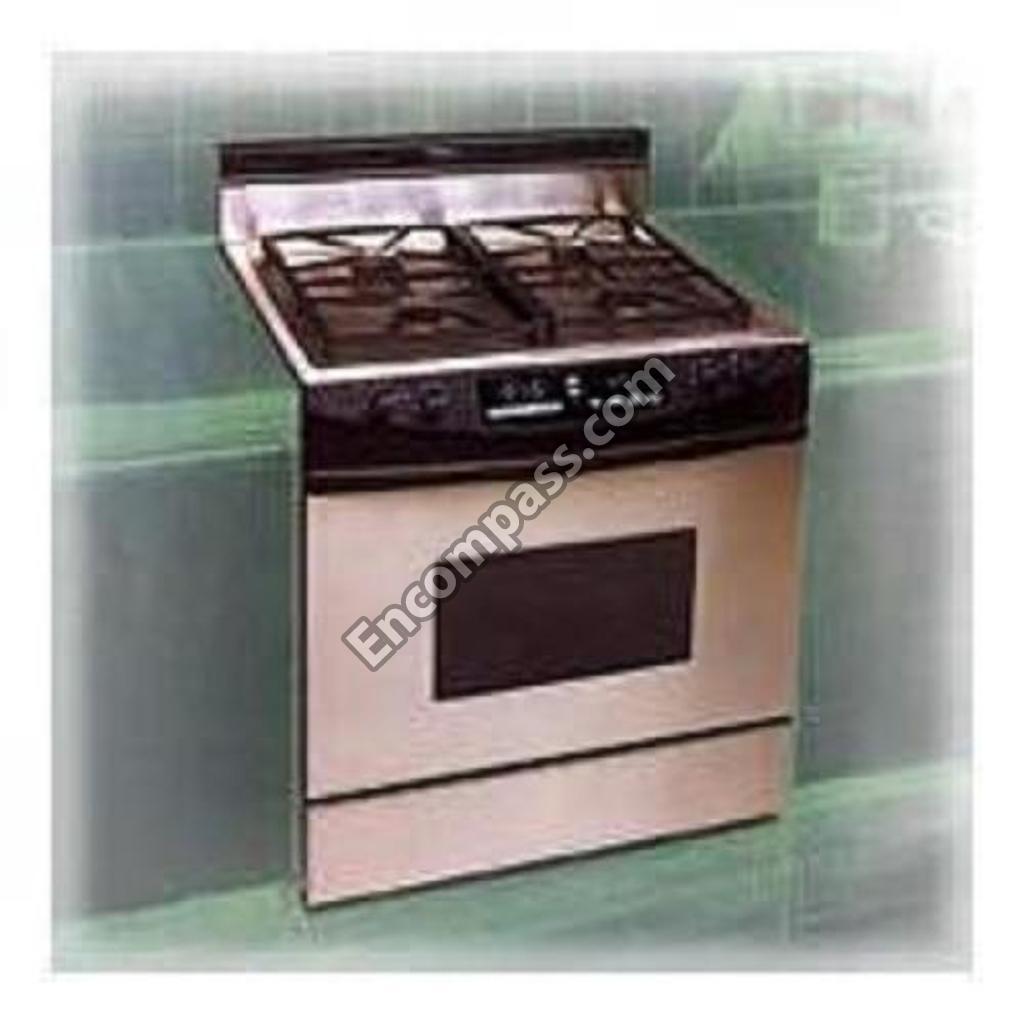

Manufacturer
Dacor
Model Number
RSG
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 82208 | ADAPTER, 1/2 MNPT TO 3/8 TUBE |
| 83050 | ADAPTER, 3/8 FPT TO 3/8 TUBE |
| 26437 | AIR BAFFLE, CASE TOP, LEFT |
| 26431 | AIR BAFFLE, CASE TOP, RIGHT |
| 27174 | ASSEMBLY, BASE, RANGE |
| 27139 | ASSEMBLY, CASE SIDE, LEFT |
| 27137 | ASSEMBLY, CASE SIDE, RIGHT |
| 27153 | ASSEMBLY, EXHAUST PLATE |
| 12042 | ASSEMBLY, INFRARED BURNER |
| 27098 | ASSEMBLY, MOUNTING BRKT, IR BRNR. |
| 27121 | ASSEMBLY, OVEN BOTTOM PAN |
| 27119 | ASSEMBLY, OVEN TOP PAN |
| 27103 | ASSEMBLY, REAR PANEL |
| 27048 | ASSEMBLY, STIFFENER, BASE |
| 13065R | ASSEMBLY, STORAGE PANEL |
| 13065B | ASSEMBLY, STORAGE PANEL |
| 27104 | ASSEMBLY, VENT DUCT |
| 86524BM | B - BURNER CAP, |
| 82681 | B - BURNER HEAD ASSEMBLEY, W/IGNITOR |
| 86408 | B - BURNER RING |
| 26239 | BASE, BACK COVER |
| 76479RR | BEZEL ASSEMBLY |
| 76479RB | BEZEL ASSEMBLY |
|
|
BRACKET, ANTI-TIP |
| 26130 | BRACKET, INLET FITTING |
| 26477 | BRACKET, KICK PANEL |
| 26183 | BRACKET, KICK PANEL SUPPORT - LH |
| 26280 | BRACKET, KICK PANEL SUPPORT - RH |
| 26052 | BRACKET, STORAGE COMPARTMENT MTG |
| 26184 | BRACKET, VENT DUCT |
|
|
BRASS NUT; B, C - BURNER HEAD |
| 26217 | BRKT, BAKE BURNER HOOD |
| 26536 | BRKT, CELL BOTTOM SUPPORT |
| 26248 | BRKT, COOLING FAN |
| 26448 | BRKT, FAN STATUS INDICATOR |
| 26404 | BRKT, TUBULAR BURNER |
| 82574 | BROIL FITTING |
| 82107 | BROILER PAN, BLK PORC. |
| 26068 | BURNER SUPPORT CHANNEL |
|
|
BURNER TUBE/BASE, FRONT, |
| 62169 | BURNER TUBE/BASE, LEFT REAR |
| 62162 | BURNER TUBE/BASE, RR |
|
|
BURNER, TUBULAR |
| 86523BM | C - BURNER CAP, |
| 82682 | C - BURNER HEAD ASSEMBLY, W/IGNITOR |
| 86407 | C - BURNER RING |
| 26447 | CASE BACK |
| 26533 | CASE BOTTOM |
| 26127 | CASE BOTTOM COVER |
| 26124 | CASE TOP FRONT |
| 26443 | CASE TOP REAR |
| 26119B | CONTROL BEZEL TRIM |
| 27470 | CONV. MOTOR MOUNTING PLATE |
| 26138BP | CONVECTION BAFFLE |
| 82647 | CONVECTION OVEN MOTOR |
| 82347 | COOLING FAN |
| 26538 | COVER PLATE, LIGHT |
| 26126BP | COVER, CONV BAFFLE TOP |
| 701582 | DOOR DOOR LATCH MECHANISM |
| 83281 | ELBOW, 90 DEGREE, 1/2-INCHES IPS |
| 82229R | EXHAUST GRILL, LOWER |
|
|
EXHAUST GRILL, LOWER |
| 82651 | FAN BLADE, CONVECTION MOTOR |
|
|
FILTER, CONVECTION |
| 27487B | FRAME, GLASS MOUNTING |
| 27486R | FRAME, GLASS MOUNTING * |
| 27486B | FRAME, GLASS MOUNTING * |
| 26241R | FRONT PANEL |
| 26241B | FRONT PANEL |
| 82348 | GAS TUBE |
| 82124 | GASKET, DOOR |
| 86360 | GLASS/OVERLAY ASSEMBLY |
| 82216R | GLASS/OVERLAY ASSEMBLY * |
| 82216B | GLASS/OVERLAY ASSEMBLY * |
| 82109BM | GRATE PACK EXTENDED |
|
|
HANDLE |
| 82122B | HANDLE |
| 82287 | HARNESS, ERC TO RELAY POWER CONTROL BOARD |
| 86080 | HARNESS, IGNITOR TO SW/LTS |
| 26575B | HEAT SHIELD |
| 26478 | HEAT SHIELD SIDE, VENT DUCT |
| 26440 | HEAT SHIELD, BAKE BURNER |
| 26409BP | HEAT SHIELD, VENT CAP |
| 82883 | HINGE |
| 82508 | HINGE |
| 82577 | HOOD JET, BROIL-LP |
| 82576 | HOOD JET, BROIL-NG |
| 82473 | HOT SURFACE IGNITOR |
| 86079 | IGNITER WIRES |
| 66281 | IGNITOR ASSEMBLY |
| 26215 | IGNITOR SHIELD |
| 82233 | INDICATOR LIGHT, BLUE NEON |
| 80172 | INSULATION |
| 26288B | INTAKE GRILL |
| 82790BP | J-TRIM WINDOW PACK, |
| 86081 | JUMPER WIRES - SWITCH |
| 82016R | KNOB |
| 82016B | KNOB |
|
|
LEVELER, ADJUSTABLE, 1/2-INCHES |
| 83034 | LEVELER, ADJUSTABLE, 5/16-INCHES |
|
|
LIGHT BULB, HALOGEN |
|
|
LIGHT SERVICE KIT |
| 27459BP | LINER, INNER |
| 86746 | LINER, OUTER |
| 86802 | O-RING, B - BURNER HEAD |
| 86801 | O-RING, C - BURNER HEAD |
| 62696 | OVEN CONTROL |
|
|
OVEN RACK |
| 82106 | PLATED GRILL, BROILER PAN |
| 26072 | POWER CONTROL BOARD MTG. PLATE |
|
|
POWER CONTROL BOARD SUPPORT, NYLON |
| 13181 | POWER SUPPLY CORD |
| 82851 | RECEPTACLE, HINGE |
| 26441 | REFLECTOR, BAKE BURNER |
| 62438 | RELAY, POWER CONTROL BOARD |
| 26577 | SHIELD, LEFT |
| 27099BP | SHIELD, PROBE |
| 26442BP | SHIELD, PROBE |
| 26576 | SHIELD, RIGHT |
| 26573 | SIDE SUPPORT, LEFT |
| 27132 | SIDE SUPPORT, RIGHT |
| 26027 | SPARK BOX PLATE |
| 86526 | SPARK MODULE, 4 POINT |
| 82036R | SPILL PROTECTOR |
| 82036B | SPILL PROTECTOR |
| 83053 | STANDOFF, 6-32 X .44LG, HEX |
| 82650 | SUPPORT RACK, BLK PORC. |
| 82081 | SWITCH, SAIL |
| 83224 | TAPE, DOUBLE SIDED, .30 THK |
| 62201 | TEMP. SENSOR, LONG 10.5-INCHES |
|
|
TEMP. SENSOR, SHORT |
| 82151 | TERMINAL BLOCK |
| 83556 | TERMINAL BLOCK |
| 26357 | TERMINAL BLOCK COVER |
| 26429 | THERMOCORD, WINDOW PACK |
| 26295SG | TOP FRAME |
| 26295RP | TOP FRAME |
| 26295BP | TOP FRAME |
| 26594 | TRIM COLLAR, VENT DUCT |
| 26143R | TRIM POST, LEFT; |
| 26143B | TRIM POST, LEFT; |
| 26139R | TRIM POST, RIGHT |
| 26139B | TRIM POST, RIGHT |
| 82429 | VALVE, THERMAL |
| 12470 | WINDOW PACK |
