Manufacturer
Dacor
Model Number
RV30B
Description

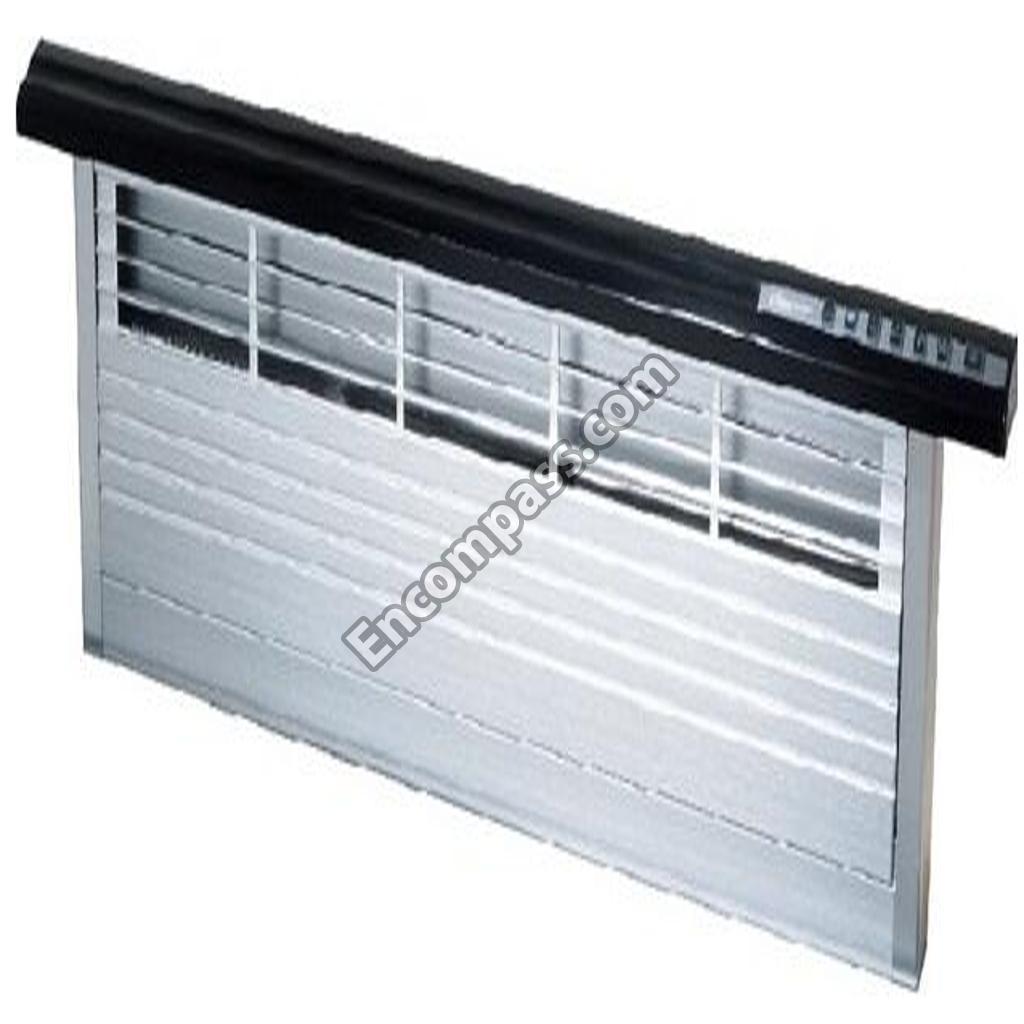

Rv30b - Ventilation Hoods
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 80518 | 16GA GALVANIZED, STE |
| 80517 | 18GA GALVANIZED, 48" |
| 80074 | 20 GA GALVANIZED,48" |
| 80516 | 20 GA GALVANIZED;80516,"48""X96""",D |
| 80275 | 20 GA GALVANNEALED S |
| 80550 | 20 GA,GALVANIZED STE |
| 62245 | 5 AMP FUSE USED;62245,ON BOARD NUMBE |
| 26627 | ADJUSTABLE CHANNEL |
| 100881 | ANGLE END CAP;100881,RV30B |
| 13754 | ASY DRIVE MOTOR SWITCH;13754,RV30B |
| 703500 | ASY INTAKE GRILL 30;703500,RV30B |
|
|
ASY MOTOR DRIVE SWITCH;72775,E30DD75 |
|
|
BEZEL;82754,RV30B |
| 14361 | BLUE DOWN LIMIT SW RV;14361,RV30B |
| 82182 | BRACKET FILTER RETAININ;82182,E30DD7 |
| 26043 | BRACKET, TERMINAL STRIP |
| 83056 | BUSHING HEYCO SB 875 11;83056,DH3006 |
| 83141 | BUSHING STRAIN RELIEF;83141,DCT305B/ |
| 83173 | C CLIP;83173,E30DD75ESS |
| 83138 | CABLE TIE 4054 RT 350;83138,DCT305B/ |
| 83152 | COIN ENVELOPE S-6285 |
| 13111 | COIN ENVELOPE, VENTS |
|
|

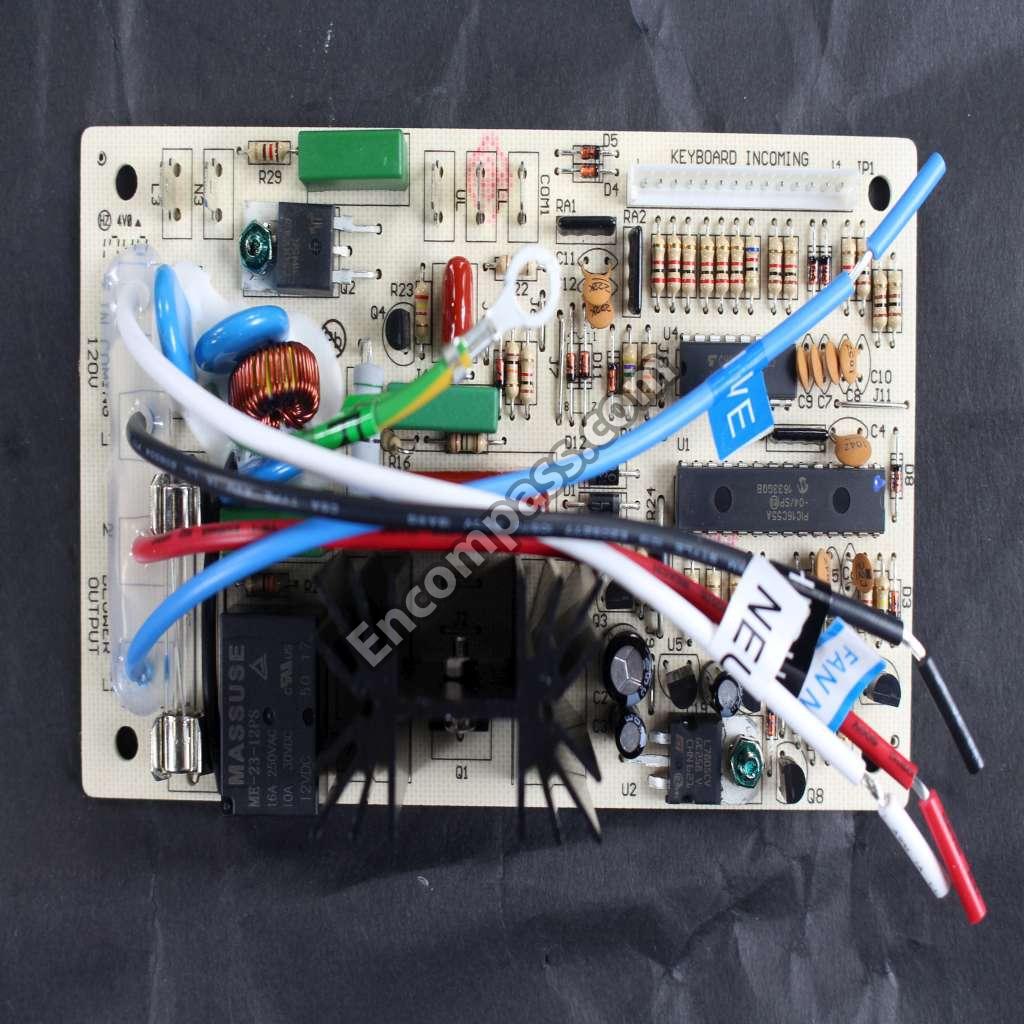

CONTROL BOARD ASY;700991,RV30B |
| 72881 | CONTROL BOARD,12A |
| 62232 | COUNTER SEAL 27 50;62232,E30DD75ESS |
| 82243 | DRIVE ARM STUD;82243,E30DD75ESS |
| 82244 | DRIVE ARM WELDMENT;82244,RV30B |
| 26619 | DUCT COLLAR;26619,3-1/4 X 10,E308WV6 |
| 26616 | DUCT COVER;26616,RV30B |
| 26620 | E BOX COVER;26620,E30DD75ESS |
| 27447 | ELECTRICAL BOX WELDMENT |
| 82941 | END CAP ANGLE LEFT;82941,RV30B |
| 82940 | END CAP ANGLE RIGHT;82940,RV30B |
| 82997B | END CAP LEFT BLK;82997B,RV30B |
| 82997 | END CAP LEFT;82997,RV30B |
| 82996B | END CAP RIGHT BLK;82996B,RV30B |
| 82996 | END CAP RIGHT;82996,RV30B |
| 62235 | FELT WIPER 500X 094X32;62235,DOP36M8 |
| 81132 | FOAM TAPE, URETHANE |
| 62886 | FUSE,RV MAIN CONTROLLER |
| 82766 | GREASE FILTER RV30;82766,RV30B |
| 82794 | GRILL, RV30 |
| 13081 | GRILL;13081,RV30B |
| 12085 | GROUND WIRE;12085,RV30B |
| 82633 | KEYBOARD PCBA;82633,RV30B |
|
|
KEYPAD RAISED VENT;82757,RV30B |
| 85426 | LABEL GRILL INSTALL RV;85426,RV30B |
| 65326HL | LABEL SET SN W HOLOGR;65326HL,DH3006 |
| 85136 | LABEL, "MADE WITH PRIDE" |
| 65467 | LABEL, CAUTION |
| 65467FR | LABEL, HOOD, CAUTION |
| 85249 | LABEL,"DIELECTRIC TE |
| 85648 | LABEL,EXTRU CONTAINER,CP |
| 85626 | LABEL,MAINTENANCE-EN |
| 85627 | LABEL,MAINTENANCE-FR |
| 26652 | LIMIT SWITCH MOUNTING BRKT;26652,RV3 |
|
|
LIMIT SWITCH;82713,RV30B |
| 81070 | MICROFOAM,12"X6"X.06 THK |
|
|

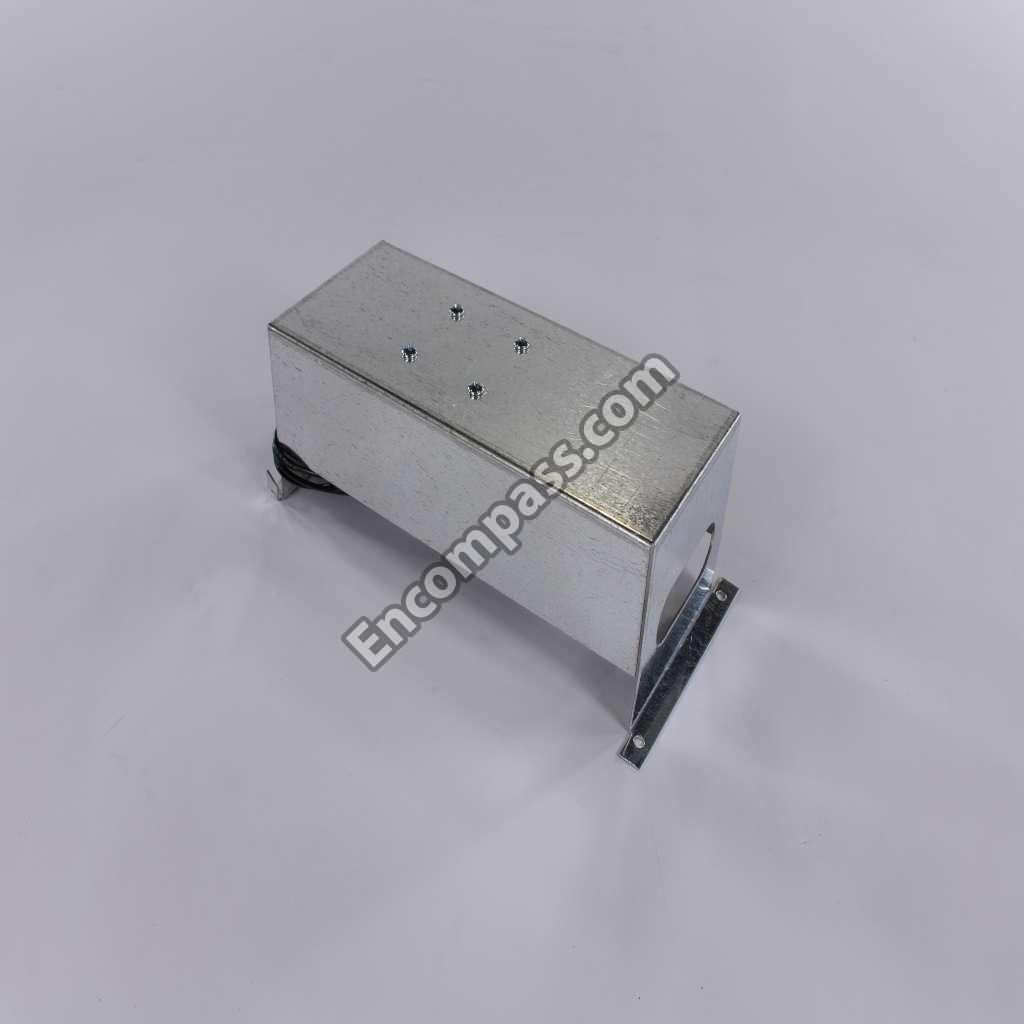

MOTOR DRIVE ASSY KIT;76457,RV30B |
| 26653 | MOTOR MOUNTING BOX |
| 62198 | MOTOR SLEEVE DRIVE;62198,RV30B |
| 83531 | NUT 4 40 HEX KEPS ZINC P;83531,DH300 |
| 83048 | NUT HEX KEPS;83048,#8-32,DCT305B/LP |
| 83049 | NUT HEX KEPS;83049,"1/4-20,ZN",E30DD |
| 83035 | NUT WING;83035,#10-24,DHD30M967WM |
| 83046 | NUT, WIRE, ORANGE |
| 83126 | NUT, WIRE, YELLOW #451 |
|
|
PCB SUPPORT NYLON;83538,DHD30M967WM |
| 82749 | PLENUM ANGLE LEFT;82749,RV30B |
| 82753 | PLENUM ANGLE RIGHT;82753,RV30B |
| 26626 | PLENUM DUCT HOLE COVER;26626,E308WV6 |
| 27443 | PLENUM FRONT WELDMENT |
| 82746 | PLENUM TRIM 30;82746,E30DD75ESS |
| 27440 | REAR PLENUM WLDMNT 30 RV |
| 14362 | RED UP LIMIT SW RV;14362,RV30B |
|
|
RIVET SS;83652,1/8X1/8,DH3006 |
| 83578 | RUBBER BUMPER SNAP IN;83578,DTCT304G |
| 62196 | RV DRIVE ARM;62196,RV30B |
| 82740B | RV TOP CAP 30;82740B,BLACK,RV30B |
| 83047 | SCREW PHIL FLAT;83047,#14X2-1/2,E30D |
|
|
SCREW PHIL PAN HD;83001,#8X1/4,DCT30 |
| 83530 | SCREW PHIL PAN;83530,#4-40X5/8,DH300 |
| 83022 | SCREW PHIL TRS HD;83022,#10X1/2,E30D |
|
|
SCREW PHIL;83007,#8-32 X 1/4,DOP36M9 |
| 83181 | SCREW PHIL;83181,8-32X1/4,DR30EFS |
| 83070 | SCREW SET;83070,1/4-28 UNFX1/4,E30DD |
| 83103 | SCREW, WELD, 1/4-20X5/8 |
| 83341 | SCREW,PHIL PAN#8-32X5/16 |
| 83137 | SCREW,WELD,#8-32 X1/2,ST |
| 83145 | SHRINK TUBING 3 16 ID CS;83145,ERV36 |
| 82721 | SLEEVE ARM RAISED VENT;82721,RV30B |
| 82791 | SLEEVE FRONT RV30;82791,RV30B |
| 82737 | SLEEVE FRONT;82737,RV30B |
| 26621 | SLEEVE REAR PANEL, 30" |
| 82762 | SLEEVE SIDE |
| 107108 | SLIDE MTG BRACKET;107108,E30DD75ESS |
| 72522 | SLIDE,RAISE VENT |
| 82717 | SLIDE,RAISED VENT SLEEVE |
| 83187 | SPRING WASHER RV;83187,E30DD75ESS |
| 26521 | SUPPORT LEG RIGHT;26521,RV30B |
| 26522 | SUPPORT LEG,LEFT |
| 62238 | TAPE FOAM 38X 50X27 50;62238,RV30B |
| 83240 | TAPE FOAM V2510 BLK;83240,DYRP36D-C- |
| 102352 | TERMINAL BLOCK 12 PT;102352,DH3006 |
| 82143 | TERMINAL STRIP;82143,RV30B |
| 83203 | WASHER FLAT;83203,P400 1/4-20,DRT304 |
| 101902 | WASHER, FLAT, 3/4 X |
| 83008 | WASHER;83008,#10 SAE,DTCT304GB/LP |
| 14363 | WHT LIMIT SWITCH COMMON;14363,RV30B |
| 62634 | WIRE HARNESS RV;62634,RV30B |
