Manufacturer
Dacor
Model Number
SGM365R
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 80208 | 18 GA GALVANIZED STE |
| 86408 | B BURNER RING;86408,DTCT304GB/LP |
| 62951 | BBURNER HEAD COMPLETE;62951,DTCT304G |
|
|

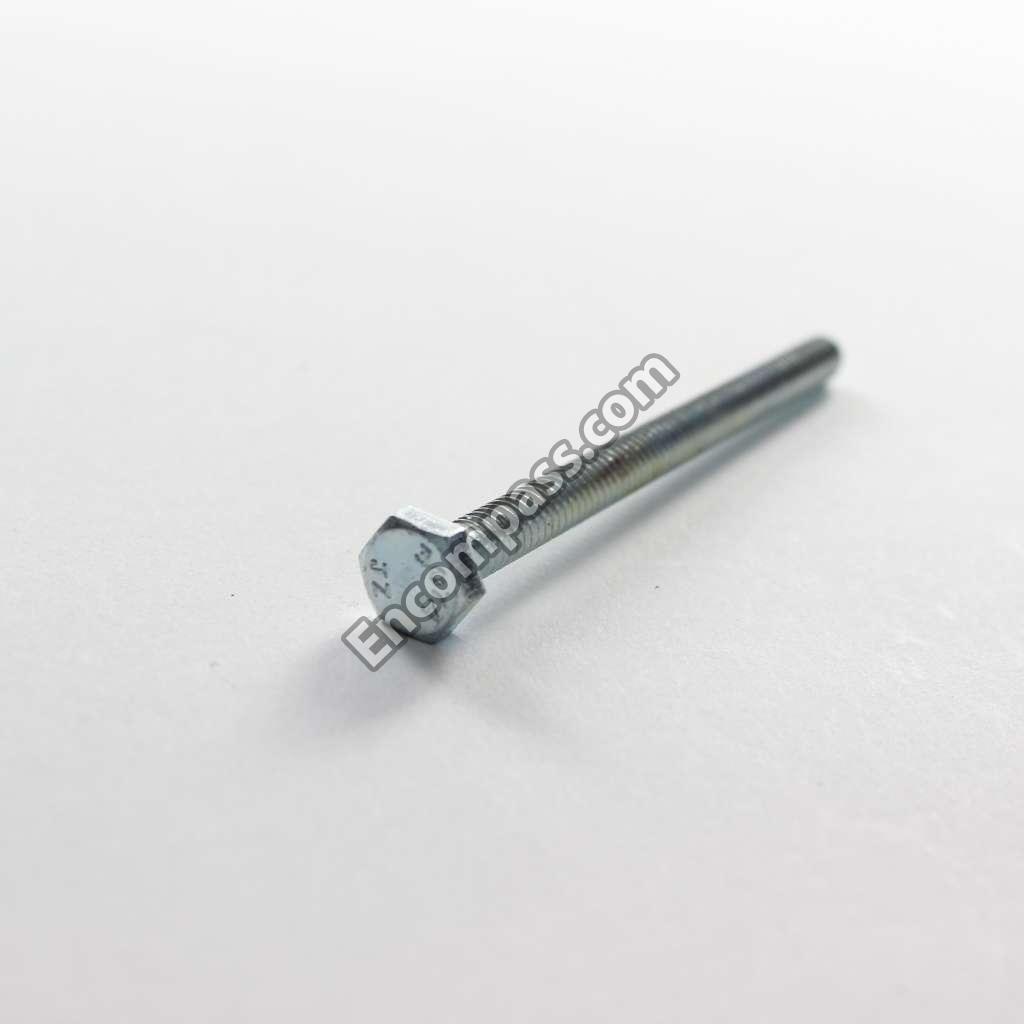

BOLT HEX HEA;83065,1/4-20X3.50,DCT30 |
| 46225 | BOX CHASSIS SGM365E;46225,DTCT365GB/ |
|
|
BRASS NUT CB HEAD;86405,DTCT304GB/LP |
| 62022BM | BURNER CAP;62022BM,ERG30B06BK |
|
|

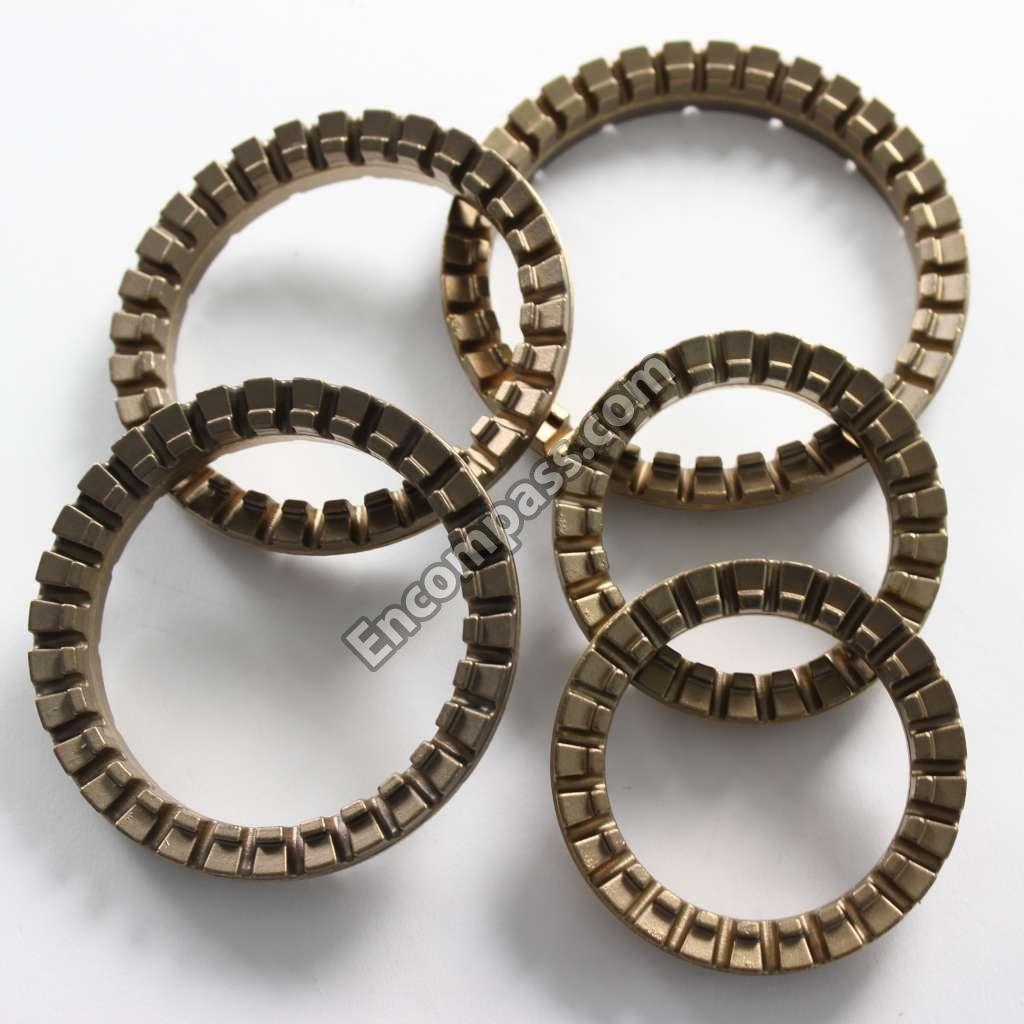

BURNER RING SET SGM365;62479,DTCT365 |
|
|
BURNER TUBE BASE FRONT;62144,DTCT304 |
| 62430 | BURNER TUBE RF |
| 62431 | BURNER TUBE, LF |
| 62432 | BURNER TUBE,CENTER |
| 83141 | BUSHING STRAIN RELIEF;83141,DCT305B/ |
| 92125 | BYPASS ORIFICE, SGM |
| 86373 | C AIR SHUTTER;86373,DTCT304GB/LP |
| 86407 | C BURNER RING;86407,DTCT304GB/LP |
| 83138 | CABLE TIE 4054 RT 350;83138,DCT305B/ |
| 62952 | CBURNER HEAD COMPLETE;62952,DTCT304G |
| 76034 | CONE DOUBLE SGM365E;76034,E30DF74EPS |
| 105538 | CONNECTOR SGM;105538,EGR30S06BK |
| 86918 | D BURNER RING SNGL 5 FG;86918,DTCT30 |
| 62953 | DBURNER HEAD COMPLETE;62953,DTCT304G |
| 105604 | ELECTRODE, BURNER HE |
| 72468SB | GRATE PACK,12" |
| 72466SB | GRATE PACK,EXTENDED |
| 86372 | HB AIR SHUTTER;86372,DTCT304GB/LP |
| 12269 | HOLD DOWN BRACKET;12269,DCT305B/LP |
| 83209 | HOOK LOOP PAIR 2 X 3;83209,DR30GFS/L |
|
|
IGNITER ASSY KIT SINGLE;76482-001,ER |
| 62933 | IGNITOR WIRE JACKET;62933,DTCT304GB/ |
| 62036 | INDICATOR LIGHT BLUE NEO;62036,DCT30 |
|
|

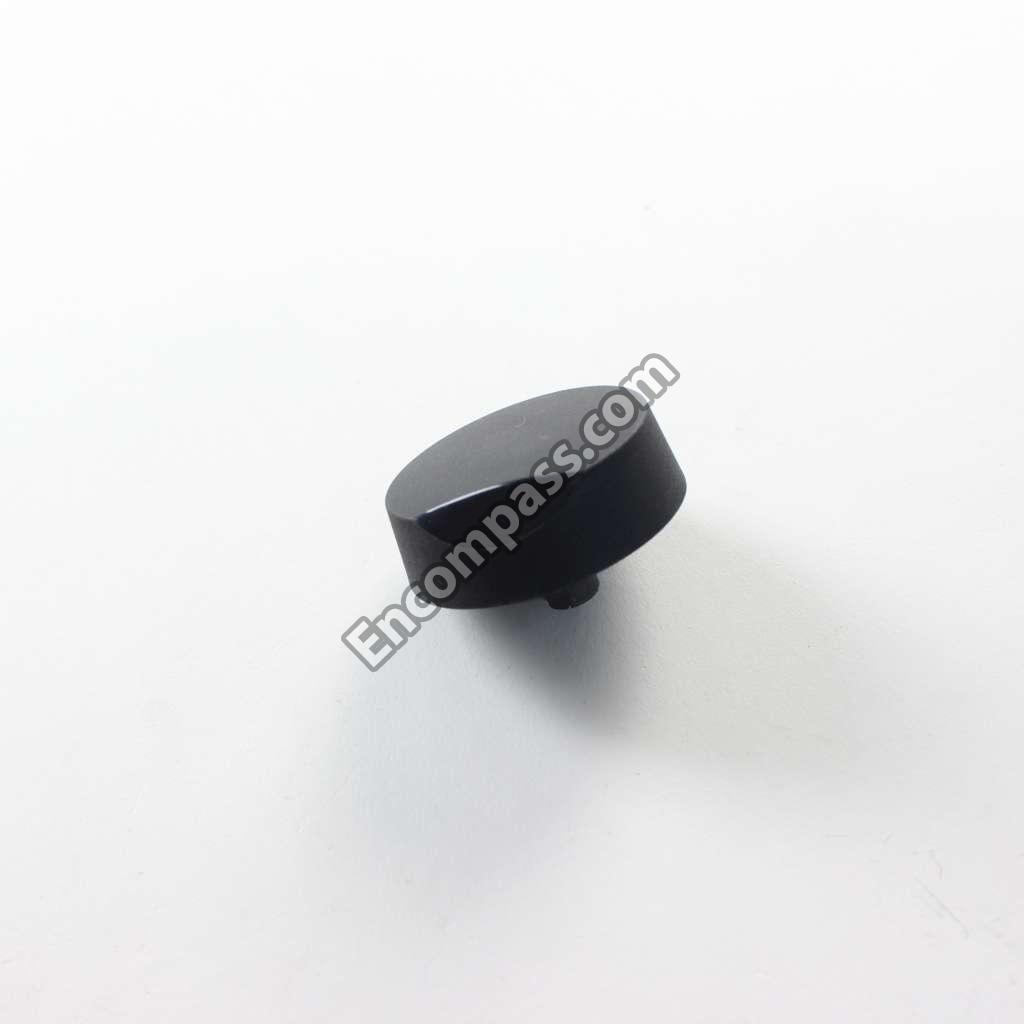

KNOB SGM;82974,SGM304B |
|
|

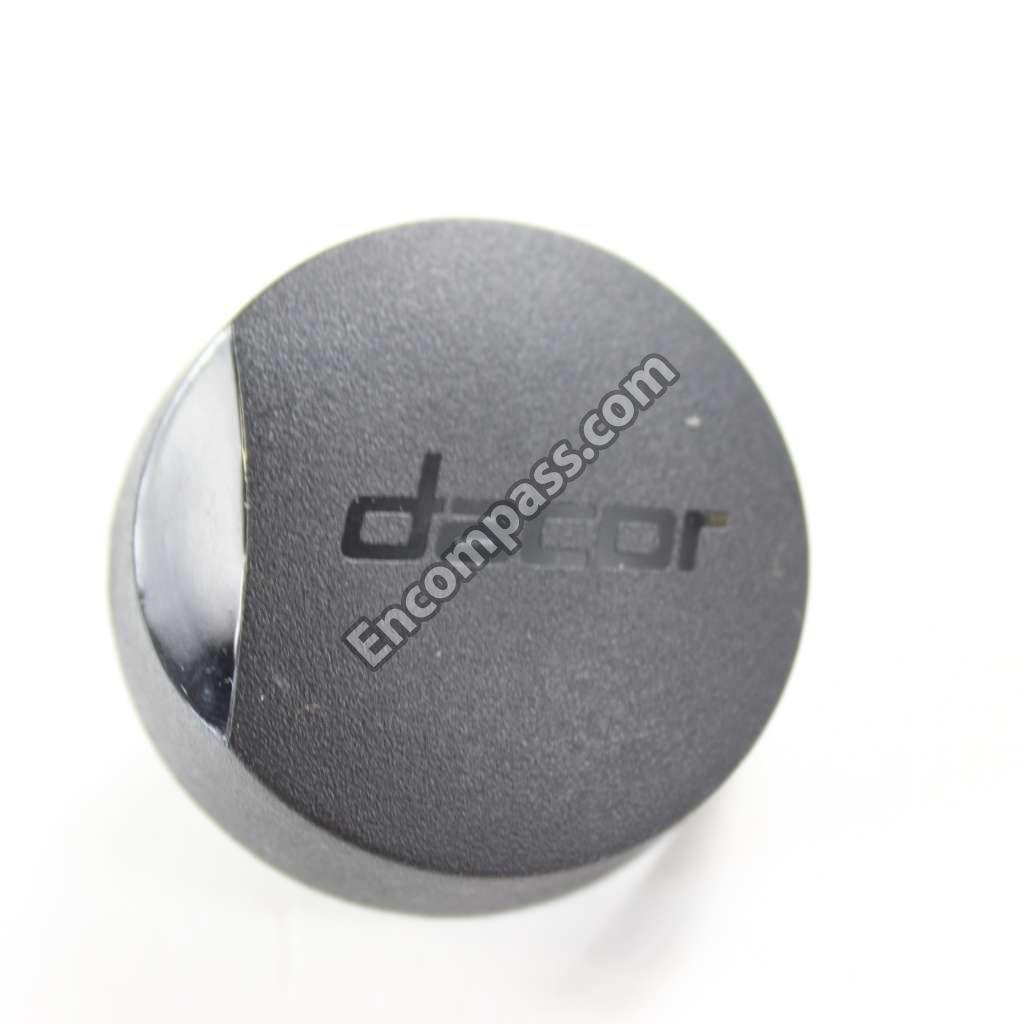

KNOB W LOGO SGM;82977,SGM304B |
| 85249 | LABEL,"DIELECTRIC TE |
| 85648 | LABEL,EXTRU CONTAINER,CP |
| 62474 | MANIFOLD NG SGM365;62474,SGM365R |
| 62510 | MANIFOLD WITH VALVES HIGH ALT;62510, |
| 62511 | MANIFOLD WITH VALVES HIGH ALT;62511, |
| 62475 | MANIFOLD WITH VALVES LOW ALT;62475,S |
| 86739 | MANIFOLD,GAS SGM365 |
|
|
MICROSWITCH ER30G;103789,DOP36M86DAM |
| 76033 | NUT COMPRESSION;76033,E30DF74EPS |
| 83048 | NUT HEX KEPS;83048,#8-32,DCT305B/LP |
| 72427-166 | NUT, MAIN ORIFICE,1.66MM |
| 86937 | O RING B BURNER HEAD;86937,DTCT304GB |
| 86397 | O RING C HEAD SGM;86397,DTCT304GB/LP |
|
|
O RING D BURNER;86395,DTCT304GB/LP |
| 105614 | O-RING, 5 MM ID |
| 86936 | O-RING, ELECTRODE |
| 72427-133 | ORIFICE NUT, MAIN,1.33MM |
| 72427-177 | ORIFICE, NUT, SGM,1.77MM |
| 72765 | POWER SUPPLY CORD PGM365;72765,DCT30 |
|
|

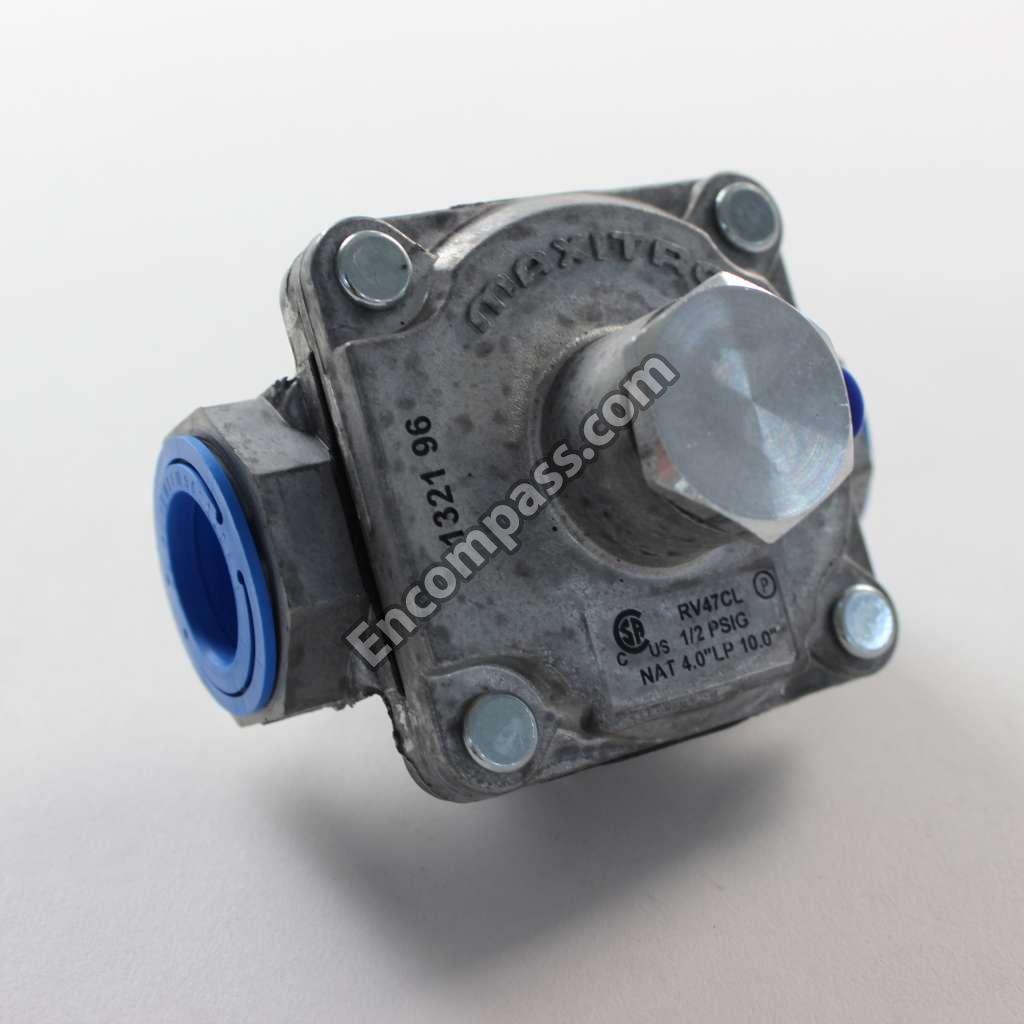

REGULATOR GAS;82540,DTCT304GB/LP |
| 85046 | REGULATOR LABEL, GGC |
| 85047 | REGULATOR TAG, GGC |
| 105588 | RETAINER RING, ELECT |
| 83578 | RUBBER BUMPER SNAP IN;83578,DTCT304G |
| 83572 | SCREW PH PAN;83572,#8-32 X1/2,DCT305 |
|
|
SCREW PHIL PAN HD;83001,#8X1/4,DCT30 |
| 83306 | SCREW PHIL TRS;83306,#8 X 3/8,DCT305 |
| 83263 | SCREW PHIL WAFER;83263,#8X3/8,DCT305 |
| 86386 | SCREW VALVE MOUNTING;86386,SGG304A |
| 83313 | SCREW,PHIL PAN, #8 X |
| 105455 | SCREWPAN;105455,M3X0.5X25 MM,SGM365R |
|
|
SET GRATE SUPPORTPAD KIT;66916,ERD36 |
| 86635 | SHUTTER AIR LF;86635,SGM365B |
| 105541 | SLEEVING TUBE, FIBER |
|
|

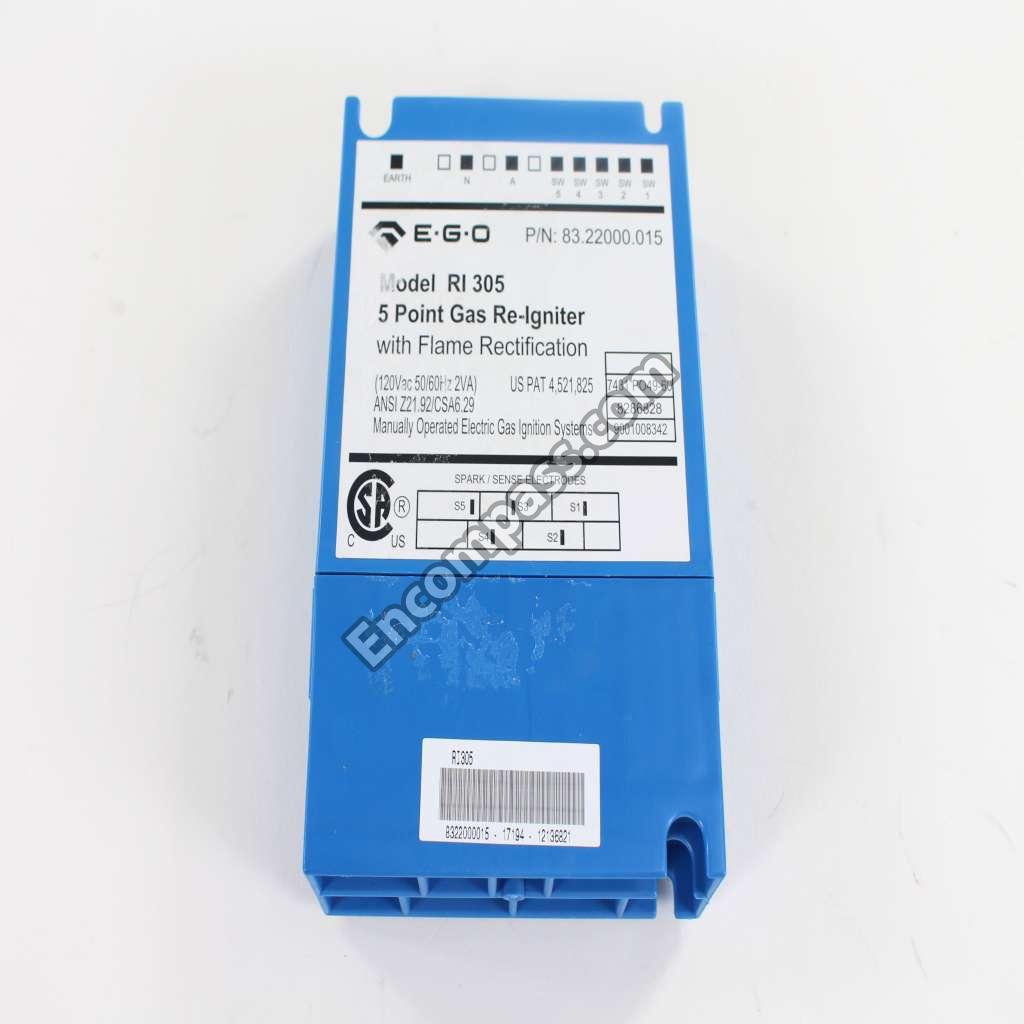

SPARK MODULE 5 POINT KIT;86527,SGG36 |
| 82317 | SPARK MODULE, 5 POINT |
|
|

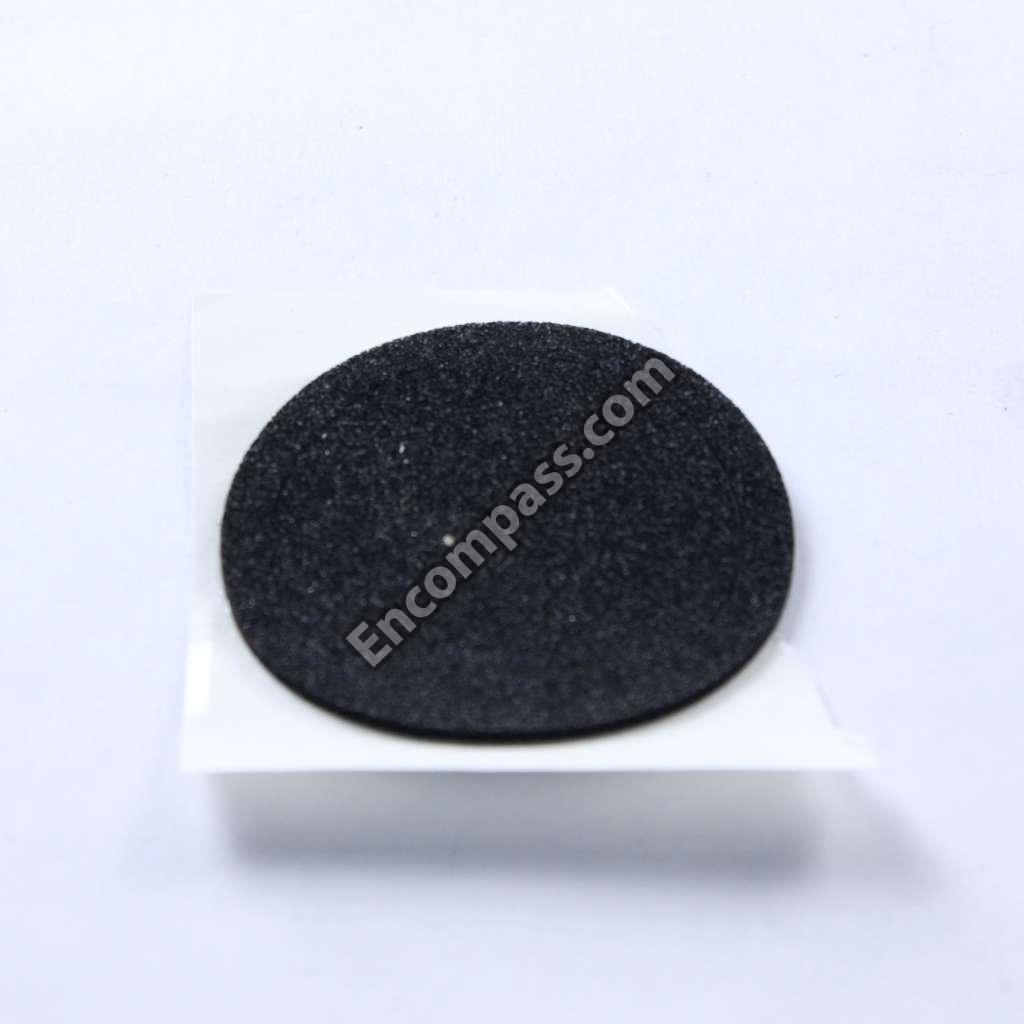

SPILL GASKET;82973,DTCT304GB/LP |
| 62284SSL | SPILL PROTECTOR SGMX;62284SSL,SGM304 |
| 62284SSR | SPILL PROTECTOR SGMX;62284SSR,SGM304 |
| 62287SSC | SPILL PROTECTOR SGMX;62287SSC,SGM365 |
| 62287SSL | SPILL PROTECTOR SGMX;62287SSL,SGM365 |
| 62287SSR | SPILL PROTECTOR SGMX;62287SSR,SGM365 |
| 105584 | SPRING ELECTRODE BURNER;105584,DTCT3 |
| 46193 | SUPPORT BURNER;46193,DTCT304GB/LP |
| 36113RP | TOP,FRAME,SGM365-RTC PC |
| 86667 | VALVE HIGH ALT CENTER;86667,SGM365B |
| 86669 | VALVE HIGH ALT CENTER;86669,SGM365B |
| 86680 | VALVE HIGH ALT LF;86680,SGM365B |
| 86682 | VALVE HIGH ALT LR;86682,SGM365B |
| 86692 | VALVE HIGH ALT RIGHT REAR;86692,SGM3 |
| 86668 | VALVE LOW ALT CENTER;86668,SGM365B |
| 86679 | VALVE LOW ALT LF;86679,SGM365B |
| 86683 | VALVE LOW ALT LR;86683,SGM365B |
| 86687 | VALVE LOW ALT RIGHT FRONT;86687,SGM3 |
| 86677 | VALVE, C, NG |
| 86678 | VALVE, LF, LP/H |
| 86681 | VALVE, LF, NG, SGM365 |
| 86685 | VALVE, LR, NG |
| 86684 | VALVE, LR, NG/H |
| 86686 | VALVE, RF, LP/H, SGM365 |
| 86689 | VALVE, RF, NG |
| 86688 | VALVE, RF, NG/H |
| 86693 | VALVE, RR, NG |
| 83080 | WASHER NYLON;83080,DO130 |
| 72437 | WIRING HARNESS;72437,DTCT365GB/LP |
