Manufacturer
Dacor
Model Number
W305
Description
Wall Ovens
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 83325 | 4 LOCK WASHER |
| 83041B | 4-40 X 3/16 SCREW |
| 83308 | 6-32 KEPS NUT |
| 83333 | 8-32 X 7/16 HEX STANDOFF |
| 27047 | BACK SHIELD |
| 78815 | BAFFLE SHIELD |
| 82919 | BAKE BACK UP |
| 82351 | BAKE ELEMENT ASSEMBLY 208V |
|
|
BAKE ELEMENT ASSEMBLY 240V |
| 82895 | BLACK DOOR DOOR LATCH KNOB |
| 82645 | BLACK DOOR GLASS |
| 27330W | BOTTOM TRIM |
| 27330B | BOTTOM TRIM |
| 82249 | BROIL ELEMENT 208V |
| 82099 | BROIL ELEMENT 240V |
| 82898 | BROIL ELEMENT RELAY |
| 26386 | BROIL ELEMENT SUPPORT |
| 82107BP | BROIL PAN |
| 82106BP | BROIL TRAY |
| 83296 | BUTTON HEAD SCREW, BLACK |
| 83297 | BUTTON HEAD SCREW, WHITE |
| 27319 | CASE BACK |
| 26017 | CASE BACK SUPPORT BRACKET |
| 27334 | CASE BOTTOM |
| 27019 | CASE SIDE LEFT |
| 27020 | CASE SIDE RIGHT |
| 26374 | CASE TOP |
| 82899 | CLEAN RUN AWAY SWITCH |
| 83327 | CLEAN SWITCH MOUNTING SCREW |
| 82149 | CLEAN SWITCH, LOWER |
| 82918 | CLEAN SWITCH, UPPER |
| 86600W | CLOCK ASSEMBLY |
| 86600B | CLOCK ASSEMBLY |
| 12323 | CONVECTION BAFFLE |
| 82251 | CONVECTION ELEMENT 208V |
| 82888 | CONVECTION ELEMENT 240V |
| 26373BP | CONVECTION ELEMENT PLATE |
| 82651 | CONVECTION FAN BLADE |
| 12280 | CONVECTION FAN DOOR SWITCH |
|
|
CONVECTION FILTER |
| 82647 | CONVECTION MOTOR |
| 26372 | CONVECTION MOTOR PLATE |
| 82889 | COOLING BLOWER |
| 27332 | COOLING FAN BRACKET |
| 82900 | COOLING FAN SWITCH |
| 82083 | DOOR DOOR LATCH |
| 26389W | DOOR DOOR LATCH LEVER |
| 26389B | DOOR DOOR LATCH LEVER |
| 26345 | DOOR DOOR LATCH PLATE |
| 82124 | DOOR GASKET |
| 26393W | DOOR GLASS BRACKET |
| 26393B | DOOR GLASS BRACKET |
| 26350B | DOOR GLASS BRACKET |
| 27328 | DOOR GLASS MOUNTING FRAME |
| 26414 | DOOR GLASS SPT BRACKET |
| 13060W | DOOR HANDLE |
| 13060B | DOOR HANDLE |
| 26361 | DOOR HEAT DUCT |
| 27287 | DOOR HEAT SHIELD |
| 82915 | DOOR INSULATION |
| 13054 | DOOR LATCH LEVER COVER |
| 26399 | DOOR STOP ARM |
| 83127 | FIBER WASHER |
| 82659 | FINGER GUARD |
| 27315 | FUSE |
| 78814 | FUSE CASE |
| 26422 | FUSE ENCLOSURE PLATE |
| 82643 | GLASS CONTROL PANEL, BLACK |
| 82644 | GLASS CONTROL PANEL, WHITE |
| 83320 | GLASS PANEL SPACER |
| 82218 | GLASS, SHUTTERLESS |
| 82104 | HINGE SPRING |
| 82913 | INDICATOR LIGHT |
| 82213 | INNER DOOR GLASS PLATE |
| 27111BP | INNER DOOR LINER |
| 12251 | INSULATION |
| 82637 | INSULATION |
| 82914 | INSULATION |
| 27325BP | INSULATION BOX |
| 82916W | LEFT END CAP |
| 82916B | LEFT END CAP |
| 12293 | LEFT HINGE MOUNTING BRACKET |
|
|
LIGHT BULB, 40 WATT |
| 82090 | LIGHT CAMERA LENS |
| 83087 | LIGHT CAMERA LENS GASKET |
| 26129 | LIGHT CAMERA LENS HOLDER |
| 82346 | LIGHT SWITCH |
| 82892 | LIGHT SWITCH KNOB, BLACK |
|
|
LIGHT SWITCH KNOB, WHITE |

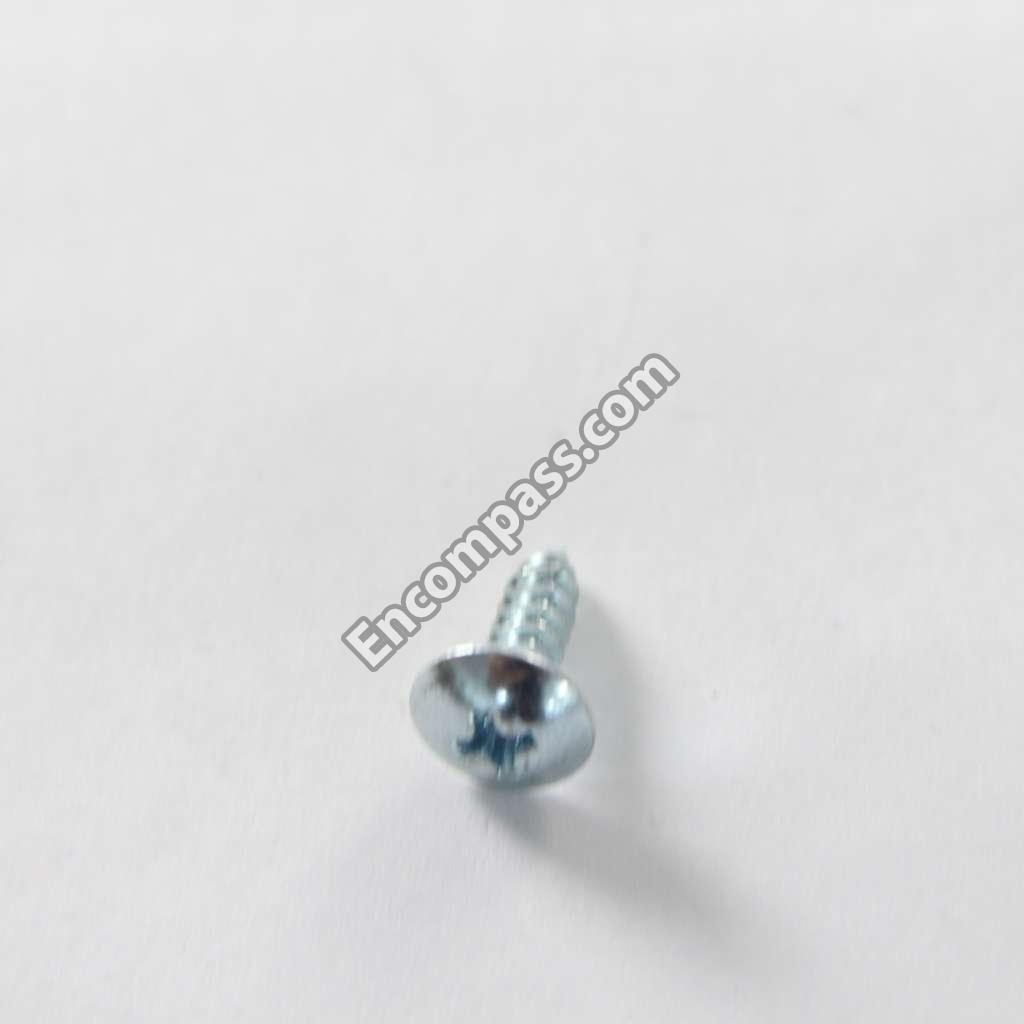

| 26390W | LOWER EXHAUST BOX |
| 26390B | LOWER EXHAUST BOX |
| 26412 | MOUNTING BRACKET LEFT |
| 12238 | NO LONGER USED |
| 83250 | NO LONGER USED |
| 13056 | NUT PLATE ASSEMBLY |
| 83099 | NYLON WASHER |
| 27109 | OUTER DOOR LINER |
| 27320BP | OVEN CELL |
| 82092 | OVEN LIGHT SOCKET |
| 83102 | PAL NUT |
| 82650BP | RACK SUPPORT |
| 82917W | RIGHT END CAP |
| 82917B | RIGHT END CAP |
| 12294 | RIGHT HINGE MOUNTING BRACKET |
| 83171 | RUBBER BUMPER |
| 83022 | SCREW |
| 83072 | SCREW |
|
|
SCREW |
| 83336 | SCREW |
| 82904 | SELECTOR KNOB, BLACK, WHITE |
| 82903 | SELECTOR KNOB, BLACK, WHITE |
| 82640 | SELECTOR SWITCH |
| 83323 | SELECTOR SWITCH SCREWS |
| 82890 | SMOKE ELIMINATOR |
| 82652 | STANDARD CONVECTON RACK |
| 14270 | SUB PANEL |
| 27376 | SUB PANEL |
| 26411 | SUB PANEL BRACKET, RIGHT |
| 26413 | SUB PANEL SUPPORT BRACKET |
| 26394 | SWITCH MOUNTING BRACKET |
|
|
TEMPERATURE SENSOR |
| 82151 | TERMINAL BLOCK |
| 26357 | TERMINAL BLOCK COVER |
| 83330 | TERMINAL BOARD |
| 26418 | THERMAL SENSOR TUBE |
| 26416 | THERMAL SWITCH COVER |
| 82905 | TIME/TEMP KNOB, BLACK |
| 82908 | TIME/TEMP KNOB, WHITE |
| 82924 | TIMER BUTTON, BLACK |
| 82923 | TIMER BUTTON, WHITE |
| 27021 | TOP BRACE |
| 26378 | TOP SHIELD |
| 27329 | TOP, BACK SHIELD |
| 27318W | TRIM AND HINGE POST |
| 27318B | TRIM AND HINGE POST |
| 26343 | VENT DUCT |
| 83098 | WASHER |
| 82646 | WHITE DOOR GLASS |
| 26417 | WIRE RACEWAY |
