Manufacturer
International Comfort Products
Model Number
PHD442000KTP0F1
Description

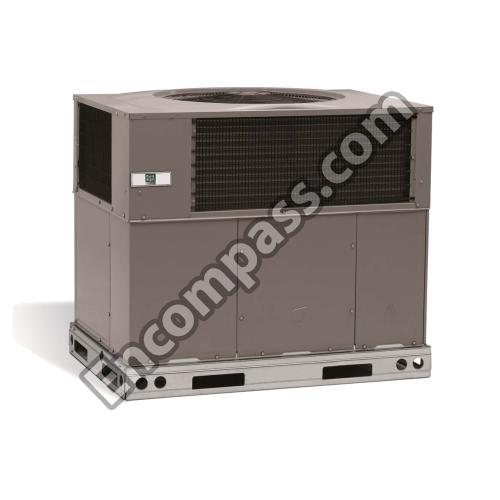

Performance 14 Packaged Heat Pump
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 1183373 | BASE PAN CONDENSER (LG CHASSIS) |
| 1178403 | BASE RAIL |
| 1178402 | BASE RAIL |
| 1178014 | BASE RAIL |
| 1177927 | BOARD DEFROST CONTROL |
| 1176085 | BRACKET BLOWER SUPPORT |
| 1176023 | BRACKET SUPPORT 10-INCH |
| 1178001 | CIRCUIT BOARD |
| 1188319 | COIL CONDENSER AL/CU |
| 1188318 | COIL CONDENSER AL/CU |
| 1188202 | COIL EVAPORATOR AL/CU |
| 1188302 | COIL EVAPORATOR TIN PLATE |
| 1172619 | COIL REV VALVE 24V |
| 1172472 | CONTACTOR |
| 1173177 | CORE VALVE |
| 1176139 | COVER |
| 1176062 | COVER ASSEMBLY DUCT |
| 1178480 | COVER TOP COND |
| 1173680 | DRIER BIFLOW 08 CI 3/8 SWEAT |
| 1173661 | FAN BLADE |
| 1177341 | GRILLE ASSEMBLY 24-INCH |
| 1177340 | GRILLE ASSEMBLY 24-INCH |
| 1177339 | GRILLE ASSEMBLY 24-INCH |
| 1178481 | GRILLE OUTLET |
| 1176613 | GROMMET |
| 1171270 | GROMMET COMPRESSOR |
| 1188321 | HARNESS ASSEMBLY MAIN CONTROL |
| 1178464 | INSUL ASSEMBLY BLOWER PANEL |
| 1178612 | INSUL ASSEMBLY ELEC PANEL LG |
| 1176083 | INSUL ASSEMBLY TOP EVAP |
| 1176140 | INSUL CONTROL PLATE |
| 1176087 | INSUL PANEL RET DUCT |
| 1176088 | KIT BLW MTR MTG LG CHAS |
| 1172300 | LUG GROUND |
| 1186359 | MOTOR |
| 1188130 | MOTOR, ECM. 1/2 HP X13 |
| 1171357 | PAINT HAZ -HAZ- |
| 1178462 | PANEL COIL ACCESS LG |
| 1178463 | PANEL COMP ACCESS LG |
| 1177350 | PANEL CORNER 24-INCH CND |
| 1177352 | PANEL CORNER 24-INCH HDR |
| 1177351 | PANEL CORNER 24-INCH HDR |
| 1176066 | PANEL DUCT |
| 1176145 | PANEL SIDE |
| 1188320 | PISTON 046 |
| 1177021 | PLATE ASY |
| 1176143 | PLATE CONTROL |
| 1176076 | PLATE FAN TOP |
| 1177318 | PLUG COMP |
| 1178479 | RACEWAY OFM 14-INCH |
| 1176074 | SCROLL |
| 1178677 | SWITCH TEMP |
| 1174407 | SWITCH,PRESS HI |
| 1174412 | SWITCH,PRESS LO |
| 1171496 | TRANSFORMER |
| 1188156 | TXV VALVE |
| 1175621 | VALVE REVERSING |
| 1177025 | WHEEL 11-10DD CCW |
