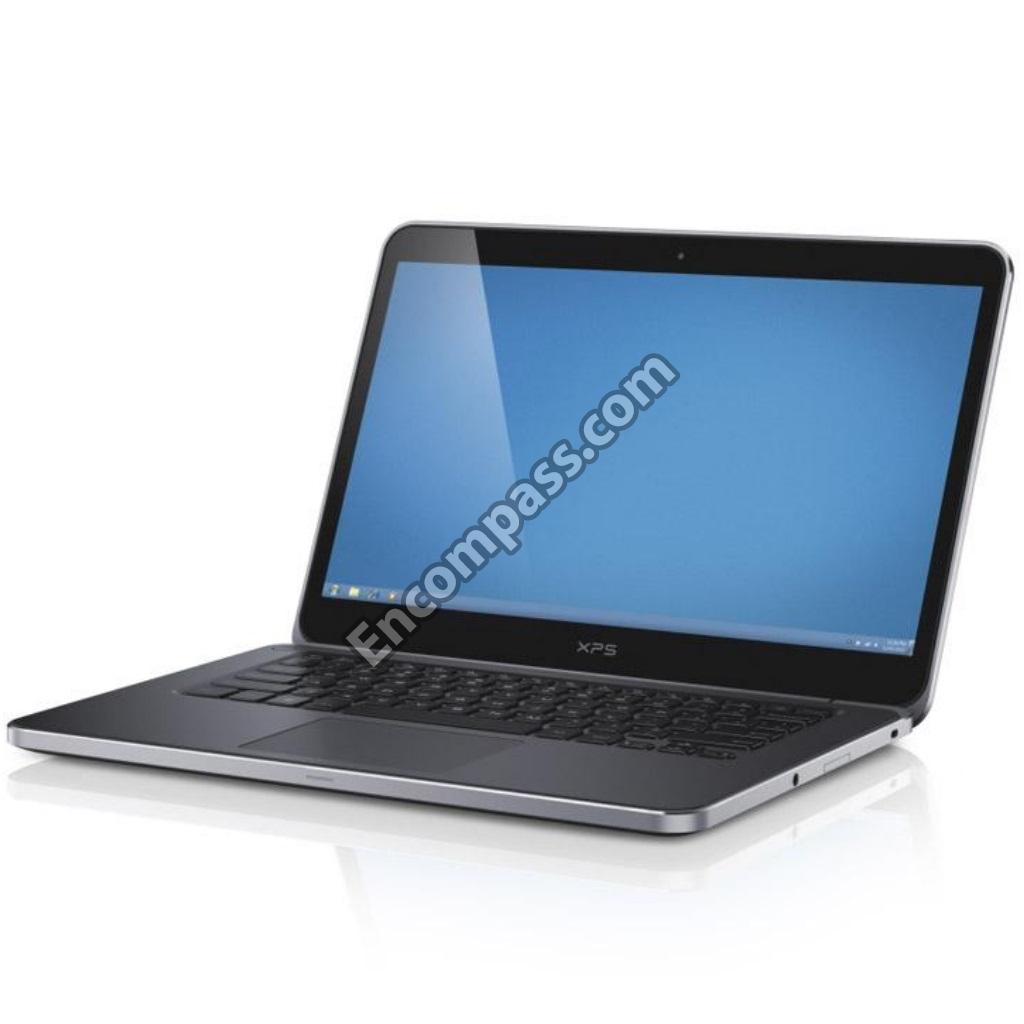

Model Image
Manufacturer

Dell

Model Number

XPS14

Description

Xps 14 Notebook

Interactive Exploded View

Parts List

Part Number Description
1XRN1 1XRN1 AC ADAPTER
9T215 9T215 AC ADAPTER
199XY 199XY CABLES AND CORDS
1XW4K 1XW4K DAUGHTERBOARD
1H3CJ 1H3CJ FAN ASSEMBLY
2Y5T8 2Y5T8 KEYBOARD AND MOUSE
26NMY 26NMY KEYBOARD AND MOUSE
0J0YT 0J0YT KEYBOARD AND MOUSE
2KN6C 2KN6C LCD AND ACCESSORY
12VVF 12VVF LCD AND ACCESSORY
27F83 27F83 MECHANICAL HARDWARE AND PLASTICS
244V9 244V9 MECHANICAL HARDWARE AND PLASTICS
0J37T 0J37T MECHANICAL HARDWARE AND PLASTICS
2XP76 2XP76 MOTHERBOARD
2VJWJ 2VJWJ MOTHERBOARD
2HJJ0 2HJJ0 MOTHERBOARD
24FRR 24FRR MOTHERBOARD
1XRP2 1XRP2 MOTHERBOARD
1PF0D 1PF0D MOTHERBOARD
1DDP7 1DDP7 MOTHERBOARD
1CCTM 1CCTM MOTHERBOARD
11RTD 11RTD MOTHERBOARD
11GP7 11GP7 MOTHERBOARD
116X6 116X6 MOTHERBOARD
0Y5V5 0Y5V5 MOTHERBOARD
0Y2VF 0Y2VF MOTHERBOARD
0M0Y9 0M0Y9 MOTHERBOARD
0KMT7 0KMT7 MOTHERBOARD
0FP7W 0FP7W MOTHERBOARD
17TNT 17TNT PALMREST
0JT14 0JT14 SCREW
0854X 0854X SCREW
2NP89 2NP89 SOFTWARE
2FWP2 2FWP2 SOFTWARE
26HYH 26HYH SOFTWARE
1JVFW 1JVFW SOFTWARE
0TV18 0TV18 SOFTWARE
02XMJ 02XMJ SOFTWARE
2XFM1 2XFM1 SOLID STATE DRIVE
190DF 190DF SOLID STATE DRIVE
15YYT 15YYT SOLID STATE DRIVE
0PM10 0PM10 SOLID STATE DRIVE
0FTY9 0FTY9 SOLID STATE DRIVE
06X16 06X16 SOLID STATE DRIVE
0269Y 0269Y WIRELESS
