Manufacturer
Epson
Model Number
WD3520
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
COVER,CARTRIDGE |
|
|
HINGE, COVER CARTRIDGE |
|
|
SCALE,CR |
|
|
STOPPER,HOLDER,IDLE,ROLLER,PF;C |
|
|
BOARD ASSY.,ENCODER,PF |
|
|

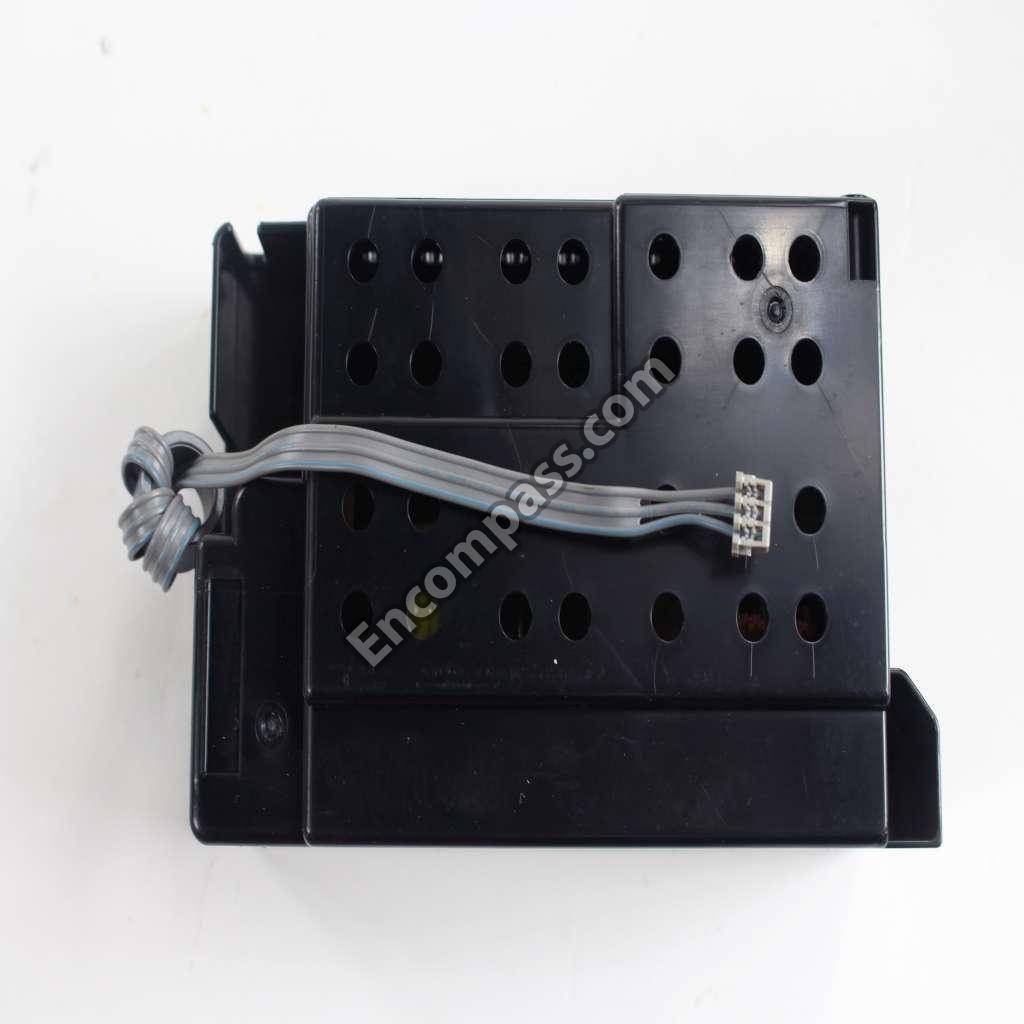

BOARD ASSY.,POWER SUPPLY |
|
|
CLAMP, TUBE |
|
|
EXTENSION SPRING,SCALE,CR |
|
|
GREASE G-45 |
|
|
GREASE G72 |
|
|
GREASE G74 40GR *NO CANADA EXPORT* |
|
|
HINGE ASSEMBLY |
|
|
HOLDER BOARD,ASSY. |
|
|
HOLDER CAM ASSY. |
|
|
I PACK,DPIC009BSP,110,PRINTING |
|
|
INK CART, BLACK XTRA HI CAP T127120 |
|
|
INK CART, CYAN HI CAP - T126220 |
|
|
INK CART, CYAN XTRA HI CAP T127220 |
|
|
INK CART, YELLOW HI CAP - T126420 |
|
|
INK CT. YELLOW XTRA HI CAP T127420 |
|
|
LEAF SENSOR |
|
|
PAD,ADF ASSY. |
|
|
PANEL ASSY.,CC33;EAI/EURO/EAL,SEC |
|
|
PICK UP ASSY. |
|
|
POROUS PAD,PAPER GUIDE,LOWER |
|
|
POWER CABLE |
|
|
PRINT HEAD |
|
|
SHIPPING CLEANING LIQUID,CRO6A, 18K |
|
|
SONIC TENSION METER U-507 STYLUS C8 |
|
|
STOPPER,HOLDER,IDLE,ROLLER,PF;B |
|
|
STOPPER,HOLDER,IDLE,ROLLER,PF;D |
|
|
WIRELESS LAN USB MODULE |
