Model Image
Manufacturer

Electrolux

Model Number

3031520004

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3934058 3934058 ANTI-TIP KIT
3131438 3131438 BRACKET
3018603 3018603 BRACKET
316066301 316066301 BRACKET-HINGE
5303013071 5303013071 BULB/LAMP
3131903 3131903 BUMPER
316011912 316011912 BURNER BOX
3131439 3131439 BURNER-OVEN
5303272305 5303272305 BUTTON
3203077 3203077 CAP-END
3203076 3203076 CAP-END
3131153 3131153 CHANNEL-BROILER
3011813 3011813 CLIP
5303284616 5303284616 CLIP
3131570 3131570 COVER
5303015372 5303015372 COVER
5303015373 5303015373 COVER-DOOR LINER
3204746 3204746 END CAP
3204747 3204747 END CAP
3131387 3131387 FASTENER-SPACER
3131904 3131904 FLUE
3018610 3018610 GLIDE
5303271892 5303271892 GUSSET-TOP MTG
5303280334 5303280334 HANDLE-DRAWER/DOOR
316007001 316007001 HINGE
3017142 3017142 INSULATION
316023014 316023014 KNOB-CONTROL
5303286386 5303286386 LP CONVERSION KIT
316066201 316066201 MANIFOLD PIPE
3131386 3131386 NUT
5303288460 5303288460 NUT
5303013272 5303013272 NUT
5303210090 5303210090 ORIFICE
316011401 316011401 PAN
3018614 3018614 PIN-HINGE
3018607 3018607 PLATE
316074700 316074700 PLATE
3206216 3206216 PLUG-BUTTON
5303281378 5303281378 SCREW
5303212671 5303212671 SCREW
5303285179 5303285179 SCREW
3131732 3131732 SCREW
316116000 316116000 SCREW
316021104 316021104 SCREW
316048200 316048200 SCREW
5303281584 5303281584 SCREW
316021105 316021105 SCREW
5303281651 5303281651 SCREW-DRAWER HANDLE
5303203397 5303203397 SCREW-LEVELING

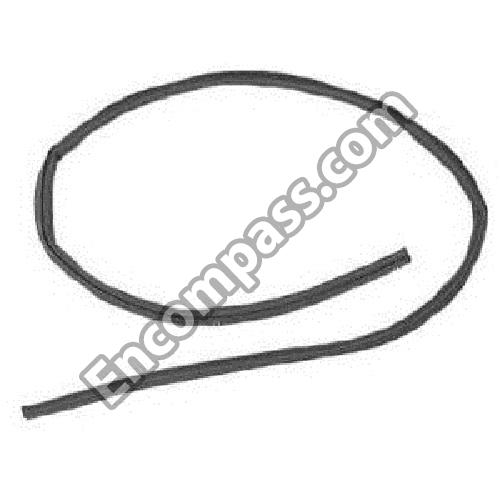

5303202011 5303202011 SEAL
316055501 316055501 SHIELD
5303210608 5303210608 SHIELD-INSULATION
3014099 3014099 SPACER
3018619 3018619 SPRING-BROILER
316064600 316064600 SUPPORT
5303131237 5303131237 SUPPORT

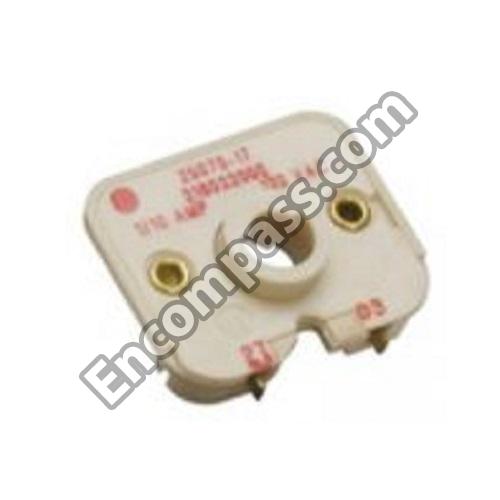

316032000 316032000 SWITCH
5303935040 5303935040 SWITCH HARNESS TERM

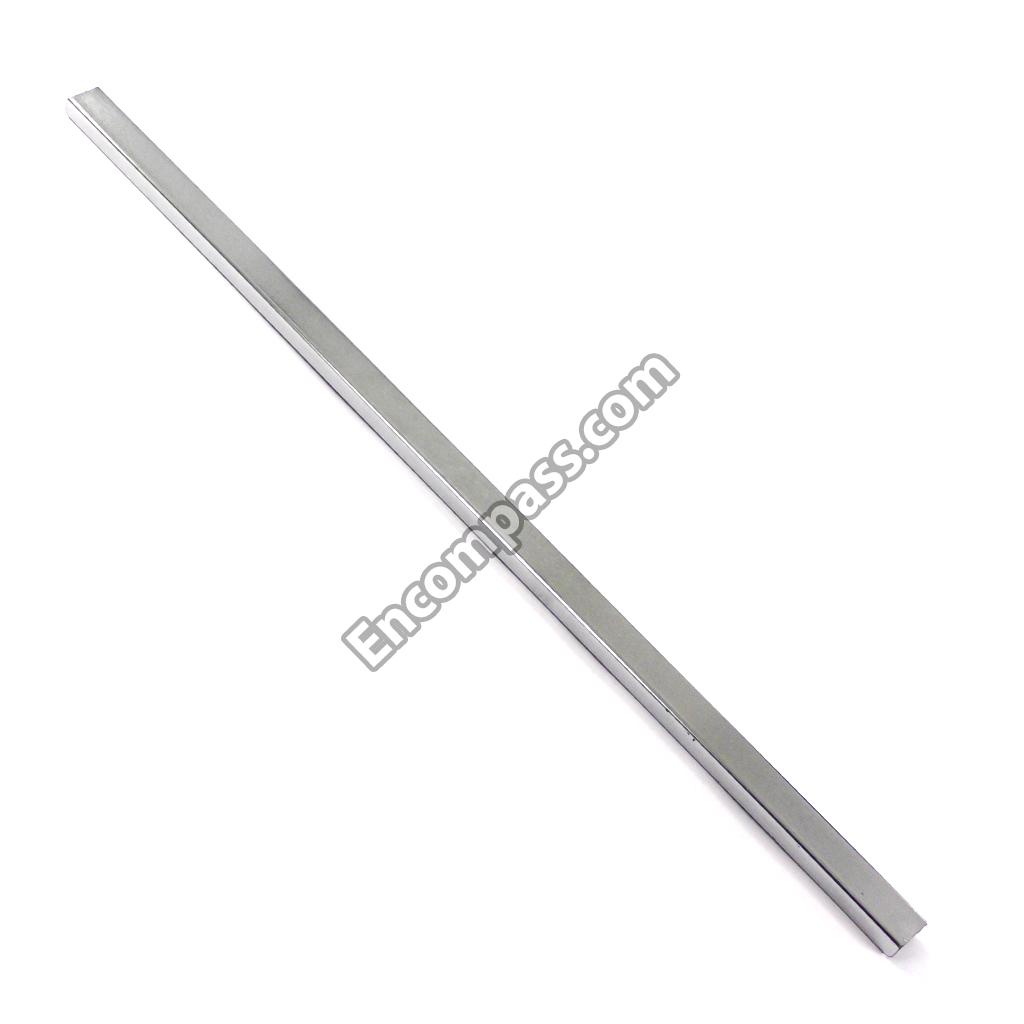

316067802 316067802 TRIM
3204754 3204754 TRIM-GLASS RETAINER
3204753 3204753 TRIM-GLASS RETAINER
316436500 316436500 TUBE
316065005 316065005 TUBE
3203459 3203459 VALVE
316020400 316020400 VALVE & SCREW

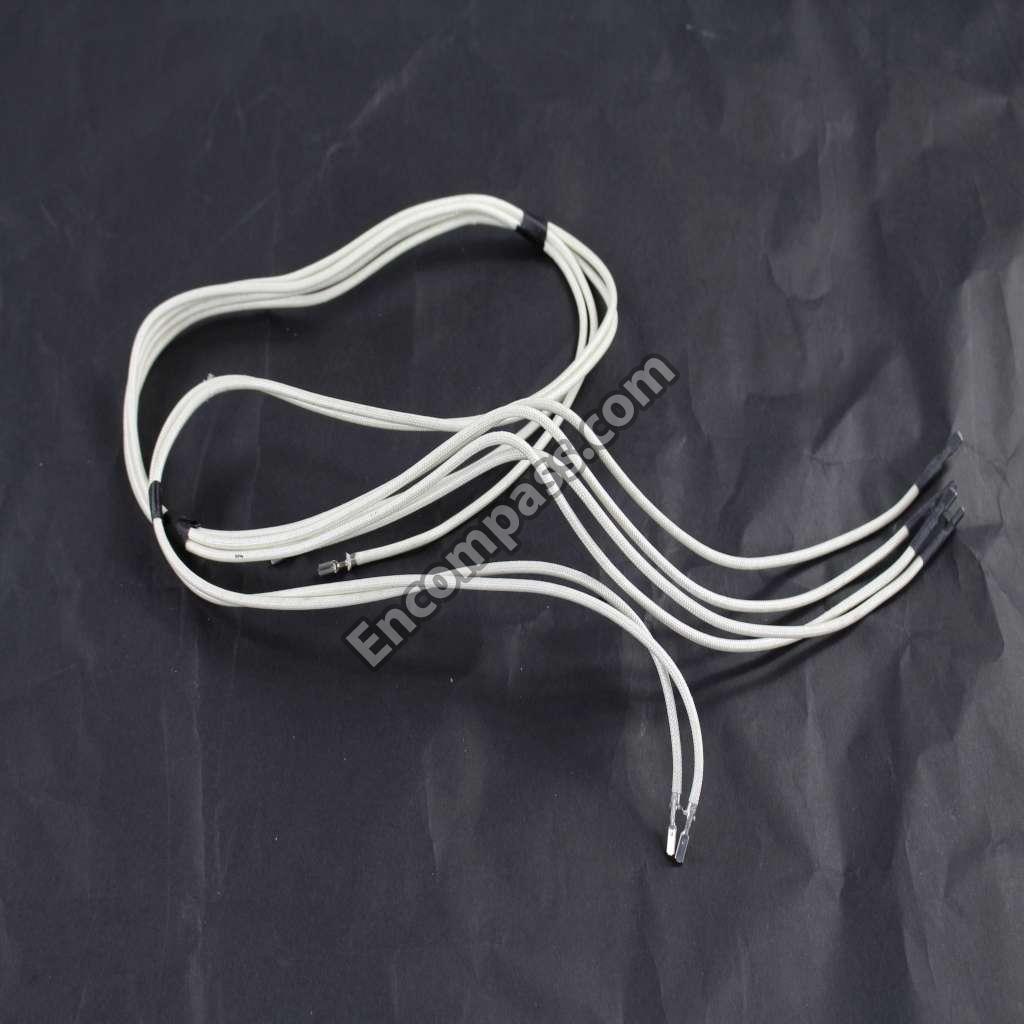

5303289034 5303289034 WIRING HARNESS
