Model Image
Manufacturer

Electrolux

Model Number

3039792306

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5303210379 5303210379 BAFFLE
3131284 3131284 BAFFLE
5303011507 5303011507 BEZEL-SWITCH
3131468 3131468 BRACKET
5303209510 5303209510 BRACKET-GLASS
3131903 3131903 BUMPER
3203077 3203077 CAP-END
3203076 3203076 CAP-END
3206267 3206267 CHANNEL-FLASH TUBE
3011813 3011813 CLIP
3131570 3131570 COVER
3131387 3131387 FASTENER-SPACER
5303209512 5303209512 GLASS-OVEN DOOR
3018432 3018432 GRATE
5303131357 5303131357 HANDLE-LATCH
3131275 3131275 LAMP
5303015453 5303015453 LATCH-DOOR
5308037703 5308037703 LENS-LIGHT/LAMP
3201728 3201728 LIGHT/LAMP
5308037896 5308037896 LIGHT/LAMP
3013279 3013279 NUT
5303269543 5303269543 PANELB/SIDE
3051223 3051223 RECEPTACLE-LAMP
3051222 3051222 RECEPTACLE-LAMP
5303208656 5303208656 REFLECTOR
5303208655 5303208655 REFLECTOR
3206266 3206266 RETAINER
3201700 3201700 RETAINER
3018617 3018617 RETAINER-IGNITER
3051224 3051224 RETAINER-LENS
5303209316 5303209316 ROD-LIGHT SWITCH
3013964 3013964 SCREW
3131732 3131732 SCREW
5303212671 5303212671 SCREW
5303203397 5303203397 SCREW-LEVELING
5303131601 5303131601 SEAL
5303211085 5303211085 SEAL-ROPE
3200836 3200836 SHIELD
3131314 3131314 SHIELD
3051413 3051413 SHIELD-BI METAL
3200834 3200834 SHIELD-HEAT
3131313 3131313 SHIELD-HEAT LOWER U
3131593 3131593 SHIELD-LATCH
3014099 3014099 SPACER
3016408 3016408 SPACER
5303209517 5303209517 SPACER-GLASS
5303131237 5303131237 SUPPORT

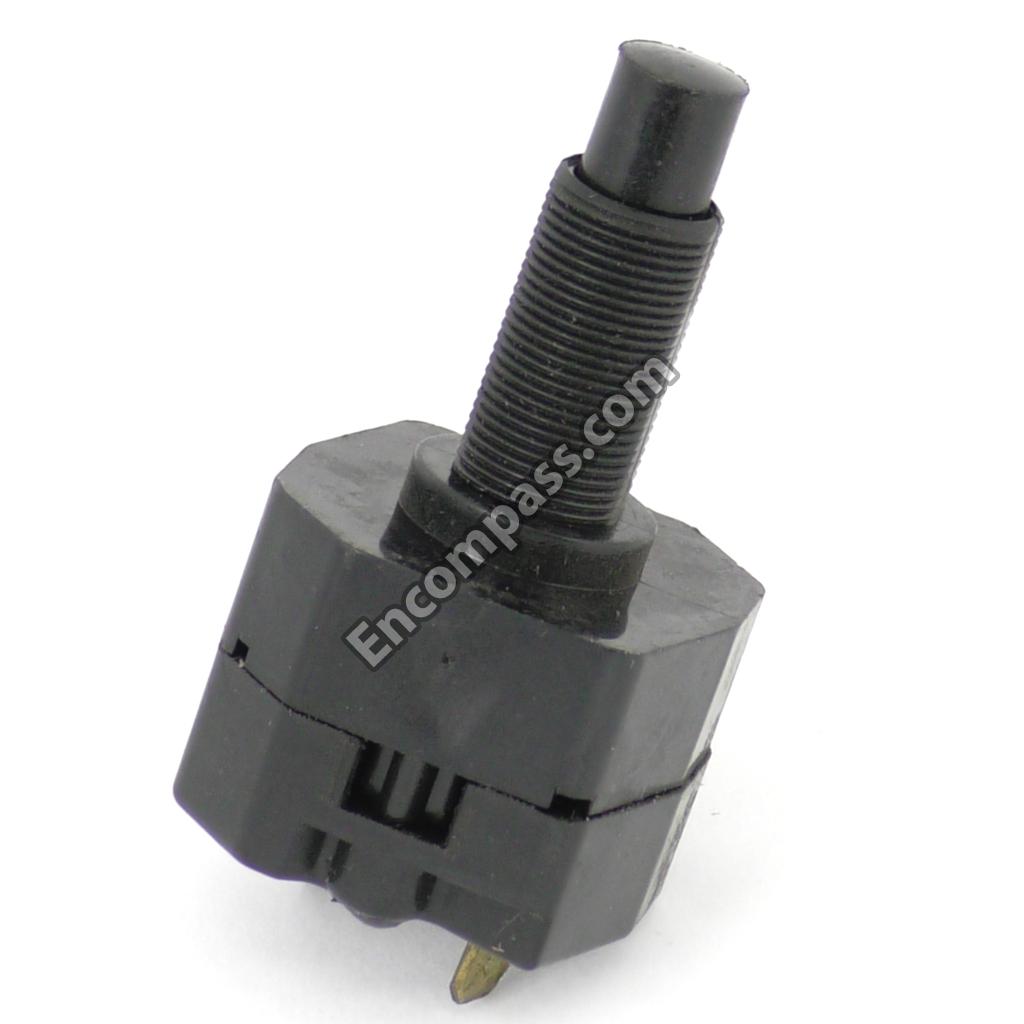

5303200479 5303200479 SWITCH-OVEN LIGHT
5303200480 5303200480 SWITCH-WORK LIGHT
3934050 3934050 TOP
3204754 3204754 TRIM-GLASS RETAINER
3204753 3204753 TRIM-GLASS RETAINER
3131241 3131241 TRIM/VENT
5303208499 5303208499 VALVE
