Manufacturer
Electrolux
Model Number
31-3342-23-02
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
BULB/LAMP,OVEN LIGHT |
|
|
CHANNEL, DOOR HINGE (2) |
|
|
CLIP-THERMOSTAT |
|
|
CONTROL BOX |
|
|
CONTROL,TEMPERATURE |
|
|

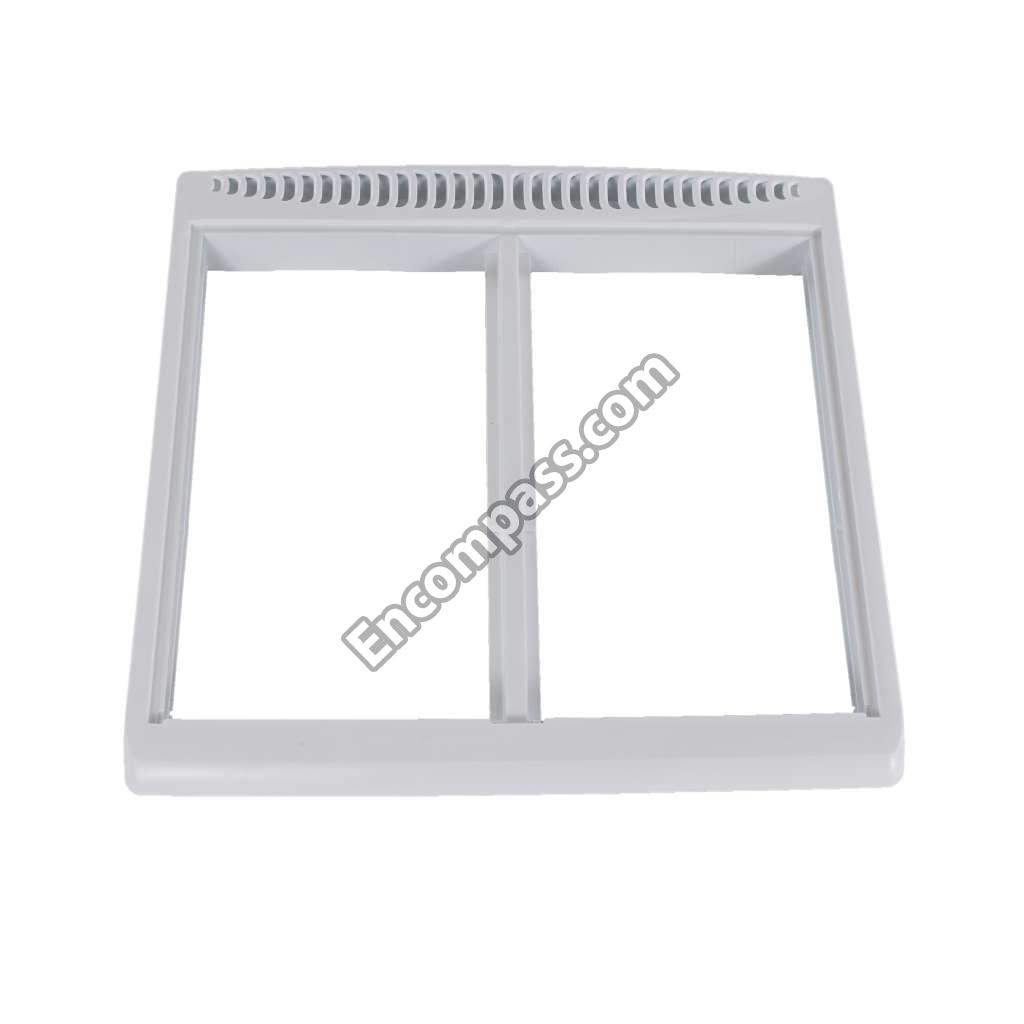

COVER-CRISPER PAN,W/ BEAM ,LESS INSERT |
|
|
DIFFUSER,AIR ,BOTTOM |
|
|
DIFFUSER,AIR ,TOP |
|
|
ELEMENT,BROIL ,2950 W |
|
|
ELEMENT-SURFACE,LARGE-8`` |
|
|
ELEMENT-SURFACE,SMALL-6`` |
|
|
GLASS- FRONT |
|
|
GLIDE,DRAWER ,FRONT |
|
|
GLIDE-DRWR |
|
|
ICE CONTAINER ASSY,W/MOVING PARTS |
|
|
INSERT-PAN COVER,GLASS |
|
|
KNOB,TEMP CONTROL |
|
|
LIGHT BULB/LAMP,A-15 ,CLEAR ,40 W ,120 V,MINIATURE |
|
|
LIGHT-INDICATOR ,250 V |
|
|
MEDALLION, 1-1/2`` DIA, BLACK, SURFACE ELEMENT |
|
|
PAN,SURFACE ELEMENT ,LARGE/8 INCH |
|
|
PAN,SURFACE ELEMENT ,SMALL/6 INCH |
|
|

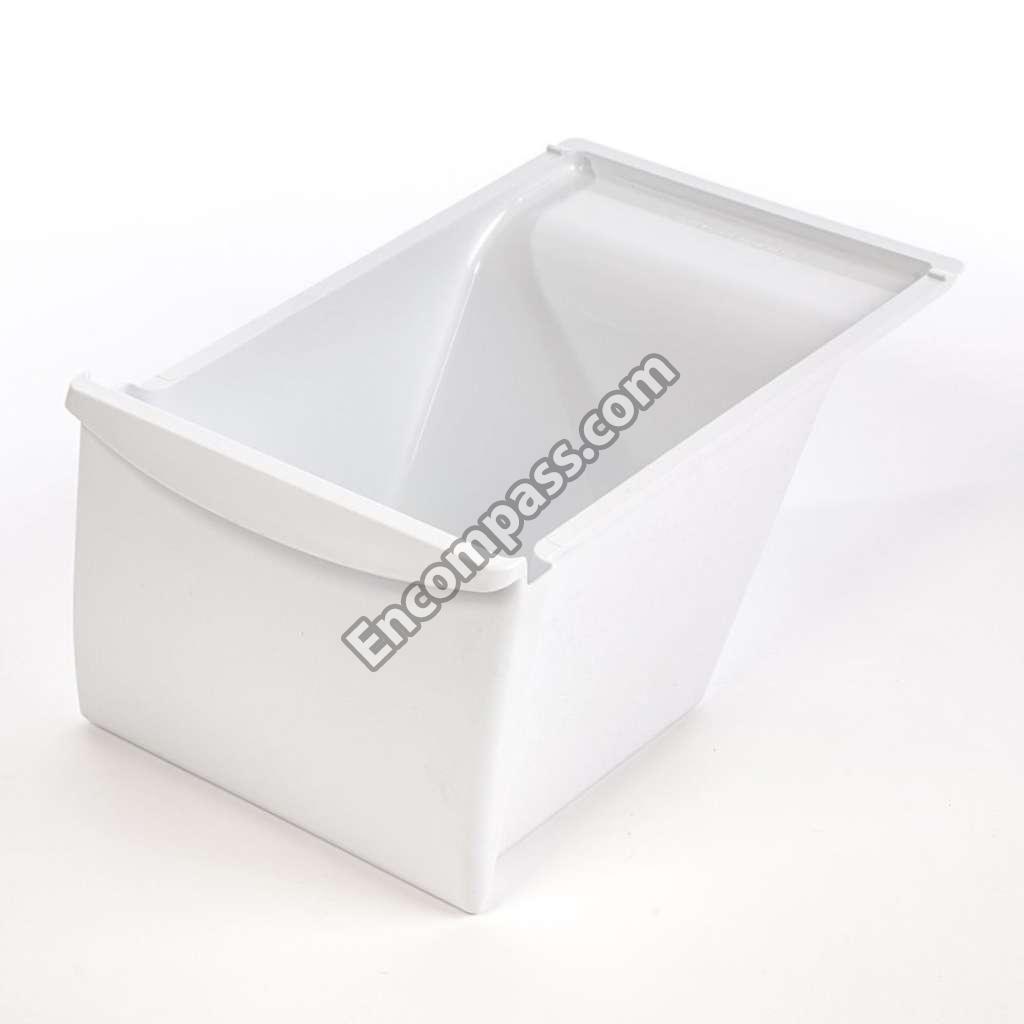

PAN-CRISPER,WHITE ,(2) ,NO GRAPHICS |
|
|
SCREW,HEX WASHER HEAD ,8-15A X 0.625 , |
|
|
SEAL,OVEN DOOR ,NON SELF CLEAN |
|
|
SHELF-FREEZER,,,TABLE TYPE`` |
|
|
SHELF-SLIDING,REFR ,(3) |
|
|
SOCKET-LIGHT/LAMP |
|
|
SPRING - DOOR |
|
|
SUPPORT,ELEMENT ,BROIL |
|
|
SWITCH,LIGHT/LAMP |
|
|
SWITCH-INFINITE, 6`` ELEMENT |
|
|
SWITCH-INFINITE, 8`` ELEMENT |
|
|
THERMOSTAT-OVEN,NON SC |
|
|
TRAY,ICE CUBE ,PLASTIC |
|
|
WASHER, NYLON |
