Manufacturer
Electrolux
Model Number
3210224509
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ADAPTOR-THERMO |
|
|
ANGLE, GLASS RETAINER |
|
|
ANGLE, REAR OVEN |
|
|
BAFFLE-OVEN BURNER |
|
|
BASE, MAIN |
|
|
BRACKET, HINGE BROILER (RH) |
|
|
BURNER-TOP FRONT |
|
|
BURNER-TOP-REAR |
|
|
CAM-OVEN DOOR ASSY-LH |
|
|
CAM-OVEN DOOR ASSY-RH |
|
|
CAP-TOP PILOT, (2) |
|
|
CLIP-CAPILLARY (4) |
|
|
CLIP-TP RETAINR (2) |
|
|
CONTROL-REGULATOR |
|
|
CRYSTAL-CLOCK |
|
|
DRAWR-BROILR-DARK BLUE (LOT 9) |
|
|
FASTENER-CLIP |
|
|
FASTENER-NYLON SPACER (3) |
|
|
FASTNR-CABLE CLMP |
|
|
FASTNR-NYLN SPACR 3/4`` (3) |
|
|
FASTNR-PURSELOCK LOT 5-9 |
|
|
FERRULE |
|
|
FERRULE |
|
|
FILTER |
|
|
FITTING |
|
|
GLASS-OVEN DOOR (2) |
|
|
GLIDE, MAIN TOP (2) |
|
|
GRATE, (4) |
|
|
GUIDE |
|
|
HEX NUT-10-24-PLATE MTG |
|
|
INSULATION (2 1/2 X 20 X 92``) WOOL (TOP & SIDES) |
|
|
INSULATION-WOOL 2 X 16 1/4 X 28`` |
|
|
INSULATION-WOOL BACK |
|
|

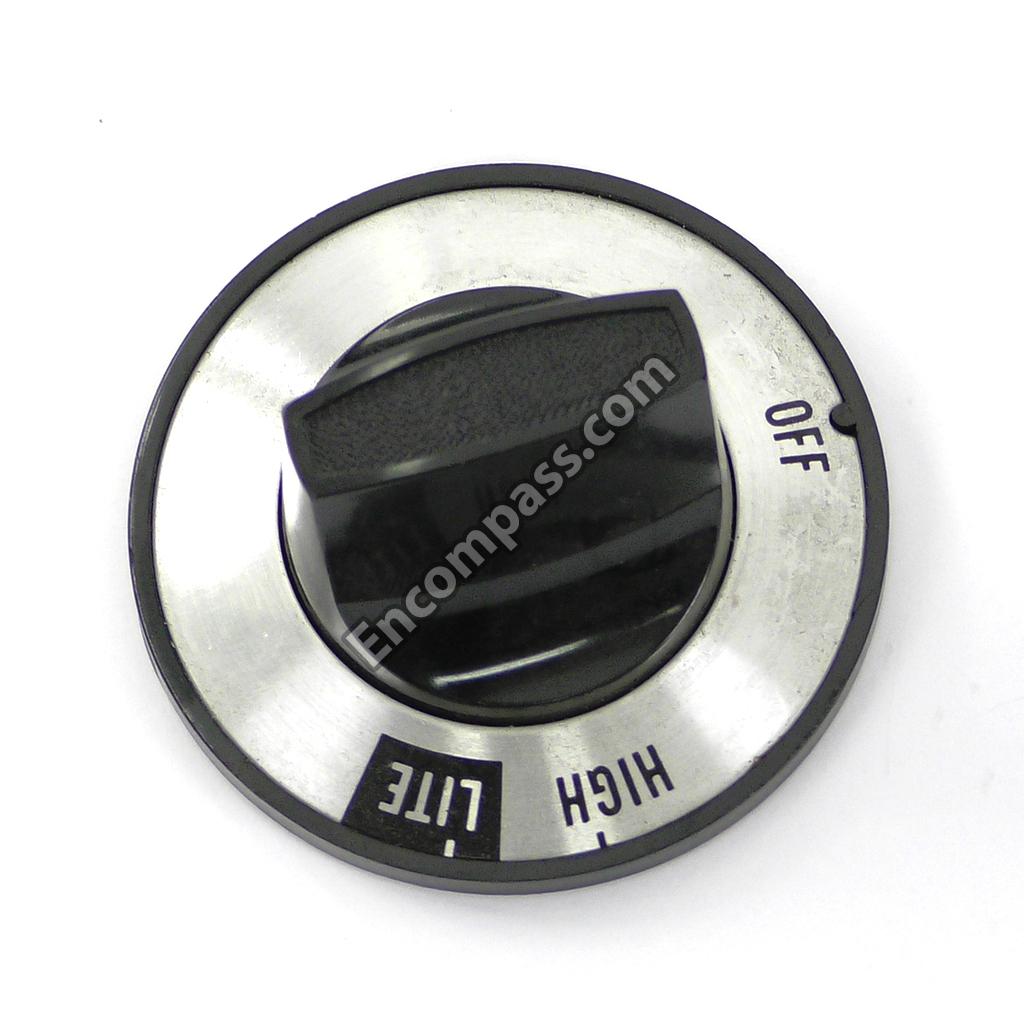

KNOB |
|
|
KNOB -- THERM. |
|
|
KNOB-CLOCK |
|
|
LAMP, OVEN LIGHT |
|
|
LINER-BROILR DOOR DARK BLUE (LOT 9) |
|
|
LOXIT FITTING-SAFETY VALVE 3/8`` (5/8-18 THD) |
|
|
MIXER-AIR-TP BURNER LOT 1-5 (4) |
|
|
N.L.A. FITTING |
|
|
N/L/A 08/12/99 |
|
|
NAMEPLATE |
|
|
NUT |
|
|
NUT, PUSH-ON, (2) |
|
|
NUT, T-TYPE, LEVELING SCREW (NON-ILLUSTRATED) |
|
|
NUT-COMPRESSION |
|
|
ORIFICE |
|
|
PILOT |
|
|
PIN-HINGE |
|
|
PLATE |
|
|
PLUG-BUTTON, GLIDE |
|
|
RACK-OVEN (2) LOT 6-11 |
|
|
RETAINER-OVEN BURNER |
|
|
SCREW (4) |
|
|
SCREW HANDLE-DRAWER (2) |
|
|
SCREW, TRUSS HEAD, 8-18 X 1/2 |
|
|
SCREW-DR ASSY 8A X 3/8`` PH TR HD (13) |
|
|
SCREW-LEVELING |
|
|
SCREW-OVN BTM (2) 8-18 X 1`` BPT. KNRLD HD |
|
|
SCREW-SAFETY VALVE MTG 8A X 2`` PH TR HD (2) (NON-ILLUSTRATED) |
|
|
SCREW-SHOULDER |
|
|
SCREW-THERMO MTG 10-24 X 9/32`` HEX HD (2) (NON-ILLUSTRATED) |
|
|
SCRW-HNDL MTG 10-24 X 2 3/4`` FL WSH HD (LOT 2-9) (2) |
|
|
SCRW-SPECIAL 6-20 X 5/16`` PH FL HD (2) |
|
|
SEAL-DOOR-SIDE |
|
|
SEAL-DR BTM & TOP |
|
|
SHIELD, WOOL |
|
|
SHIELD-WOOL - VENT |
|
|
SHIELD-WOOL-LWR FRONT |
|
|
SHUTTER |
|
|
SPACER-OVN DR HNDL (2) |
|
|
SPRING-BROILER, RH |
|
|
SPRING-OVEN DOOR CAM (2) |
|
|
SWITCH-OVEN LIGHT |
|
|
THERMSTAT |
|
|
TRIM, MAIN TOP (RH) |
|
|
TRIM, MAIN TOP, LH |
|
|
TUBE-OVN GAS SUPLY 3/8 X 55`` |
|
|
TUBE-PILOT (DUAL) |
|
|
TUBING |
|
|
VALVE |
|
|
VALVE |
|
|
WASHER (3) |
|
|
WASHR-HNDL SPACR (2) |
