Model Image
Manufacturer

Electrolux

Model Number

3227570003

Description

Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
9332 9332 10-24 X 1/4 SCREW
3131848 3131848 4-40 X 1`` SCREW (4)
08068030 08068030 ACTUATOR, LOCK SWITCH
5303015688 5303015688 ASSY-STORAGE DRAWER
3131884 3131884 BACKGUARD TOP PANEL-BLACK
318168701 318168701 BAFFLE
318133301 318133301 BAFFLE,BROIL BURNER
5303210388 5303210388 BAKE BURNER
5308068047 5308068047 BASE-RAIL (2)
3051113 3051113 BEZEL, NAMEPLATE
3131791 3131791 BODYSIDE CORNER CLIP
903071-9010 903071-9010 BODYSIDE PANEL-BLACK
3131820 3131820 BOTTOM INSULATION RETAINER
5308013296 5308013296 BRACE-LH/RH
5303131843 5303131843 BRACKET LOCK SWITCH
5303210389 5303210389 BROIL BURNER
5308011470 5308011470 BROIL BURNER MIXER PIN

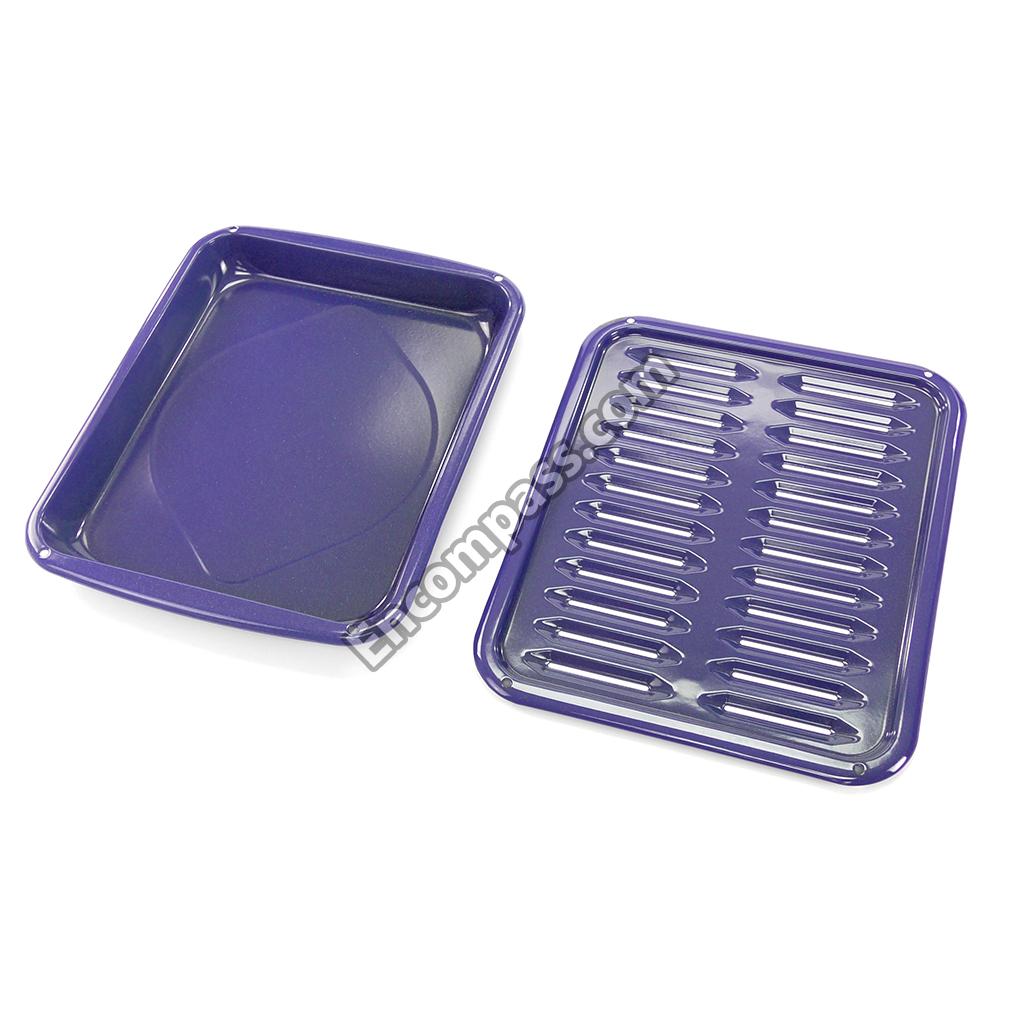

5304442087 5304442087 BROILER PAN & INSERT
5303016973 5303016973 BROILER-PAN
5303131771 5303131771 BUMPER-DOOR GLASS
5308011508 5308011508 BURNER BAFFLE
3131800 3131800 BURNER BOX BOTTOM BRACKET
5308011431 5308011431 CHROME BOWLS (4)
3131752 3131752 CLEAN INDICATOR LIGHT
5300009126 5300009126 CLIP
08068039 08068039 COVER VALVE
3051511 3051511 CUP, OVEN LIGHT
5308013865 5308013865 GLASS INNER
5303271567 5303271567 GLASS PACK
5304524341 5304524341 GLASS-OVEN DOOR
3131765 3131765 GLASS-OVEN DOOR
5303009309 5303009309 GRATE (4)
5303311537 5303311537 GROMMET-MAIN TOP
3051063 3051063 GROMMRT (2)
5303207187 5303207187 HANDLE
5308068040 5308068040 HANDLE DOOR LOCK
318360001 318360001 HANDLE,DRAWER
3131764 3131764 HEAT SHIELD
5303013272 5303013272 HEX NUT-10-24-PLATE MTG
318348801 318348801 HINGE ASSY,LH
318348800 318348800 HINGE ASSY,RH
5303935066 5303935066 IGNITER-OVEN
318148504 318148504 IGNITOR,TOP BURNER
5303935067 5303935067 IGNITOR-BROILER
316081701 316081701 IGNITOR-TOP BURNER, 50``
3131795 3131795 INSUL OVEN WRAPPER
3131840 3131840 INSULATION TOP-BACK-BOTTOM
318285027 318285027 INSULATION,OVEN DOOR
3131847 3131847 INSULATOR
5300227455 5300227455 KNOB
3131851 3131851 KNOB
5303935039 5303935039 KNOBS (SET OF 3)
316538904 316538904 LAMP, OVEN LIGHT
5303051080 5303051080 LEVELING LEG (4)
5308068025 5308068025 LOCK OVEN DOOR
3131864 3131864 LOXIT NUTS
3131751 3131751 MANIFOLD-PANEL BLACK
3131811 3131811 NLASUPPORT
3131072 3131072 NUT
5303131215 5303131215 NUT, TWIST
3131802 3131802 OVEN TOP LINIG
318076600 318076600 PAN,OVEN BURNER
3131740 3131740 PANEL
5303311536 5303311536 PANEL-DRAWER
5308007974 5308007974 PRESSURE REGUL
5303015714 5303015714 RACK (2)
316116400 316116400 RECEPTACLE, OVEN LIGHT, 24 #
5303131810 5303131810 RETAINER
5303935079 5303935079 ROLLER
3051009 3051009 SCREW
732022340 732022340 SCREW HANDLE-DRAWER (2)
134156200 134156200 SCREW,FLAT HEAD ,8-18AB X 0.44 ,QUAD DRIVE
297096100 297096100 SCREW,NO.6-20X.375 AB ,STAINLESS ,THERMO DIAL
5304500008 5304500008 SCREW,WAF HD,#10-24 X 1.75,HAN
5303311533 5303311533 SEAL,OVEN DOOR
3131871 3131871 SHIELD
3131757 3131757 SHIELD-CLOCK HEAT
5303131054 5303131054 SHIELD-HEAT LH
5303131053 5303131053 SHIELD-HEAT RH
318168200 318168200 SHIELD-OVEN TOP
5303131099 5303131099 SHUTOFF VALVE
5303131778 5303131778 SPACER (2)
5303912606 5303912606 SPARK MODULE
318088400 318088400 SPRING,OVEN DOOR ,(2)
08008255 08008255 STRAIN - RELIEF
3051096 3051096 SUPPORT
3131041 3131041 SUPPORT
5303131846 5303131846 SWITCH (2)
5303051031 5303051031 SWITCH W/NUT OVEN LT
5308011492 5308011492 THERMOSTAT
5303131839 5303131839 THERMOSTAT BAKE-BROIL
3131753 3131753 THERMOSTAT-KNOB
3131755 3131755 TIMERNO LONGER AVAILABLE
5303131080 5303131080 TOP BURNER RIGHT FRONT
5303210471 5303210471 TOP BURNER SUPPORT
5303051056 5303051056 TRACK-DRAWER LH
5303051055 5303051055 TRACK-DRAWER RH
08014088 08014088 TRIM-BODYSIDE
318249301 318249301 TUBE
08068028 08068028 TUBE - OVEN FEED
