Model Image
Manufacturer

Electrolux

Model Number

4628106602

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3204401 3204401 AGITATOR
3204405 3204405 BEARING
5303161252 5303161252 BRACKET-CAPACITOR
5303209428 5303209428 BUSHING
3204395 3204395 CAP
5364154013 5364154013 CLAMP
5303012110 5303012110 CLAMP
3204456 3204456 CLAMP-HOSE COUPLER
3205821 3205821 CLIP
5300503065 5300503065 CLIP
5303208778 5303208778 DISPENSER
5303310293 5303310293 DISPENSER
3205978 3205978 END CAP
5303937004 5303937004 FOOT
5308015778 5308015778 GASKET
5303208743 5303208743 GROMMET
5303208751 5303208751 HINGE

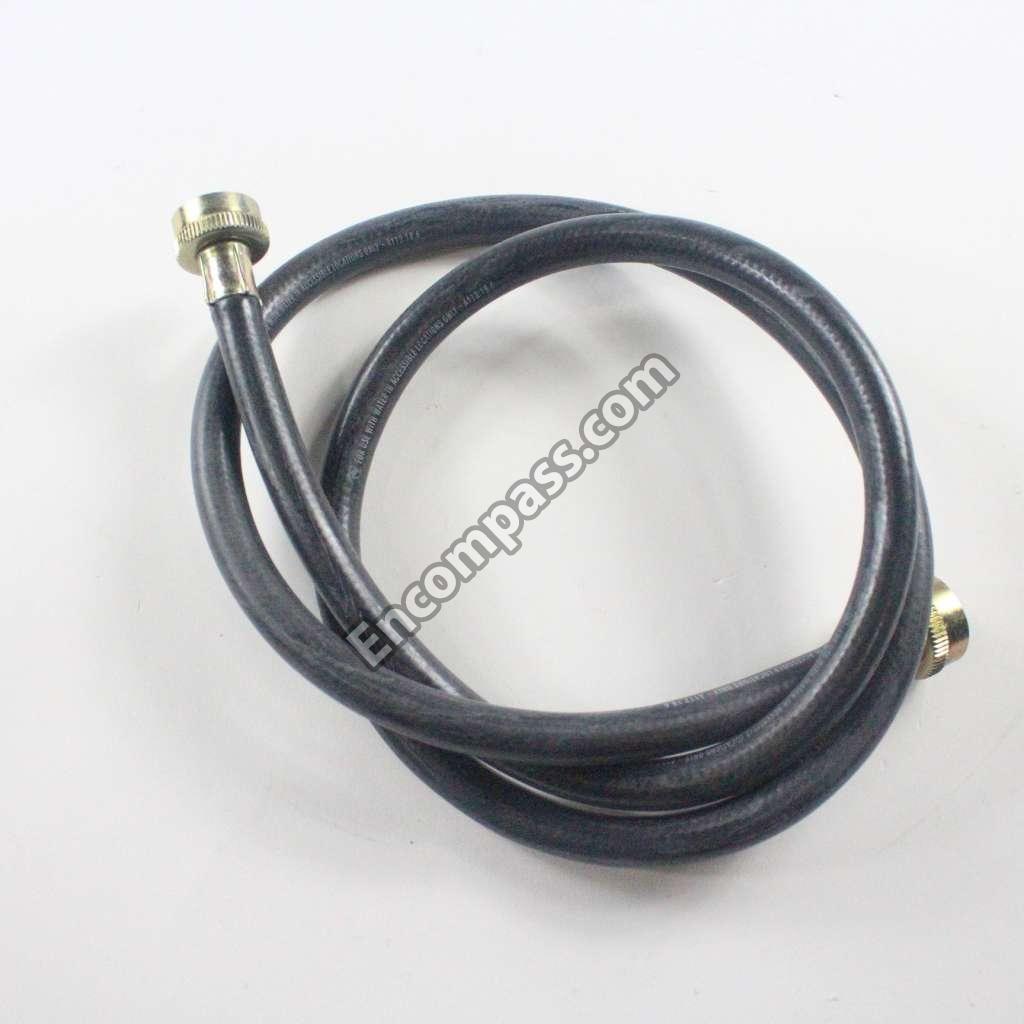

5303912532 5303912532 HOSE-INLET 60
5303210967 5303210967 KNOB-BLACK
3005242 3005242 OIL-TRANSMISSION
3204373 3204373 PIN
5303161227 5303161227 PIN
3204424 3204424 PIN-ROLL
5303161224 5303161224 PLUG-PIPE
3204423 3204423 PULLEY-MOTOR
5303204987 5303204987 RETAINER-DRAIN HOSE
5308015536 5308015536 RING
3161433 3161433 RING
5303161223 5303161223 RING-RETAINING
5308057419 5308057419 SCREW
5303010202 5303010202 SCREW
5303015671 5303015671 SCREW
5303206864 5303206864 SCREW
3205406 3205406 SCREW
3204368 3204368 SCREW
5303283293 5303283293 SCREW
3205150 3205150 SCREW
3281203 3281203 SCREW
3161259 3161259 SCREW
3204459 3204459 SCREW-LEG TO TUB
3161188 3161188 SCREW-TIMER
3204396 3204396 SEAL
5303161173 5303161173 SEAL
5303161307 5303161307 SEAL-UPPER LIP
5308014905 5308014905 SHAFT-LOWER
3204380 3204380 SHIPPING BLOCK
3204426 3204426 SLEEVE
5303161182 5303161182 SLEEVE
5303161231 5303161231 SLINGER
5308015493 5308015493 SPACER
5303207426 5303207426 SPACER
3204425 3204425 SPRING
5303161174 5303161174 SPRING
131462500 131462500 STRAP
3204461 3204461 STUD-AGITATOR CAP
5303210132 5303210132 SWITCH
5303210964 5303210964 SWITCH
5379171000 5379171000 TERMINAL
3204375 3204375 VALVE-CHECK
5308057430 5308057430 WASHER
5308002401 5308002401 WASHER
5308002408 5308002408 WASHER
5303261031 5303261031 WASHER
5303161296 5303161296 WASHER
5303161306 5303161306 WASHER
5303161226 5303161226 WASHER-THRUST
