Model Image
Manufacturer

Electrolux

Model Number

4928472301

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5308027429 5308027429 ADHESIVE, HIGH TEMP
5303281138 5303281138 AIR SHUTTER (2)
5303281146 5303281146 ANGLE VALVE
3204254 3204254 BAFFLE
5303281153 5303281153 BALL (PARTS CONTAINED IN REAR BEARING KIT.)
131825900 131825900 BEARING-DRUM SUPPORT
5303281154 5303281154 BELT
5303281145 5303281145 BRACKET
131724301 131724301 BRACKET, BEARING SUPPORT
5303281149 5303281149 BRACKET-IGNITOR
134264900 134264900 BURNER,ADJUSTABLE-LP
5300621231 5300621231 BUTTON
5303212834 5303212834 CLAMP, MOTOR
08015352 08015352 CLAMP, MOTOR
240396801 240396801 CLAMP, TUBE/WIRING, 1/2", NYLON, BLACK/NATURAL
3281126 3281126 CLIP
5303281074 5303281074 CLIP GUIDE (4)
3281045 3281045 CLIP GUIDE (4)
5303281039 5303281039 CLIP-CAB.-FRONT BOTTOM
3281200 3281200 CLIP-GROUND
3281102 3281102 CLIP-HARNESS
5303931775 5303931775 COIL-SECONDARY & BOOSTER KIT
3205898 3205898 COVER
5303307784 5303307784 COVER-FAN
131363200 131363200 COVER-TERMINAL BLOCK
131658800 131658800 DOOR CATCH,UPPER
5303201210 5303201210 DOOR GASKET
5303281050 5303281050 DOOR HINGE (2)
5303269973 5303269973 DUCT, EXHAUST
3281037 3281037 DUCT, THERMO
3281123 3281123 DUCT-HEAT
5300616732 5300616732 END CAP
5300616731 5300616731 END CAP
5303281135 5303281135 FLAME SENSOR, RADIANT
131527400 131527400 FOOT-CABINET
5303281015 5303281015 GASKET
5300142887 5300142887 GLIDER
3281012 3281012 GROMMET (4)
5303286643 5303286643 HANDLE
5303281067 5303281067 HEAT SHIELD
3281175 3281175 HINGE
137137200 137137200 HOUSING,GAS HEATER ASSY ,W/SEAL
5303212849 5303212849 IDLER ASSEMBLY

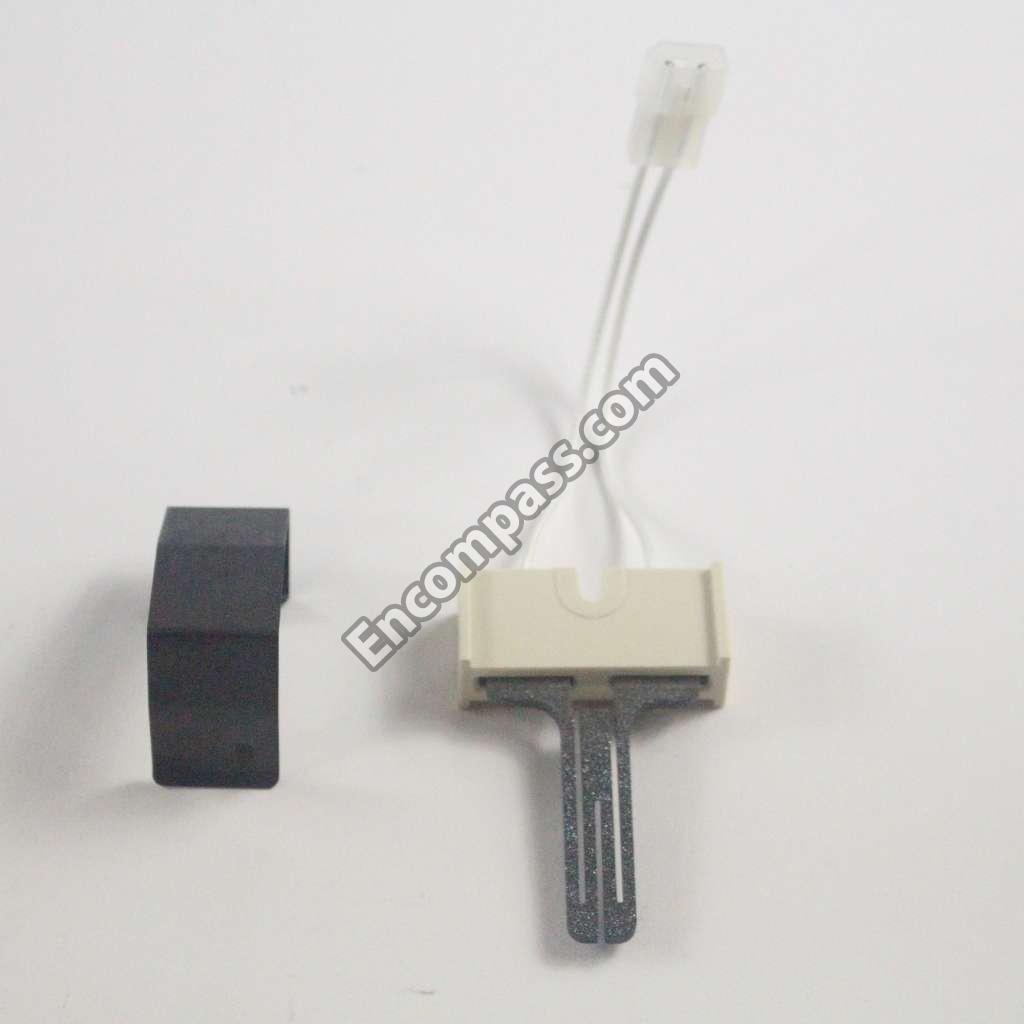

5303937186 5303937186 IGNITOR ASSY

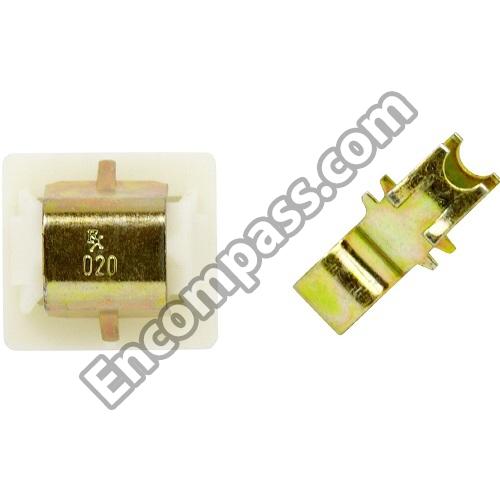

5366021400 5366021400 LATCH & STRIKE KIT
131390300 131390300 LINT TRAP & FRAME
08015344 08015344 LOCKNUT
5300171852 5300171852 LP GAS KIT
5300603185 5300603185 MOTOR ,X
5303285145 5303285145 MOUNTING BRACKET
3281134 3281134 NLASCREW
5300503065 5300503065 NUT
5303281148 5303281148 NUT (2)
08015677 08015677 ORIFICE-NAT GAS
5303281201 5303281201 PAD
5303321319 5303321319 PAINT, TOUCH-UP, WHITE
131793201 131793201 PANEL-ACCESS
134501200 134501200 POWER CORD,ELECTRIC SVCE
5300600186 5300600186 PULLEY ,1-2
5303300265 5303300265 SCREW
5303281150 5303281150 SCREW
5303281051 5303281051 SCREW
5303281043 5303281043 SCREW
5303010202 5303010202 SCREW
3281077 3281077 SCREW
0001466411 0001466411 SCREW
3281073 3281073 SCREW
3281101 3281101 SCREW
3281203 3281203 SCREW
5303281096 5303281096 SCREW (2)
5303281035 5303281035 SCREW (2)
5303161187 5303161187 SCREW (2)
3281120 3281120 SCREW (2)
5303207393 5303207393 SCREW (3)
5303205255 5303205255 SCREW (3)--(PARTS CONTAINED IN REAR BEARING KIT.)
3281036 3281036 SCREW (4)
3261175 3261175 SCREW (NON-ILLUSTRATED)
131420300 131420300 SCREW, CR TRUSS HEAD, 8-18AB X 0.750
131205400 131205400 SCREW,BRACKET MTG. ,10-16B X 1.375 ,CR/SQ DRIVE
134154100 134154100 SCREW,HEX WASHER HEAD ,10-32 X 0.375 ,GROUND
216912401 216912401 SCREW,HEX WASHER HEAD ,8-32 X 0.500 ,BRACKET FAN MTR,(2)
131243800 131243800 SCREW,PAN HD LOCKING ,8-32CA X 0.375 ,CUP POINT
5300142888 5300142888 SEAL
134417000 134417000 SEAL,AIR DUCT
5305877995 5305877995 SEALING STRIP
5303281187 5303281187 SELECTOR SWITCH
5303931781 5303931781 SHAFT (INCLUDED IN REAR BEARING KIT)
5303281076 5303281076 SPACER
3281058 3281058 SPACER
5303281095 5303281095 SPRING
5303281083 5303281083 SPRING
5303281170 5303281170 SPRING CATCH
5303281085 5303281085 SPRING, IDLER
5303281082 5303281082 SUPPORT-ACCESS COVER,40
5303261027 5303261027 SWITCH
5303281044 5303281044 SWITCH - DOOR
5303281121 5303281121 THERMSTAT
5303281147 5303281147 VALVE
5308015426 5308015426 VANE
5300615892 5300615892 VANE
3281107 3281107 WASHER
5303261031 5303261031 WASHER-PIVOT SHAFT
5303281079 5303281079 WHEEL, BLOWER
5304464772 5304464772 WIRE TIE
134155800 134155800 WIRING HARNESS,GAS VALVE
