Manufacturer
Electrolux
Model Number
56-7357-00-02
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ADAPTER, WATER SUPPLY |
|
|
BUTTON-HANDLE MTG,DOVETAIL |
|
|
CONTAINER-ICE,34,FOR 178675-0 |
|
|
CONTROL, TEMPERATURE |
|
|
COVER - TOP HINGE - WHITE |
|
|
COVER-ICE MAKER,36,MID-SOUTH |
|
|
CRISPER COVER |
|
|
DEFROST HEATER |
|
|
EJECTOR-ICE,18,MID-SOUTH ELEC |
|
|
FRONT-CRISPER PAN |
|
|

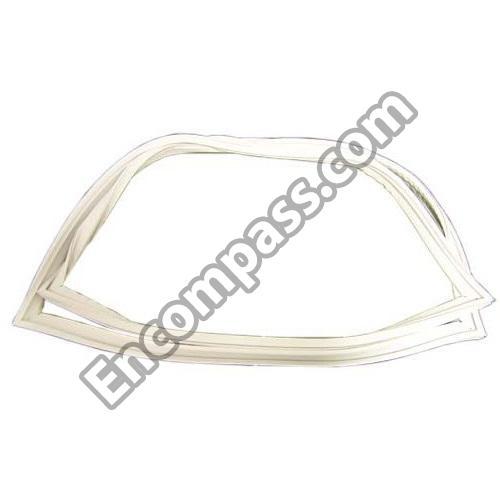

GASKET - FRZR DOOR, WHITE, MAGNETIC |
|
|
GASKET - REFR DOOR , WHITE, MAGNETIC |
|
|
GEAR |
|
|
HANDLE-DOOR W/BLOCK AND SCREW, ALMOND |
|
|
HANDLE-DOOR,WHITE ,W/BLOCK & SCREW |
|
|
HARNESS-WIRING-INTERNAL IM-W/ PLUG |
|
|
ICE STRIPPER,21,MID-SOUTH ELE |
|
|
INSERT-CRISPER COVER, GLASS |
|
|
INSULATION-DOOR |
|
|
KNOB-TEMP CONTROL |
|
|
LEVER ARM,24,MID-SOUTH ELEC |
|
|
MOTOR ASSY |
|
|
PAN RETAINER, KIT, SERVICE |
|
|

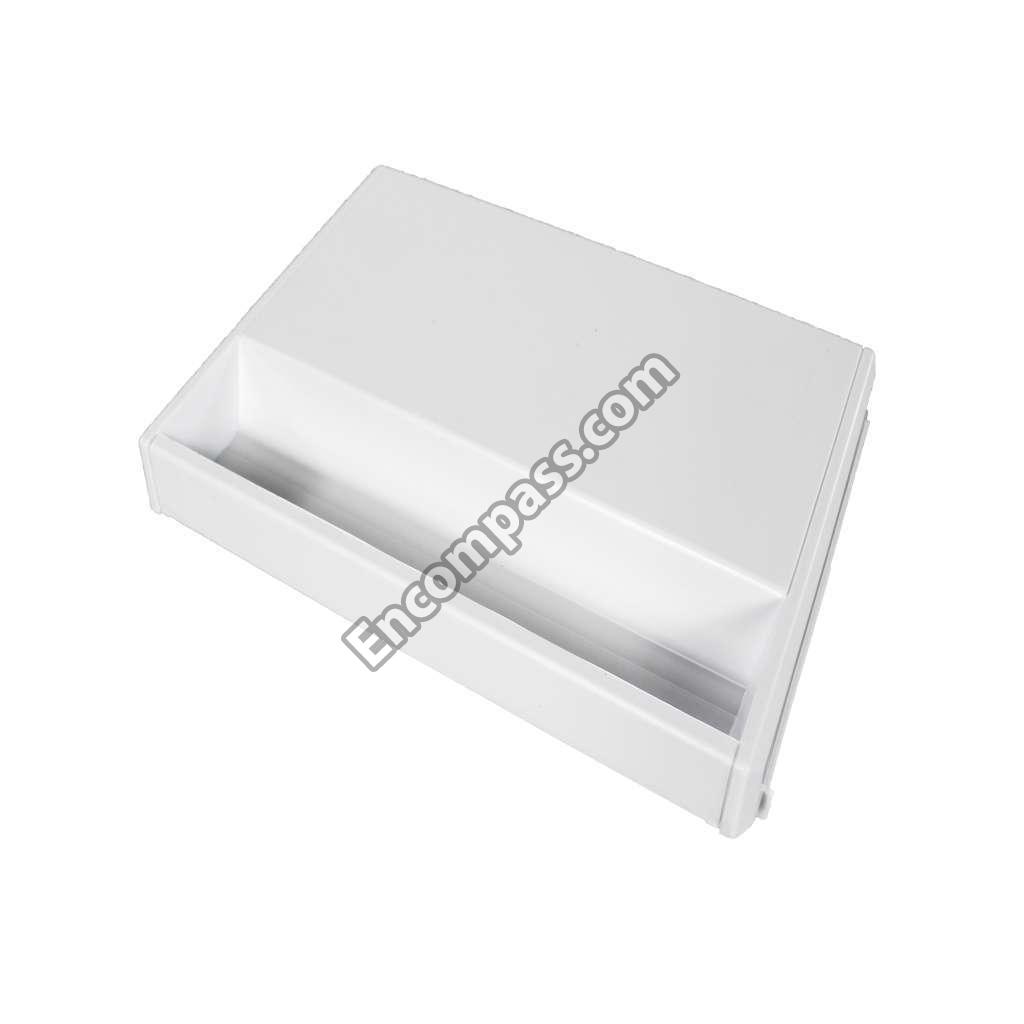

PAN, CRISPER (2) |
|
|
PIN, CENTER HINGE |
|
|
PLUG-HOLE, FACTORRY TEST |
|
|

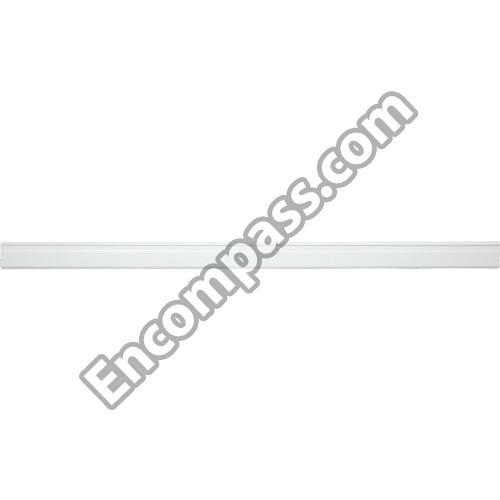

RACK-DOOR, 23.81`` X 1.62`` |
|
|
ROLLER ASSY, METAL HOUSING, FRONT/REAR, (2) |
|
|
SCREW, NO.8 TRUSS HD, 10-32CA X 0.500 |
|
|
SCREW, PAN HD, 10-32X0.625, HINGE/MULL, THRD FORM |
|
|
SCREW,HEX WASHER HEAD ,8-15A X 0.500 |
|
|
SCREW,HEX WASHER HEAD ,8-15A X 0.625 , |
|
|
SCREW-HINGE MTG,HEX HD ,1/4-20 X 0.875 |
|
|
SEAL-AIR DEFLECTOR, FOAM PLASTIC |
|
|
SHELF,SLIDING ,WIRE ,REFR SECTION |
|
|

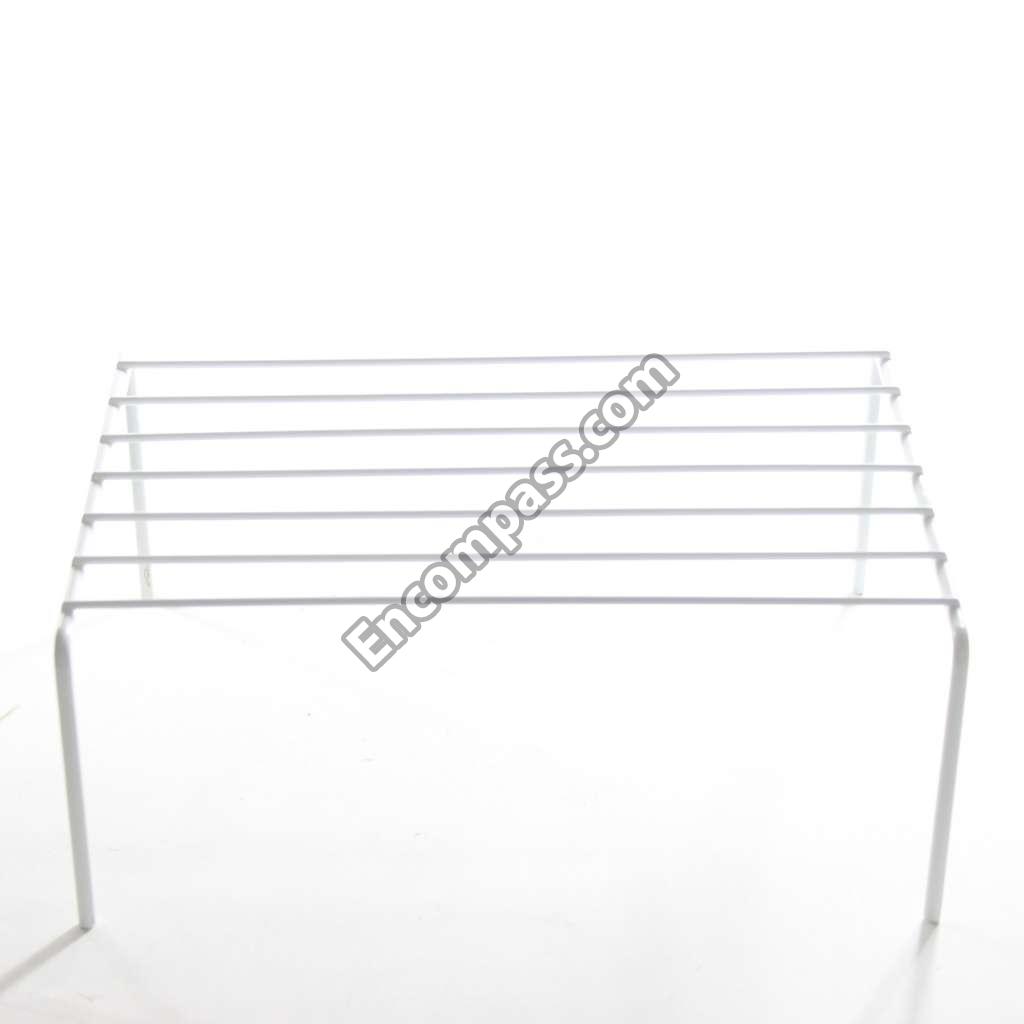

SHELF-FREEZER,,,TABLE TYPE`` |
|
|
SHIM -UPPER HINGE |
|
|
STRAP - EVAPORATOR/HEATER |
|
|
STRIP - SEALING |
|
|
SUPPORT-DOOR RACK, ``2-LITER``, RH/LH |
|
|
SWITCH-LIGHT/ LAMP |
|
|
THERMAL CUTOFF ASSEMBLY |
|
|
THERMOSTAT ASSY-ICE MAKER |
|
|
TRAY,ICE CUBE ,PLASTIC |
