Manufacturer

Electrolux

Model Number

5647511004

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5303285111 5303285111 ANGLE-HOOK MTG ASSY
5303212767 5303212767 BEZEL-LATCH
5303270384 5303270384 BRACKET, CONT PANEL SPRT
317000702 317000702 BRACKET-SWITCH
5303280263 5303280263 BUSHING
5303212769 5303212769 BUSHING-FUSE HOLDER
5303269608 5303269608 CAPACITOR
5303011773 5303011773 CHANNEL BASE, LH
5303269830 5303269830 CHANNEL-BASE-RH
5303272824 5303272824 CHANNEL-SUPPORT, RH, GLASS STIR COVR
5303272823 5303272823 CHANNEL-WHITE LH
5303273244 5303273244 CIRCUIT BOARD-PRINTED
5303922010 5303922010 COLLAR-STIRRER
317005401 317005401 CORD-ELECTRIC POWER
5303922073 5303922073 COVER-DOOR, (INCLUDES TAPE), (IF COVER-DOOR NEEDS TO BE
5303212775 5303212775 COVER-LIGHT
5303012681 5303012681 COVER-STIRRER
5303269832 5303269832 DUCT-AIR
5303269833 5303269833 DUCT-AIR
5303269958 5303269958 DUCT-AIR
5303286094 5303286094 DUCT-MAGNETRON
5303212785 5303212785 ELEMENTBROWNER
5303269834 5303269834 FAN BLADE
5303274930 5303274930 FAN-STIRRER ASM
3203010 3203010 FASTENER,U-TYPE ,(2)
08067961 08067961 FASTENER-POWER CORD
5303295314 5303295314 FOOT-CABINET
5303273294 5303273294 FRAME-DOO NLA
5303011670 5303011670 FUSE, 20 AMP, 250 V
5308037644 5308037644 GROMMET-DOOR
5303274083 5303274083 HANDLE-DOOR
5303269837 5303269837 HARNESS AND DIODE, HV
5303212800 5303212800 HARNESS-WIRING, FIRE PROTECTOR
5303280301 5303280301 HINGE-DOOR, BLACK, (IF HINGE NEEDS TO BE REPLACED, ITEM
5303271795 5303271795 LABEL, COOKING GUIDE, ENGLISH
5303212801 5303212801 LAMP 40 W 120 V CLE

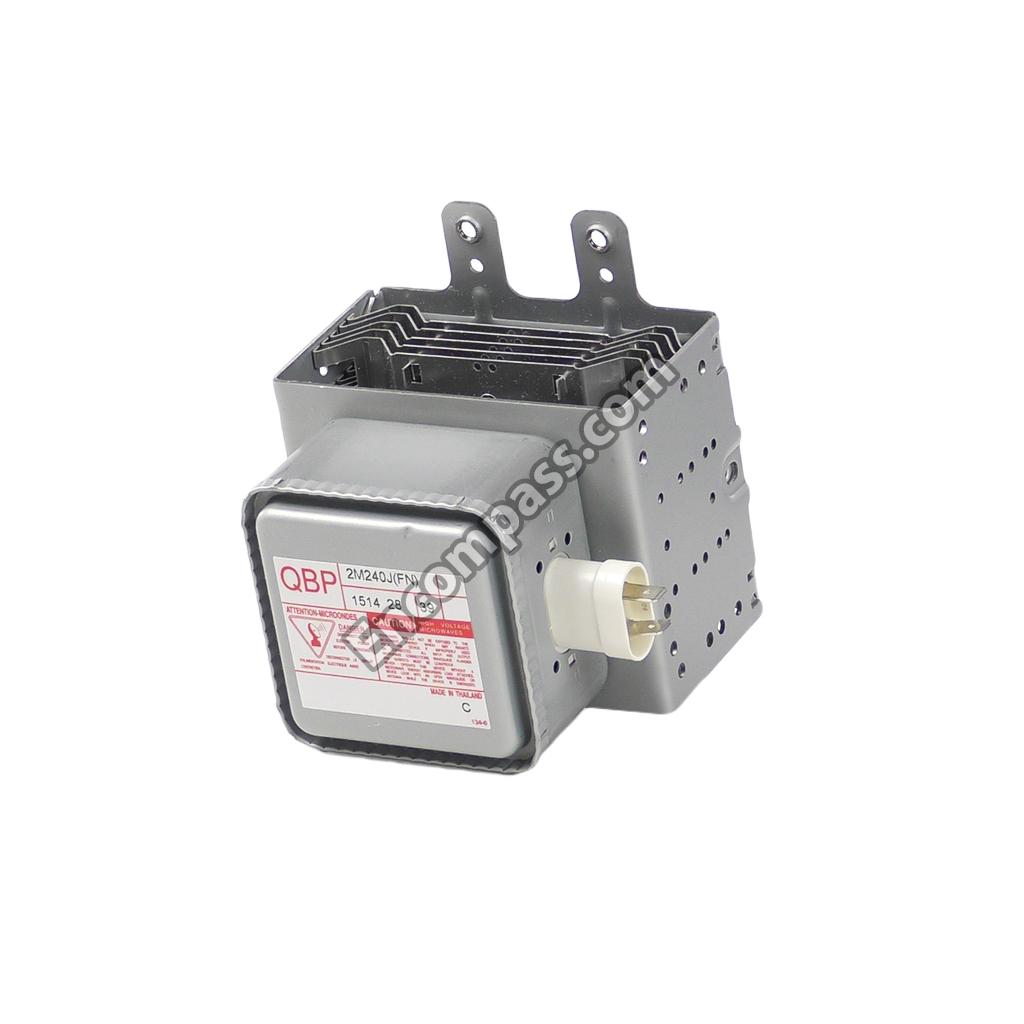

396112000 396112000 MAGNETRON
5303922053 5303922053 MOTOR-FAN, 120 V, INCLUDES MOTOR, FAN DUCT, FAN BLADE, I
5304413191 5304413191 NUT
08007481 08007481 NUT
5303212803 5303212803 NUT
5303013283 5303013283 NUT, RECEPTACLE PRBE (NON-ILLUSTRATED)
5303321319 5303321319 PAINT, TOUCH-UP, WHITE
5303291836 5303291836 PANEL-CONTROL ASSY
5303291631 5303291631 PANELDOOR
5303291811 5303291811 PLUG-BUTTON
5303091053 5303091053 PLUG-BUTTON TRAY (2)
5303011684 5303011684 PROBE
5303922178 5303922178 RACK-OVEN, INCLUDES, (4) SPACERS
5303013702 5303013702 RECEPTACLE PROBE
5303271331 5303271331 RELAY
5303013771 5303013771 RETAINER-CAPACITOR
5303269846 5303269846 RIVET, PLASTIC, FAN AIR DUCT, (2)
5303300265 5303300265 SCREW
5303013882 5303013882 SCREW
5303013960 5303013960 SCREW
5308014502 5308014502 SCREW, 6, 32 X 1, 1/8, FAN MOTOR, (2)
5303273916 5303273916 SCREW, BRACKET MTG, 8(AB) X 3/8, CONTROL PANEL, (2) (NON-ILLUSTRATED.)
5303013944 5303013944 SCREW, HX SERR WSHR HD, 1/4-20 X 1/2, TRANSFORMER, (2)
394027600 394027600 SCREW, TAMPER PROOF, 8(A) X 1/2, (2)
5300807501 5300807501 SCREW-8A X 1/2`` (NON-ILLUSTRATED)
5303013962 5303013962 SCREW-DOOR STRIKE, SPECIAL
5308037640 5308037640 SEAL-FOAM
5303269841 5303269841 SHIELD OVEN LIGHT-MYLAR
5303212810 5303212810 SOCKET-LIGHT/LAMP
5308037724 5308037724 SPACER
5303018581 5303018581 SPACER-RACK, WHITE, (4)
5303212788 5303212788 SUPPORT, THRM PROTECTOR, (2)
5303014221 5303014221 SUPPORT-RACK
317005104 317005104 SWITCH-DOOR SENSOR
5303203636 5303203636 SWITCH-INTERLOCK
317005103 317005103 SWITCH-MONITOR
5303922194 5303922194 TAPE-FOAM SEAL 15``
5303270946 5303270946 TAPE-FOAM SEAL, DUCT, CAVITY INTERNAL
317016901 317016901 TRANSFORMER, 120 V
5303011698 5303011698 TRAY, GLASS, OVEN
5303283483 5303283483 WRAPPER, WOODGRAIN
