Manufacturer
Electrolux
Model Number
AM10C6EYA
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
BOLT-ROLLER ADJ,HEX WASHER HEAD ,1/4-20 X 4.020,(2) ,SPECIAL |
|
|
BRACE |
|
|
BRACKET |
|
|
BRACKET, MOTOR MTG, REAR |
|
|
BRACKET-CTR HINGE,WHITE |
|
|
BRACKET-LOWER HINGE |
|
|
BRACKET-UPPER HINGE |
|
|
CABLE-VENT CONTROL |
|
|
CLAMP |
|
|
CLIP,CONSOLE MTG |
|
|
COMPRESSR |
|
|

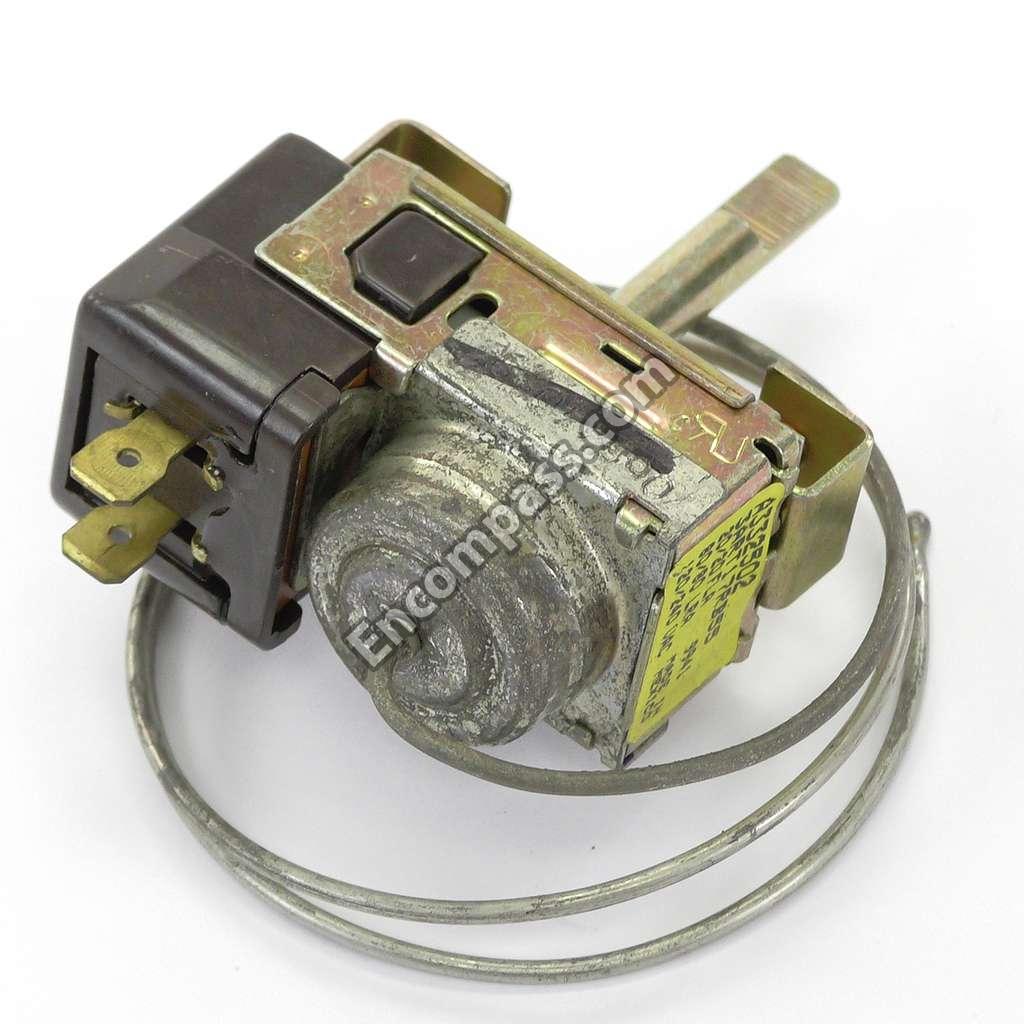

CONTROL TEMPERATURE |
|
|
COVER,END CAP ,WHITE ,LH |
|
|
COVER,END CAP ,WHITE ,RH |
|
|
COVER-UPPER HINGE,WHITE |
|
|
DAMPER-FAN COVER |
|
|
DRIER-FILTER,SERVICE KIT |
|
|
END CAP - L.H. |
|
|
END CAP-R.H.- WHITE |
|
|
EVAPORATOR |
|
|
FAN BLADE,RED ,EVAPORATOR FAN |
|
|
FILTER |
|
|
GROMMET |
|
|
GROMMET,SHELF MTG ,1.25`` ,LH ,(4) |
|
|
GROMMET-SHELF MOUNTING |
|
|
HINGE-DOOR |
|
|
KNOB,TIMER ,WHITE |
|
|
KNOB-DAMPER CONTROL |
|
|
NUT |
|
|
PIN-LOWER HINGE |
|
|
PLUG-HOLE, FACTORRY TEST |
|
|
RETAINER |
|
|
RETAINER |
|
|
RIVET,FLAT HEAD `1/4 OD X 1-3/4 `ROLLER PIN |
|
|
ROLLER ASSY,FRONT ,(2) |
|
|
ROLLER,COMPRESSOR BASE ,REAR ,(2) |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW, CR PAN HEAD, 8-32 X 0.250, THREAD FORMING |
|
|
SCREW, NO.8 TRUSS HD, 10-32CA X 0.500 |
|
|
SCREW,HEX WASHER HEAD ,8-15A X 0.500 |
|
|
SCREW,PAN HEAD ,8-18B X 0.31 |
|
|
SCREW-BRKT TOP,PAN HD LOCKING , |
|
|
SCREW-HINGE MTG,HEX HD ,1/4-20 X 0.875 |
|
|
SCREW-NO.10-32 X 3/4,WHITE |
|
|
SCREW-WOOD |
|
|

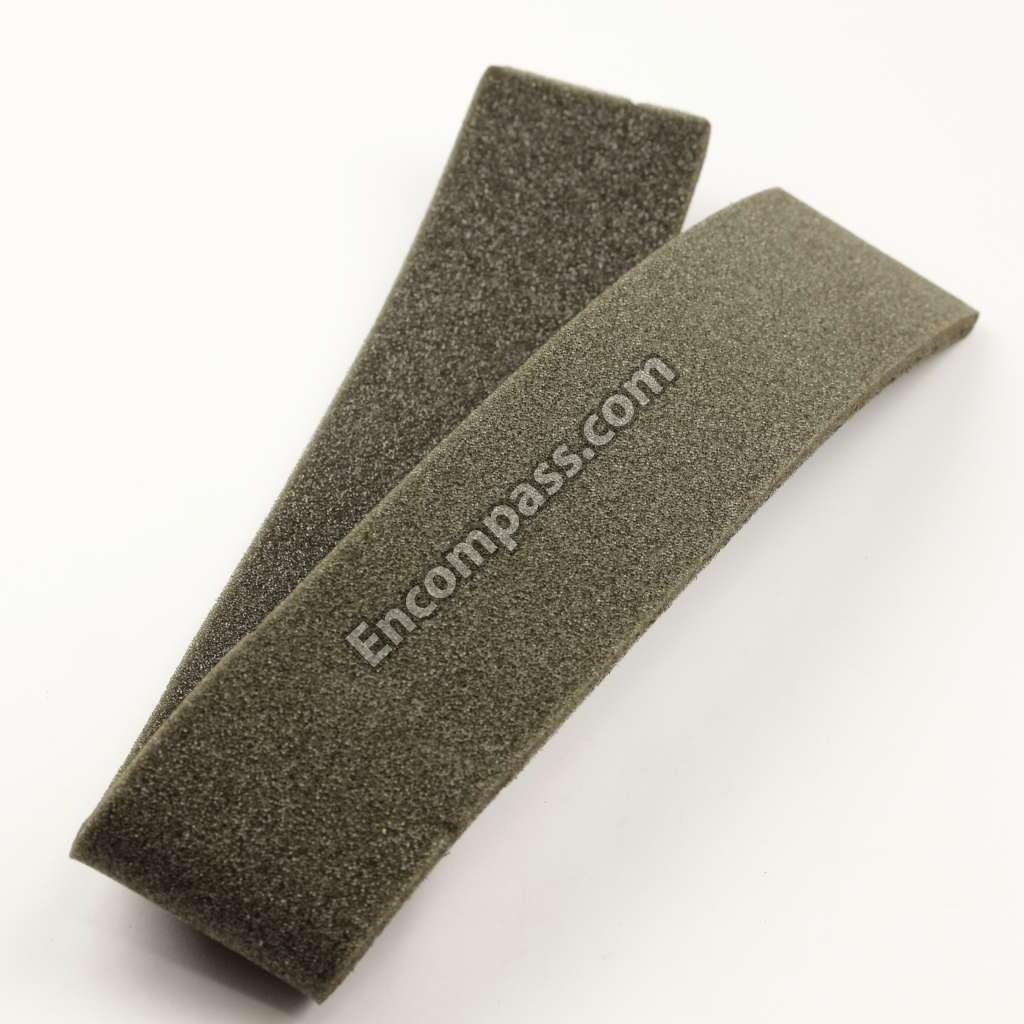

SEAL |
|
|
SEAL |
|
|
SEAL-MULLION |
|
|
SLEEVE |
|
|
SPACER |
|
|
SPACER-SWITCH |
|
|
STRAP-CAPACITOR |
|
|
SUPPORT |
|
|
SWITCH |
|
|
SWITCH,2 POSITION |
|
|

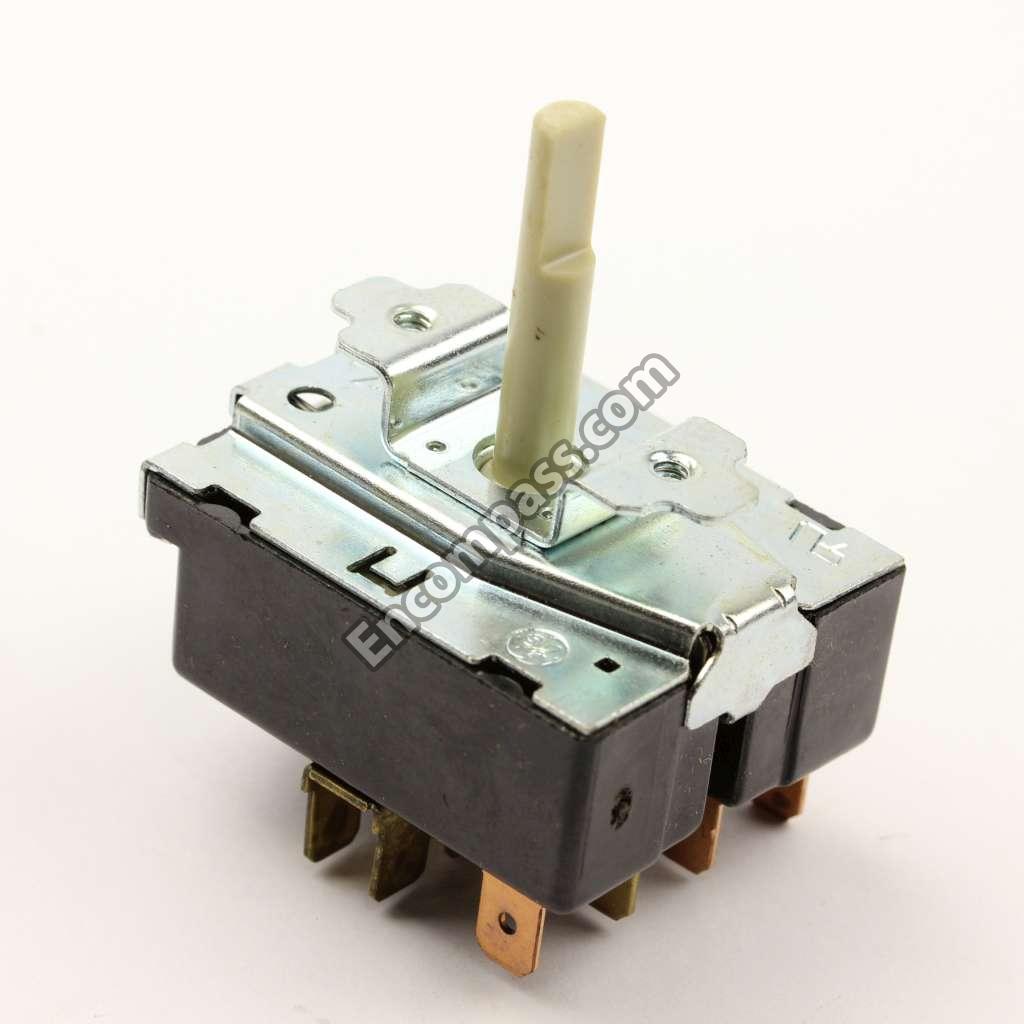

SWITCH,TEMP SELECTOR ,4 POSN ROTARY |
|
|
SWITCH-SLIDE |
|
|
TRIM-CABINET CORNER,WHITE ,(2) |
