Model Image
Manufacturer

Electrolux

Model Number

AS18EP2K1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5303015299 5303015299 ARM-ACTUATOR
3015325 3015325 BRACE
5303015306 5303015306 BRACKET
5303013071 5303013071 BULB/LAMP,OVEN LIGHT
5303015298 5303015298 CABLE-VENT CONTROL
5303012032 5303012032 CAPACITOR
316007001 316007001 CHANNEL, DOOR HINGE (2)
5303012110 5303012110 CLAMP
5303001844 5303001844 CLIP
5308010914 5308010914 CLIP, FRONT-TO-BASE
5303211009 5303211009 CLIP-CONTROL BULB
5303284616 5303284616 CLIP-THERMOSTAT
5303910010 5303910010 COMPRESSR

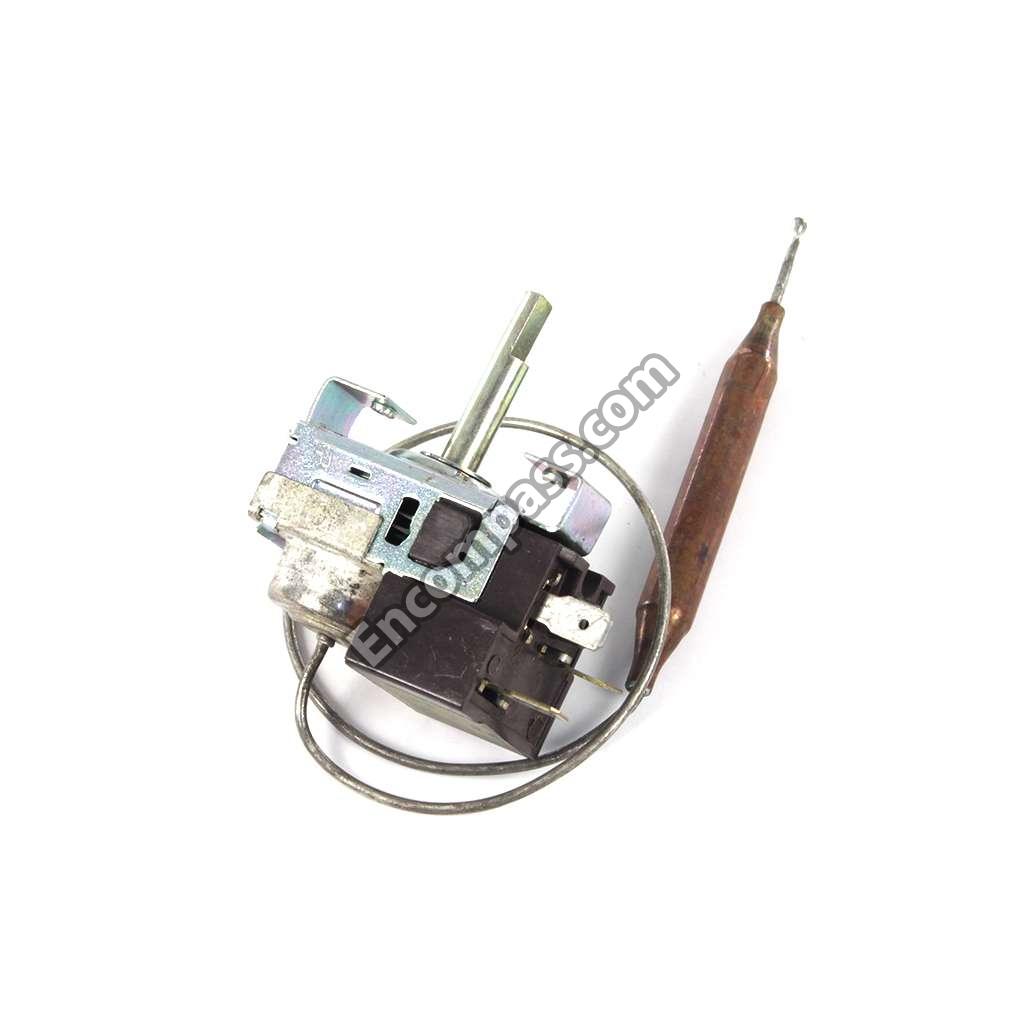

5303002176 5303002176 CONTROL-TEMPERATURE
5303017807 5303017807 DIVIDER
5300265301 5300265301 DRIER-FILTER,SERVICE KIT
5303002035 5303002035 GASKET
5303210207 5303210207 GRILLE
5303015945 5303015945 GROMMET
3203548 3203548 HARNESS-HEATER
5303018573 5303018573 HEATER
5303017980 5303017980 HINGE-DOOR
3015314 3015314 INSULATION-TOP COVE
5303002163 5303002163 LINK
5303002459 5303002459 LOUVERS W/LINK
3007759 3007759 NUT
216848200 216848200 OPTIONAL BASKET
3015296 3015296 PARTITION
807108202 807108202 POWER CORD
5303017310 5303017310 PROTECTOR
5308007974 5308007974 REGULATOR,PRESSURE
5303202999 5303202999 RETAINER
3007756 3007756 SCREW
5303017342 5303017342 SCREW
5303007754 5303007754 SCREW
5303015427 5303015427 SCREW
3002803 3002803 SCREW-WOOD
3001980 3001980 SEAL
5303015311 5303015311 SEAL
5303002608 5303002608 SEAL-WINDOW
5303001775 5303001775 SPACER
5303002036 5303002036 SPRING
3001815 3001815 SUPPORT
5303016865 5303016865 THERMOSTAT,HEATER
5303209769 5303209769 WHEEL - BLOWER
