Model Image
Manufacturer

Electrolux

Model Number

BES384EB2

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
318317100 318317100 ADAPTER ASSEMBLY
318259204 318259204 BACK
318308500 318308500 BRACKET
318318600 318318600 BRACKET
318298400 318298400 BRACKET
318298410 318298410 BRACKET
318382301 318382301 BRACKET
318324202 318324202 BREAKER
5303013071 5303013071 BULB/LAMP
318141910 318141910 BUMPER
318147430 318147430 BUMPER
318018100 318018100 CHANNEL
318018101 318018101 CHANNEL
318163601 318163601 CLEANER,COOKTOP
316418760 316418760 CLOCK/TIMER
318262001 318262001 COVER
5303310526 5303310526 COVER
318304109 318304109 DOOR ASSEMBLY

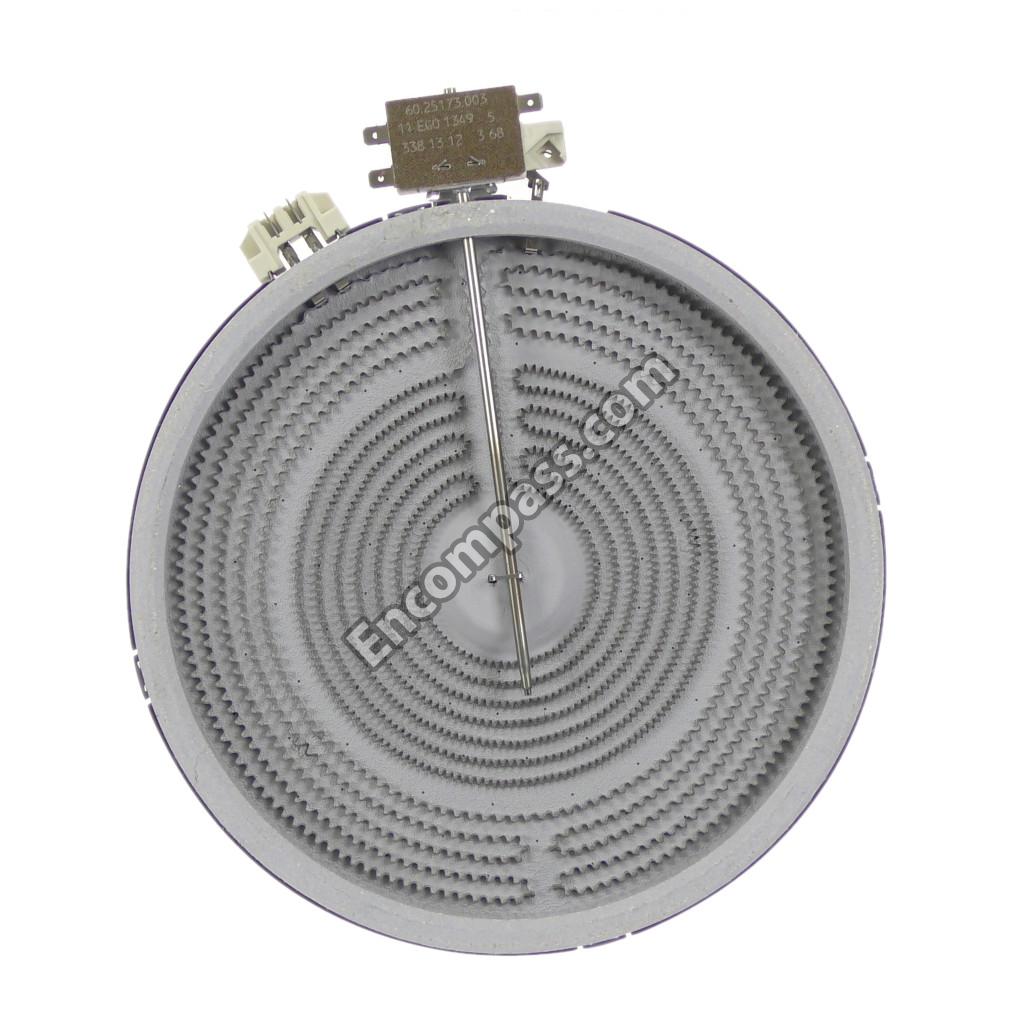

318255503 318255503 ELEMENT
318198817 318198817 ELEMENT
318198826 318198826 ELEMENT
318198925 318198925 ELEMENT
318198926 318198926 ELEMENT
318287906 318287906 ENDCAP
318056217 318056217 FRONT
316117500 316117500 GLASS
316270200 316270200 HANDLE
318199362 318199362 HARNESS
318222400 318222400 HOUSING
318594300 318594300 INSULATION
318285098 318285098 INSULATION
318017111 318017111 KNOB
318250801 318250801 LENS
316022500 316022500 LIGHT/LAMP
318261400 318261400 LINER
5303323144 5303323144 NUT
316136600 316136600 NUT
318314100 318314100 PANEL
318322914 318322914 PANEL
5303320846 5303320846 PLATE
316217002 316217002 PROBE
318365800 318365800 RACK
318110400 318110400 RECEPTACLE
5304448825 5304448825 REPLACEMENT LAMP
5304400195 5304400195 RETAINER
5303211311 5303211311 SCREW
5303323134 5303323134 SCREW
5304415832 5304415832 SCREW
318175503 318175503 SCREW
5303323129 5303323129 SCREW
5303323139 5303323139 SCREW
5304436875 5304436875 SCREW
5304453593 5304453593 SCREW
5303317179 5303317179 SCREW
5303300265 5303300265 SCREW
5303307980 5303307980 SCREW
318288203 318288203 SHIELD
318302711 318302711 SHIELD
5303317178 5303317178 SPACER
318165800 318165800 SPACER
316402403 316402403 SPACER
318192400 318192400 SPRING
5303317177 5303317177 SPRING
318172904 318172904 SUPPORT
5304403015 5304403015 SUPPORT

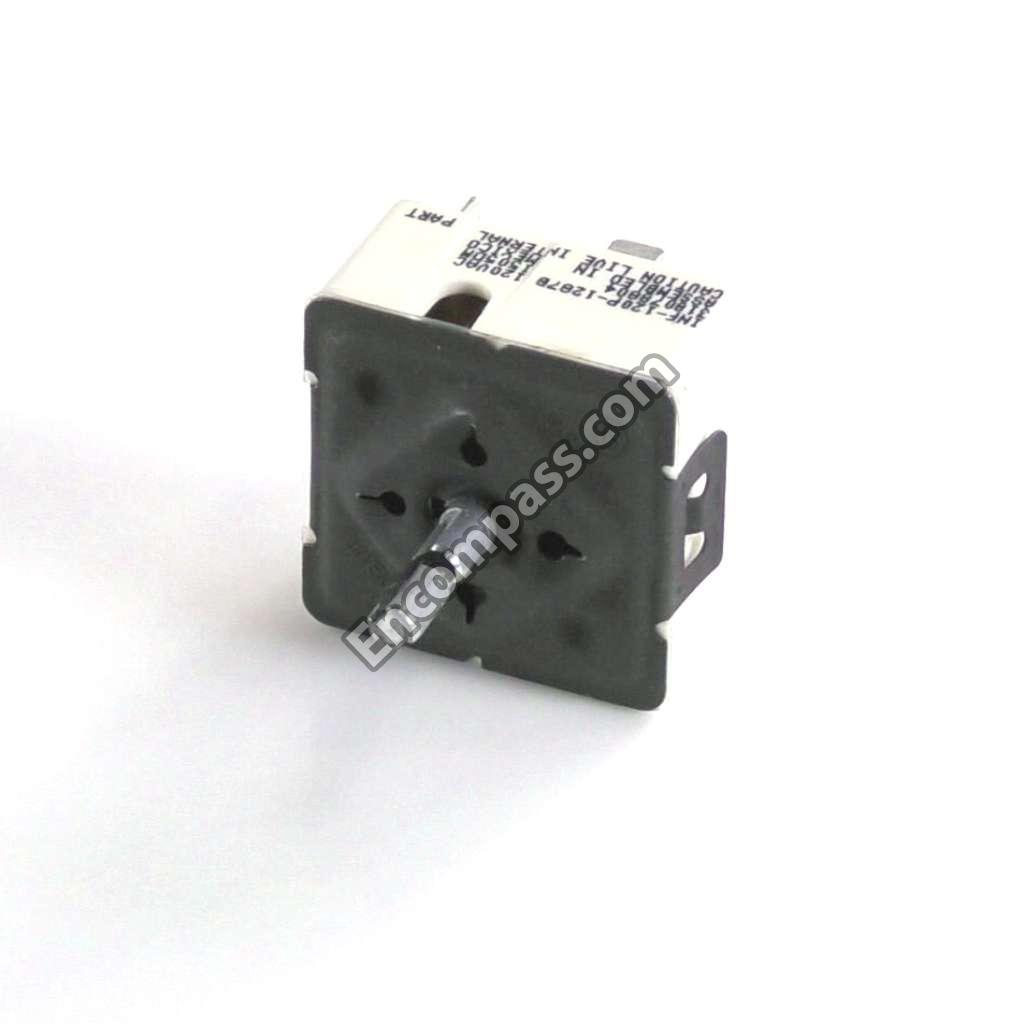

318078804 318078804 SWITCH
318220083 318220083 SWITCH
318249401 318249401 TUBE
316136500 316136500 WASHER
