Model Image
Manufacturer

Electrolux

Model Number

CARE4044MW0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5308027429 5308027429 ADHESIVE
137068200 137068200 AIR DUCT SEAL 36
134719300 134719300 BELT H POLY V 5 RIB
131775610 131775610 BLOWER ASSEMBLY
137363900 137363900 BOARD
137367700 137367700 BODY
137240400 137240400 BRACESIDE PANEL 36
134785000 134785000 BRACKET
134693500 134693500 BRACKET
137329700 137329700 BRACKET
134559300 134559300 BRACKET
134792200 134792200 BRACKET
134912100 134912100 BRACKET
137301700 137301700 BRACKET
137274600 137274600 BRACKET
137066800 137066800 BRACKET
137029900 137029900 BRACKET
134712817 134712817 BULKHEAD
134242400 134242400 CLAMP
137034500 137034500 CLIP
137054110 137054110 CONSOLE

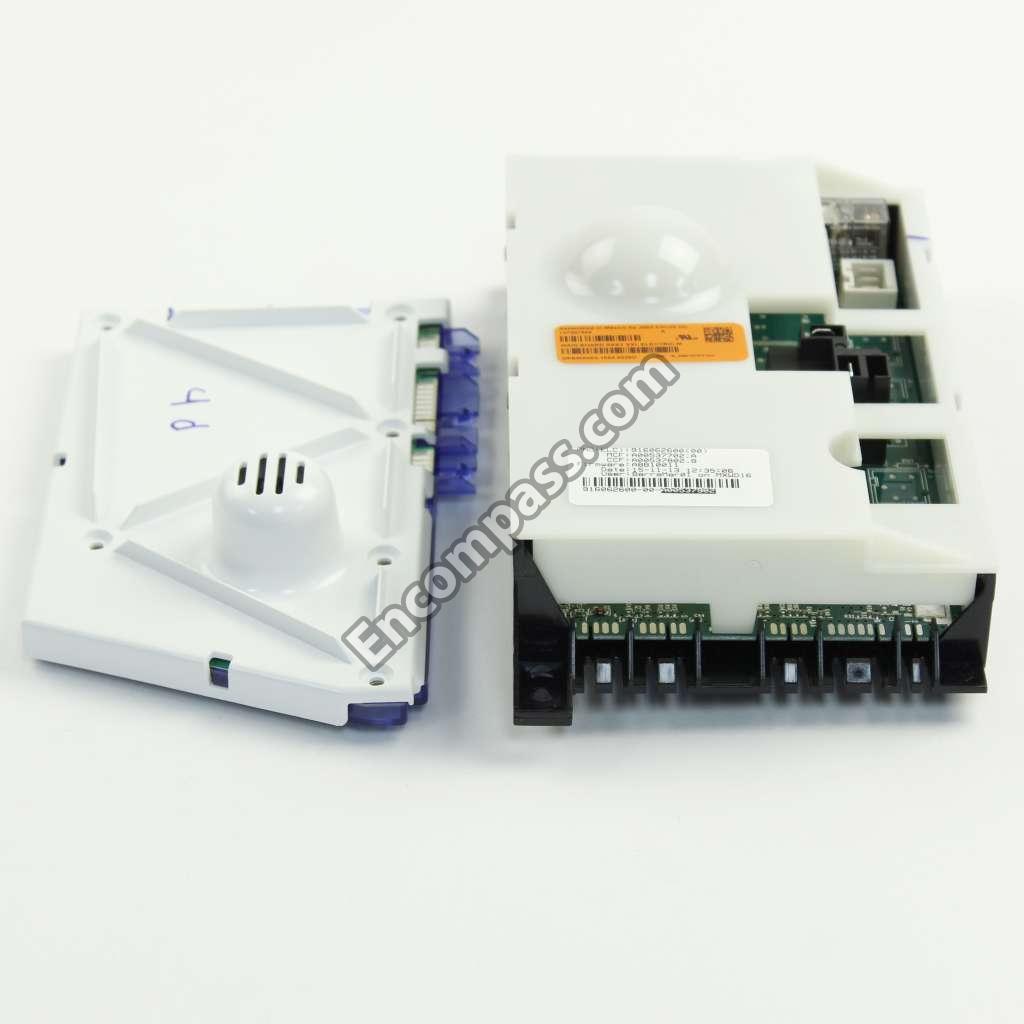

5304496068 5304496068 CONTROL KIT
134694400 134694400 COVER
134407900 134407900 DAMPENER
137349110 137349110 DOOR
137349010 137349010 DOOR
131658800 131658800 DOOR CATCH
134711910 134711910 DRUM
134710705 134710705 DUCTAIR
134701420 134701420 FILTER
137029700 137029700 FOOTCABINET
134580300 134580300 GASKET
137116600 137116600 GASKET
134701320 134701320 GRILL
137203500 137203500 HARNESS
137415600 137415600 HARNESS
137325800 137325800 HARNESS
134930800 134930800 HARNESS
137114000 137114000 HEATER
137365610 137365610 HINGE
134793500 134793500 IDLER ARM ASSEMBLY
137490800 137490800 INSERT
134792900 134792900 INSULATOR
137489600 137489600 KNOB
131843500 131843500 LAMP ASSEMBLY
137367600 137367600 LENS
137032600 137032600 LIMITER
134711401 134711401 LIMITER
131435200 131435200 LOCK
134716800 134716800 NUT
137518370 137518370 OVERLAY
137274810 137274810 PANEL
134696105 134696105 PANEL
137365910 137365910 PANEL
134690410 134690410 PANELSIDE
134690310 134690310 PANELSIDE
137362600 137362600 PIN
131633200 131633200 PLUG
134417500 134417500 PLUG
134502300 134502300 POWER CORD
134693800 134693800 PULLEY
134716200 134716200 RETAINER
134715900 134715900 ROLLER
134529600 134529600 SCR 8-18X.375 IND P
131202300 131202300 SCREW
134935200 134935200 SCREW
131017900 131017900 SCREW
137285100 137285100 SCREW
131168200 131168200 SCREW
131205100 131205100 SCREW
137361500 137361500 SCREW 818X0711 CO
134705900 134705900 SEAL
131633300 131633300 SEAL-EXHAUST TUBE
134786100 134786100 SENSORMOISTURE
134692700 134692700 SHIELD
131749800 131749800 SPACER
131601000 131601000 SPRING
134932400 134932400 STRAIN RELEIF
137493700 137493700 SWITCH
134813601 134813601 SWITCH
134587700 134587700 THERMISTOR
3204267 3204267 THERMOSTAT
134693900 134693900 TUBE

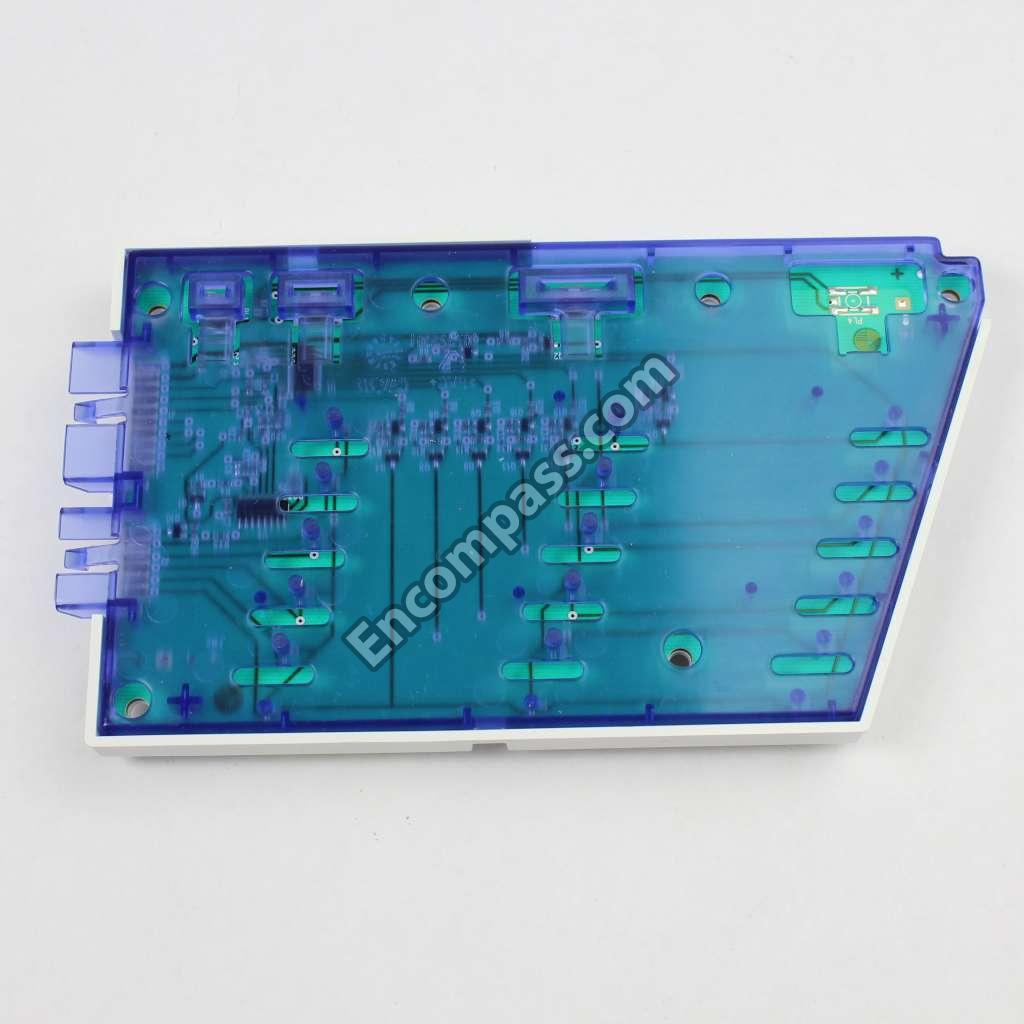

137363801 137363801 USER INTERFACE
134716700 134716700 WASHER
137347700 137347700 WINDOW
