Model Image
Manufacturer

Electrolux

Model Number

CCV17RFLW1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
216970800 216970800 BEARING
297006800 297006800 BEARING-HINGE

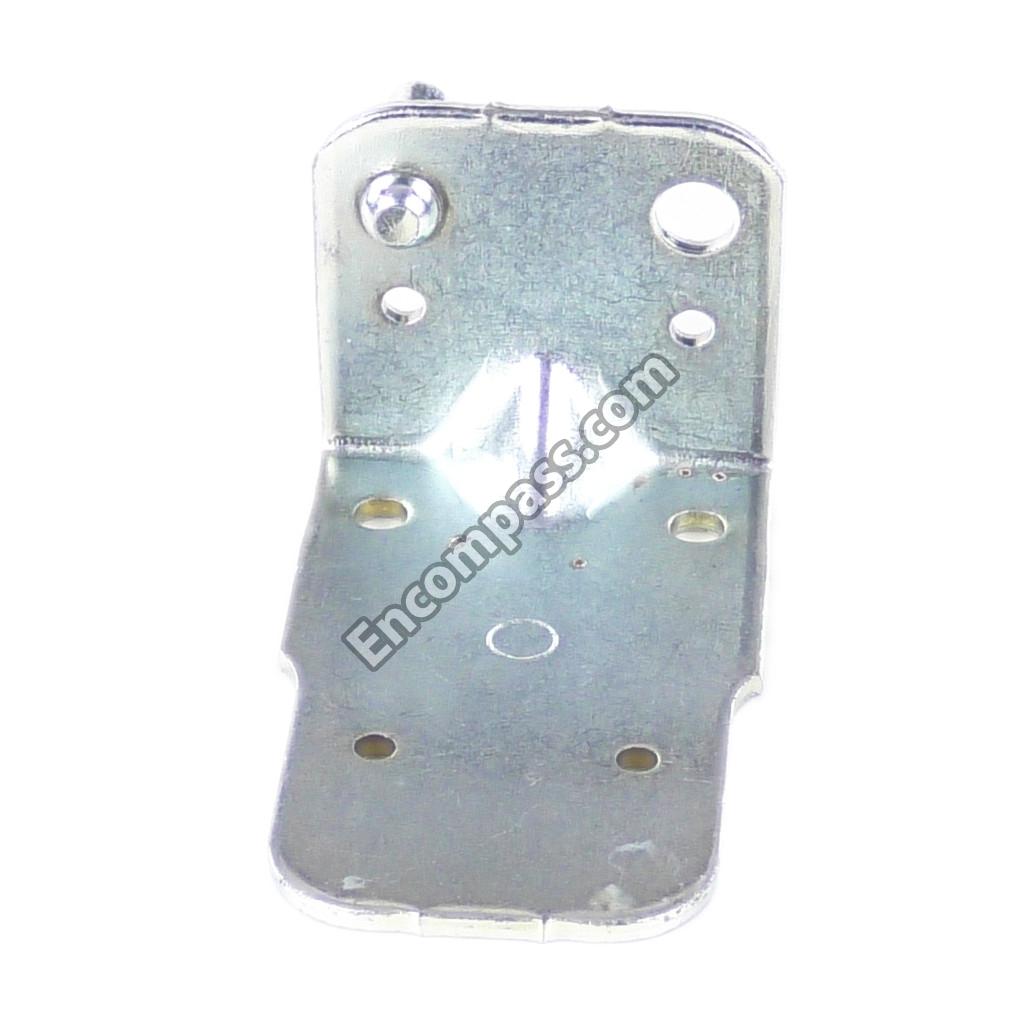

297164651 297164651 BRACKET
297164650 297164650 BRACKET
297177400 297177400 BRACKET
216394050 216394050 BRACKET
297200100 297200100 BREAKER KIT W/CORNE
297200600 297200600 BREAKER KIT W/CORNE
297286802 297286802 CAPACITORRUN
241982601 241982601 CLAMP
297315800 297315800 CLIP
5304406520 5304406520 CLIP
216327800 216327800 CLIP
216273000 216273000 CLIP
5304472186 5304472186 CLIP
297368500 297368500 COMP BOLT UPRIGHTS
5300083897 5300083897 CONDENSER

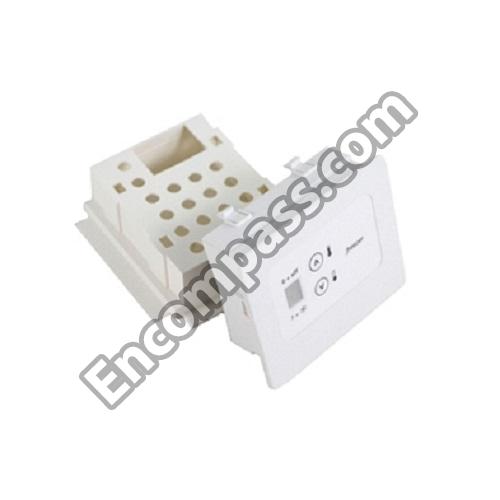

297282800 297282800 CONTROL
297282700 297282700 CONTROLREFRIGERATOR
297098853 297098853 COVEREVAPORATOR
297164400 297164400 COVERHINGE
5304492617 5304492617 DAMPER
240338313 240338313 DOOR
297257002 297257002 DOOR STOP
297257000 297257000 DOOR STOP
5308005500 5308005500 DRAIN
216524201 216524201 GASKET
216204900 216204900 GASKET

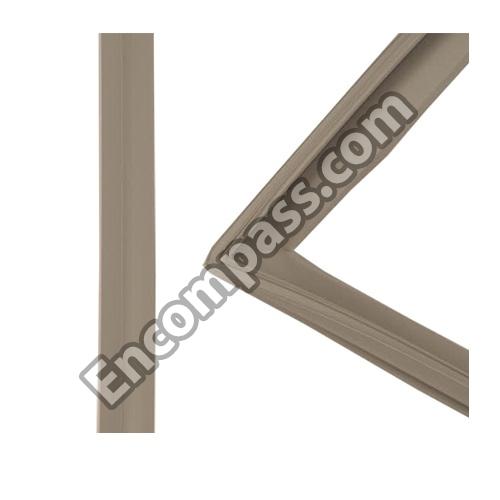

216522359 216522359 GASKETDOOR
297036900 297036900 GRILLE/KICKPLATE
297293302 297293302 GROMMET
216502400 216502400 GROMMET-SHELF MTG
297244300 297244300 HARNESSMAIN
297217900 297217900 HEAT EXCHANGER
297334500 297334500 HEATERDRAIN PAN
297283800 297283800 HINGE-UPPER
297283901 297283901 HINGEBOTTOM
297283900 297283900 HINGEBOTTOM
297001704 297001704 INSULATION
297078701 297078701 INSULATOREVAP
297078801 297078801 INSULATOREVAP
297114000 297114000 LIGHT BULB
297250000 297250000 MOTOR
240537301 240537301 NUT-ANCHOR
216959900 216959900 PANCRISPER
297165800 297165800 PANDRAIN

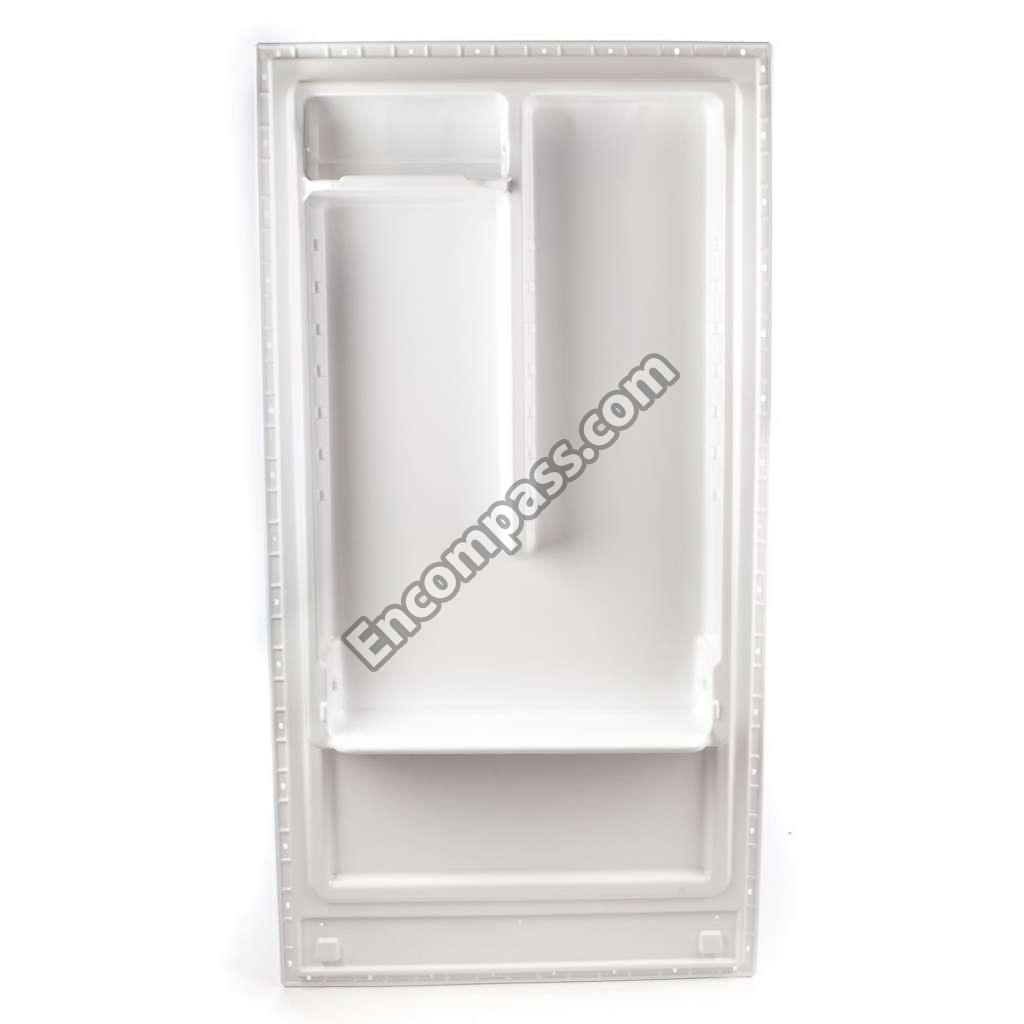

216953600 216953600 PANEL-INNER DOOR
297316506 297316506 PANELOUTER DOOR
240494001 240494001 PLUG
297014702 297014702 PLUG-SUCTION LINE
216403700 216403700 PLUGBUTTON
297248200 297248200 RAMP
216503300 216503300 RAMP
240338001 240338001 REFRIG DOOR SHELF BAR
216695300 216695300 RELAY/BIMETAL
216503100 216503100 SCREENDRAIN
297146820 297146820 SCREW
297236250 297236250 SCREW
297174300 297174300 SCREW
297197500 297197500 SCREW
297048000 297048000 SCREW
216858001 216858001 SCREW
216912401 216912401 SCREW
216036601 216036601 SCREW
240555002 240555002 SCREW-#8-32 X 3/8
216396900 216396900 SCREW-LEG
218755402 218755402 SCREW-SET
218755504 218755504 SCREW-SHOULDER

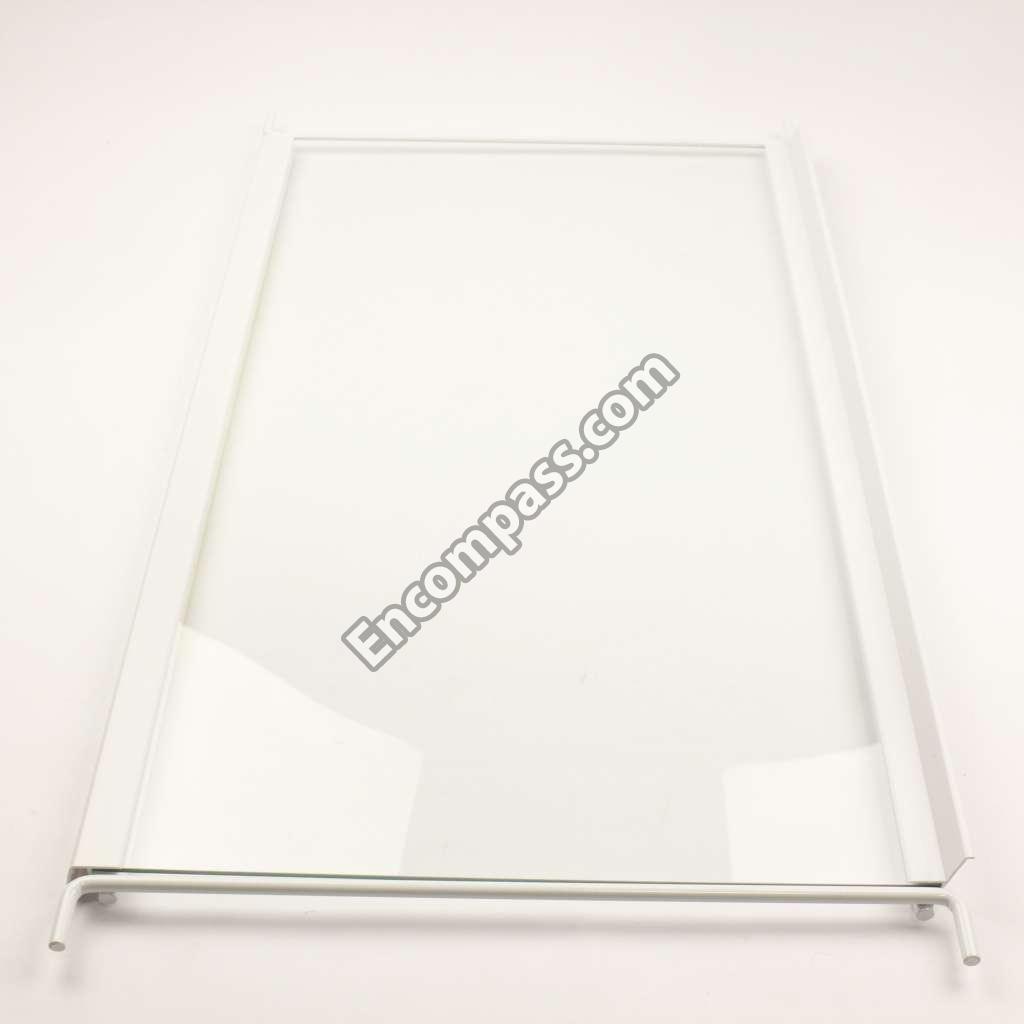

297324500 297324500 SHELFASSEMBLY
297184400 297184400 SHIELDLIGHT
216502500 216502500 SLEEVE
297139500 297139500 SOCKET
5308000110 5308000110 STRAP-EVAP/HEATER
297244700 297244700 SUPPORT
216988200 216988200 SUPPORT-CRSPR COVER
216988201 216988201 SUPPORT-CRSPR COVER

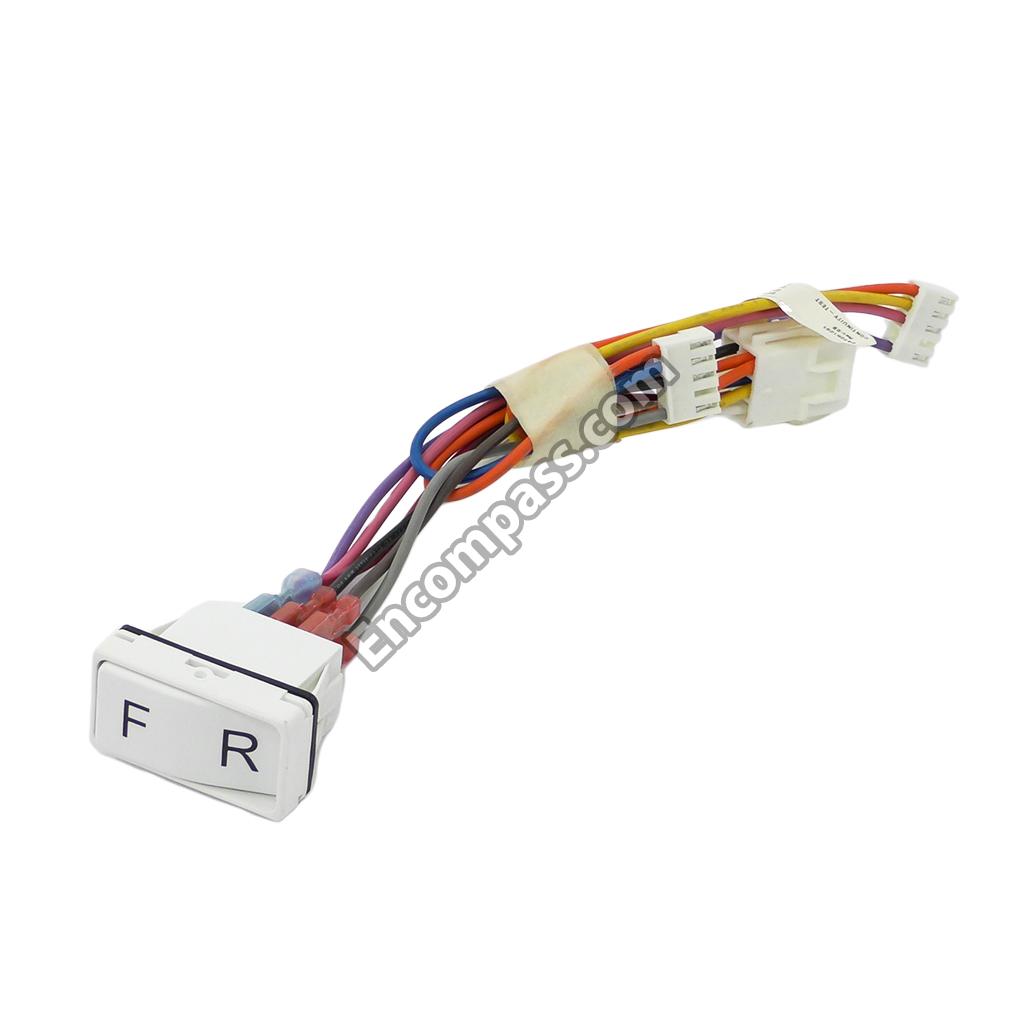

297251201 297251201 SWITCH
216822900 216822900 SWITCH
216683900 216683900 THERMOSTAT
216731001 216731001 THERMOSTAT
297273900 297273900 TRIMCABINET CORNER
297280400 297280400 VALVE
297175300 297175300 WRENCH
