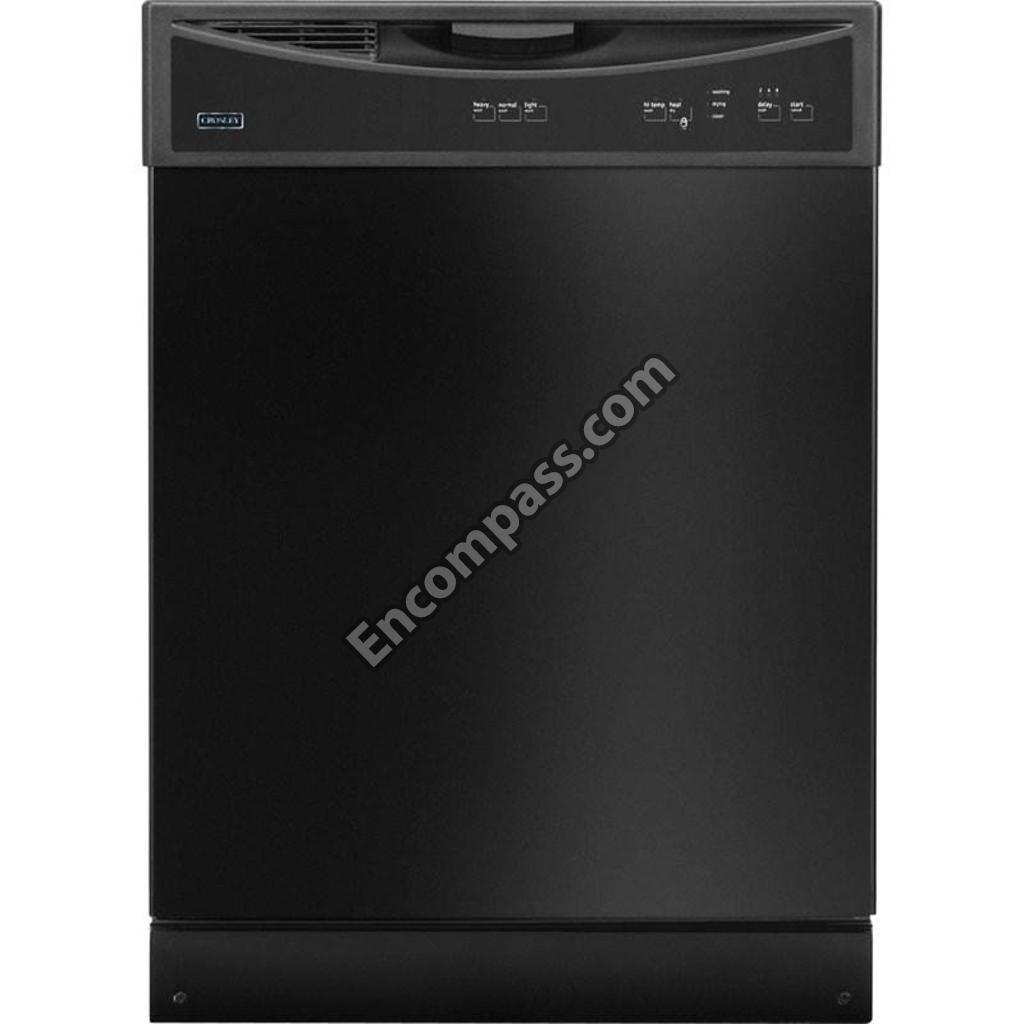

Model Image
Manufacturer

Electrolux

Model Number

CDB350NB0A

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
154691101 154691101 ARM ASSEMBLY
154691201 154691201 ARM ASSEMBLY
154246402 154246402 BALL
154728001 154728001 BASE
154686401 154686401 BEARING
154823701 154823701 BRACE
154465101 154465101 BRACKET
154595901 154595901 BRACKET
154246502 154246502 BRACKET
5300809927 5300809927 CAP
154320301 154320301 CLAMP
154380601 154380601 CLAMP
154552101 154552101 COVER
154724001 154724001 COVER
154758501 154758501 COVER
154829003 154829003 DOOR
154494601 154494601 F-LINER
154775401 154775401 FILTER
154252401 154252401 FILTER
154767801 154767801 FLOAT
154553501 154553501 GASKET
154406401 154406401 GASKET
154246801 154246801 GASKET
154463402 154463402 GROMMET
154879601 154879601 HARNESS
154825001 154825001 HEATER
154647101 154647101 HINGE PIN
5304488247 5304488247 INSERT
154571101 154571101 LEG
154325201 154325201 LINKAGE
154844301 154844301 MOTOR KIT
154106202 154106202 NUT
154246901 154246901 ORING
154247001 154247001 ORING
154788803 154788803 PANEL
154241101 154241101 RETAINER
5303943103 5303943103 SCREW
5300807270 5300807270 SCREW
154793401 154793401 SCREW
154294701 154294701 SCREW
154783101 154783101 SCREW
154093301 154093301 SCREW
154103702 154103702 SCREW
154754701 154754701 SCREW
154297701 154297701 SCREW
154200602 154200602 SCREW
154041001 154041001 SCREW
154741501 154741501 SCREW
154491101 154491101 SCREW
154754901 154754901 SCREW
154779601 154779601 SCREW
154200701 154200701 SCREW
154200601 154200601 SCREW-#10-16 X 3/8
154798401 154798401 SHIELD
154289801 154289801 SHIELD
154597801 154597801 SLIDE
5304488230 5304488230 SPACER
154568002 154568002 SPRAY ARM
154430501 154430501 SPRING
154662601 154662601 STRIKE
154728201 154728201 SUMP ASSEMBLY
154294101 154294101 SUPPORT
154773201 154773201 SWITCH ASSEMBLY FLOAT
154227501 154227501 THERMISTER
154642901 154642901 THERMOSTAT
154745503 154745503 TOEPLATE
154252701 154252701 TRAP
154729401 154729401 TUB ASSEMBLY
154824201 154824201 TUBE
154446002 154446002 TUBING
154637401 154637401 VALVE
154433001 154433001 VENT ASSEMBLY
