Model Image
Manufacturer

Electrolux

Model Number

CDEC100FW0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5308027429 5308027429 ADHESIVE
134088700 134088700 BACKPANEL
3204254 3204254 BAFFLE
5303281019 5303281019 BALL
131825900 131825900 BEARING
131775600 131775600 BLOWER ASSEMBLY
131785200 131785200 BRACKET
131724300 131724300 BRACKET
131469100 131469100 BRACKET
134487900 134487900 BRACKET
134203400 134203400 BRACKET
131111501 131111501 BUTTON
134242400 134242400 CLAMP
3205821 3205821 CLIP
5303281020 5303281020 CLIP
131704600 131704600 CLIP
134440100 134440100 CLIP
131197000 131197000 CLIP
5303211428 5303211428 COVER
131622202 131622202 COVER
131122601 131122601 COVER
131122611 131122611 COVER
131658800 131658800 DOOR CATCH
134122532 134122532 DRUM

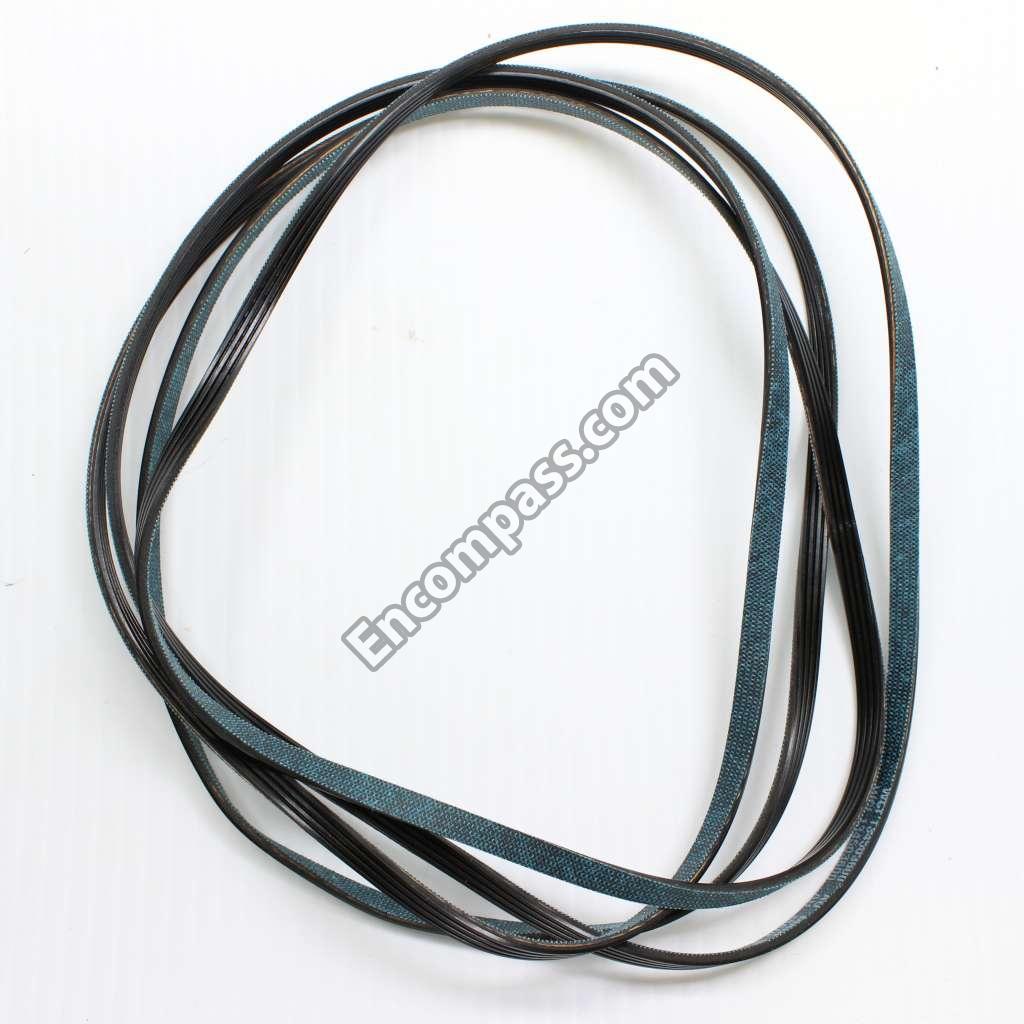

134503600 134503600 DRYER BELT
131122714 131122714 END CAP
131122701 131122701 END CAP-RH WHITE
131129900 131129900 GASKET
131644700 131644700 HANDLE
134109200 134109200 HARNESS-FSD WTJ ELE
131553900 131553900 HEATER ASSEMBLY FOR DRYER
134222900 134222900 HINGE
131863007 131863007 IDLER ARM ASSEMBLY
131474700 131474700 INSULATION
131472100 131472100 INSULATOR
131435200 131435200 LOCK
131560100 131560100 MOTOR & PULLEY
131789303 131789303 PANEL
131844104 131844104 PANEL
134086802 134086802 PANEL
131633200 131633200 PLUG
134502300 134502300 POWER CORD
134446800 134446800 RESISTOR
131892100 131892100 SCREW
131205400 131205400 SCREW
131168200 131168200 SCREW
131382300 131382300 SCREW
134156200 134156200 SCREW
131243800 131243800 SCREW
131266330 131266330 SCREW
131205100 131205100 SCREW
131202300 131202300 SCREW
131017900 131017900 SCREW
134154100 134154100 SCREW 10-32X.375 CO
134440200 134440200 SEAL
134417000 134417000 SEAL
131633300 131633300 SEAL-EXHAUST TUBE
5303281153 5303281153 SHAFT
131749800 131749800 SPACER
131601000 131601000 SPRING
131469000 131469000 SWITCH
3202786 3202786 TERMINAL BLOCK
134101400 134101400 TERMINAL BLOCK KIT
134120900 134120900 THERMAL LIMITER
3204267 3204267 THERMOSTAT
5308015398 5308015398 THERMOSTAT
5303297177 5303297177 TIMER
131450300 131450300 TRAP
131456800 131456800 TUBE
131451600 131451600 TUBE-EXHAUST
