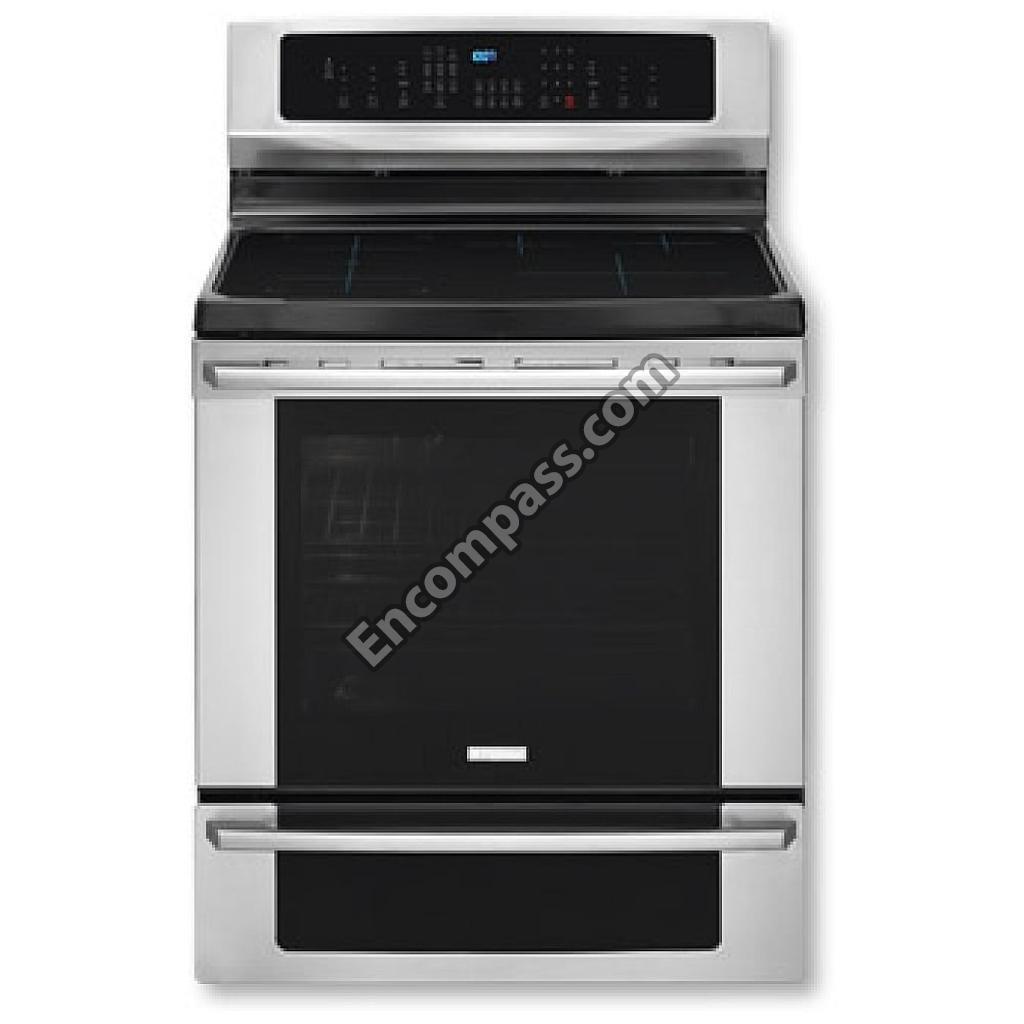

Model Image
Manufacturer

Electrolux

Model Number

CEI30IF4LSB

Description

Electric Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
316112005 316112005 ANTI TIP KIT
316502006 316502006 BACK
316517500 316517500 BADGE
316563501 316563501 BASE
316091900 316091900 BASE
316549602 316549602 BOTTOM
316563400 316563400 BRACKET
316404100 316404100 BRACKET
316093200 316093200 BRACKET
316530403 316530403 BRACKETAIRWASH GLA
316580800 316580800 BRACKETHINGE
316381001 316381001 CAP
316381004 316381004 CAP
316382102 316382102 CAP
316427604 316427604 CHANNEL
316468100 316468100 CLEANER
316408000 316408000 CLIP
316461700 316461700 CLIP
316095800 316095800 CLIP
316305400 316305400 CONTROL ASSEMBLY
318113111 318113111 CORD
316026702 316026702 COVER
316457801 316457801 COVER
316408902 316408902 DRAWER
316211603 316211603 ELEMENT
316563600 316563600 ELEMENT
316430900 316430900 ELEMENT
316306000 316306000 ELEMENT
316305600 316305600 ELEMENT
316305801 316305801 ELEMENT
316305800 316305800 ELEMENT
316437300 316437300 ELEMENT
318398302 318398302 FAN BLADE
316303100 316303100 FASTENER
316502600 316502600 GLASS
316502500 316502500 GLASS
316453038 316453038 GLASS ASSEMBLY
316456700 316456700 GLIDE
316415001 316415001 GLIDE
316415002 316415002 GLIDE
316380802 316380802 HANDLE
316580513 316580513 HARNESS
316525625 316525625 HARNESS
316525626 316525626 HARNESS
316525631 316525631 HARNESS
316525623 316525623 HARNESS
807233201 807233201 HARNESS
5304490378 5304490378 HARNESS
316303503 316303503 HARNESS ASSEMBLY
316575908 316575908 HINGE
316082001 316082001 INSERT
316565300 316565300 INSULATION
316565400 316565400 INSULATION
316565500 316565500 INSULATION
316301700 316301700 INSULATION
316406601 316406601 INSULATION
316306800 316306800 INSULATION
316513000 316513000 INSULATION
316483100 316483100 LABEL
316510700 316510700 LAMP
316405800 316405800 LATCH ASSEMBLY
316498900 316498900 LEVELLING LEG ASSEMBLY
316403303 316403303 LINER
5304490373 5304490373 MAINTOP
316380112 316380112 MEMBRANE ASSEMBLY
316256100 316256100 MOTOR
316464300 316464300 MOTOR-LATCH
316205500 316205500 NUT
316136600 316136600 NUT
316381602 316381602 OVERLAY
316081901 316081901 PAN
316306401 316306401 PANEL
316382700 316382700 PANEL
316306501 316306501 PANELMTG COILS LH
316533801 316533801 PLATE
316490000 316490000 PROBE
316496207 316496207 RACK
316575600 316575600 RACK
316425900 316425900 RACK
316571800 316571800 RACK ASSEMBLY
316441300 316441300 RECEPTACLE
316581300 316581300 RETAINER
316203500 316203500 ROD
316533900 316533900 SCREW
316021105 316021105 SCREW
316021109 316021109 SCREW
316021110 316021110 SCREW
316001003 316001003 SCREW
316418900 316418900 SCREW
316272900 316272900 SCREW
316116000 316116000 SCREW
5303289910 5303289910 SCREW
316282700 316282700 SCREW
5303285179 5303285179 SCREW
316089500 316089500 SCREW
316021132 316021132 SCREW
316439503 316439503 SCREW
316513301 316513301 SCREW
5308014215 5308014215 SCREW
316405000 316405000 SEAL
316302203 316302203 SEALS
316302503 316302503 SHEILD
316355000 316355000 SHIELD
316380500 316380500 SHIELD
316402100 316402100 SHIELD
316572300 316572300 SHIELD
316572301 316572301 SHIELD
316404601 316404601 SHIELD
316570901 316570901 SHIELD
316306701 316306701 SHIELD
316093300 316093300 SHIELD
316503800 316503800 SHIELD
316114100 316114100 SPACER
316517600 316517600 SPACER
316502101 316502101 SPACER
316380400 316380400 SUPPORT
316505801 316505801 SUPPORT
316429100 316429100 SUPPORT
316445500 316445500 SWITCH
316093502 316093502 THERMO DISC
316208304 316208304 TUBE
316208401 316208401 VENT TUBE
316381401 316381401 WRAPPER
