Model Image
Manufacturer

Electrolux

Model Number

CFEF3007LBC

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
316201300 316201300 BACK
316441600 316441600 BRACKET-CLOCK MTG
316286300 316286300 BRACKETBODYSIDE
316491201 316491201 CAP
316408000 316408000 CLIP
318113111 318113111 CORD
316457801 316457801 COVER
316233500 316233500 COVER
316233400 316233400 COVER
316408703 316408703 DRAWER
316225001 316225001 ELEMENT
316202822 316202822 GLASS
316088600 316088600 GLASS
316407400 316407400 GLIDE
316407301 316407301 GLIDE
316580400 316580400 HARNESS
316580000 316580000 HARNESS
316566211 316566211 HINGE
316566210 316566210 HINGE
316436600 316436600 HINGE BRACKET
316082000 316082000 INSERT
316236802 316236802 INSULATION
316054202 316054202 INSULATION
316047707 316047707 INSULATION
316543801 316543801 KNOB
316433602 316433602 LABEL
316498900 316498900 LEVELLING LEG ASSEMBLY
316022500 316022500 LIGHT/LAMP
316230628 316230628 LINER
316284800 316284800 LINER

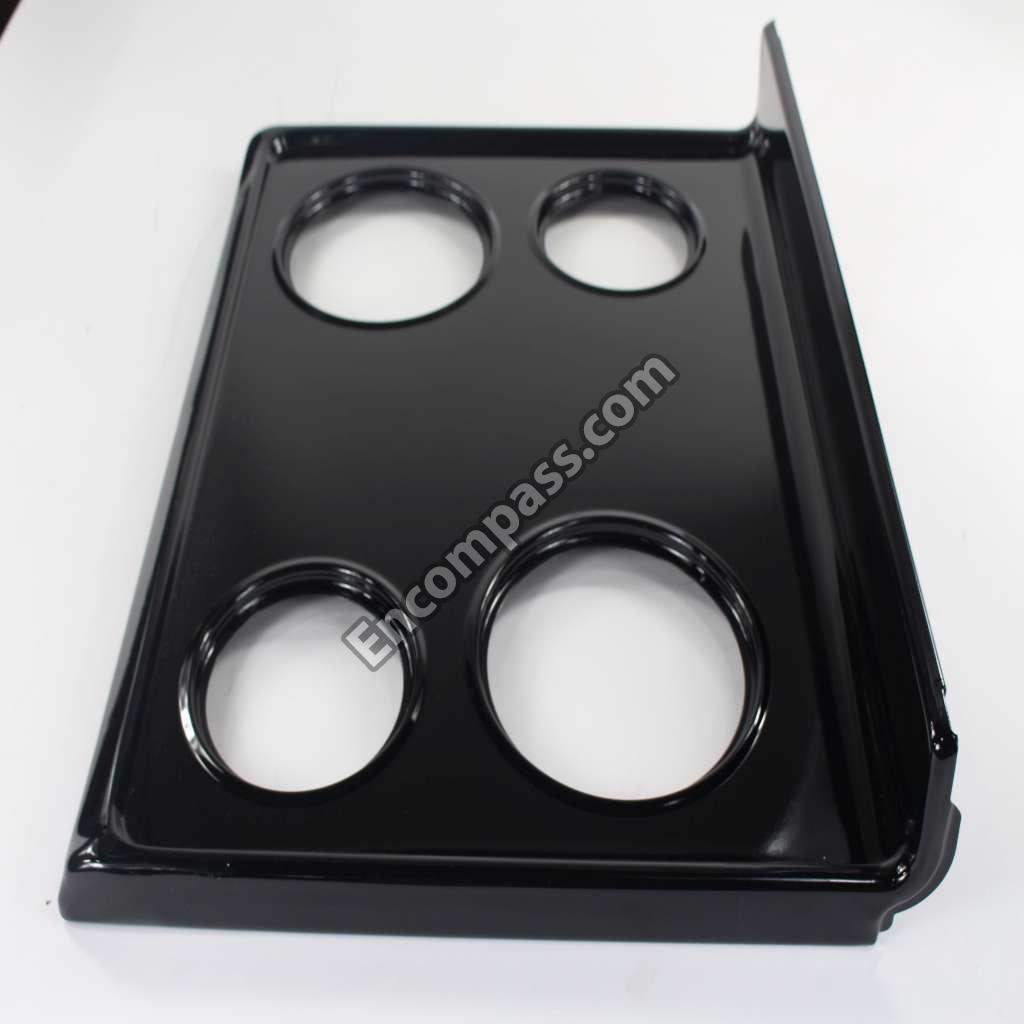

316202387 316202387 MAIN TOP
5303017715 5303017715 MEDALLION
316205500 316205500 NUT
316455400 316455400 OVEN CONTROL BOARD
316220725 316220725 OVERLAY
316081900 316081900 PAN
316231306 316231306 PANEL
316201501 316201501 PANEL
316541622 316541622 PANELBKGD

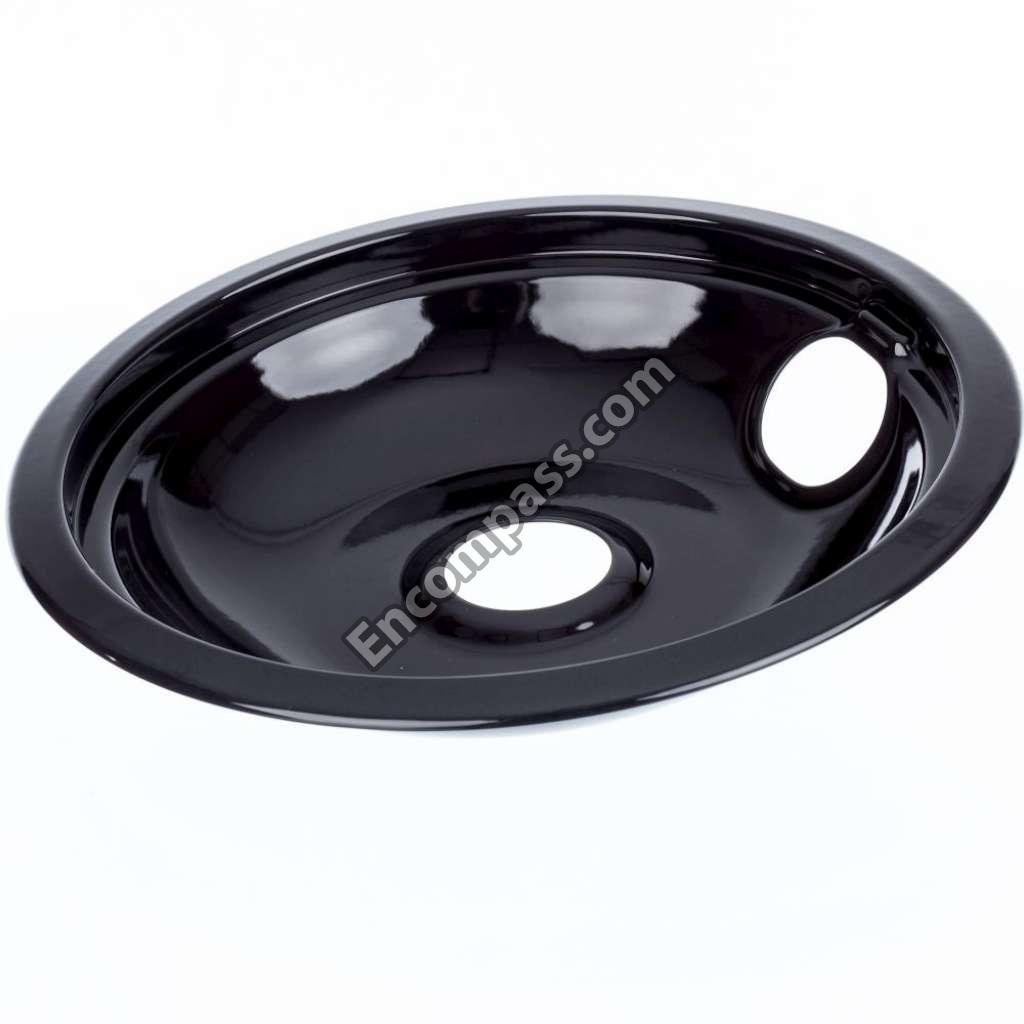

318067075 318067075 PANSURFACE ELEMENT
316444100 316444100 PLATEWEIGHT
316210800 316210800 PLUG
316067902 316067902 RACK
316116400 316116400 RECEPTACLE
316581300 316581300 RETAINER
316057601 316057601 ROD
316278700 316278700 SCREW
316116000 316116000 SCREW
5303271648 5303271648 SCREW
316418901 316418901 SCREW
316021108 316021108 SCREW
316272900 316272900 SCREW
316001003 316001003 SCREW
316021110 316021110 SCREW
316021105 316021105 SCREW
316089500 316089500 SCREW
5308014215 5308014215 SCREW
316239700 316239700 SEAL
316222709 316222709 SHIELD
316547400 316547400 SHIELD
316422304 316422304 SHIELD
316234013 316234013 SHIELD
316203400 316203400 SUPPORT
316206300 316206300 SUPPORT
316411405 316411405 SUPPORT
316411404 316411404 SUPPORT
316436000 316436000 SWITCH
316448700 316448700 SWITCH
316436001 316436001 SWITCH FOR RANGE/STOVE
5303935345 5303935345 TRIM KITDOOR
316073605 316073605 TUBE
3131737 3131737 WASHER-HINGE
