Model Image
Manufacturer

Electrolux

Model Number

CFEW3025LBA

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
318259220 318259220 BACK
318260531 318260531 BAFFLE
318577800 318577800 BOX
318394441 318394441 BOX & WIRES ASSEMBLY
318382301 318382301 BRACKET
318256201 318256201 BRACKET
318579001 318579001 BRACKET
318260622 318260622 BRACKET
5303013071 5303013071 BULB/LAMP

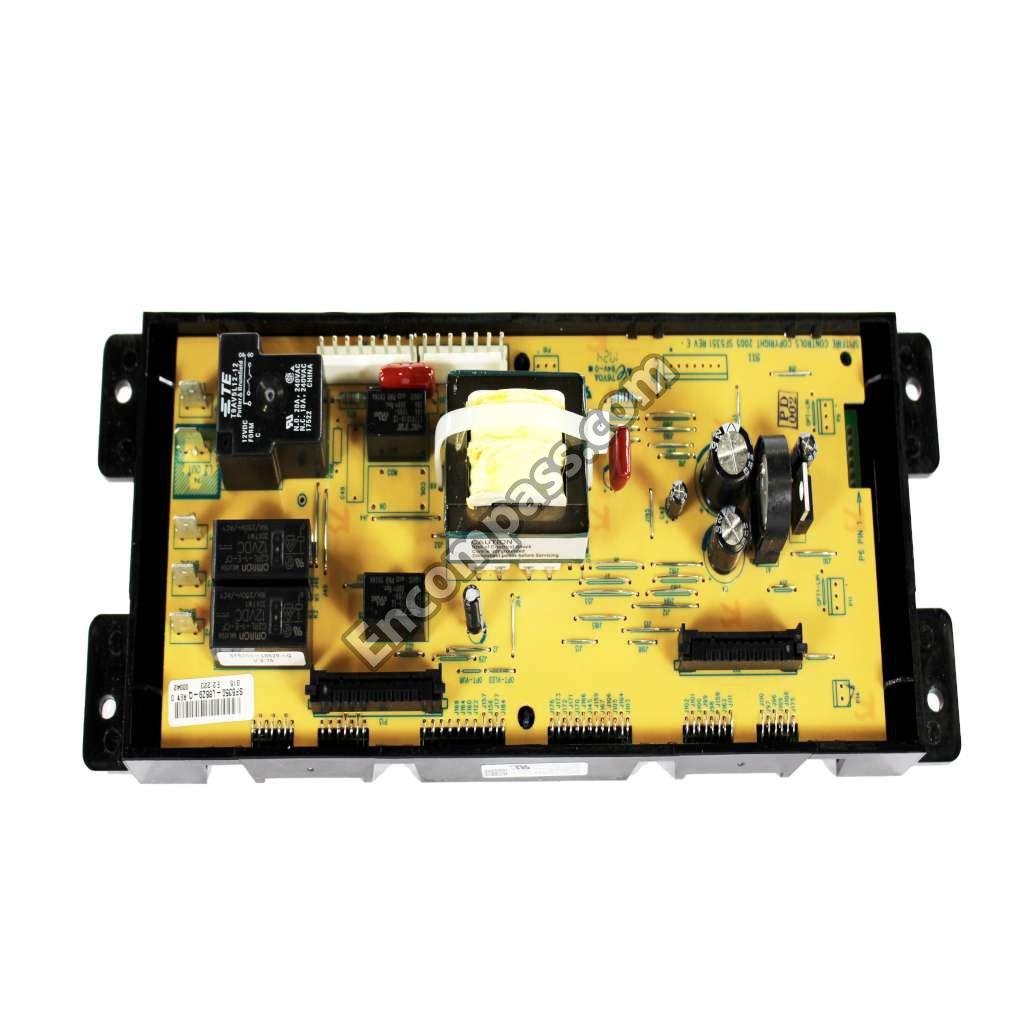

316418529 316418529 CLOCK/TIMER
318260104 318260104 COVER
318123910 318123910 DEFLECTOR
318254918 318254918 ELEMENT
318056292 318056292 FRONT
318053132 318053132 GASKET
316117500 316117500 GLASS
318572718 318572718 HARNESS
318567101 318567101 HINGE
318222400 318222400 HOUSING
316082000 316082000 INSERT
318268099 318268099 INSULATION
318406100 318406100 LENS
318411650 318411650 LINER
318261456 318261456 LINER
318575600 318575600 MOTOR
5303323144 5303323144 NUT
316081900 316081900 PAN
318570500 318570500 PANEL
318577700 318577700 PANEL
318260007 318260007 PANEL
5303320846 5303320846 PLATE
318402800 318402800 PLATE
316217002 316217002 PROBE
318922306 318922306 RACK
318561101 318561101 RECEPTACLE
318112703 318112703 RELAY
5304400195 5304400195 RETAINER
5304400192 5304400192 RETAINER WIRE
5304453593 5304453593 SCREW
5303325981 5303325981 SCREW
5304417153 5304417153 SCREW
5304415832 5304415832 SCREW
5303211311 5303211311 SCREW
5304461333 5304461333 SCREW
5303323129 5303323129 SCREW
5303323277 5303323277 SCREW
5303323139 5303323139 SCREW
5303324184 5303324184 SCREW
5304436875 5304436875 SCREW
5304454881 5304454881 SCREW
5304476599 5304476599 SCREW
318259105 318259105 SHIELD
318258765 318258765 SHIELD
318257305 318257305 SHIELD
5304455945 5304455945 SPACER
318165800 318165800 SPACER
316517600 316517600 SPACER
318531703 318531703 SPACER
318531800 318531800 SPACER
318192400 318192400 SPRING
5304403015 5304403015 SUPPORT
318172904 318172904 SUPPORT
316445501 316445501 SWITCH
318260401 318260401 TRIM
318260201 318260201 TRIM
318257706 318257706 TRIM
318259701 318259701 TRIM
