Model Image
Manufacturer

Electrolux

Model Number

CFUM21PW1

Description

Freezer

Interactive Exploded View
Exploded View

Parts List

Part Number Description
216970800 216970800 BEARING
297006800 297006800 BEARING-HINGE
297187204 297187204 BINDOOR
297343600 297343600 BOTTOM BASKET
297164650 297164650 BRACKET
297164651 297164651 BRACKET
297200900 297200900 BREAKER KIT W/CORNE
297201100 297201100 BREAKER KIT W/CORNE
297200100 297200100 BREAKER KIT W/CORNE
5305878546 5305878546 BUMPER-BASKET
216985001 216985001 CAPACITORRUN
216823500 216823500 CLAMP
216954300 216954300 CLIP
216273000 216273000 CLIP
297213300 297213300 CLIP
297315800 297315800 CLIP
5304472186 5304472186 CLIP
297414052 297414052 COMPRESSOR
5300083897 5300083897 CONDENSER
297259502 297259502 CONTROLLER
297013800 297013800 COVER-CONTROL HOUSI
297257000 297257000 DOOR STOP
5308005500 5308005500 DRAIN
216514000 216514000 END CAP
216513900 216513900 END CAP
297286000 297286000 EVAP TUBING ASM WHT
216524201 216524201 GASKET
216522362 216522362 GASKETDOOR
297036902 297036902 GRILLE/KICKPLATE
216225700 216225700 GROMMETSPACER
297311201 297311201 HANDLE-DOOR
297429100 297429100 HANDLEDOOR
297171900 297171900 HARNESSMAIN
297283800 297283800 HINGE-UPPER
297283900 297283900 HINGEBOTTOM
216313502 216313502 HOSEDRAIN
297001704 297001704 INSULATION
297147700 297147700 KEY
216707200 216707200 KNOB
216948401 216948401 LIGHT
297181900 297181900 LIGHT
297114000 297114000 LIGHT BULB
297318600 297318600 LOCK ASSEMBLY
297185900 297185900 PANELINNER DOOR

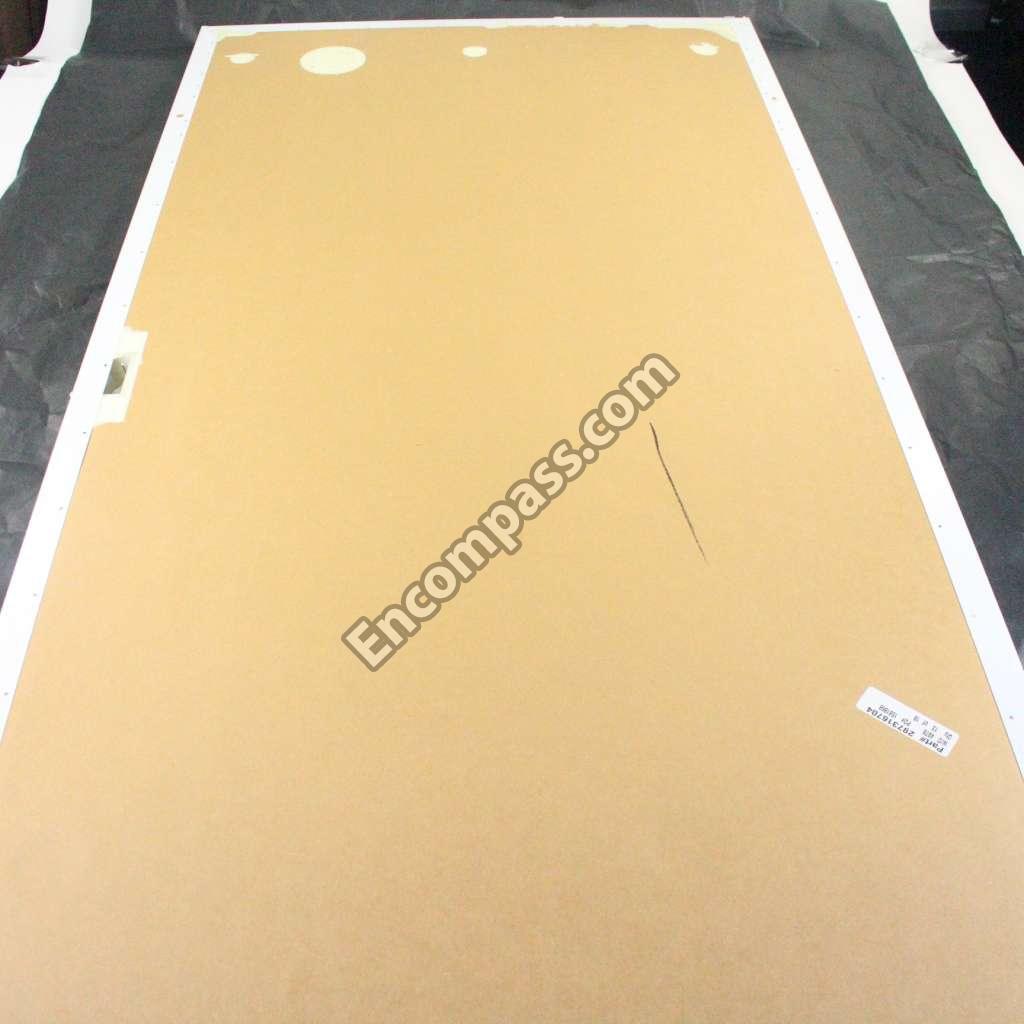

297316704 297316704 PANELOUTSIDE DOOR
216502600 216502600 PLUG
216403700 216403700 PLUGBUTTON
216503300 216503300 RAMP
216138901 216138901 SCREW
216036601 216036601 SCREW
297347900 297347900 SCREW
297197500 297197500 SCREW
5304460604 5304460604 SCREW
297236250 297236250 SCREW
297174300 297174300 SCREW
240555002 240555002 SCREW-#8-32 X 3/8
240491503 240491503 SCREW-COMPRESSOR MT
216396900 216396900 SCREW-LEG
297186701 297186701 SHELF
216926700 216926700 SHIELD
297184400 297184400 SHIELDLIGHT
216502500 216502500 SLEEVE
297139500 297139500 SOCKET
297102800 297102800 SPACER-TUBE
216486500 216486500 STOP-BASKET
216474600 216474600 SUPPORT-REAR SHELF
297001500 297001500 SUPPORT-SHELF
297001600 297001600 SUPPORT-SHELF
216822900 216822900 SWITCH
216847806 216847806 TRIM-SHELF
297273900 297273900 TRIMCABINET CORNER
297309800 297309800 TRIMHANDLE
297280400 297280400 VALVE
