Model Image
Manufacturer

Electrolux

Model Number

CFUMC17QWA

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5304497658 5304497658 BASKET
216970802 216970802 BEARING,HINGE,BLACK,TOP
297164651 297164651 BRACKET
297164650 297164650 BRACKET
297435601 297435601 BREAKER
297403902 297403902 BREAKER,BOTTOM
297403901 297403901 BREAKER,TOP
5305878546 5305878546 BUMPER-BASKET
297286803 297286803 CAPACITORRUN
216823500 216823500 CLAMP
216954300 216954300 CLIP
297213300 297213300 CLIP
5304406520 5304406520 CLIP
297315800 297315800 CLIP
5304472186 5304472186 CLIP
297416000 297416000 CLOSER,BEARING HINGE
297368500 297368500 COMP BOLT UPRIGHTS
297414053 297414053 COMPRESSOR,DGK57C
297216034 297216034 CONTROL-TEMPERATURE
297259502 297259502 CONTROLLER
297442700 297442700 COVER,EVAPORATOR
297013800 297013800 COVER-CONTROL HOUSI
297164400 297164400 COVERHINGE
297416200 297416200 DOOR STOP
297382000 297382000 DRAIN
297234500 297234500 EVAPORATOR

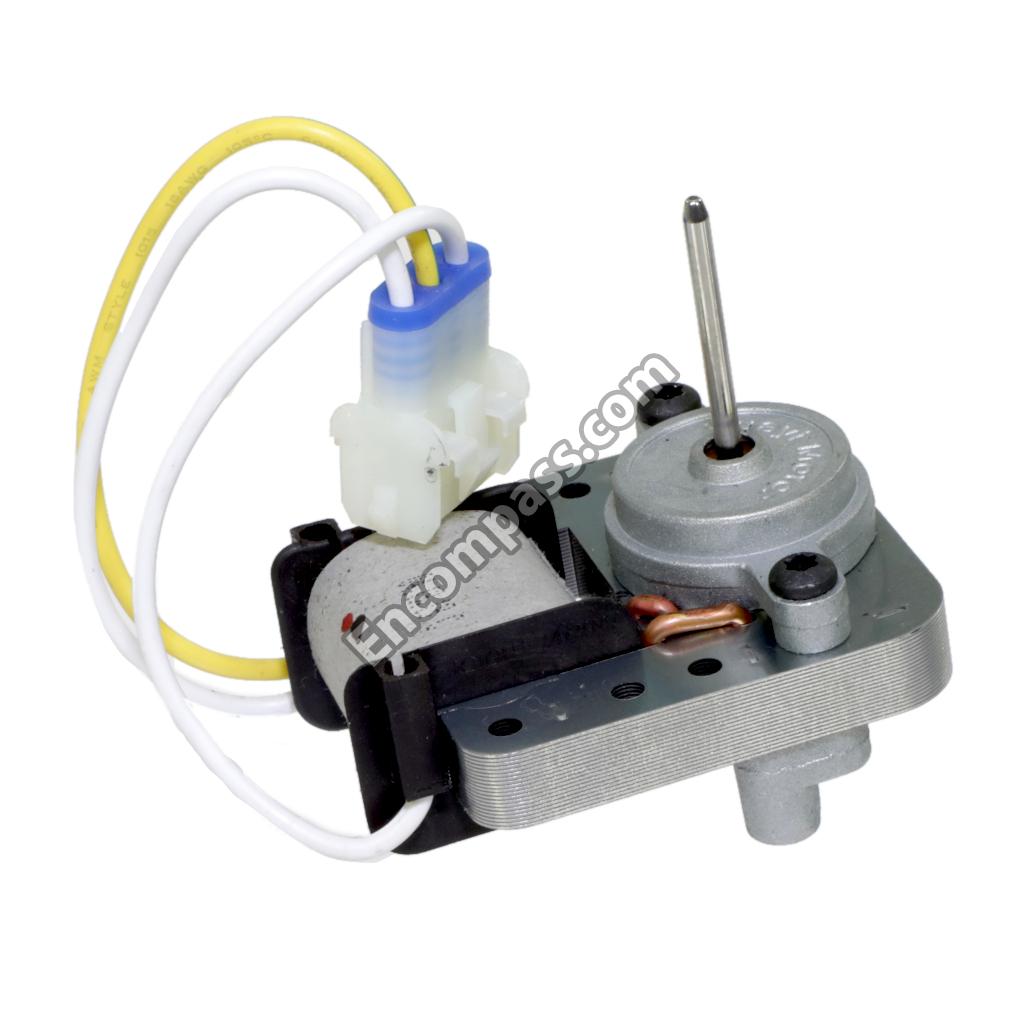

297250001 297250001 FAN
297387100 297387100 GASKET,SECONDARY
5304506127 5304506127 GASKET-DOOR,WHITE
216204902 216204902 GASKETEVAP COVER
216225700 216225700 GROMMETSPACER
242152702 242152702 HANDLEDOOR
297171900 297171900 HARNESSMAIN
297283800 297283800 HINGE-UPPER
216313502 216313502 HOSEDRAIN
297001704 297001704 INSULATION
297147700 297147700 KEY
216707200 216707200 KNOB
216846400 216846400 LIGHT BULB/LAMP
5304495394 5304495394 LIGHT SIGNAL,ROUND,GREEN
297318600 297318600 LOCK ASSEMBLY
240537301 240537301 NUT-ANCHOR
297382700 297382700 PANEL-INNER DOOR,FRZR
297316559 297316559 PANEL-OUTER DOOR,WHITE
216502600 216502600 PLUG
297014702 297014702 PLUGSUCTION LINE
5304494023 5304494023 RACK,DOOR
297415900 297415900 RAMP,DOOR CLOSER
216138901 216138901 SCREW
216337701 216337701 SCREW
216036601 216036601 SCREW
216912401 216912401 SCREW
297197500 297197500 SCREW
297236250 297236250 SCREW
297410600 297410600 SCREW
297174300 297174300 SCREW
297146820 297146820 SCREW
5304460604 5304460604 SCREW
240555002 240555002 SCREW-#8-32 X 3/8
216396900 216396900 SCREW-LEG
218755504 218755504 SCREW-SHOULDER
297295900 297295900 SCREWSET
297441903 297441903 SHELF,12.50 X 27.88,WIRE
297441904 297441904 SHELF,16.69 X 27.88,WIRE
297184400 297184400 SHIELDLIGHT
297139501 297139501 SOCKET
297102800 297102800 SPACER-TUBE
216486500 216486500 STOP-BASKET
216474600 216474600 SUPPORT-REAR SHELF
297001600 297001600 SUPPORT-SHELF
297001500 297001500 SUPPORT-SHELF
216822900 216822900 SWITCH
216847806 216847806 TRIM-SHELF
297273900 297273900 TRIMCABINET CORNER
5303916855 5303916855 TUBE
297280400 297280400 VALVE
