Model Image
Manufacturer

Electrolux

Model Number

CGEF304DKF3

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
318357001 318357001 ADAPTER
318322801 318322801 ANGLE
5304469772 5304469772 ANTI TIP KIT
318259220 318259220 BACK
318260526 318260526 BAFFLE
318260531 318260531 BAFFLE
316443931 316443931 BOARD
316442112 316442112 BOARD
316442063 316442063 BOARD
318297303 318297303 BOX
318571400 318571400 BRACE
318370600 318370600 BRACKET
318382301 318382301 BRACKET
318242702 318242702 BRACKET
316214202 316214202 BRACKET
318407200 318407200 BRACKET
318561801 318561801 BRACKET
318565000 318565000 BRACKET
318251300 318251300 BRACKET
318313601 318313601 BRACKET
318338520 318338520 BRACKET
318256210 318256210 BRACKET
318361801 318361801 BRACKET
318405500 318405500 BRACKET
318603915 318603915 BRACKET
318573700 318573700 BRACKET
318535405 318535405 BRACKET SIDE (4)
318141910 318141910 BUMPER
318413501 318413501 CAP
318408401 318408401 CATALYST ASSEMBLY
318347800 318347800 CHIMNEY
318167300 318167300 CLIP
316443850 316443850 CONTROL
318411411 318411411 CONTROL ASSEMBLY
318219405 318219405 COVER
318123910 318123910 DEFLECTOR
318072577 318072577 DUCT

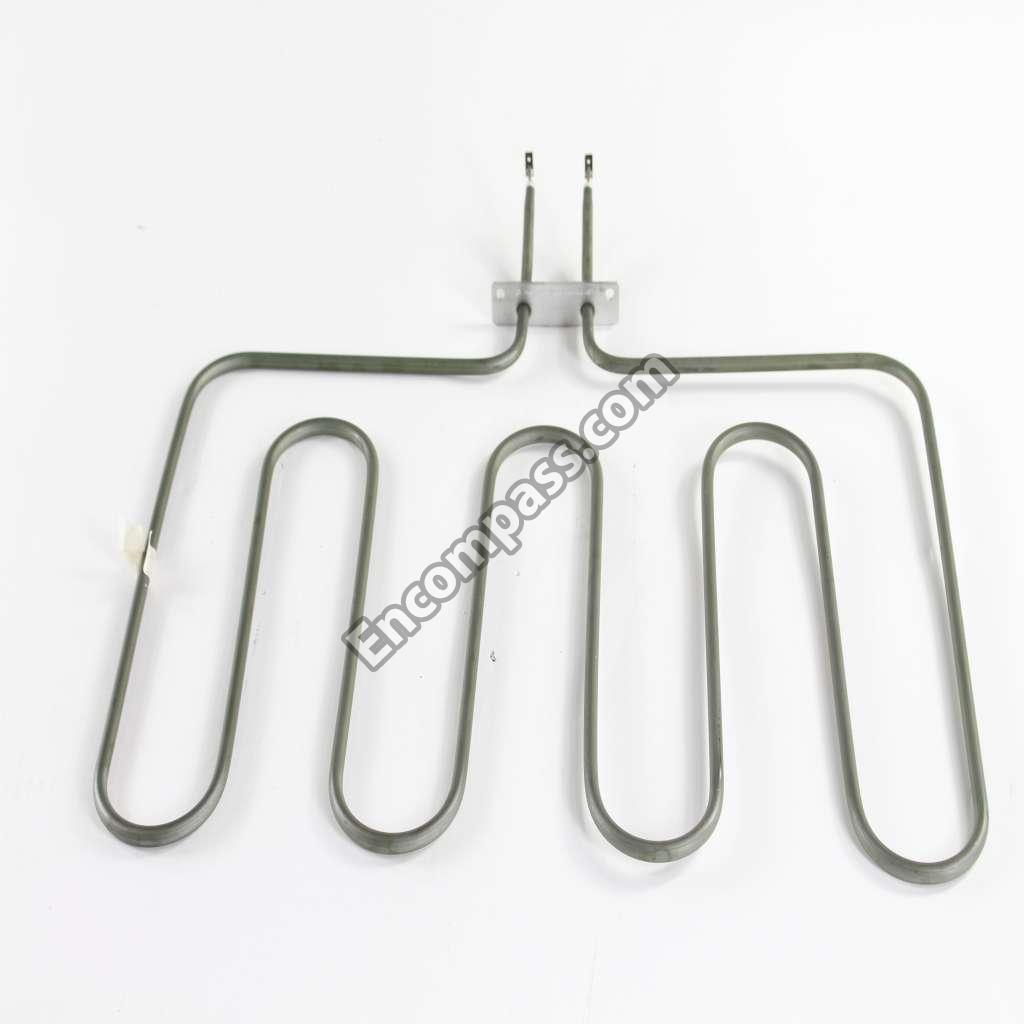

318255501 318255501 ELEMENT
318255857 318255857 ELEMENT
318254915 318254915 ELEMENT
318311935 318311935 END CAP
318311934 318311934 END CAP
318398302 318398302 FAN BLADE
318056292 318056292 FRONT
316117500 316117500 GLASS
318212212 318212212 GLASS
318212211 318212211 GLASS
318212210 318212210 GLASS
318532135 318532135 HARNESS
318532133 318532133 HARNESS
318402362 318402362 HARNESS
318567132 318567132 HINGE
316436600 316436600 HINGE BRACKET
318222400 318222400 HOUSING
318929702 318929702 INSERT
316082000 316082000 INSERT
318372007 318372007 INSULATION
318285098 318285098 INSULATION
807162601 807162601 INSULATION
318330501 318330501 INSULATION
318372015 318372015 INSULATION
318362133 318362133 INSULATION
318362152 318362152 INSULATION
318285079 318285079 INSULATION
318346050 318346050 INSULATION
318641700 318641700 INSULATION
318294912 318294912 INSULLATION
316575202 316575202 KNOB
318603810 318603810 LADDER
318406100 318406100 LENS
318411610 318411610 LINER
318259678 318259678 LINER
318261734 318261734 LINER
318364425 318364425 LINER
318364211 318364211 LINER
318364111 318364111 LINER
316547900 316547900 LINK
318394212 318394212 MAIN TOP ASSEMBLY
318073028 318073028 MOTOR
318095967 318095967 MOTOR
318261226 318261226 MOTOR
316136600 316136600 NUT
5303323144 5303323144 NUT
316247700 316247700 NUT
316081900 316081900 PAN
318359500 318359500 PANEL
318361610 318361610 PANEL
318405404 318405404 PANEL
318407100 318407100 PANEL
318314111 318314111 PANEL
318573502 318573502 PANEL
318187997 318187997 PANEL ASSEMBLY
318934301 318934301 PANEL ASSEMBLY
318299882 318299882 PANEL BODY SIDE BLCK
318368300 318368300 PIN
318389400 318389400 PLATE
5303320846 5303320846 PLATE
318402800 318402800 PLATE
318601905 318601905 RACK
318921601 318921601 RACK
318926802 318926802 RACK
318922304 318922304 RACK
318561101 318561101 RECEPTACLE
5304400195 5304400195 RETAINER
5304456367 5304456367 RIVET
318250207 318250207 ROD
5303308456 5303308456 SCREW
5303317179 5303317179 SCREW
5303300265 5303300265 SCREW
5303325980 5303325980 SCREW
5304436875 5304436875 SCREW
5304415832 5304415832 SCREW
5304461333 5304461333 SCREW
5304401490 5304401490 SCREW
5303323139 5303323139 SCREW
5303323130 5303323130 SCREW
5303323129 5303323129 SCREW
318175503 318175503 SCREW
5303323277 5303323277 SCREW
5303211311 5303211311 SCREW
5304454881 5304454881 SCREW
318053152 318053152 SEAL
318389000 318389000 SEAL
318562500 318562500 SENSOR
318258960 318258960 SHIELD
318258779 318258779 SHIELD
318534912 318534912 SHIELD
318264724 318264724 SPACER
318264720 318264720 SPACER
5303317178 5303317178 SPACER
316114100 316114100 SPACER
318165800 318165800 SPACER
316517600 316517600 SPACER
318293702 318293702 SPACER
5303300414 5303300414 SPACER
5303317177 5303317177 SPRING
5303311164 5303311164 SPRING
318192400 318192400 SPRING
5304403015 5304403015 SUPPORT
318172904 318172904 SUPPORT
318927600 318927600 SUPPORT
318252804 318252804 SUPPORT
316445501 316445501 SWITCH
318004902 318004902 SWITCH
318301422 318301422 TRIM
318301412 318301412 TRIM
318405201 318405201 TRIM
318257829 318257829 TRIM
318566201 318566201 TRIM
318249409 318249409 TUBE
318408203 318408203 VENT TUBE
3201909 3201909 WASHER
5304436864 5304436864 WASHER
316247800 316247800 WASHER
318231870 318231870 WIRING HARNESS
318370378 318370378 WIRING HARNESS
