Model Image
Manufacturer

Electrolux

Model Number

CGR3600AS3

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5308027429 5308027429 + ADHESIVE,HIGH TEMP
5303207410 5303207410 + ORIFICE,NATURAL GAS ,SIZE 44

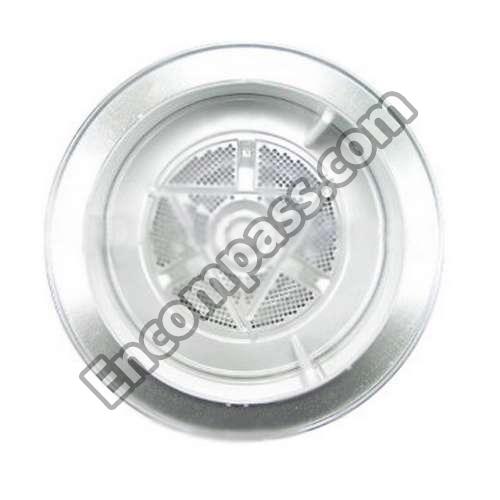

134122532 134122532 ASMY-FS DRUM-GAS-GALV
134088700 134088700 BACKPANEL
5303281019 5303281019 BALL,GROUNDING
131825900 131825900 BEARING,DRUM SUPPORT

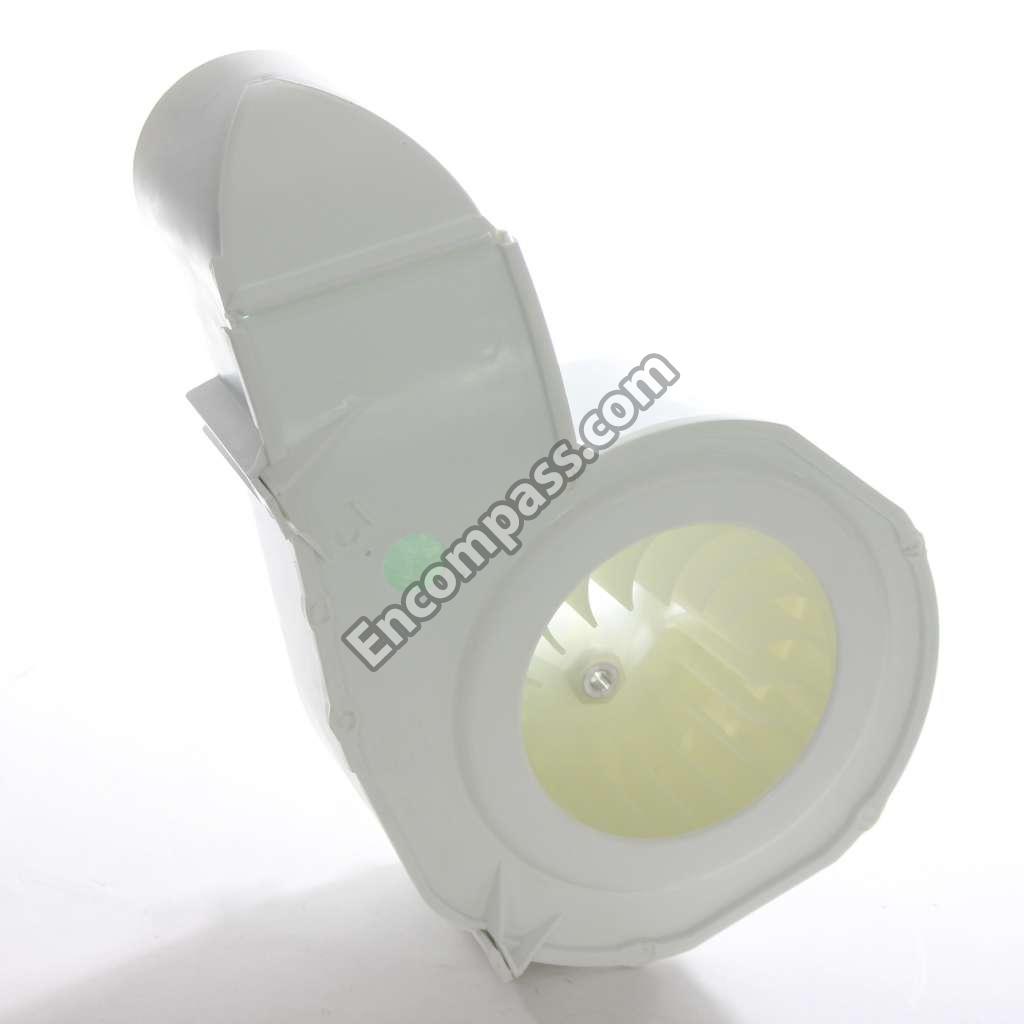

131775600 131775600 BLOWER ASSY,HOUSING ,W/COVER & WHEEL
131469100 131469100 BRACKET
131728900 131728900 BRACKET
134203400 134203400 BRACKET
134122000 134122000 BRACKET
131724300 131724300 BRACKET,BEARING SUPPORT
134197700 134197700 BURNER
134128700 134128700 BUSHING
131111501 131111501 BUTTON,START SWITCH ,WHITE ,PUSH TYPE
5303210285 5303210285 BUZZER
134242400 134242400 CLAMP
131063700 131063700 CLIP
5303281020 5303281020 CLIP,BALL ,STEEL ,FLAT NUT
131197000 131197000 CLIP,CONSOLE MTG
131704600 131704600 CLIP,FRONT ,CABINET BOTTOM
5303281074 5303281074 CLIP,GUIDE ,(3)
3205821 3205821 CLIP,TOP-TO-FRONT
131363200 131363200 COVER
131122611 131122611 COVER,END CAP ,WHITE ,LH
131122601 131122601 COVER,END CAP ,WHITE ,RH
131622202 131622202 COVER,LINT HOUSING
131658800 131658800 DOOR CATCH
131952100 131952100 DUCT
131621903 131621903 DUCT,AIR
131122711 131122711 END CAP - L.H.
131122701 131122701 END CAP-R.H.- WHITE
131129900 131129900 GASKET,DOOR SEAL
137513300 137513300 GLIDE,DRUM
131644700 131644700 HANDLE,DOOR ,WHITE
131863007 131863007 IDLER ARM
131474700 131474700 INSULATION

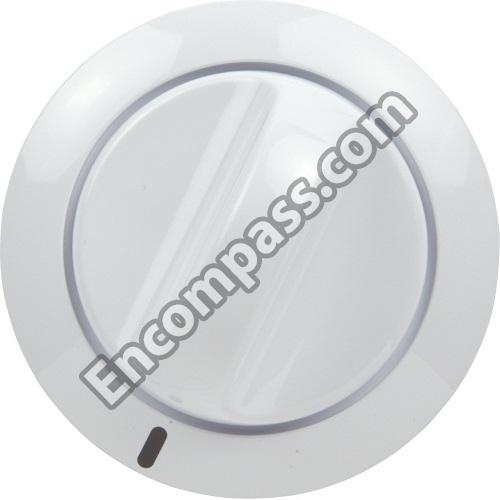

131141105 131141105 KNOB,ROTARY ,WHITE/DK GRAY
134011703 134011703 KNOB,TIMER ,WHITE/GRAY
131435200 131435200 LOCK
5303307893 5303307893 LUBRICANT,HIGH TEMP
131560100 131560100 MOTOR & PULLEY ASSY
131793201 131793201 PANEL
131844104 131844104 PANEL
134155300 134155300 PANEL
134086802 134086802 PANEL,DRYER TOP ,WHITE ,CONSOLE MTG
131789303 131789303 PANEL,OUTER DOOR ,WHITE
137011800 137011800 PIPE
131633200 131633200 PLUG
131397000 131397000 PLUG,DOME ,WHITE
137576600 137576600 PLUG,LIGHT HOLE
134501200 134501200 POWER CORD,ELECTRIC SVCE
5303281153 5303281153 REAR BEARING KIT,INCLUDES 5,6 ,12,13,14,18,32
131205100 131205100 SCREW
131017900 131017900 SCREW
131202300 131202300 SCREW
134154100 134154100 SCREW 10-32X.375 CO
131477000 131477000 SCREW,10-16AB X 0.375
131266330 131266330 SCREW,8-18 X 1.250
131205400 131205400 SCREW,BRACKET MTG. ,10-16B X 1.375 ,CR/SQ DRIVE
134156200 134156200 SCREW,FLAT HEAD `8-18AB X 0.44 ,CR/SQ DRIVE
5303015671 5303015671 SCREW,HEX WASHER HEAD ,8-18 X 0 .375 ,CUP POINT
131168200 131168200 SCREW,PAN HEAD ,8-18B X 0.31
131382300 131382300 SCREW,QUADREX HEAD ,10-14 X 1.00 ,VANE MTG.,SPECIAL
131243800 131243800 SCREW-BRKT TOP,PAN HD LOCKING ,
131633300 131633300 SEAL-EXHAUST TUBE
5303281135 5303281135 SENSOR,RADIANT
131749800 131749800 SPACER
131601000 131601000 SPRING,IDLER ARM
134904500 134904500 SWITCH,2 POSITION
134813600 134813600 SWITCH,DOOR ,W/O DRUM LIGHT
131469000 131469000 SWITCH,PUSH/START
134185100 134185100 TAIL PIECE
5308015399 5308015399 THERMOSTAT,SAFETY
131298400 131298400 THERMOSTAT,TEMP CONTROL
5303297139 5303297139 TIMER,DRYER
131450300 131450300 TRAP,LINT BLADE ASSY
134200801 134200801 TUBE
131451600 131451600 TUBE,EXHAUST ,REAR ,W/MTG BRACKET
131456800 131456800 TUBE,EXHAUST ,SIDE/BOTTOM ,OPTIONAL KIT
5308015194 5308015194 UNION
5303207409 5303207409 VALVE,GAS
137552900 137552900 VANE,STRAIGHT
134005000 134005000 WIRING HARNESS
134264700 134264700 WIRING HARNESS
