Model Image
Manufacturer

Electrolux

Model Number

CPEF3081MFA

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
316091900 316091900 BASE
316563501 316563501 BASE
316549601 316549601 BOTTOM
316530800 316530800 BRACKET
316214202 316214202 BRACKET
316093200 316093200 BRACKET
316498200 316498200 BRACKET
316404100 316404100 BRACKET
316563400 316563400 BRACKET
316574200 316574200 BRACKET
316573600 316573600 BRACKET
316530403 316530403 BRACKETAIRWASH GLA
316286300 316286300 BRACKETBODYSIDE
316580800 316580800 BRACKETHINGE
316546703 316546703 CAP
316546702 316546702 CAP
316546601 316546601 CAP
316427603 316427603 CHANNEL-ELEMENT MTG RAW,ELEMEN
316468100 316468100 CLEANER
316095800 316095800 CLIP
316461700 316461700 CLIP
316408000 316408000 CLIP

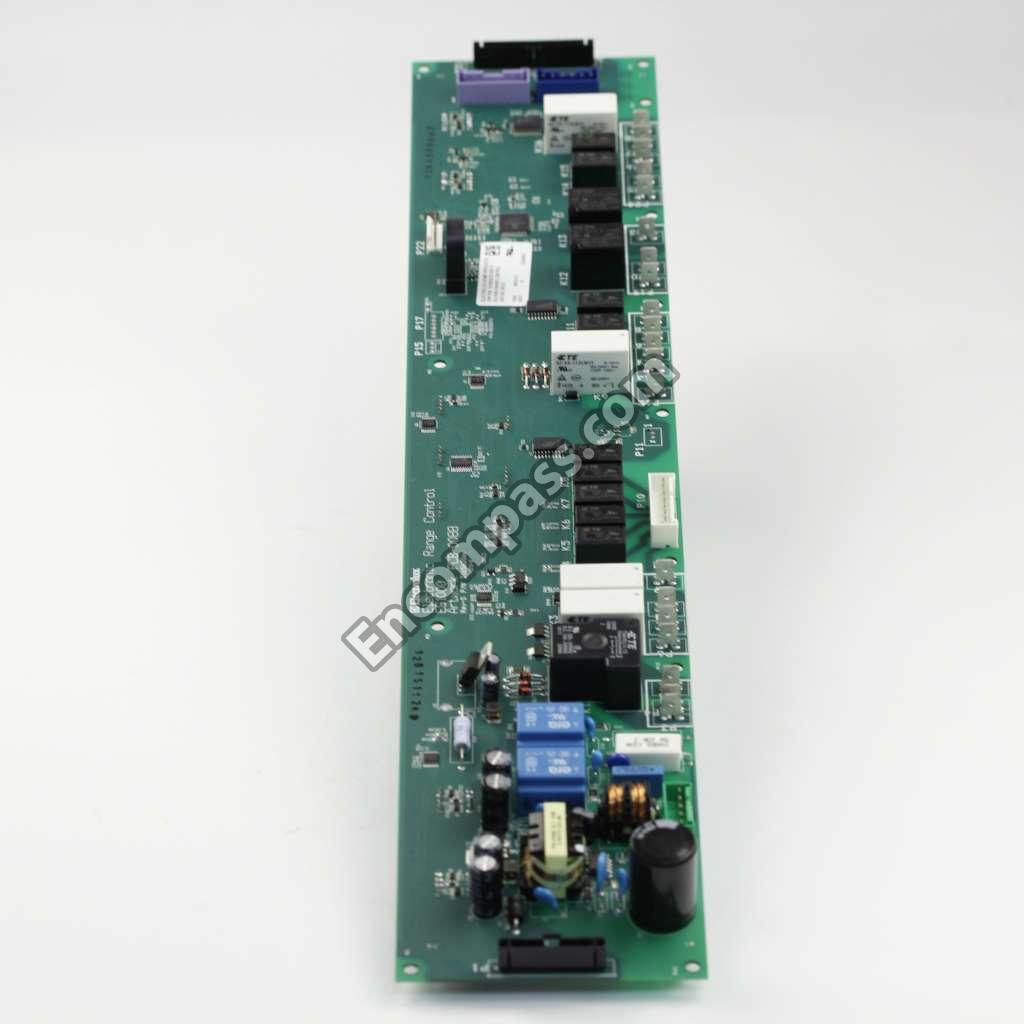

316562016 316562016 CONTROLLER
318113111 318113111 CORD
316504603 316504603 COVER
316283600 316283600 COVER
316408901 316408901 DRAWER

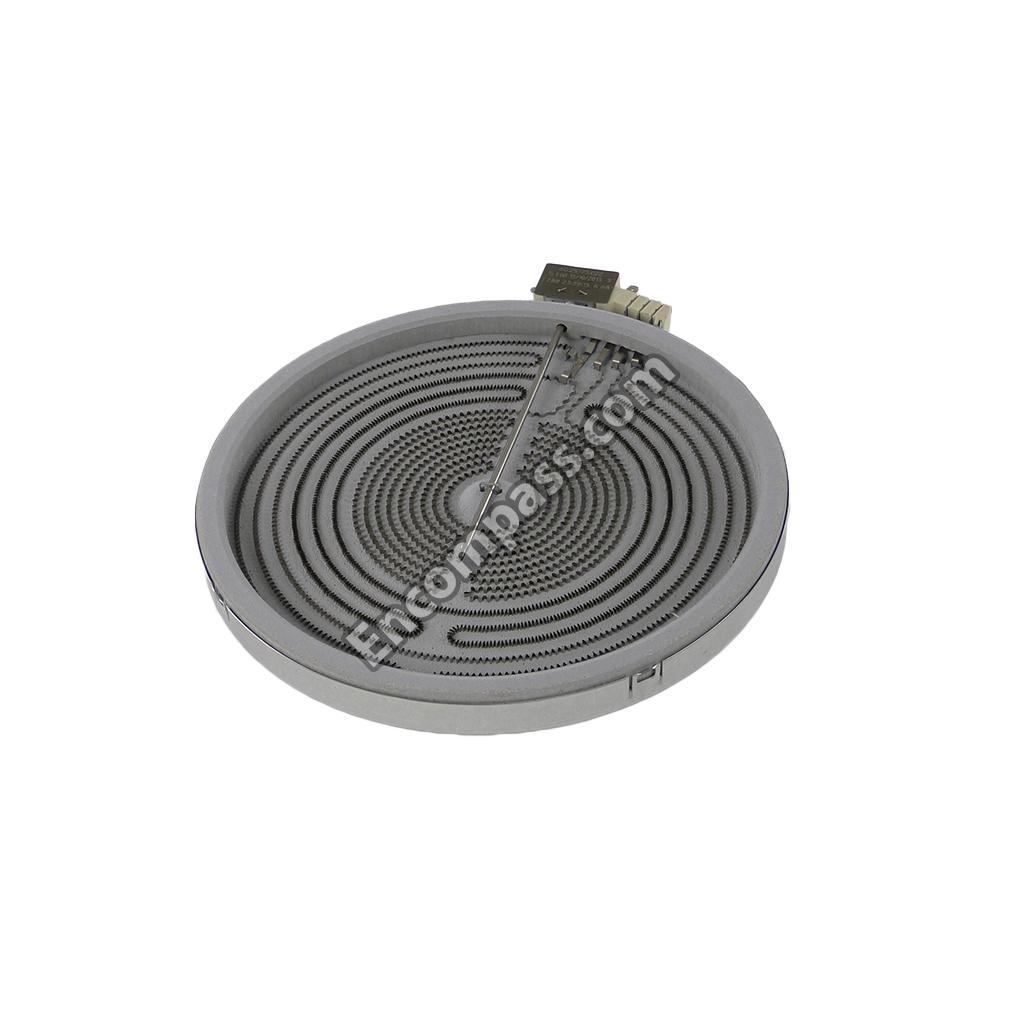

318178110 318178110 ELEMENT
316280701 316280701 ELEMENT
316437300 316437300 ELEMENT
316563600 316563600 ELEMENT
316506100 316506100 ELEMENT
316560400 316560400 ELEMET
318398302 318398302 FAN BLADE
316452721 316452721 GLASS
316502601 316502601 GLASS
316502500 316502500 GLASS
316415002 316415002 GLIDE
316415001 316415001 GLIDE
316456700 316456700 GLIDE
316551500 316551500 HANDLE
316525623 316525623 HARNESS
316580452 316580452 HARNESS
316525631 316525631 HARNESS
316456308 316456308 HINGE
316082000 316082000 INSERT
316513000 316513000 INSULATION
316406601 316406601 INSULATION
316565400 316565400 INSULATION
316565300 316565300 INSULATION
316565500 316565500 INSULATION
316433603 316433603 LABEL
316510700 316510700 LAMP
316405800 316405800 LATCH ASSEMBLY
316498900 316498900 LEVELLING LEG ASSEMBLY
316403303 316403303 LINER
316503613 316503613 LINEROVEN DOOR
316547900 316547900 LINK
316282957 316282957 MAINTOP ASSEMBLY
316549118 316549118 MEMBRANE
316256100 316256100 MOTOR
316464300 316464300 MOTOR-LATCH
316136600 316136600 NUT
316205500 316205500 NUT
316081900 316081900 PAN
5304492395 5304492395 PANEL
316572402 316572402 PANEL
316533801 316533801 PLATE
316577600 316577600 PLUG
316490000 316490000 PROBE
316425900 316425900 RACK
316425600 316425600 RACK
316575600 316575600 RACK
316496207 316496207 RACK
316419400 316419400 RACK
316441300 316441300 RECEPTACLE
316581300 316581300 RETAINER
316203500 316203500 ROD
316516802 316516802 SCREW
316001013 316001013 SCREW
5303285179 5303285179 SCREW
3131732 3131732 SCREW
316282700 316282700 SCREW
5303289910 5303289910 SCREW
316116000 316116000 SCREW
316418900 316418900 SCREW
316279600 316279600 SCREW
316272900 316272900 SCREW
316001003 316001003 SCREW
316418901 316418901 SCREW
316021110 316021110 SCREW
316021109 316021109 SCREW
316021105 316021105 SCREW
316089500 316089500 SCREW
5308014215 5308014215 SCREW
316405000 316405000 SEAL
316503800 316503800 SHIELD
316408201 316408201 SHIELD
316093300 316093300 SHIELD
316402100 316402100 SHIELD
316234100 316234100 SHIELD
316404600 316404600 SHIELD
316570901 316570901 SHIELD
316283200 316283200 SHIELD
316572301 316572301 SHIELD
316572300 316572300 SHIELD
316557600 316557600 SHIELD
316234013 316234013 SHIELD
316502101 316502101 SPACER
316284100 316284100 SPACER
316517600 316517600 SPACER
316505801 316505801 SUPPORT
316429100 316429100 SUPPORT
316445500 316445500 SWITCH
316093502 316093502 THERMO DISC
316208304 316208304 TUBE
316208401 316208401 VENT TUBE
316008401 316008401 WASHER
316506259 316506259 WIRING HARNESS
