Model Image
Manufacturer

Electrolux

Model Number

CPEW2785KF1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
318357001 318357001 ADAPTER
318259213 318259213 BACK
318260511 318260511 BAFFLE
318272901 318272901 BOX
318394441 318394441 BOX & WIRES ASSEMBLY
318370600 318370600 BRACKET
318382301 318382301 BRACKET
318242702 318242702 BRACKET
318260623 318260623 BRACKET
318251300 318251300 BRACKET
318256201 318256201 BRACKET
5303013071 5303013071 BULB/LAMP
318347800 318347800 CHIMNEY
316462867 316462867 CLOCK/TIMER
318262101 318262101 COVER
318219405 318219405 COVER
318260101 318260101 COVER
318123910 318123910 DEFLECTOR
318927811 318927811 DOOR ASSEMBLY
318072577 318072577 DUCT

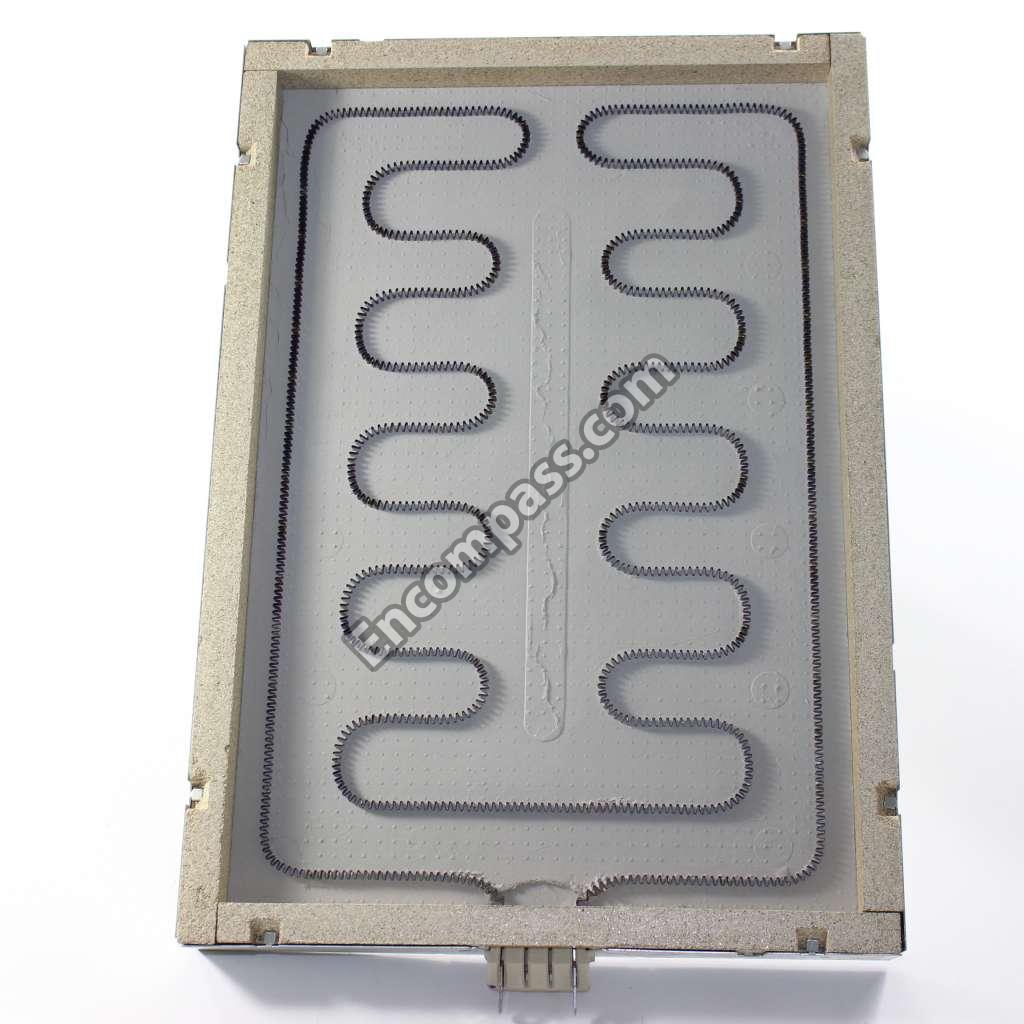

318255504 318255504 ELEMENT
318902502 318902502 ELEMENT
318398302 318398302 FAN BLADE
318056224 318056224 FRONT
318053126 318053126 GASKET
318212200 318212200 GLASS
318919700 318919700 HANDLE
318567105 318567105 HINGE
318222400 318222400 HOUSING
318929703 318929703 INSERT
316082000 316082000 INSERT
318372015 318372015 INSULATION
318372006 318372006 INSULATION
318330510 318330510 INSULATION
318330503 318330503 INSULATION
318268099 318268099 INSULATION
318386110 318386110 INSULATION
318259656 318259656 LINER
318261810 318261810 LINER
318073028 318073028 MOTOR
5303323144 5303323144 NUT
316081900 316081900 PAN
318260001 318260001 PANEL
318368300 318368300 PIN
318389400 318389400 PLATE
5303320846 5303320846 PLATE
318003000 318003000 PLATE
316217002 316217002 PROBE
318919800 318919800 RACK
318922300 318922300 RACK
318926804 318926804 RACK
318561101 318561101 RECEPTACLE
5304400195 5304400195 RETAINER
5304415832 5304415832 SCREW
5304461333 5304461333 SCREW
5303211311 5303211311 SCREW
5303300265 5303300265 SCREW
5303323139 5303323139 SCREW
5303323130 5303323130 SCREW
5303323129 5303323129 SCREW
5303323277 5303323277 SCREW
5303324184 5303324184 SCREW
5304436875 5304436875 SCREW
5304454881 5304454881 SCREW
5304470882 5304470882 SCREW
5304472906 5304472906 SCREW
318389000 318389000 SEAL
318259105 318259105 SHIELD
318258920 318258920 SHIELD
318257301 318257301 SHIELD
318264700 318264700 SPACER
318165800 318165800 SPACER
316517600 316517600 SPACER
318531703 318531703 SPACER
318531800 318531800 SPACER
318192400 318192400 SPRING
5304403015 5304403015 SUPPORT
318172904 318172904 SUPPORT
316445501 316445501 SWITCH
318004900 318004900 SWITCH
318260401 318260401 TRIM
318257721 318257721 TRIM
318259863 318259863 TRIM
318249409 318249409 TUBE
318142100 318142100 WASHER
318231870 318231870 WIRING HARNESS
318402209 318402209 WIRING HARNESS
