Model Image
Manufacturer

Electrolux

Model Number

CRE3530LWA

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
316048414 316048414 6IN EMLEMENT
316048413 316048413 8IN ELEMENT /USE 3180670
316201300 316201300 BACK
316081200 316081200 BRACKET
316419200 316419200 BRACKET,CLOCK,(2)
316567600 316567600 BRACKETBODYSIDE
316408000 316408000 CLIP
316233500 316233500 COVER
316233400 316233400 COVER
316457801 316457801 COVER
316011503 316011503 DRAWER-UTILITY
316075104 316075104 ELEMENT
316458300 316458300 GLASS
316088600 316088600 GLASS
316456901 316456901 HANDLE
316580400 316580400 HARNESS
316580000 316580000 HARNESS

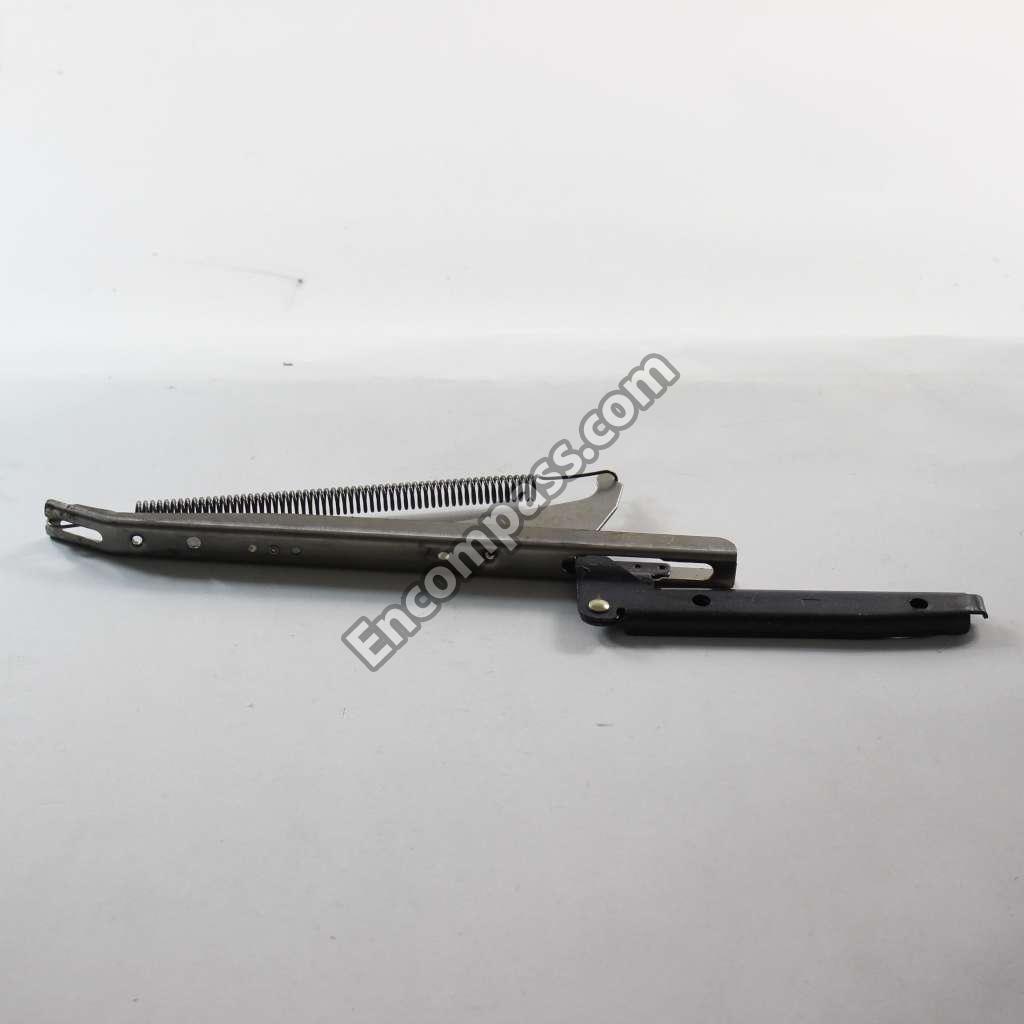

316566202 316566202 HINGE
316436600 316436600 HINGE BRACKET
316566203 316566203 HINGEOVN DOOR LH G
316082000 316082000 INSERT
316236802 316236802 INSULATION
316047707 316047707 INSULATION
316054202 316054202 INSULATION
316223030 316223030 KNOB
316433600 316433600 LABEL
316498900 316498900 LEVELLING LEG ASSEMBLY
316022500 316022500 LIGHT/LAMP
316230622 316230622 LINER
316231500 316231500 LINER
316202388 316202388 MAIN TOP
5303017715 5303017715 MEDALLION
316205500 316205500 NUT
316455400 316455400 OVEN CONTROL BOARD
316220700 316220700 OVERLAY
316081900 316081900 PAN
316202707 316202707 PANEL
316231305 316231305 PANEL
316495903 316495903 PANEL
316416057 316416057 PANEL
316542600 316542600 PLATE
316444100 316444100 PLATEWEIGHT
3203550 3203550 PLUG
316210800 316210800 PLUG
316067902 316067902 RACK
316116400 316116400 RECEPTACLE
5303272476 5303272476 RETAINER
316057601 316057601 ROD
316001014 316001014 SCREW
316089500 316089500 SCREW
5303285179 5303285179 SCREW
5303271648 5303271648 SCREW
316116000 316116000 SCREW
316272900 316272900 SCREW
316001003 316001003 SCREW
316021108 316021108 SCREW
316021105 316021105 SCREW
316021110 316021110 SCREW
5308014215 5308014215 SCREW
316245600 316245600 SEAL
316239700 316239700 SEAL
316222709 316222709 SHIELD
316422304 316422304 SHIELD
316547400 316547400 SHIELD
316234012 316234012 SHIELD
316203400 316203400 SUPPORT
316206300 316206300 SUPPORT
316411403 316411403 SUPPORT
316411402 316411402 SUPPORT
316436000 316436000 SWITCH
316448701 316448701 SWITCH
316436001 316436001 SWITCH FOR RANGE/STOVE
5303935271 5303935271 TERMINAL BLOCK KIT
316073605 316073605 TUBE
316008401 316008401 WASHER
