Model Image
Manufacturer

Electrolux

Model Number

CRE3870LWF

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
316112005 316112005 ANTI TIP KIT
316214202 316214202 BRACKET
316498200 316498200 BRACKET
316506000 316506000 BRACKET
316081200 316081200 BRACKET
316266001 316266001 BRACKET
316286300 316286300 BRACKETBODYSIDE
316580800 316580800 BRACKETHINGE
316575500 316575500 CAP
316427603 316427603 CHANNEL-ELEMENT MTG RAW,ELEMEN
316468100 316468100 CLEANER
316461700 316461700 CLIP
316408000 316408000 CLIP
316557114 316557114 CLOCK/TIMER
316283600 316283600 COVER
316408703 316408703 DRAWER
318178110 318178110 ELEMENT
316282600 316282600 ELEMENT
316199900 316199900 ELEMENT
316117502 316117502 GLASS
316117503 316117503 GLASS
316566406 316566406 GLASS ASSEMBLY
316407400 316407400 GLIDE
316407301 316407301 GLIDE
316270201 316270201 HANDLE

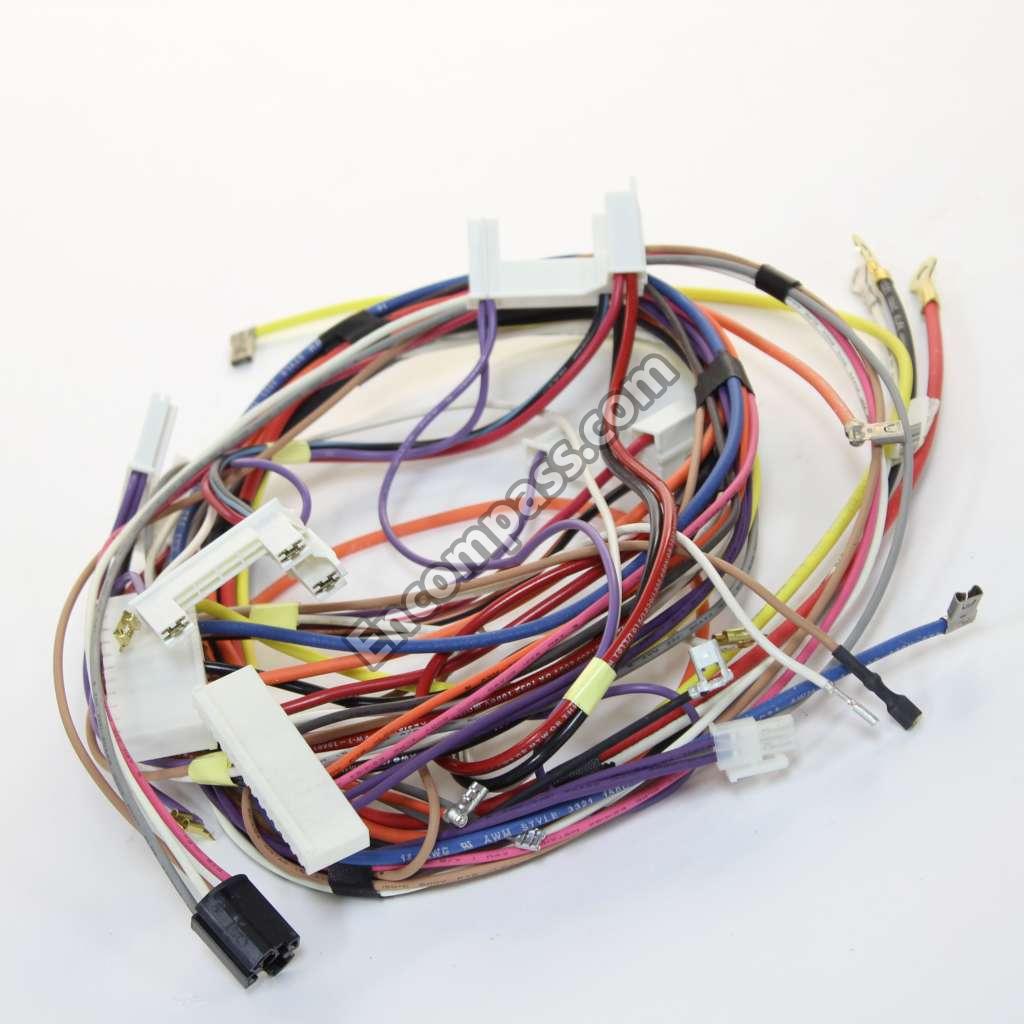

316580277 316580277 HARNESS
316456309 316456309 HINGE
316082000 316082000 INSERT
316405600 316405600 INSULATION
316406602 316406602 INSULATION
316406500 316406500 INSULATION
316403803 316403803 INSULATION
316542200 316542200 INSULATOR
316223030 316223030 KNOB
316405800 316405800 LATCH ASSEMBLY
318406100 318406100 LENS
316498900 316498900 LEVELLING LEG ASSEMBLY
316022500 316022500 LIGHT/LAMP
316423701 316423701 LINER
316403300 316403300 LINER
316456236 316456236 MAIN TOP
316464300 316464300 MOTOR-LATCH
316205500 316205500 NUT
316419101 316419101 OVERLAY
316081900 316081900 PAN
316403501 316403501 PANEL
316401802 316401802 PANEL
316400601 316400601 PANEL
316542600 316542600 PLATE
316490000 316490000 PROBE
316496202 316496202 RACK
316135401 316135401 RANGE SURFACE ELEMENT
316116400 316116400 RECEPTACLE
316441300 316441300 RECEPTACLE
316087500 316087500 RETAINER
316203500 316203500 ROD
316433300 316433300 SCREW
316116000 316116000 SCREW
316282700 316282700 SCREW
5303289910 5303289910 SCREW
316001003 316001003 SCREW
316418901 316418901 SCREW
316418900 316418900 SCREW
316272900 316272900 SCREW
316021109 316021109 SCREW
316021105 316021105 SCREW
316021110 316021110 SCREW
316089500 316089500 SCREW
5308014215 5308014215 SCREW
316260800 316260800 SCREWSHOULDER
316405000 316405000 SEAL
316404600 316404600 SHIELD
316283200 316283200 SHIELD
316234100 316234100 SHIELD
316400701 316400701 SHIELD
316281800 316281800 SHIELD
316234012 316234012 SHIELD
316406312 316406312 SHIELDWOOL
5304503443 5304503443 SPACER
316517600 316517600 SPACER
316404000 316404000 SUPPORT
316411403 316411403 SUPPORT
316411402 316411402 SUPPORT
316445501 316445501 SWITCH
316436000 316436000 SWITCH
316448701 316448701 SWITCH
316436001 316436001 SWITCH FOR RANGE/STOVE
5303935271 5303935271 TERMINAL BLOCK KIT
5303935318 5303935318 TRIM KITDOOR
316208304 316208304 TUBE
316208401 316208401 VENT TUBE
