Model Image
Manufacturer

Electrolux

Model Number

CRER442AS2

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5308027429 5308027429 + ADHESIVE,HIGH TEMP
131843500 131843500 + LAMP
134101400 134101400 + TERMINAL BLOCK,MAIN
134122532 134122532 ASMY-FS DRUM-GAS-GALV
3204254 3204254 BAFFLE,HEATER SHIELD
5303281019 5303281019 BALL,GROUNDING
131825900 131825900 BEARING,DRUM SUPPORT
131775600 131775600 BLOWER ASSY,HOUSING ,W/COVER & WHEEL
131469100 131469100 BRACKET
131993040 131993040 BRACKET
131724300 131724300 BRACKET,BEARING SUPPORT
131785200 131785200 BRACKET,ELEC POWER CORD ,KNOCK OUT
131629400 131629400 BUZZER
131419800 131419800 CLAMP,MOTOR MTG.
131063700 131063700 CLIP
5303281020 5303281020 CLIP,BALL ,STEEL ,FLAT NUT
131197000 131197000 CLIP,CONSOLE MTG
131704600 131704600 CLIP,FRONT ,CABINET BOTTOM
5303281074 5303281074 CLIP,GUIDE ,(3)
3205821 3205821 CLIP,TOP-TO-FRONT
134019900 134019900 CLOSURE
131363200 131363200 COVER
131845800 131845800 COVER,LINT HOUSING ,W/MOIST SENSOR
131658800 131658800 DOOR CATCH
131621903 131621903 DUCT,AIR
134019600 134019600 END CAP
134019610 134019610 END CAP
131129900 131129900 GASKET,DOOR SEAL
137513300 137513300 GLIDE,DRUM
131644700 131644700 HANDLE,DOOR ,WHITE
131553900 131553900 HEATER ASSY,W/HOUSING/FELT
131863007 131863007 IDLER ARM
131474700 131474700 INSULATION
131472100 131472100 INSULATOR, HEATER HOUSING

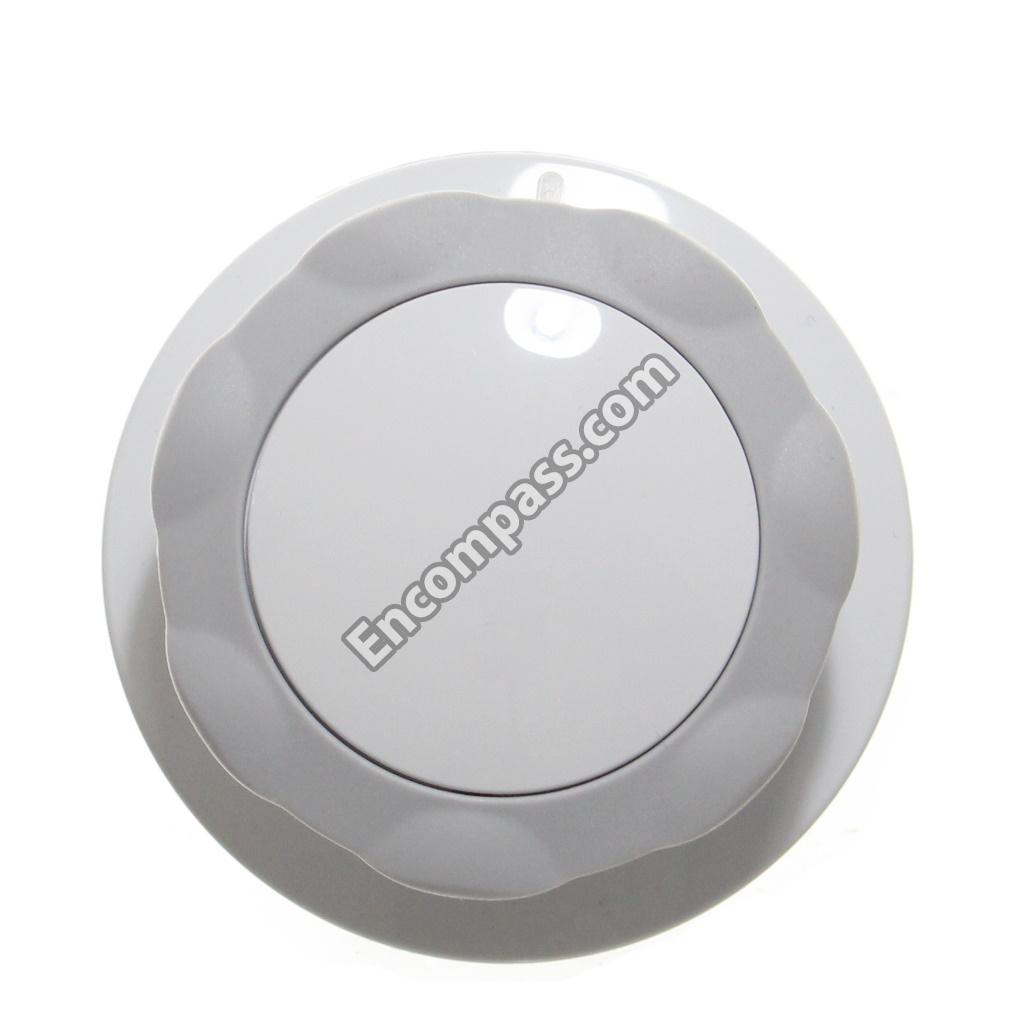

134886700 134886700 KNOB,TIMER ,WHITE/GRAY
131435200 131435200 LOCK
5303307893 5303307893 LUBRICANT,HIGH TEMP
131560100 131560100 MOTOR & PULLEY ASSY
131793201 131793201 PANEL
131844104 131844104 PANEL
131992900 131992900 PANEL
134086802 134086802 PANEL,DRYER TOP ,WHITE ,CONSOLE MTG
131789303 131789303 PANEL,OUTER DOOR ,WHITE
131633200 131633200 PLUG
131397000 131397000 PLUG,DOME ,WHITE
5303281153 5303281153 REAR BEARING KIT,INCLUDES 5,6 ,12,13,14,18,32
131892100 131892100 SCREW
131205100 131205100 SCREW
131202300 131202300 SCREW
131017900 131017900 SCREW
131205300 131205300 SCREW,10-16 X 0.750
131477000 131477000 SCREW,10-16AB X 0.375
131205400 131205400 SCREW,BRACKET MTG. ,10-16B X 1.375 ,CR/SQ DRIVE
134156200 134156200 SCREW,FLAT HEAD `8-18AB X 0.44 ,CR/SQ DRIVE
5303015671 5303015671 SCREW,HEX WASHER HEAD ,8-18 X 0 .375 ,CUP POINT
131527400 131527400 SCREW,LEVELING LEG
131168200 131168200 SCREW,PAN HEAD ,8-18B X 0.31
131382300 131382300 SCREW,QUADREX HEAD ,10-14 X 1.00 ,VANE MTG.,SPECIAL
131243800 131243800 SCREW-BRKT TOP,PAN HD LOCKING ,
131633300 131633300 SEAL-EXHAUST TUBE
134096100 134096100 SPACER
131749800 131749800 SPACER
131601000 131601000 SPRING,IDLER ARM
134904500 134904500 SWITCH,2 POSITION
134813601 134813601 SWITCH,DOOR ,WITH DRUM LIGHT
08015934 08015934 SWITCH-OVEN SELECT
3202786 3202786 TERMINAL BLOCK,HEATER HOUSING
134120900 134120900 THERMAL LIMITER

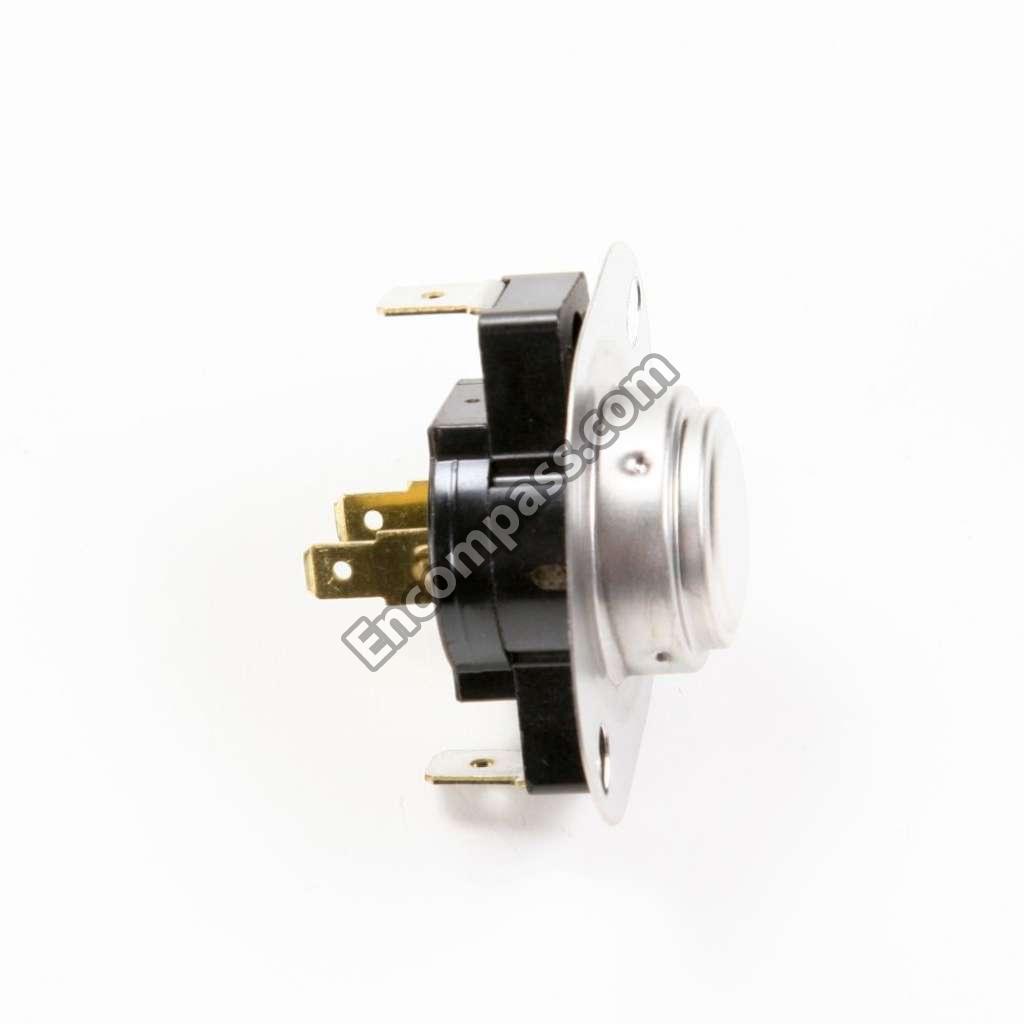

134048800 134048800 THERMOSTAT,CONTROL
3204267 3204267 THERMOSTAT,SAFETY
131717300 131717300 TIMER,DRYER
131450300 131450300 TRAP,LINT BLADE ASSY
134103400 134103400 TRIMPLATE FDE/B1RRH
131451600 131451600 TUBE,EXHAUST ,REAR ,W/MTG BRACKET
131456800 131456800 TUBE,EXHAUST ,SIDE/BOTTOM ,OPTIONAL KIT
137552900 137552900 VANE,STRAIGHT
131846600 131846600 WIRING HARNESS
131629600 131629600 WIRING HARNESS
