Model Image
Manufacturer

Electrolux

Model Number

CRT185IPB3

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
218676004 218676004 BAND-DECORATIVE
5304469386 5304469386 BEARING INLET
240527102 240527102 BEARING-HINGE
240352703 240352703 BOX
240313803 240313803 BRACKET-CTR HINGE
5303292397 5303292397 BRACKET-MOTOR MTG
5303292396 5303292396 BRACKET-MOTOR MTG
218721500 218721500 BRACKETLEVELING
241555401 241555401 BULB-LAMP
5304469402 5304469402 CAM
5304455846 5304455846 CLAMP
5304469383 5304469383 CLAMP
240396801 240396801 CLAMP-TUBE
5304456288 5304456288 CLAMP-WIRING HARNES
218515401 218515401 CLIP
218990901 218990901 CLIP-WIRE
240542601 240542601 CLIP-WIRING HARNESS
242037701 242037701 CLIPCOMPRESSOR MTG
241785404 241785404 CONDENSER
240385201 240385201 CONTAINER
241613502 241613502 CONTROL-HUMIDITY
241613501 241613501 CONTROL-HUMIDITY
297259503 297259503 CONTROLLER
241733907 241733907 COVER
241652214 241652214 COVER-EVAP COIL
240354404 240354404 COVER-UPPER HINGE

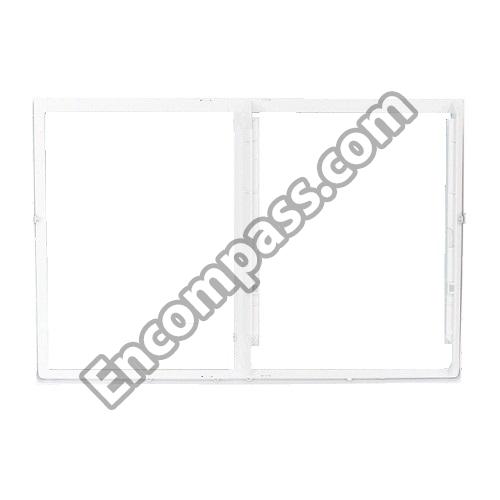

240364787 240364787 COVERCRISPER PAN
5304469385 5304469385 COVERICE MAKER
241523701 241523701 DAMPER-FAN COVER
241542001 241542001 DEFLECTOR
240362601 240362601 DIFFUSER
240312415 240312415 DOOR STOP
240312405 240312405 DOOR STOP
240337712 240337712 DOOR-DAIRY
240410203 240410203 DOOR-FRZR
240410305 240410305 DOOR-REFR
5304469384 5304469384 EJECTORICE
240524102 240524102 FAN BLADE
5308000010 5308000010 FAN BLADE
241872509 241872509 GASKET-FRZR DOOR
241872512 241872512 GASKET-REFR DOOR
5304469403 5304469403 GEAR
241839407 241839407 GRILLE/KICKPLATE
240405201 240405201 GROMMET
5304500407 5304500407 GROMMET
218513300 218513300 GROMMET-COMPR MTG
242019701 242019701 HARNESSWIRING
5304469390 5304469390 HARNESSWIRING
5303918263 5303918263 HEAT EXCHANGER KIT
242044020 242044020 HEATERDEFROST
5303918222 5303918222 HOT TUBE REPAIR KIT
5304469379 5304469379 HOUSING
5304469378 5304469378 ICE STRIPPER
240350608 240350608 INSERT-PAN COVER
241551902 241551902 INSULATION BLOCK
5304469406 5304469406 INSULATOR
240360801 240360801 KNOB
240367001 240367001 KNOB-DAMPER CONTROL
242115801 242115801 LABEL
5304469382 5304469382 LEVER ARM
5304469413 5304469413 MOLDICE MAKER
242018404 242018404 MOTORCONDENSER FAN
241854301 241854301 MOTORFAN
5304469407 5304469407 MOTORICE MAKER SVO
5304469399 5304469399 MOUNTING PLATE
5304469398 5304469398 MOUNTING PLATE
240337103 240337103 PAN-CRISPER
240530811 240530811 PAN-MEAT
240516502 240516502 PIN-LOWER HINGE
5304469400 5304469400 PLATEVALVE SWITCH
240494003 240494003 PLUG-BUTTON
240381303 240381303 PLUG-BUTTON
5303208309 5303208309 PLUG-HOLE
215774918 215774918 PLUGBUTTON
240534801 240534801 RACK-DOOR
240534701 240534701 RACK-DOOR
240534901 240534901 REFRIG DOOR SHELF RACK BAR
5304455655 5304455655 RIVET
5304418225 5304418225 ROLLER
241889002 241889002 ROLLER ASSEMBLY
241665606 241665606 S/APUR COMPR BASE
218362501 218362501 SCREW
218897004 218897004 SCREW
241710601 241710601 SCREW
241500304 241500304 SCREW
240433204 240433204 SCREW
218252201 218252201 SCREW
240383406 240383406 SCREW
5304455650 5304455650 SCREW
5304455649 5304455649 SCREW
5304469395 5304469395 SCREW
5304469410 5304469410 SCREW
5304469393 5304469393 SCREW
5304469391 5304469391 SCREW
5304469392 5304469392 SCREW
5304456287 5304456287 SCREW,HEX WASHER HEAD,8-15A X
240442707 240442707 SCREW-#10-32 X 3/4
240359403 240359403 SCREW-FAN SHROUD
240578902 240578902 SCREW-HINGE MTG
5304469408 5304469408 SCREWTIMING ADJ
241730402 241730402 SHELFSPILLSAFE
241730401 241730401 SHELFSPILLSAFE
241935602 241935602 SHROUDCONDENSER

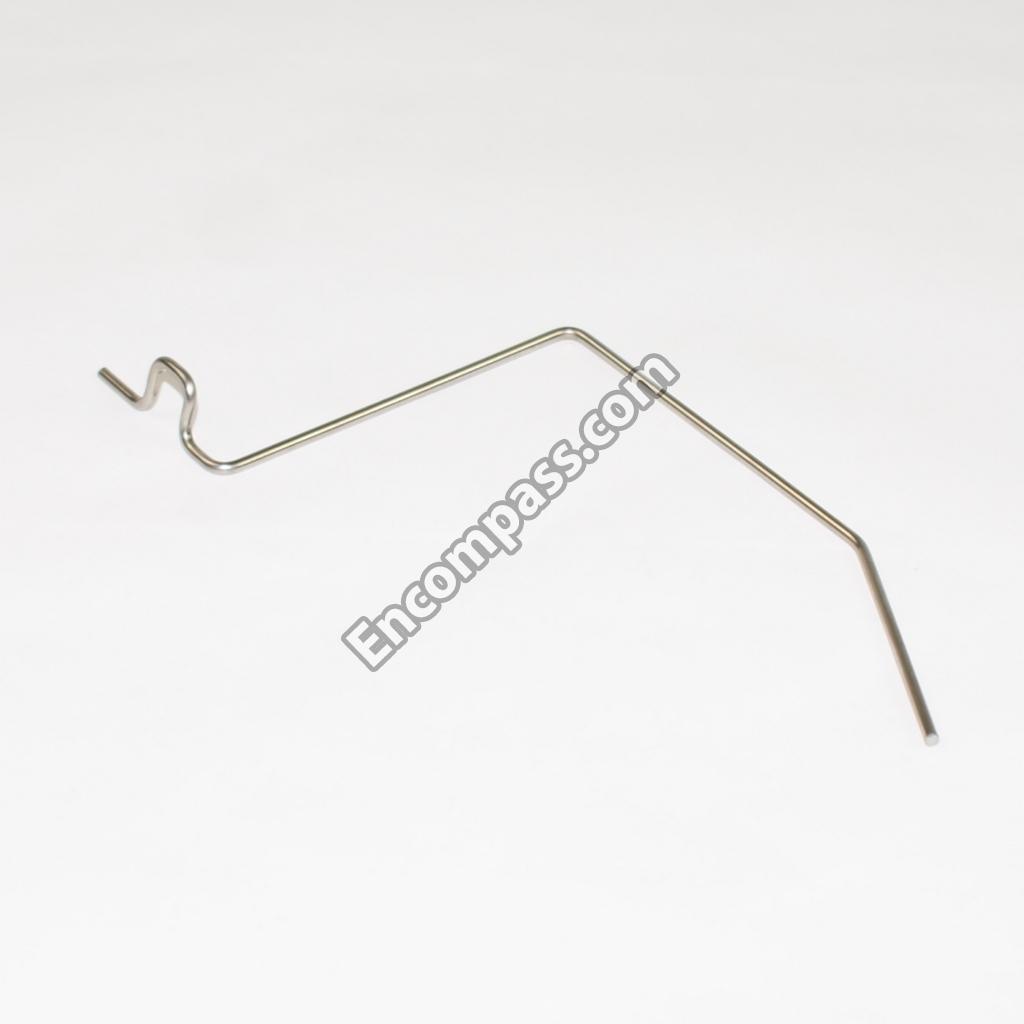

5304469377 5304469377 SHUTOFF ARM
241559801 241559801 SOCKET-LIGHT
240336803 240336803 SPACER-HINGE
5304469404 5304469404 SPACERHOLD SWITCH
5304469401 5304469401 SPRING,TIMING ADJUST
5304469396 5304469396 SPRINGSHUTOFF ARM
241715901 241715901 STRAP-COVER
5308000110 5308000110 STRAP-EVAP/HEATER
241554901 241554901 SWITCH-LIGHT/LAMP
5304469388 5304469388 SWITCHMICRO
5304469405 5304469405 SWITCHMICRO
240346701 240346701 TAPE-FOAM SEAL
5304469387 5304469387 THERMOSTAT ASSEMBLY
5303918634 5303918634 THERMOSTAT KIT
215870636 215870636 TRIM-HANDLE
242161202 242161202 TRIMCABINET CORNER
241801301 241801301 TROUGH-DRAIN
240500801 240500801 TUBE-DRAIN
241844602 241844602 TUBECONNECTOR

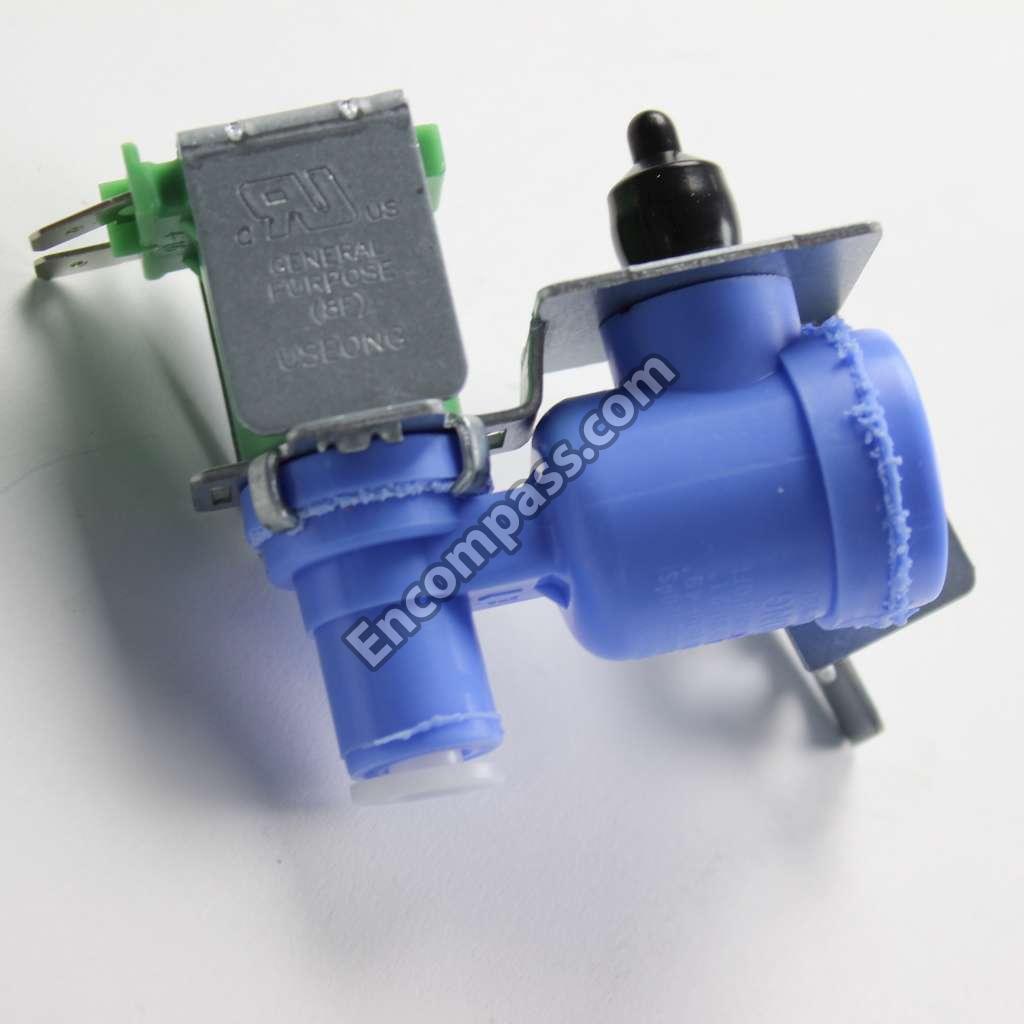

242252603 242252603 VALVEWATER
215474201 215474201 WASHER
240311303 240311303 WASHER
5304469381 5304469381 WASHER
241812301 241812301 WASHERCOMPR MTG
240388701 240388701 WIRING HARNESS
